5 Steps to Integrate OpenTelemetry with Spring Boot Application

Β· 11 min read
Ankit Anand

OpenTelemetry can auto-instrument your Java Spring Boot application to capture telemetry data from a number of popular libraries and frameworks that your application might be using. It can be used to collect logs, metrics, and traces from your Spring Boot application. Let's learn how it works.

Cover Image

OpenTelemetry is a vendor-agnostic instrumentation library that is used to generate telemetry data like logs, metrics, and traces. Using OpenTelemetry and SigNoz, you can collect logs, metrics, and traces and visualize everything under a single pane of glass.

In this tutorial, you will auto-instrument a sample spring boot application for traces with OpenTelemetry Java Jar agent. You will also configure Micrometer and Spring Boot actuator to expose JVM metrics in Prometheus format. Lastly, we will also talk briefly about collecting logs from Spring Boot application using OpenTelemetry.

What is OpenTelemetry?​

OpenTelemetry is a set of API, SDKs, libraries, and integrations aiming to standardize the generation, collection, and management of telemetry data(logs, metrics, and traces). OpenTelemetry is a Cloud Native Computing Foundation project created after the merger of OpenCensus(from Google) and OpenTracing(From Uber).

The data you collect with OpenTelemetry is vendor-agnostic and can be exported in many formats. Telemetry data has become critical to observe the state of distributed systems. With microservices and polyglot architectures, there was a need to have a global standard. OpenTelemetry aims to fill that space and is doing a great job at it thus far.

There are two important components in OpenTelemetry that comes in handy to collect telemetry data:

  • Client Libraries
    For Java applications, OpenTelemetry provides a JAR agent that can be attached to any Java 8+ application. It can detect a number of popular libraries and frameworks and instrument applications right out of the box for generating telemetry data.

  • OpenTelemetry Collector
    It is a stand-alone service provided by OpenTelemetry. It can be used as a telemetry-processing system with a lot of flexible configurations to collect and manage telemetry data.

Typically, here's how an application architecture instrumented with OpenTelemetry looks like.

OpenTelemetry Architecture
Architecture - How OpenTelemetry fits in an application architecture. OTel collector refers to OpenTelemetry Collector

OpenTelemetry provides client libraries and agents for most of the popular programming languages. There are two types of instrumentation:

  • Auto-instrumentation
    OpenTelmetry can collect data for many popular frameworks and libraries automatically. You don’t have to make any code changes.
  • Manual instrumentation
    If you want more application-specific data, OpenTelemetry SDK provides you with the capabilities to capture that data using OpenTelemetry APIs and SDKs.

For Spring Boot applications, we can use the OpenTelemetry Java Jar agent. We just need to download the latest version of the Java Jar agent and run the application with it.

OpenTelemetry helps to generate and collect telemetry data from your application which is then sent to an observability backend like SigNoz
OpenTelemetry helps generate and collect telemetry data from Spring Boot applications which can then be sent to SigNoz for storage, visualization, and analysis.

OpenTelemetry does not provide storage and visualization layer for the collected data. The advantage of using OpenTelemetry is that it can export the collected data in many different formats. So you're free to choose your telemetry backend. Natively, OpenTelemetry supports a wire protocol known as OTLP. This protocol sends the data to OpenTelemetry Collector as shown in the diagram above.

In this tutorial, we will use SigNoz, an open-source APM as the backend and visualization layer.

Steps to get started with OpenTelemetry for Spring Boot application:

  • Installing SigNoz
  • Installing sample Spring Boot app
  • Auto instrumentation with OpenTelemetry and sending data to SigNoz

Step 1 - Installing SigNoz​

SigNoz can be installed on macOS or Linux computers in just three steps by using a simple install script.

The install script automatically installs Docker Engine on Linux. However, on macOS, you must manually install Docker Engine before running the install script.

git clone -b main https://github.com/SigNoz/signoz.git
cd signoz/deploy/
./install.sh

You can visit our documentation for instructions on how to install SigNoz using various methods.

You can also sign up for SigNoz cloud. The cloud version gives you access to some paid-only features as well as customer support. You can try SigNoz cloud for free for 30 days.

When you are done installing SigNoz, you can access the UI atΒ http://localhost:3301

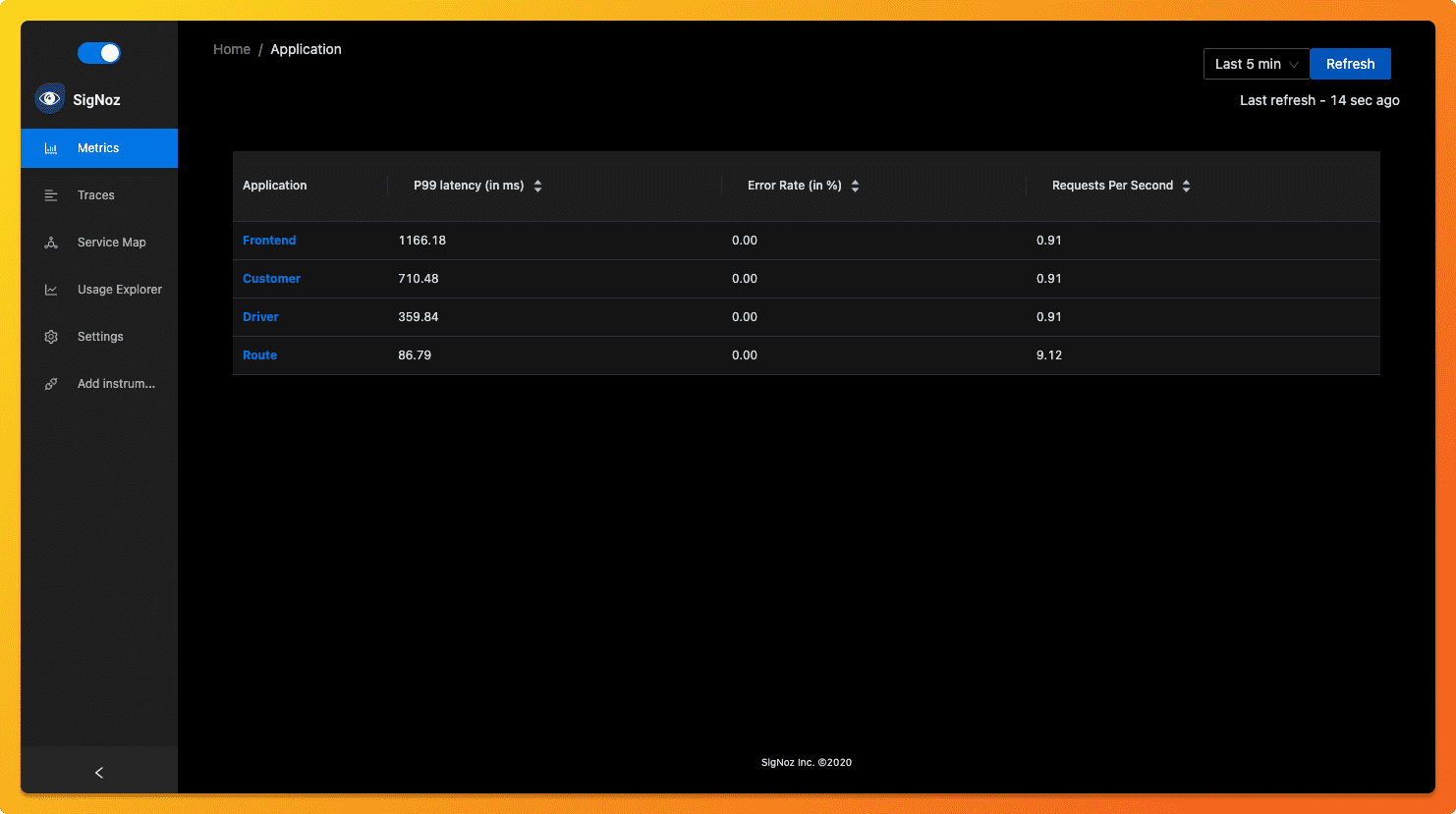

SigNoz dashboard
SigNoz dashboard - It shows services from a sample app that comes bundled with the application

Step 2 - Installing Sample Spring Boot application​

If you don't have Java installed, first install it from the official website.

For this tutorial, we will use a sample Spring Boot application built using Maven. You can find the code for the application at its GitHub repo.

Git clone the repository and go to the root folder

git clone https://github.com/SigNoz/spring-petclinic.git
cd spring-petclinic

Run the application using the following commands.

./mvnw package
java -jar target/*.jar

You can now access the application UI here: http://localhost:8090/

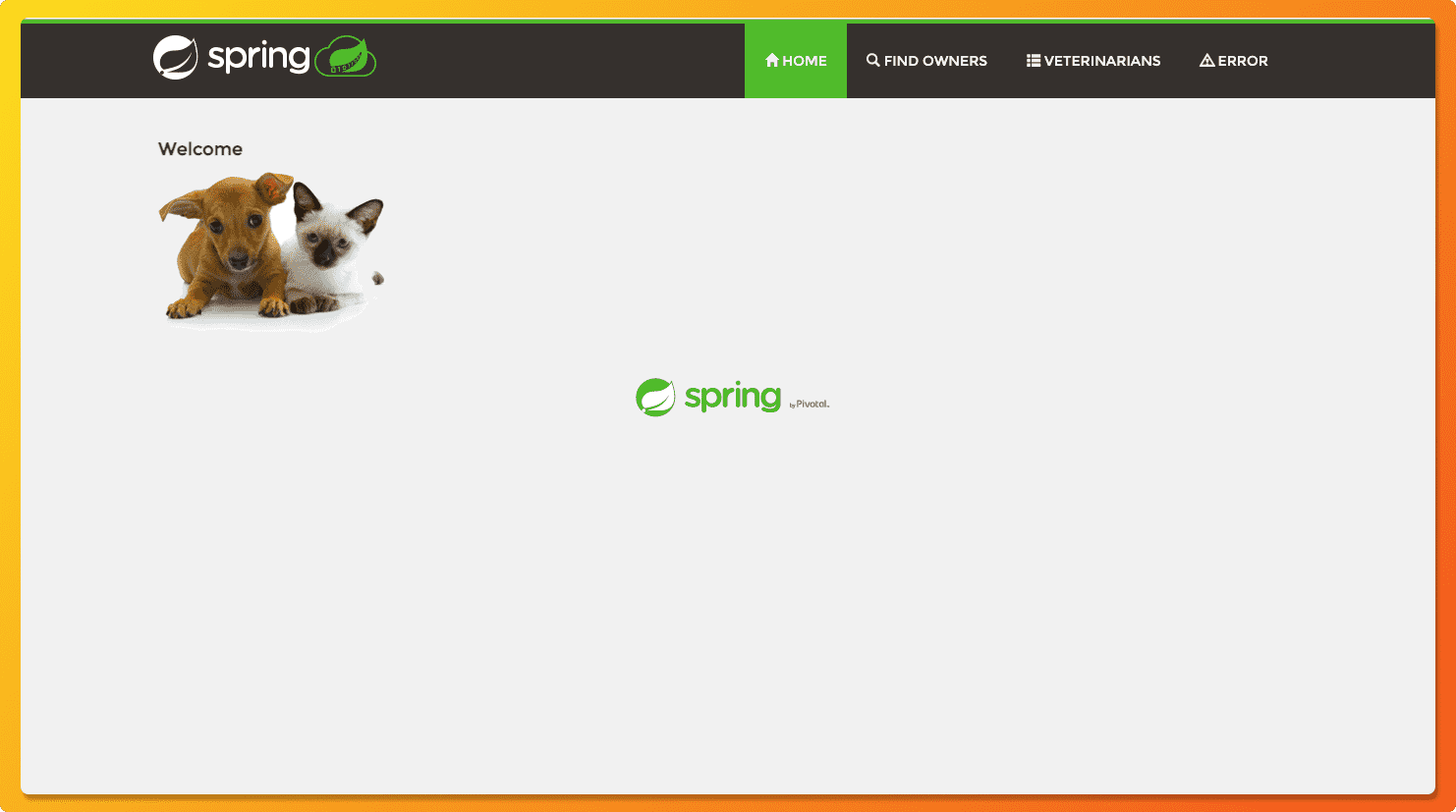

Spring PetClinic app accessed at port:8090
Sample Spring Boot application running in your local host.

Once you ensure that your application runs fine, stop it with ctrl + c on mac, as we will be launching the application with the Java agent downloaded from OpenTelemetry.

Step 3 - Downloading OpenTelemetry Java Jar agent​

Download the latest Java JAR agent. You will need the path of this file, so note it down somewhere. You can also use the terminal to get this file using the following command:

wget https://github.com/open-telemetry/opentelemetry-java-instrumentation/releases/latest/download/opentelemetry-javaagent.jar

OpenTelemetry Java JAR agent can be attached to any Java 8+ application. The JAR agent can detect a number of popular libraries and frameworks and instrument it right out of the box. You don't need to add any code for that.

The auto-instrumentation takes care of generating traces from the application. SigNoz uses the trace data to report key application metrics like p99 latency, request rates, and error rates with out-of-box charts and visualization. Let's learn how to enable auto-instrumentation.

Step 4 - Running the application with relevant environment variables​

Now you need to enable the instrumentation agent as well as run your sample application. You can do so by the following command:

OTEL_EXPORTER_OTLP_ENDPOINT="http://<IP of SigNoz>:4317" OTEL_RESOURCE_ATTRIBUTES=service.name=javaApp java -javaagent:/path/opentelemetry-javaagent.jar -jar target/*.jar

As you are running this on your local host, you need to replace `IP of SigNoz` with `localhost`. You will also need to update the path for your downloaded Java JAR agent. You will replace following two things:
  • IP of SigNoz : localhost
  • /path/to : Users/cruxaki/Downloads (For my local)

Your final command will look like this:

OTEL_EXPORTER_OTLP_ENDPOINT="http://localhost:4317" OTEL_RESOURCE_ATTRIBUTES=service.name=javaApp java -javaagent:/Users/cruxaki/Downloads/opentelemetry-javaagent.jar -jar target/*.jar

Note the path is updated for my local environment. If you are using a virtual machine, you need to update the IP accordingly. You also need to have the Java JAR agent on the same machine.

You can also use -D option to install the java agent.

java -javaagent:/path/opentelemetry-javaagent.jar \
-Dotel.exporter.otlp.endpoint=http://<IP of SigNoz>:4317 \
-Dotel.resource.attributes=service.name=<service_name> \
-jar target/*.jar

Step 5 - Monitoing your Spring Boot Application in SigNoz​

Check out the Spring Pet Clinic app at: http://localhost:8090/ and play around with it to generate some load. You can try refreshing the endpoint multiple times to generate load. Now you open the Services tab of SigNoz dashboard to see your Spring Boot Application being monitored.

Below you can find your javaApp in the list of applications being monitored.

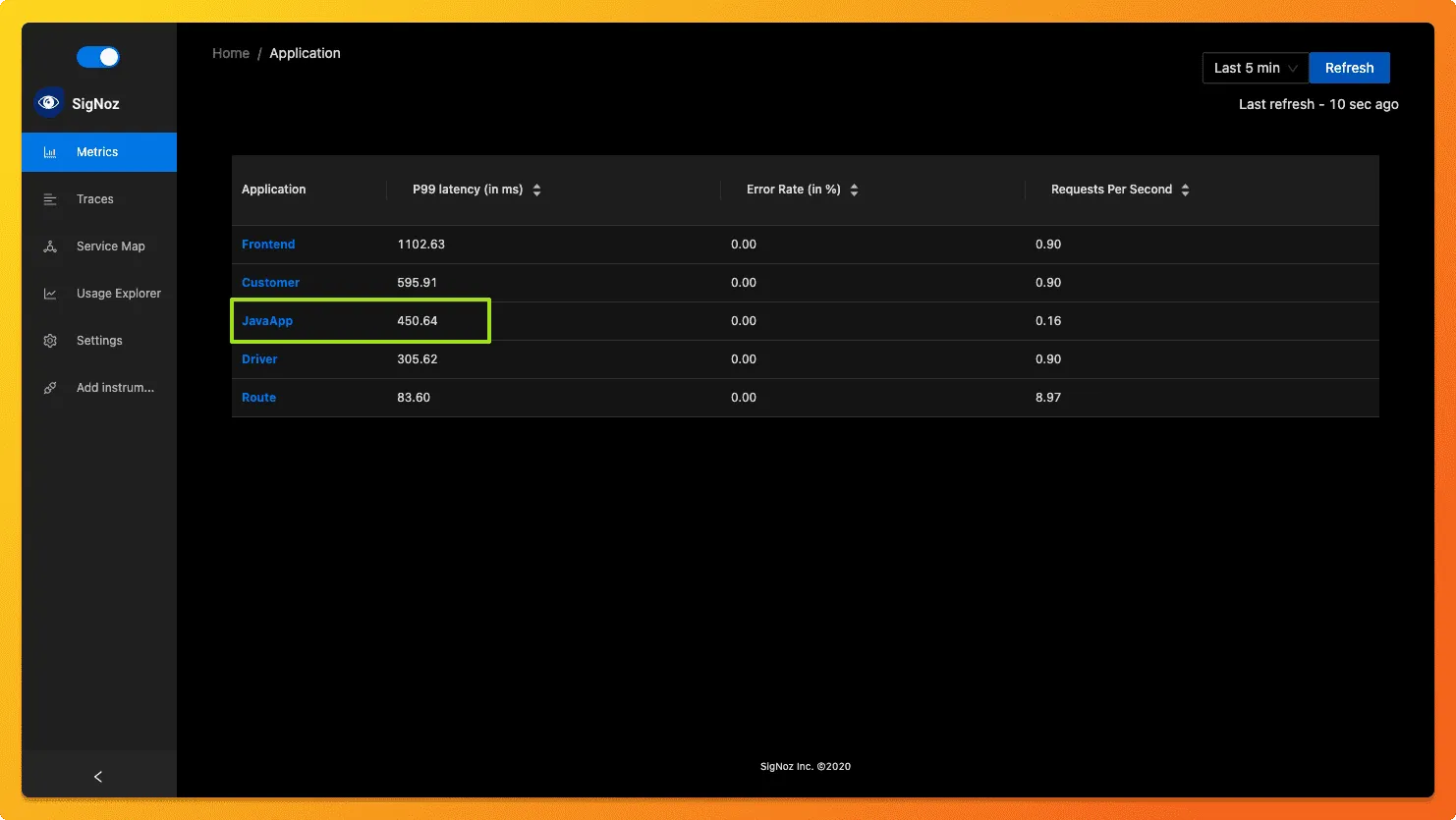

`Javaapp` appears in the list of applications monitored through SigNoz
javaApp in the list of applications monitored

Application Metrics and Traces of the Spring Boot application​

SigNoz makes it easy to visualize metrics and traces captured through OpenTelemetry instrumentation.

SigNoz comes with out of box RED metrics charts and visualization. RED metrics stands for:

  • Rate of requests
  • Error rate of requests
  • Duration taken by requests
SigNoz dashboard showing application latency, requests per sec, error percentage and top endpoints
Measure things like application latency, requests per sec, error percentage and see your top endpoints with SigNoz.

You can then choose a particular timestamp where latency is high to drill down to traces around that timestamp.

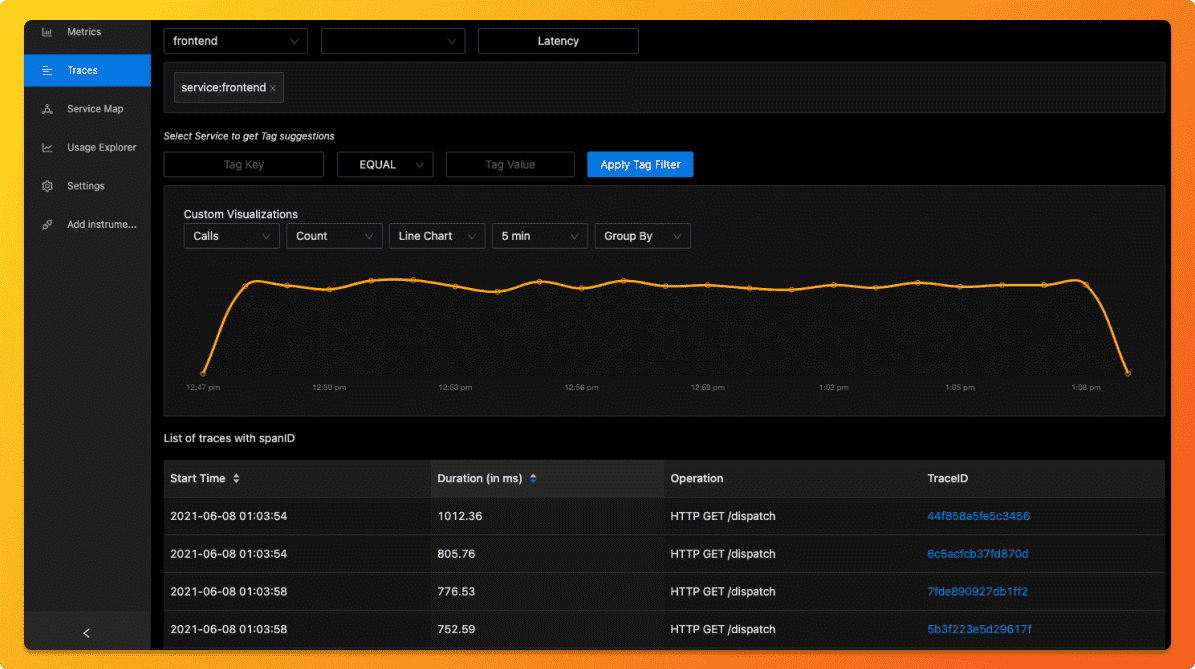

List of traces shown on SigNoz dashboard
View of traces at a particular timestamp

You can use flamegraphs to exactly identify the issue causing the latency.

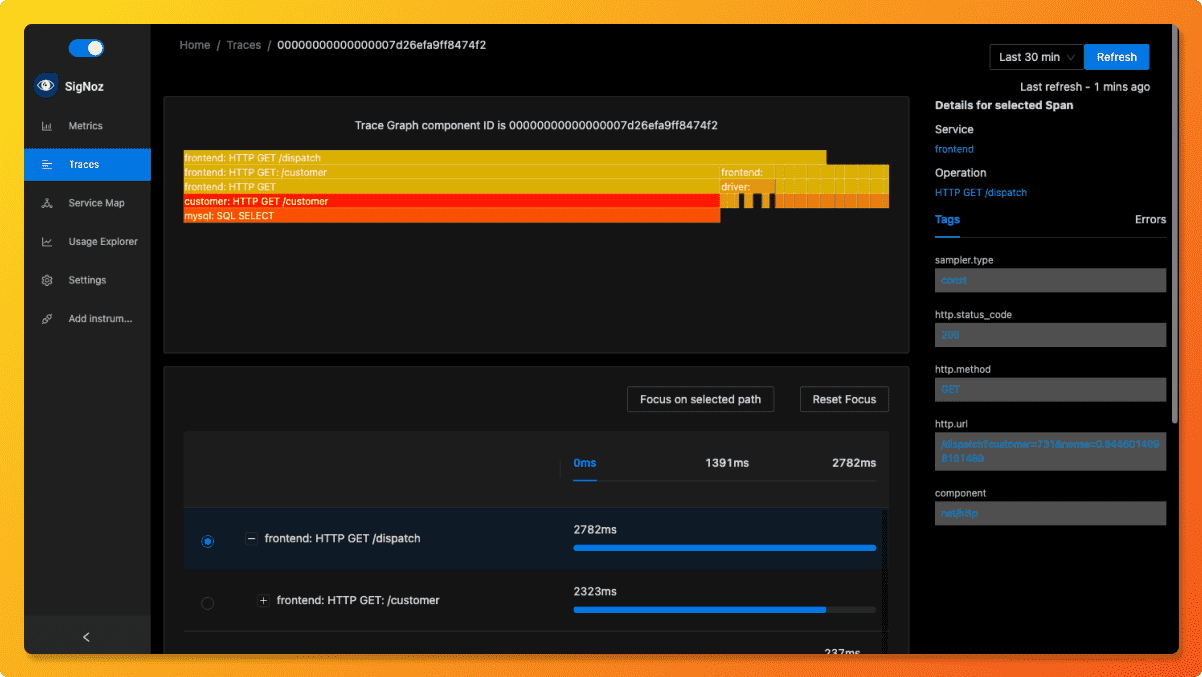

Flamegraphs and gantt charts to visualize time taken by requests
Flamegraphs showing exact duration taken by each spans - a concept of distributed tracing

You can also build custom metrics dashboard for your infrastructure.

SigNoz custom metrics dashboard
You can also build a custom metrics dashboard for your infrastructure

Collecting JVM metrics from your Spring Boot application​

This section shows you how you can visualise JVM metrics from Spring Boot applications in SigNoz.

We use Micrometer and Spring Boot actuator to expose JVM metrics in Prometheus format. Then we update OpenTelemetry collector which comes pre-installed with SigNoz to be able to scrape these metrics.

You can then plot the JVM metrics relevant for your team by creating custom dashboards in SigNoz.

You can use a sample Spring Boot application at this GitHub repo.

Steps to monitor JVM metrics​

Changes required in your Spring Boot application​

  1. Add the following code in pom.xml

    <dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <dependency>
    <groupId>io.micrometer</groupId>
    <artifactId>micrometer-registry-prometheus</artifactId>
    <scope>runtime</scope>
    </dependency>
  2. Add the following code in application.properties file located at src/main/resources/application.properties

    management.endpoints.web.exposure.include=*
    management.endpoints.web.exposure.include=prometheus,health,info,metric

    management.health.probes.enabled=true
    management.endpoint.health.show-details=always
    management.endpoint.prometheus.enabled=true

    Sample Spring Boot app with needed changes
  3. Build the Spring Boot application again

You can read more on how to expose Prometheus metric from Spring Boot docs.

Configure SigNoz otel-collector to scrape Prometheus metrics​

  1. Add the following code in otel-collector-metrics-config.yaml file

    SigNoz Otel collector yaml file
    note

    Target should be updated to the IP and port where Spring Boot app is exposing metrics.

    prometheus:
    config:
    scrape_configs:
    - job_name: "otel-collector"
    scrape_interval: 60s
    static_configs:
    - targets: ["otel-collector:8889"]
    - job_name: "jvm-metrics"
    scrape_interval: 10s
    metrics_path: "/actuator/prometheus"
    static_configs:
    - targets: ["<IP of the machine:8090>"]

    For e.g. if SigNoz is running on same machine as Spring Boot application, you can replace IP of SigNoz with host.docker.internal.

  2. Restart otel-collector metrics using the following command

    sudo docker compose -f docker-compose.yaml restart otel-collector-metrics
  3. Go to SigNoz dashboard and plot metrics you want

    Creating metrics dashboard in SigNoz

Available metrics that you can monitor​

Below is the list of available JVM metrics that you can monitor with the help of SigNoz:

http_server_requests_seconds_sum
jvm_memory_committed_bytes
jdbc_connections_min
hikaricp_connections_min
jvm_threads_states_threads
jvm_classes_unloaded_classes_total
jvm_buffer_count_buffers
logback_events_total
jvm_memory_used_bytes
jvm_gc_pause_seconds_sum
jvm_memory_max_bytes
jdbc_connections_active
jvm_classes_loaded_classes
jvm_gc_pause_seconds_count
jdbc_connections_idle
jvm_threads_live_threads
jvm_gc_memory_promoted_bytes_total
jvm_gc_memory_allocated_bytes_total
cache_gets_total
jvm_buffer_memory_used_bytes
jvm_buffer_total_capacity_bytes
jvm_gc_live_data_size_bytes
tomcat_sessions_alive_max_seconds
hikaricp_connections_usage_seconds_count
jvm_threads_daemon_threads
hikaricp_connections_creation_seconds_sum
process_cpu_usage
jvm_gc_pause_seconds_max
process_start_time_seconds
tomcat_sessions_active_max_sessions
hikaricp_connections_acquire_seconds_count
hikaricp_connections_acquire_seconds_sum
system_load_average_1m
hikaricp_connections_usage_seconds_sum
system_cpu_usage
jvm_threads_peak_threads
tomcat_sessions_expired_sessions_total
cache_removals
tomcat_sessions_created_sessions_total
hikaricp_connections_idle
tomcat_sessions_active_current_sessions
process_uptime_seconds
hikaricp_connections_acquire_seconds_max

Collecting logs from your Spring Boot application​

OpenTelemetry also supports collecting logs from your Spring Boot application. SigNoz provides logs, metrics, and traces under a single pane of glass. OpenTelemetry aims to support legacy logging pipelines and you can connect your existing log pipeline to OpenTelemetry collector to send your logs to SigNoz. Read our logs documentation to get started.

Log management in SigNoz
Log management in SigNoz

Conclusion​

OpenTelemetry makes it very convenient to instrument your Spring Boot application and collect telemetry data like logs, metrics, and traces. You can then use an open-source APM tool like SigNoz to analyze the performance of your app. As SigNoz offers a full-stack observability tool, you don't have to use multiple tools for your monitoring needs.

You can try out SigNoz by visiting its GitHub repo πŸ‘‡

SigNoz repo


If you are someone who understands more from video, then you can watch the tutorial on how to use OpenTelemetry for Spring Boot application here πŸ‘‡

Β

YouTube's thumbnail image for the video.

Β

If you have any questions or need any help in setting things up, join our slack community and ping us in #support channel.

SigNoz Slack community

If your Spring Boot application is based on microservices architecture, check out this blog πŸ‘‡

Implementing Distributed Tracing in a Java application
