Configure Opsgenie Channel

Prerequisites

Before setting up Opsgenie as a notification channel in SigNoz, ensure the following:

• Create Integration and Obtain API Key: You need to create an integration in Opsgenie and obtain an API key. Follow the steps provided hereto create an integration and obtain the necessary API key.
• SigNoz Version: v0.28.0 or later

Accessing Alert Channels

To manage your alert channels in SigNoz:

• Navigate to Settings > Alert Channels tab within SigNoz. This tab displays a list of configured alert channels.

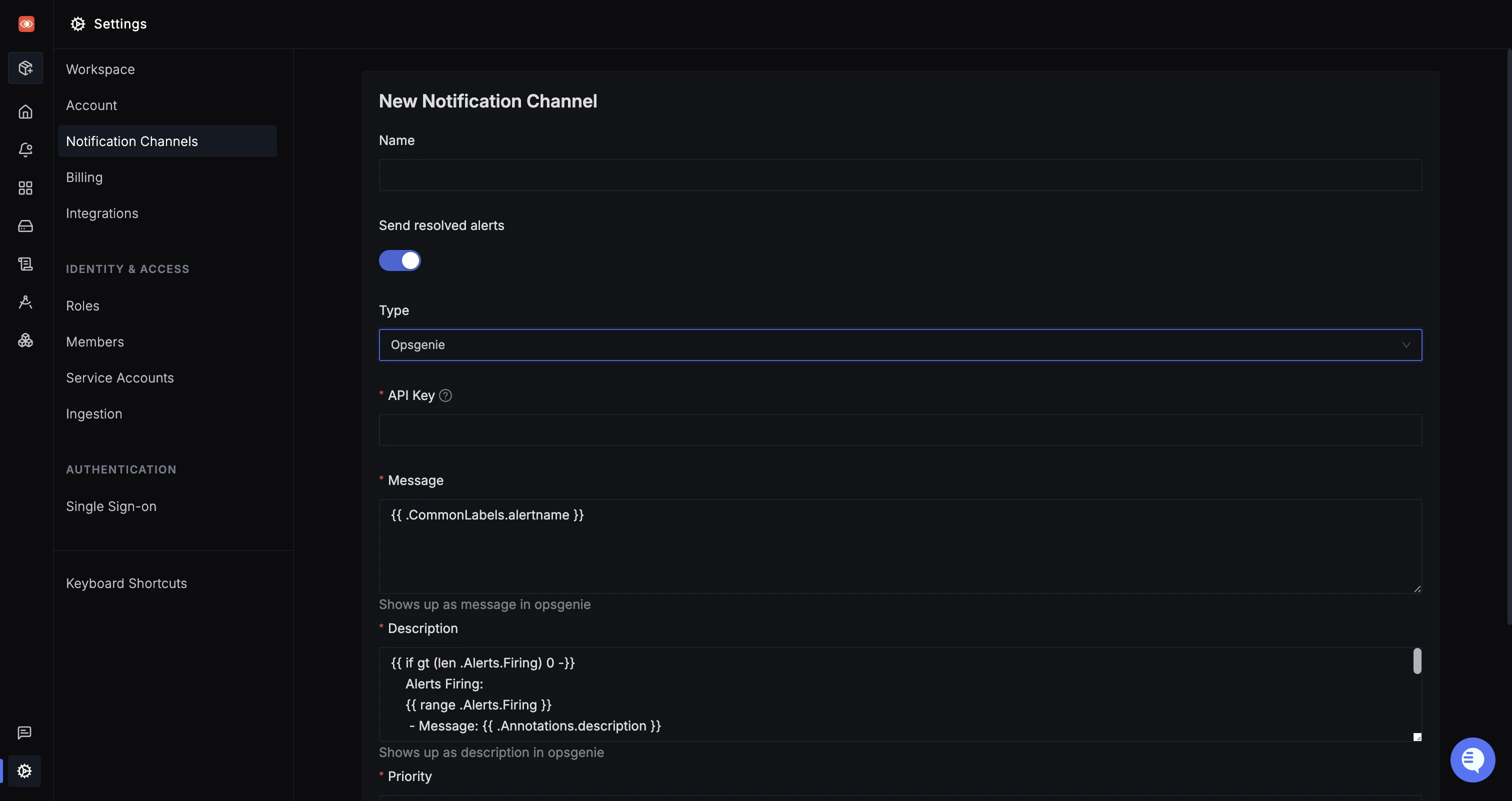

Creating a new Notification channel

To create a new Opsgenie notification channel in SigNoz, follow these steps:

• Navigate to Settings > Alert Channels and click on New Channel.
• Enter a Name for the channel and select Opsgenie as the channel type.
• API Key: Enter the API Key obtained from Opsgenie.
• Customize the message, description, and priority using go templates.

Test Configuration: Click the Test button to send a test alert to the configured Opsgenie channel. This verifies that SigNoz can communicate with your Opsgenie.

Editing a Notification channel

To edit an existing Opsgenie notification channel:

• Navigate to the channel settings in SigNoz.
• You can edit the opsgenie API Key and other parameters. However, note that the channel name and type are not editable after creation.

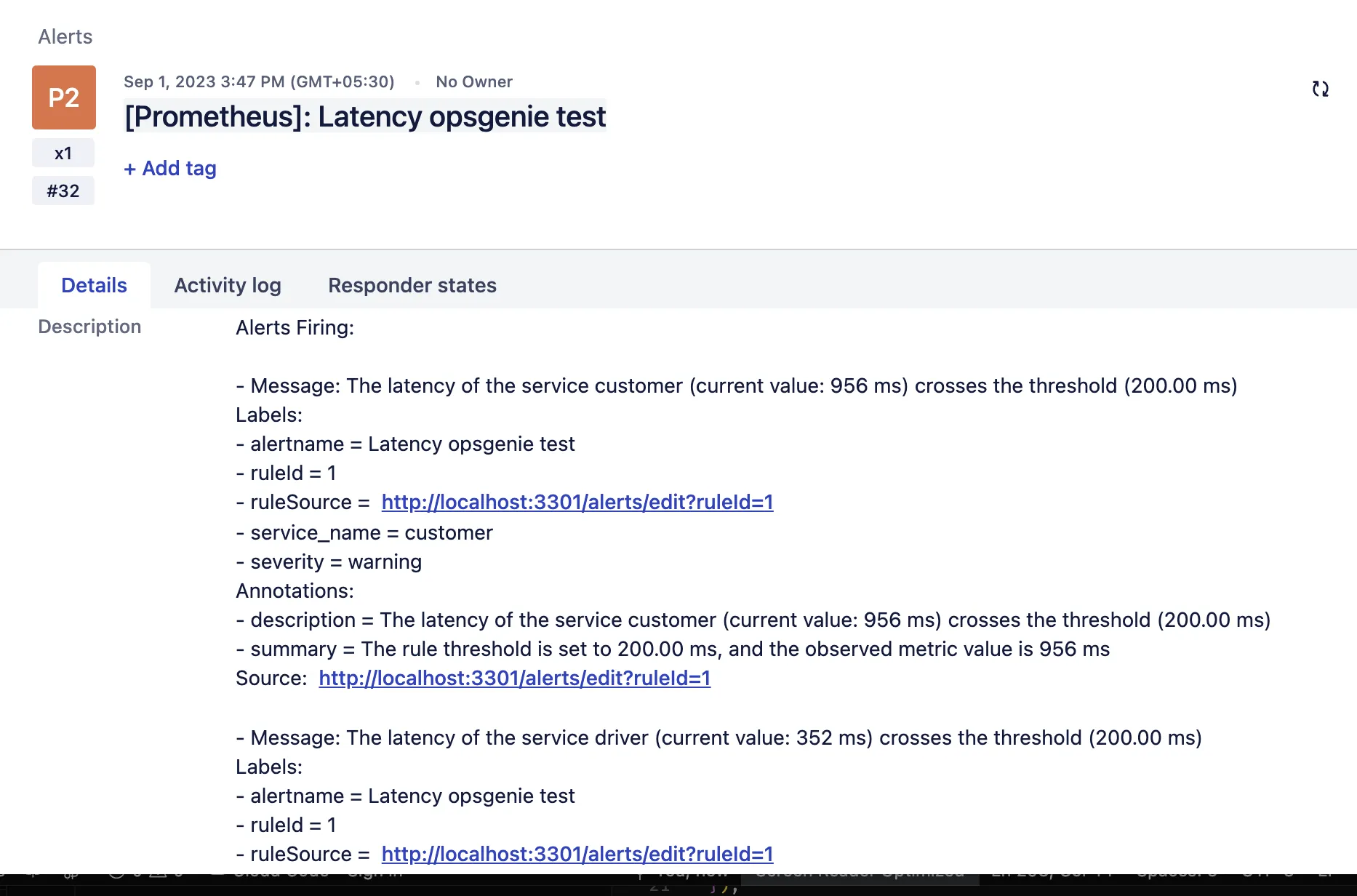

Receiving Alerts in Opsgenie

Once configured correctly, alerts from SigNoz will appear in Opsgenie Alerts whenever monitored metrics cross the thresholds specified in your alert rules.This ensures you are promptly notified of any issues in your applications or infrastructure components.

Turn-off Resolved alerts

The resolve alerts toggle is switched on by default. To turn-off receiveing the Resolved alerts for your Notification Channel, follow these steps:

• Navigate to Settings > Alert Channels
• Click on Edit button for a particular alert.
• Toggle off the Send resolved alerts button and hit Save.

Configure programmatically

You can also configure the Opsgenie notification channel programmatically using the SigNoz API.

API Endpoint: POST /api/v1/channels

To create a new Opsgenie notification channel, send a POST request to the /api/v1/channels endpoint with the following curl command:

curl 'YOUR_SIGNOZ_CLOUD_URL/api/v1/channels' \
  -H 'SIGNOZ-API-KEY: YOUR_API_KEY' \
  -H 'Content-Type: application/json' \
  --data-raw '{
    "name": "Platform Alerts - Opsgenie",
    "opsgenie_configs": [
        {
            "api_key": "APIKey",
            "description": "{{ if gt (len .Alerts.Firing) 0 -}}\n\tAlerts Firing:\n\t{{ range .Alerts.Firing }}\n\t - Message: {{ .Annotations.description }}\n\tLabels:\n\t{{ range .Labels.SortedPairs }} - {{ .Name }} = {{ .Value }}\n\t{{ end }} Annotations:\n\t{{ range .Annotations.SortedPairs }} - {{ .Name }} = {{ .Value }}\n\t{{ end }} Source: {{ .GeneratorURL }}\n\t{{ end }}\n\t{{- end }}\n\t{{ if gt (len .Alerts.Resolved) 0 -}}\n\tAlerts Resolved:\n\t{{ range .Alerts.Resolved }}\n\t - Message: {{ .Annotations.description }}\n\tLabels:\n\t{{ range .Labels.SortedPairs }} - {{ .Name }} = {{ .Value }}\n\t{{ end }} Annotations:\n\t{{ range .Annotations.SortedPairs }} - {{ .Name }} = {{ .Value }}\n\t{{ end }} Source: {{ .GeneratorURL }}\n\t{{ end }}\n\t{{- end }}",
            "priority": "{{ if eq (index .Alerts 0).Labels.severity \"critical\" }}P1{{ else if eq (index .Alerts 0).Labels.severity \"warning\" }}P2{{ else if eq (index .Alerts 0).Labels.severity \"info\" }}P3{{ else }}P4{{ end }}",
            "message": "{{ .CommonLabels.alertname }}",
            "details": {}
        }
    ]
}'

Request Body Attributes:

Troubleshooting

If you encounter issues with the Opsgenie integration:

• Check the API Key: Ensure that the API Key entered in SigNoz matches the one provided by Opsgenie.
• Verify Opsgenie Integration: Confirm that the integration in Opsgenie is correctly set up and active.
• Test Connectivity: Use the Test button in SigNoz to check connectivity with Opsgenie. If the test fails, review your network settings and API Key.
