Overview
ArgoCD exposes Prometheus-format metrics from five components. This guide shows you how to collect those metrics with an OpenTelemetry Collector and send them to SigNoz.
Prerequisites
- A running ArgoCD installation
- Access to SigNoz (Cloud or Self-Hosted)
- OpenTelemetry Collector deployed
Setup
Step 1. Set environment variables
export SIGNOZ_OTLP_ENDPOINT="https://ingest.<region>.signoz.cloud:443"
export SIGNOZ_INGESTION_KEY="<your-ingestion-key>"
<region>: Your SigNoz Cloud region<your-ingestion-key>: Your SigNoz ingestion key
Step 2. Configure the collector
Append the prometheus receiver and resource/argocd processor to your collector config.yaml. Replace each target with the actual host:port where the ArgoCD component is reachable:
receivers:
# ... existing receivers ...
prometheus:
config:
global:
scrape_interval: 60s
scrape_timeout: 30s
scrape_configs:
# Application Controller: sync/health state of all ArgoCD applications
- job_name: argocd-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- <argocd-host>:8082
labels:
argocd_component: application-controller
# API Server: gRPC/REST request counts and latencies
- job_name: argocd-server-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- <argocd-host>:8083
labels:
argocd_component: api-server
# Repo Server: Git fetch and manifest generation performance
- job_name: argocd-repo-server-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- <argocd-host>:8084
labels:
argocd_component: repo-server
# ApplicationSet Controller: template rendering and set reconciliation
- job_name: argocd-applicationset-controller-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- <argocd-host>:8080
labels:
argocd_component: applicationset-controller
# Notifications Controller: notification delivery and trigger activity
- job_name: argocd-notifications-controller-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- <argocd-host>:9001
labels:
argocd_component: notifications-controller
processors:
# ... existing processors ...
resource/argocd:
attributes:
- key: service.name
value: argocd
action: upsert
exporters:
# ... existing exporters ...
otlp:
endpoint: ${env:SIGNOZ_OTLP_ENDPOINT}
headers:
signoz-ingestion-key: ${env:SIGNOZ_INGESTION_KEY}
tls:
insecure: false
Add them to your metrics pipeline:
service:
pipelines:
metrics:
receivers: [..., prometheus]
processors: [..., resource/argocd, batch]
exporters: [..., otlp]
Step 3. Run the collector
otelcol-contrib --config config.yaml
Step 1. Set environment variables
Add these to your OpenTelemetry Collector deployment manifest:
env:
- name: K8S_CLUSTER_NAME
value: '<your-cluster-name>'
- name: SIGNOZ_OTLP_ENDPOINT
value: 'https://ingest.<region>.signoz.cloud:443'
- name: SIGNOZ_INGESTION_KEY
value: '<your-ingestion-key>'
<region>: Your SigNoz Cloud region<your-ingestion-key>: Your SigNoz ingestion key<your-cluster-name>: Your Kubernetes cluster identifier
Step 2. Configure the collector
Append the prometheus receiver and resource/argocd processor to your collector config.yaml:
receivers:
# ... existing receivers ...
prometheus:
config:
global:
scrape_interval: 60s
scrape_timeout: 30s
scrape_configs:
# Application Controller: sync/health state of all ArgoCD applications
- job_name: argocd-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- argocd-metrics.argocd.svc.cluster.local:8082
labels:
argocd_component: application-controller
# API Server: gRPC/REST request counts and latencies
- job_name: argocd-server-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- argocd-server-metrics.argocd.svc.cluster.local:8083
labels:
argocd_component: api-server
# Repo Server: Git fetch and manifest generation performance
- job_name: argocd-repo-server-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- argocd-repo-server.argocd.svc.cluster.local:8084
labels:
argocd_component: repo-server
# ApplicationSet Controller: template rendering and set reconciliation
- job_name: argocd-applicationset-controller-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- argocd-applicationset-controller.argocd.svc.cluster.local:8080
labels:
argocd_component: applicationset-controller
# Notifications Controller: notification delivery and trigger activity
- job_name: argocd-notifications-controller-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- argocd-notifications-controller-metrics.argocd.svc.cluster.local:9001
labels:
argocd_component: notifications-controller
processors:
# ... existing processors ...
resource/argocd:
attributes:
- key: service.name
value: argocd
action: upsert
- key: k8s.cluster.name
value: ${K8S_CLUSTER_NAME}
action: upsert
exporters:
# ... existing exporters ...
otlp:
endpoint: ${env:SIGNOZ_OTLP_ENDPOINT}
headers:
signoz-ingestion-key: ${env:SIGNOZ_INGESTION_KEY}
tls:
insecure: false
If ArgoCD runs in a different namespace, update the service names accordingly (e.g., argocd-metrics.<your-namespace>.svc.cluster.local). Verify with kubectl get svc -n <your-namespace>.
Add them to your metrics pipeline:
service:
pipelines:
metrics:
receivers: [..., prometheus]
processors: [..., resource/argocd, batch]
exporters: [..., otlp]
Step 3. Run the collector
kubectl apply -f <your-collector-manifest>.yaml -n <otel-collector-namespace>
Step 1. Set environment variables
The docker run command in Step 3 passes these into the container via -e flags.
export SIGNOZ_OTLP_ENDPOINT="https://ingest.<region>.signoz.cloud:443"
export SIGNOZ_INGESTION_KEY="<your-ingestion-key>"
<region>: Your SigNoz Cloud region<your-ingestion-key>: Your SigNoz ingestion key
Step 2. Configure the collector
Append the prometheus receiver and resource/argocd processor to your config.yaml. Replace each target with the actual host:port where the ArgoCD component is reachable from the container:
receivers:
# ... existing receivers ...
prometheus:
config:
global:
scrape_interval: 60s
scrape_timeout: 30s
scrape_configs:
# Application Controller: sync/health state of all ArgoCD applications
- job_name: argocd-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- <argocd-host>:8082
labels:
argocd_component: application-controller
# API Server: gRPC/REST request counts and latencies
- job_name: argocd-server-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- <argocd-host>:8083
labels:
argocd_component: api-server
# Repo Server: Git fetch and manifest generation performance
- job_name: argocd-repo-server-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- <argocd-host>:8084
labels:
argocd_component: repo-server
# ApplicationSet Controller: template rendering and set reconciliation
- job_name: argocd-applicationset-controller-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- <argocd-host>:8080
labels:
argocd_component: applicationset-controller
# Notifications Controller: notification delivery and trigger activity
- job_name: argocd-notifications-controller-metrics
metrics_path: /metrics
scheme: http
static_configs:
- targets:
- <argocd-host>:9001
labels:
argocd_component: notifications-controller
processors:
# ... existing processors ...
resource/argocd:
attributes:
- key: service.name
value: argocd
action: upsert
exporters:
# ... existing exporters ...
otlp:
endpoint: ${env:SIGNOZ_OTLP_ENDPOINT}
headers:
signoz-ingestion-key: ${env:SIGNOZ_INGESTION_KEY}
tls:
insecure: false
Add them to your metrics pipeline:
service:
pipelines:
metrics:
receivers: [..., prometheus]
processors: [..., resource/argocd, batch]
exporters: [..., otlp]
Step 3. Run the collector
docker run -d \
-e SIGNOZ_OTLP_ENDPOINT \
-e SIGNOZ_INGESTION_KEY \
-v $(pwd)/config.yaml:/etc/otelcol-contrib/config.yaml \
otel/opentelemetry-collector-contrib:latest \
--config /etc/otelcol-contrib/config.yaml
Advanced Configuration (Optional)
Filter internal metrics
Drop OTel Collector self-telemetry and Prometheus scrape metadata before sending to SigNoz. Append the filter/drop_internal processor and add it to your pipeline:
processors:
# ... existing processors ...
filter/drop_internal:
error_mode: ignore
metric_conditions:
- 'IsMatch(metric.name, "^otelcol_.*")'
- 'IsMatch(metric.name, "^scrape_.*")'
- 'metric.name == "up"'
Include it in your pipeline before the batch processor:
service:
pipelines:
metrics:
receivers: [..., prometheus]
processors: [..., resource/argocd, filter/drop_internal, batch]
exporters: [..., otlp]
Validate
- Go to Metrics in SigNoz.
- Search for
argocd_app_infoor anyargocd_-prefixed metric. - Confirm the
argocd_componentlabel appears on the metrics.
Dashboard

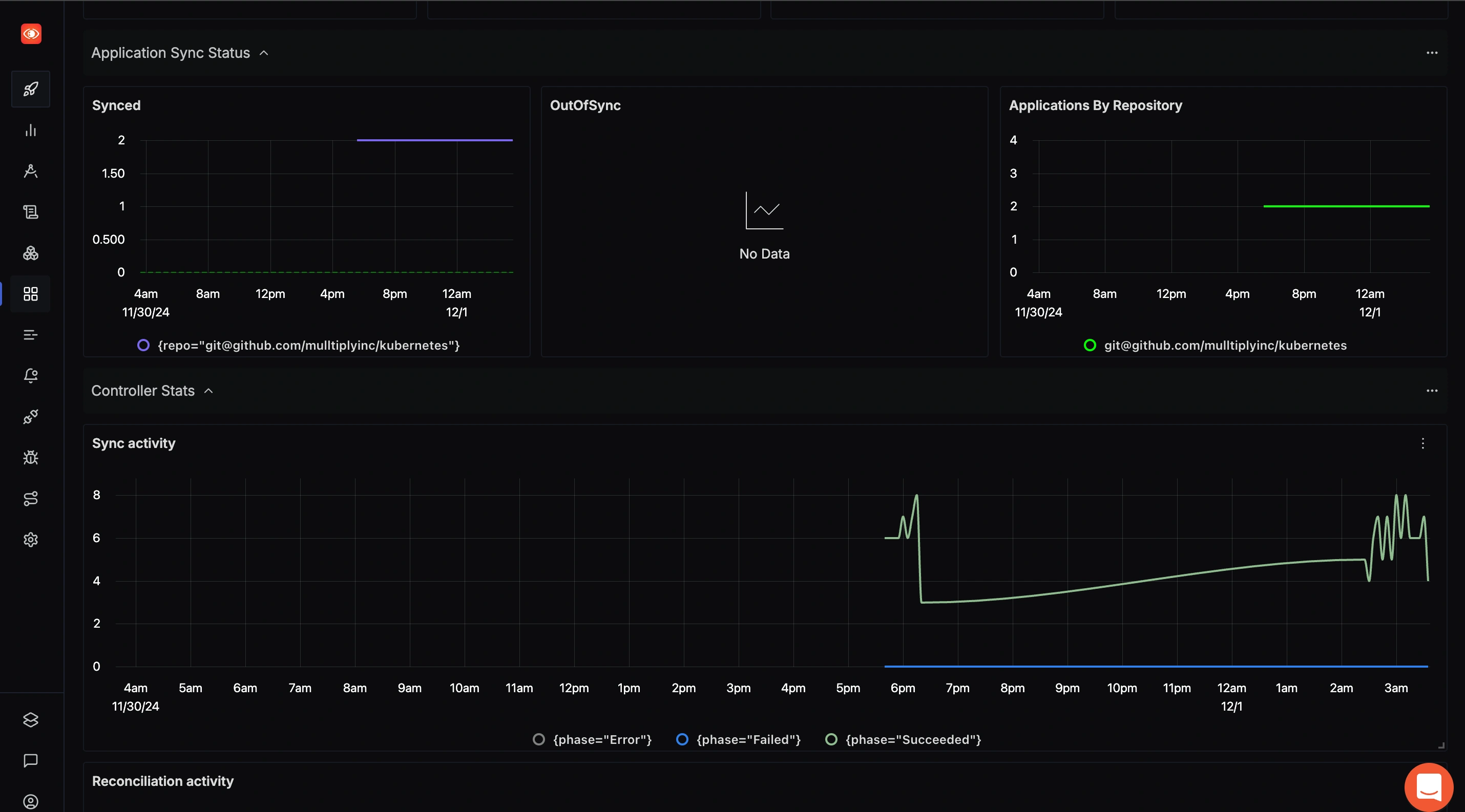

Import the pre-built ArgoCD dashboard to visualize application health, sync status, controller performance, and repository activity. See the ArgoCD Dashboard page for import instructions and a full description of panels.
Troubleshooting
No metrics appearing:
- Verify the collector reaches the ArgoCD metrics endpoints:
kubectl port-forward svc/argocd-metrics 8082:8082 -n argocd
curl localhost:8082/metrics
- Check collector logs for scrape errors:
kubectl logs -n otel-collector <collector-pod-name>
- Confirm service names and ports match your ArgoCD deployment.
Missing component metrics:
Verify the relevant ArgoCD component is running. Some components expose metrics only when enabled (for example, ApplicationSet Controller, Notifications Controller).
Dashboard showing no data:
Confirm the service.name resource attribute equals argocd. The dashboard queries filter on this label.
Next Steps
- Set up alerts on key ArgoCD metrics such as
argocd_app_infohealth status or out-of-sync application counts. - Explore the ArgoCD Dashboard panels for controller performance and repository server activity.
