Prerequisites

• A Web Application for capturing document load data

Setup

Step 1: Create an Instrumentation file

In the src directory of your web application, create a new JavaScript file (e.g., otel-setup.js) and paste the code below. This code auto-instruments your application to capture and send document load events to your SigNoz Instance.

import { WebTracerProvider } from '@opentelemetry/sdk-trace-web';
import { DocumentLoadInstrumentation } from '@opentelemetry/instrumentation-document-load';
import { registerInstrumentations } from '@opentelemetry/instrumentation';
import { OTLPTraceExporter } from '@opentelemetry/exporter-trace-otlp-http';
import { SimpleSpanProcessor } from '@opentelemetry/sdk-trace-base';
import { Resource } from '@opentelemetry/resources';

// Initialize the provider
const provider = new WebTracerProvider({ resource: new Resource({ "service.name": "<service_name>" }) // Set the SigNoz Cloud collector URL

// create an OTLP exporter configured to send trace data to your SigNoz Cloud
const otlpExporter = new OTLPTraceExporter({
  url: `https://ingest.<region>.signoz.cloud:443/v1/traces`,
  headers: { 'signoz-access-token': "<your-ingestion-key>" });

// Add the exporter to the span processor
provider.addSpanProcessor(new SimpleSpanProcessor(otlpExporter));

// Register the provider
provider.register();

// Register automatic instrumentation for document load
registerInstrumentations({
  instrumentations: [
    new DocumentLoadInstrumentation()
  ],
});

console.log('OpenTelemetry instrumentation initialized');

• Set the <region> to match your SigNoz Cloud region
• Replace <your-ingestion-key> with your SigNoz ingestion key
• <service_name> is name of your service

Step 2: Send Telemetry data to SigNoz

To send Telemetry data to SigNoz, import otel-setup.js into index.js and save the changes.

import './otel-setup'

Step 3: Start the App

Go to the root folder of your web application, and run the following command:

npm start

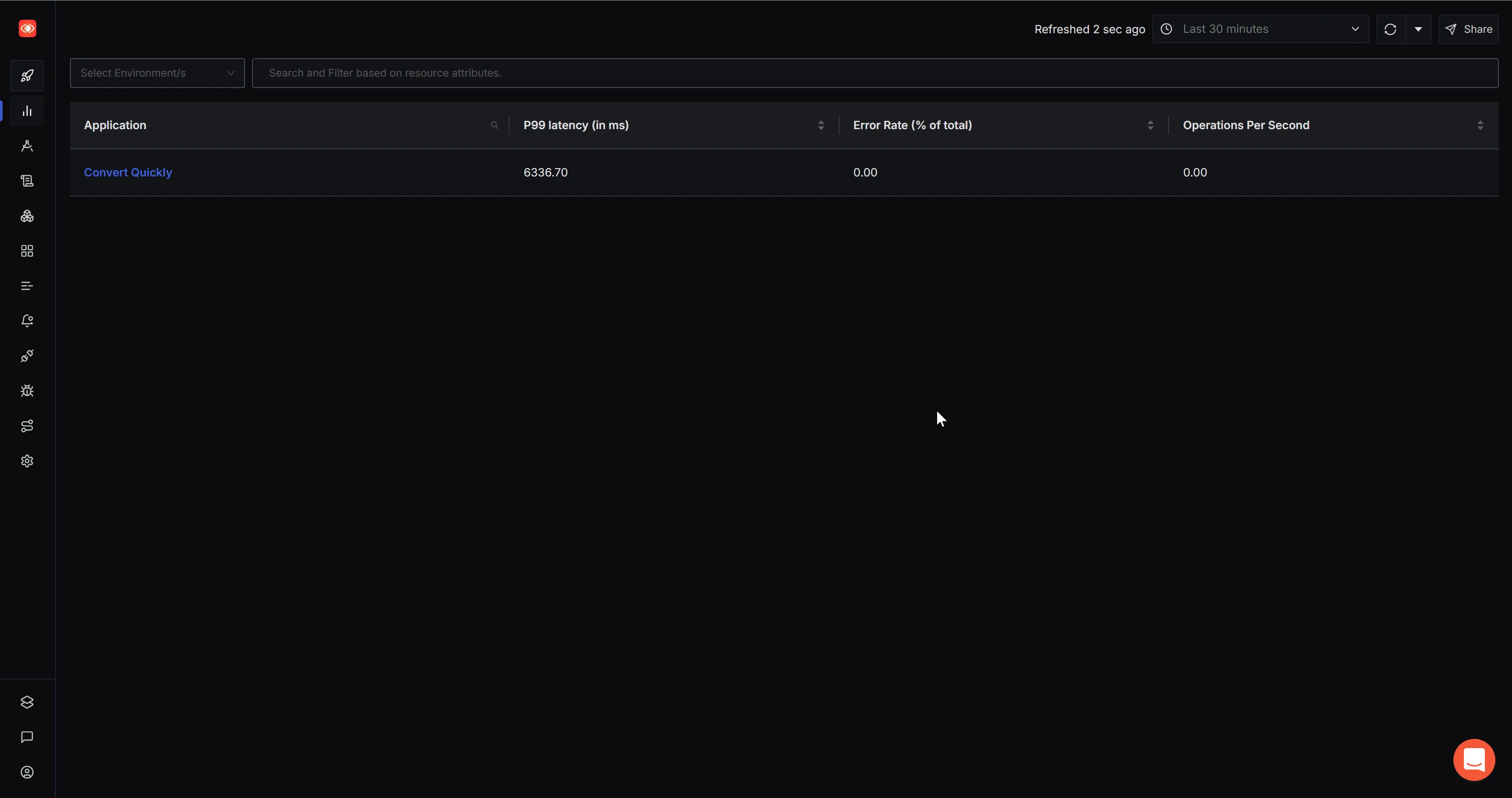

You will now see your application in the Services section in the SigNoz sidebar.

Step 4: Document Load Trace Data

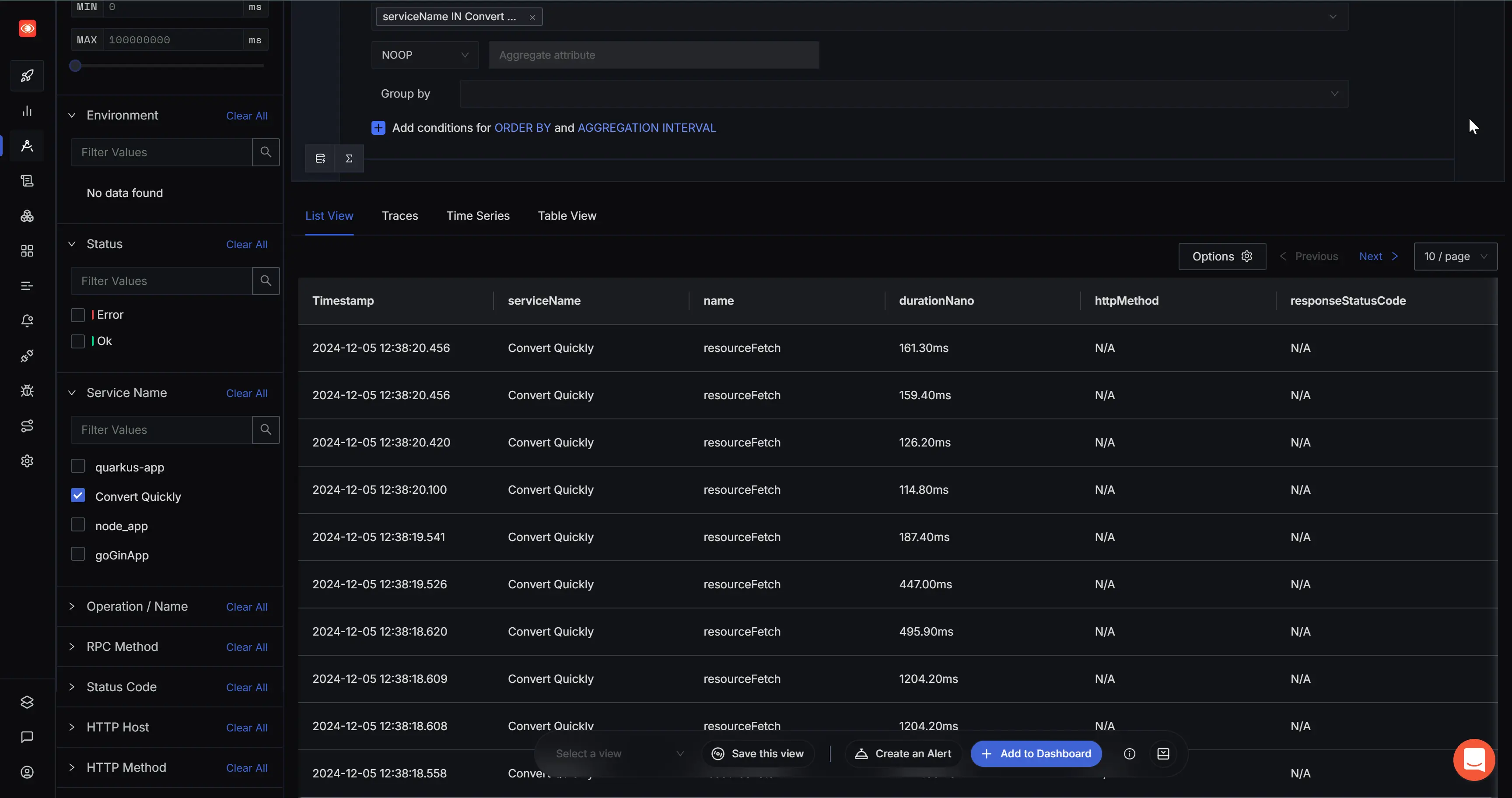

The document load data is automatically captured in the Traces section of the SigNoz dashboard as soon as your application is loaded.

Setup Alerts

Create an Alert

You can create trace-based alerts by using the Create an Alert button in the Save View button at the bottom of Traces section. Alternatively, you can directly create it from the Alerts section. To create and manage trace-based alerts, follow this guide.

In this example, we will set up an alert for ResourceFetch. Resource Fetch reports all the resources, including external scripts, images, style sheets, fonts, and other assets, that are required to render a webpage. Knowing the time it takes to fetch resources will be useful in taking proactive action to optimize your application using caching or other optimization strategies.

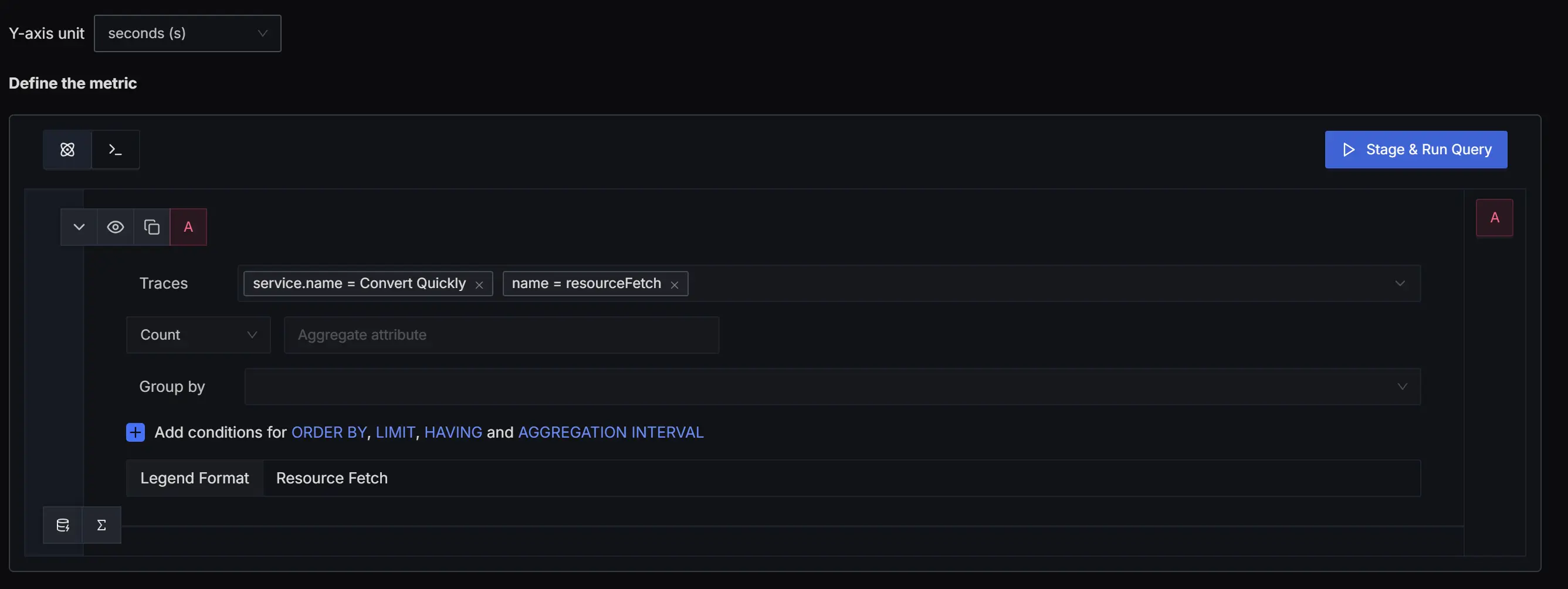

In the Traces Based Alerts page, set the Traces field to service.name = <service_name> and name = resourceFetch . Next, set the Y-axis units to seconds. You can also set the Legend Format to Resource Fetchand then press the Stage & Run Query button.

Define Alert Condition

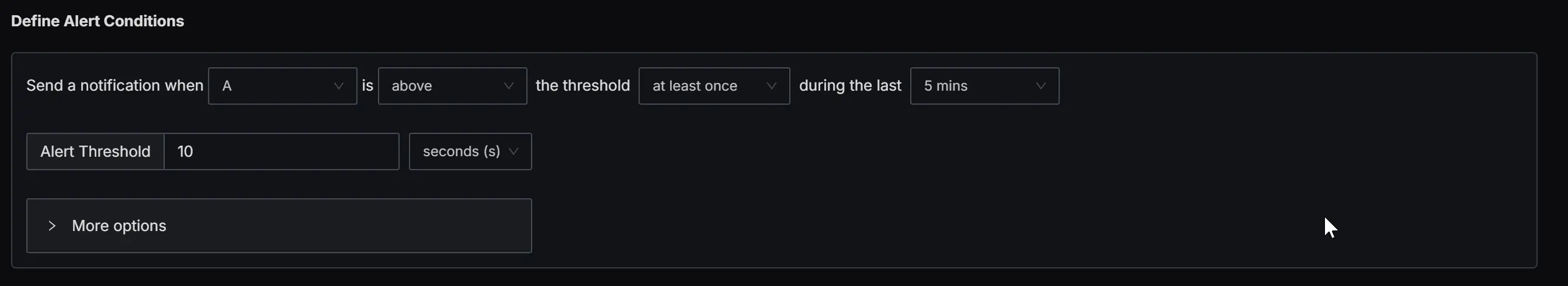

Define an alert condition with Send a notification when A is above the threshold at least once during the last 5 mins and set the Alert Threshold field to 10 seconds.

Set Alert Configuration

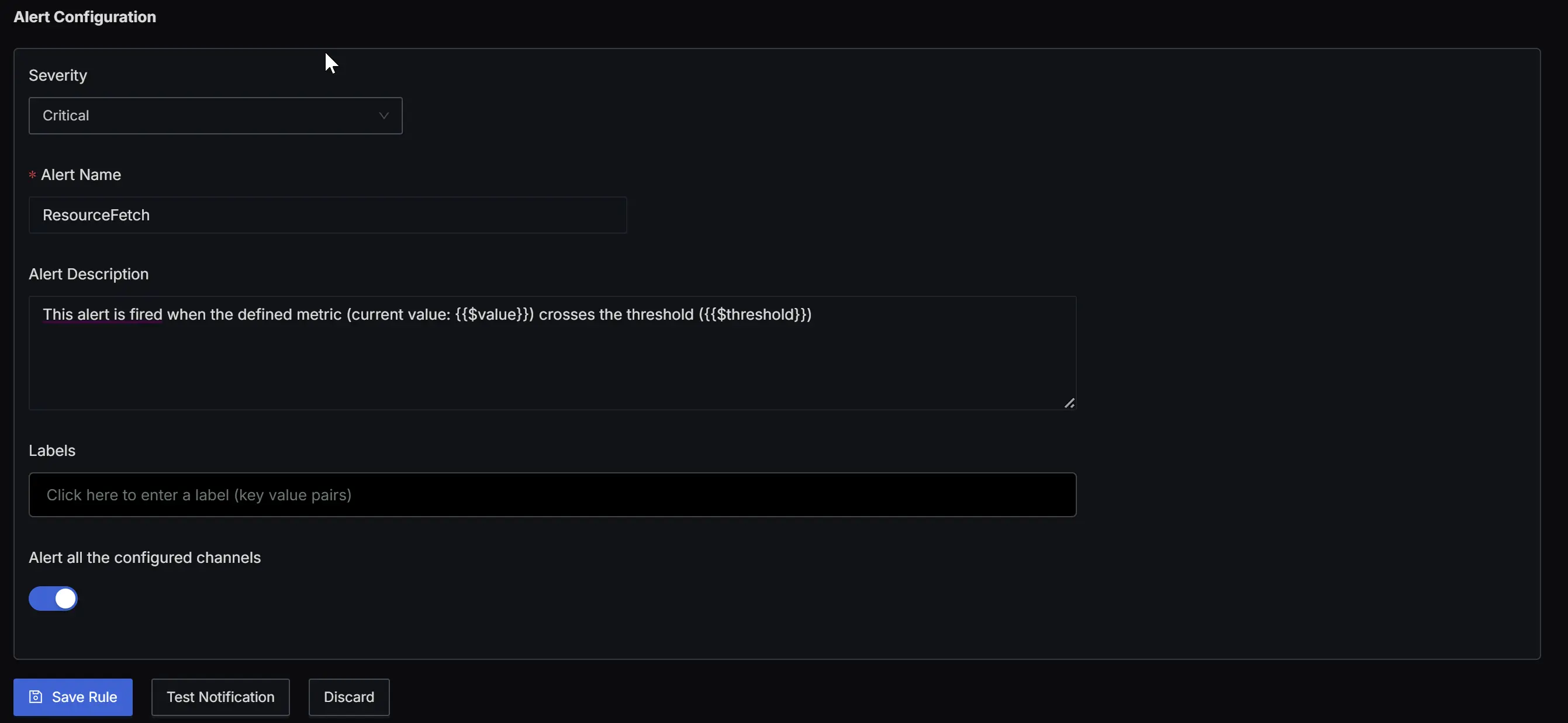

Set the Severity field to critical, the Alert Name field to ResourceFetch, toggle on the Alert all the configured channels field to alert all the notification channels. You can choose to send the alert to a particular notification channel by selecting a particular Notifcation Channel from the dropdown. Save the rule and test the notification.

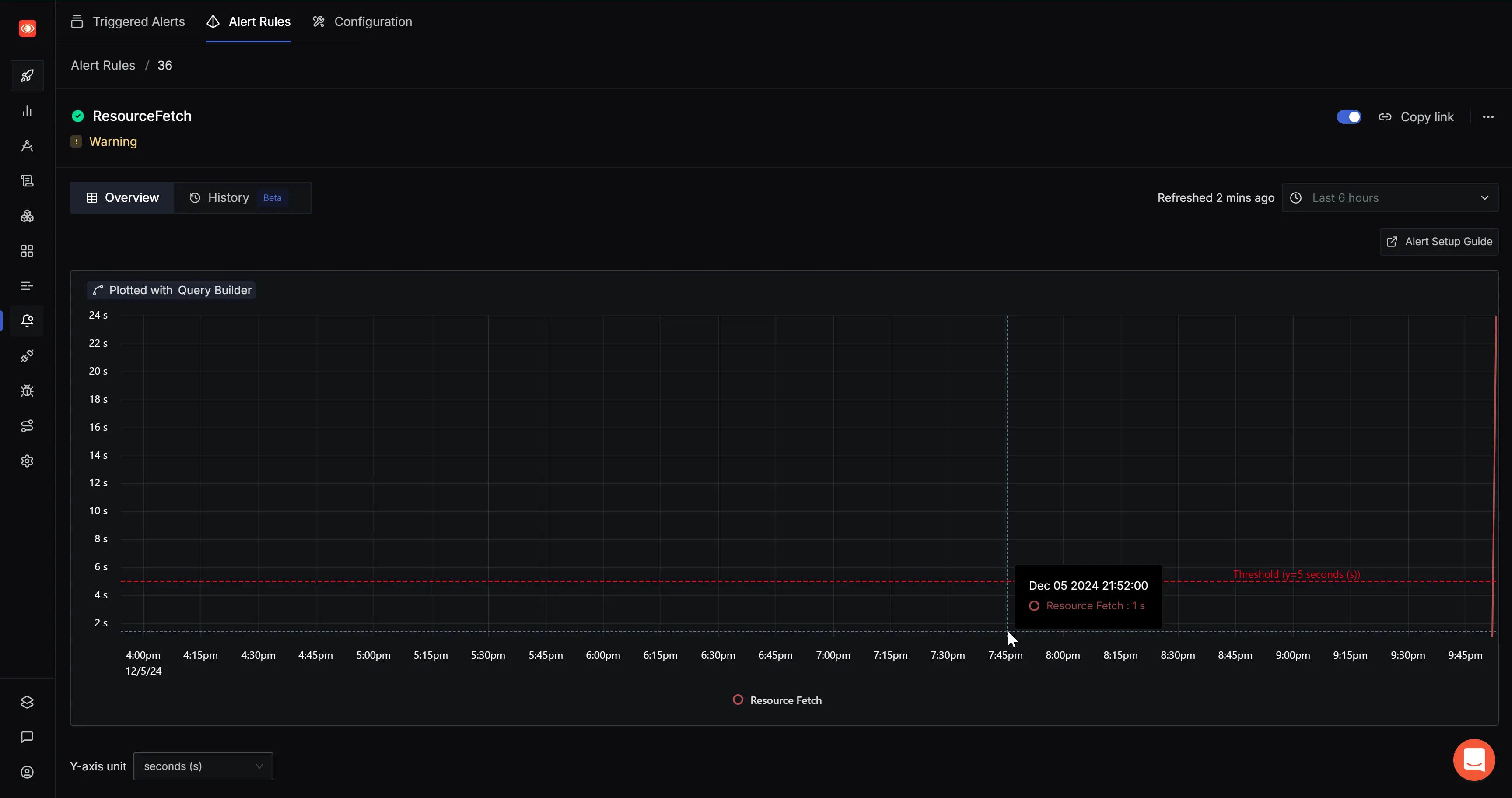

With this, you have successfully set up a useful alerts on your data.
