Host metrics are fundamental performance indicators collected directly from a system's operating system. These metrics provide granular visibility into the physical or virtual server's resource utilization and health status.
The OpenTelemetry hostmetrics receiver collects metrics on CPU, memory, disk, network, paging, and system performance.
Prerequisites
- An instance of SigNoz (either Cloud or Self-Hosted)
Step 1: Install OpenTelemetry Collector
Follow the OpenTelemetry Collector Installation Guide to install OpenTelemetry Collector.
Step 2: Configure the Collector
Configure the Hostmetrics Receiver
Open your OpenTelemetry Collector configuration file which is typically located at /etc/otelcol-contrib/config.yaml.
Add the hostmetrics receiver which scrapes metrics from the host system, add it to the receivers section:
receivers:
hostmetrics:
collection_interval: 60s
scrapers:
cpu: {}
disk: {}
load: {}
filesystem: {}
memory: {}
network: {}
nfs: {} # Linux only
paging: {}
process:
mute_process_name_error: true
mute_process_exe_error: true
mute_process_io_error: true
processes: {}
system: {}
Configure the Processors
Add resourcedetection processor to the processors section to enrich metrics with resource attributes:
processors:
batch:
resourcedetection:
detectors: [env, system]
The resourcedetection processor automatically adds resource attributes like hostname and OS information to your metrics.
Configure the Exporters
Add otlp exporter with SigNoz endpoint and ingestion key to the exporters section:
exporters:
otlp:
endpoint: 'ingest.<region>.signoz.cloud:443'
tls:
insecure: false
headers:
'signoz-ingestion-key': '<your-ingestion-key>'
Replace the following:
<region>: Your SigNoz Cloud region.<your-ingestion-key>: Your ingestion key.
Configure the Service
Enable hostmetrics receiver, resourcedetection and batch processors in the service section:
service:
pipelines:
metrics:
receivers: [hostmetrics]
processors: [resourcedetection, batch]
exporters: [otlp]
View Complete Configuration
Here is how the complete config.yaml file should look:
receivers:
hostmetrics:
collection_interval: 60s
scrapers:
cpu: {}
disk: {}
load: {}
filesystem: {}
memory: {}
network: {}
nfs: {} # Linux only
paging: {}
process:
mute_process_name_error: true
mute_process_exe_error: true
mute_process_io_error: true
processes: {}
system: {}
processors:
batch:
resourcedetection:
detectors: [env, system]
exporters:
otlp:
endpoint: "ingest.<region>.signoz.cloud:443"
tls:
insecure: false
headers:
"signoz-ingestion-key": "<your-ingestion-key>"
service:
pipelines:
metrics:
receivers: [hostmetrics]
processors: [resourcedetection, batch]
exporters: [otlp]
Step 3: Run the Collector
After saving the configuration, restart the collector service to apply changes.
If you are using systemd to manage the collector service:
sudo systemctl restart otelcol-contrib
sudo systemctl status otelcol-contrib
If you are running the binary manually (e.g., for testing):
./otelcol-contrib --config config.yaml
Step 1: Install OpenTelemetry Collector
Follow the OpenTelemetry Collector Installation Guide to install OpenTelemetry Collector.
Step 2: Configure the Collector
To collect host metrics from a Docker container, you must bind mount the host filesystem.
Configure the Hostmetrics Receiver
Create a config.yaml file and add the following configuration. Note the root_path setting which is required for Docker.
receivers:
hostmetrics:
root_path: /hostfs # Required: points to the host filesystem mounted inside the container
collection_interval: 60s
scrapers:
cpu: {}
disk: {}
load: {}
filesystem: {}
memory: {}
network: {}
paging: {}
process:
mute_process_name_error: true
mute_process_exe_error: true
mute_process_io_error: true
mute_process_user_error: true
processes: {}
system: {}
Configure the Processors
Add resource detection processor to enrich metrics:
processors:
resourcedetection:
detectors: [env, system]
Configure the Exporters
Add the exporter configuration:
exporters:
otlp:
endpoint: 'ingest.<region>.signoz.cloud:443'
tls:
insecure: false
headers:
'signoz-ingestion-key': '<your-ingestion-key>'
Replace the following:
<region>: Your SigNoz Cloud region.<your-ingestion-key>: Your ingestion key.
Configure the Service
Set up the pipeline:
service:
pipelines:
metrics:
receivers: [hostmetrics]
processors: [resourcedetection, batch]
exporters: [otlp]
The mute_process_*_error settings suppress common errors when the collector can't access certain process information due to permissions. This is normal in containerized or restricted environments.
View Complete Configuration
Here is how the complete config.yaml file should look:
receivers:
hostmetrics:
root_path: /hostfs
collection_interval: 60s
scrapers:
cpu: {}
disk: {}
load: {}
filesystem: {}
memory: {}
network: {}
paging: {}
process:
mute_process_name_error: true
mute_process_exe_error: true
mute_process_io_error: true
mute_process_user_error: true
processes: {}
system: {}
processors:
batch:
resourcedetection:
detectors: [env, system]
exporters:
otlp:
endpoint: "ingest.<region>.signoz.cloud:443"
tls:
insecure: false
headers:
"signoz-ingestion-key": "<your-ingestion-key>"
service:
pipelines:
metrics:
receivers: [hostmetrics]
processors: [resourcedetection, batch]
exporters: [otlp]
Step 3: Run the Collector
Run the collector container with the --volume flag to mount the host root directory to /hostfs.
docker run -d \
--name otelcol-hostmetrics \
--volume /:/hostfs:ro \
--volume $(pwd)/config.yaml:/etc/otelcol-contrib/config.yaml \
otel/opentelemetry-collector-contrib:latest \
--config=/etc/otelcol-contrib/config.yaml
Step 1: Install OpenTelemetry Collector
Follow the OpenTelemetry Collector Installation Guide to install OpenTelemetry Collector.
Step 2: Configure the Collector
- Locate your
config.yamlfile.- Default:
C:\Program Files\OpenTelemetry Collector\config.yaml
- Default:
Configure the Hostmetrics Receiver
Add the following to your config.yaml:
receivers:
hostmetrics:
collection_interval: 60s
scrapers:
cpu: {}
disk: {}
load: {}
filesystem: {}
memory: {}
network: {}
paging: {}
process:
mute_process_name_error: true
mute_process_exe_error: true
mute_process_io_error: true
mute_process_user_error: true
system: {}
Configure the Processors
Add the resource detection processor:
processors:
resourcedetection:
detectors: [env, system]
Configure the Exporters
Configure the OTLP exporter:
exporters:
otlp:
endpoint: 'ingest.<region>.signoz.cloud:443'
tls:
insecure: false
headers:
'signoz-ingestion-key': '<your-ingestion-key>'
Replace the following:
<region>: Your SigNoz Cloud region.<your-ingestion-key>: Your ingestion key.
Configure the Service
Enable the pipeline:
service:
pipelines:
metrics:
receivers: [hostmetrics]
processors: [resourcedetection, batch]
exporters: [otlp]
Step 3: Run the Collector
After saving the configuration, run the collector service to apply changes.
.\otelcol-contrib.exe --config config.yaml
Advanced Configuration
Configure Different Frequencies
You can configure different collection intervals for different metrics by defining multiple hostmetrics receivers. This is useful if you want frequently changing metrics (like CPU/Memory) to be collected more often than stable ones (like Filesystem).
receivers:
# Receiver for high-frequency metrics (e.g., every 10s)
hostmetrics/fast:
collection_interval: 10s
scrapers:
cpu: {}
memory: {}
# Receiver for low-frequency metrics (e.g., every 1m)
hostmetrics/slow:
collection_interval: 60s
scrapers:
filesystem: {}
disk: {}
network: {}
service:
pipelines:
metrics:
receivers: [hostmetrics/fast, hostmetrics/slow]
# ... other processors and exporters
Verification
Once configured, verify that metrics are flowing to SigNoz.

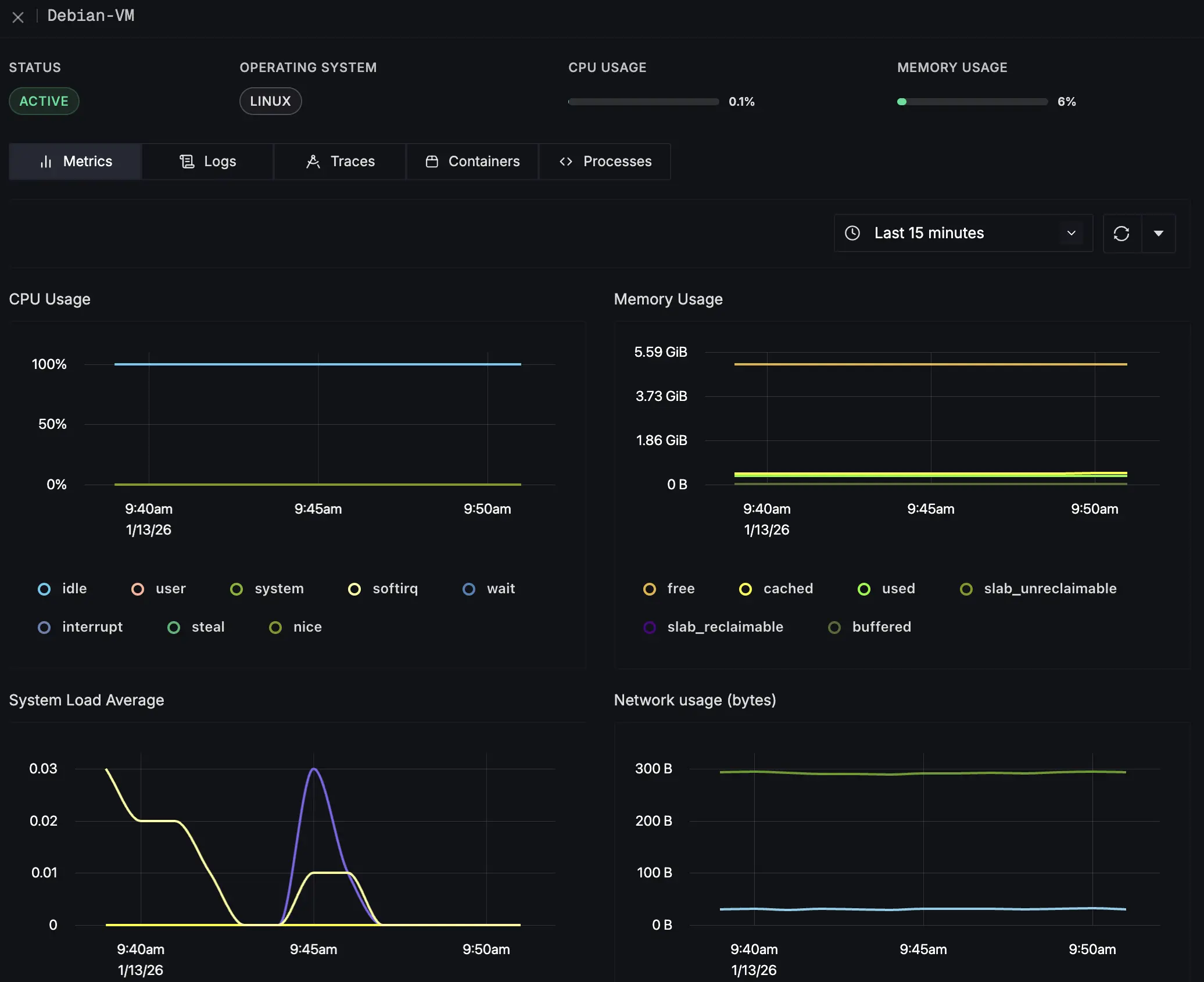

- Go to the Infrastructure Monitoring section in SigNoz (Hosts tab).
- You should see your host listed with metrics like CPU and Memory usage.
Troubleshooting
No metrics appearing in SigNoz
Symptoms: Host not visible in Infrastructure Monitoring > Hosts tab.
Resolution:
Check collector logs for errors.
Linux (Systemd):
journalctl -u otelcol-contrib -fDocker:
docker logs otelcol-hostmetrics -fWindows (PowerShell):
Get-Content "C:\Program Files\OpenTelemetry Collector\otelcol.log" -WaitVerify the hostmetrics receiver is enabled in your config.
Ensure the collector can reach the SigNoz endpoint (port 443 for Cloud, 4317 for Self-Hosted).
Connection Refused
Symptoms: Logs show connection refused errors.
Resolution:
- Ensure the OTLP endpoint is reachable.
- Verify the correct port is being used.
- Check firewall settings.
Invalid Key (Cloud)
Symptoms: HTTP 401 Unauthorized errors in logs.
Resolution:
- Double-check your ingestion key in
config.yaml. - Ensure it matches the key in SigNoz (Settings > Ingestion Settings).
