SAML Authentication with Okta

Overview

This guide walks you through setting up SAML (Security Assertion Markup Language) authentication between Okta and SigNoz.

What you'll accomplish:

• Configure Okta as an identity provider (IdP) for SigNoz
• Enable your team to access SigNoz using their existing Okta accounts

Prerequisites

Before starting, ensure you have:

• Okta account with administrative access
• SigNoz account (Cloud or Self-Hosted with License) with administrative access
• Your SigNoz instance URL (e.g., https://signoz.example.com)

Configuration Steps

Step 1: Create SAML Application in Okta

1. Log in to Okta and create a new SAML application.

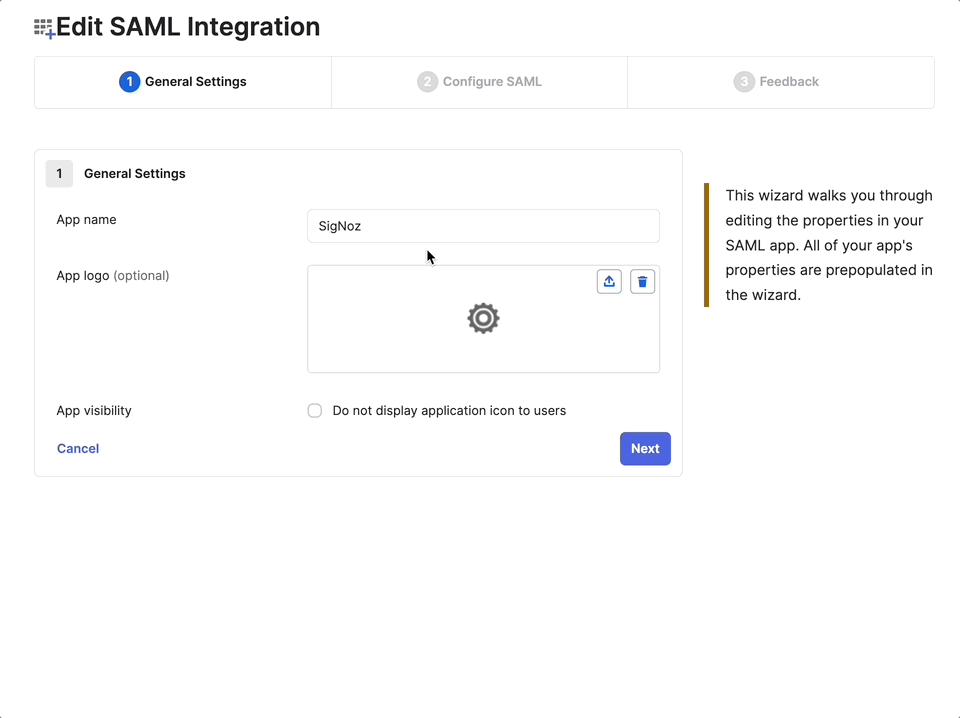

Step 2: Configure SAML Settings

1. From the Admin page, go to Applications > Applications > Create App Integration
2. Select SAML 2.0, and hit Next
3. On the SAML Integration page, enter the following:
   • Application Name: SigNoz
   • Single Sign-on URL: <your-instance-url>/api/v1/complete/saml
   • Audience URI (SP Entity ID): <your-instance-url>
4. Click Save to create the application integration

Step 3: Export Metadata

1. Visit the Metadata URL in Okta to get the following information:

The metadata file contains important configuration details like:

• Okta's signing certificate
• Single Sign-On service URLs
• Entity identifiers

Example metadata file structure:

<md:EntityDescriptor xmlns:md="urn:oasis:names:tc:SAML:2.0:metadata" entityID="http://www.okta.com/exk...697">
  <md:IDPSSODescriptor WantAuthnRequestsSigned="false" protocolSupportEnumeration="urn:oasis:names:tc:SAML:2.0:protocol">
    <md:KeyDescriptor use="signing">
      <ds:KeyInfo xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
        <ds:X509Data>
          <ds:X509Certificate>cert</ds:X509Certificate>
        </ds:X509Data>
      </ds:KeyInfo>
    </md:KeyDescriptor>
    <md:SingleLogoutService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="<idp-url>"/>
    <md:SingleLogoutService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect" Location="<idp-url>"/>
    <md:NameIDFormat>urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified</md:NameIDFormat>
    <md:SingleSignOnService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="<idp-url>"/>
    <md:SingleSignOnService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect" Location="<idp-url>"/>
  </md:IDPSSODescriptor>
</md:EntityDescriptor>

Step 5: Assign Users to Application

1. From Admin page, go to Directories > People or Groups
2. Select the specific people or groups
3. Go to Applications > Assign applications
4. Select SigNoz application > Assign > Hit Done

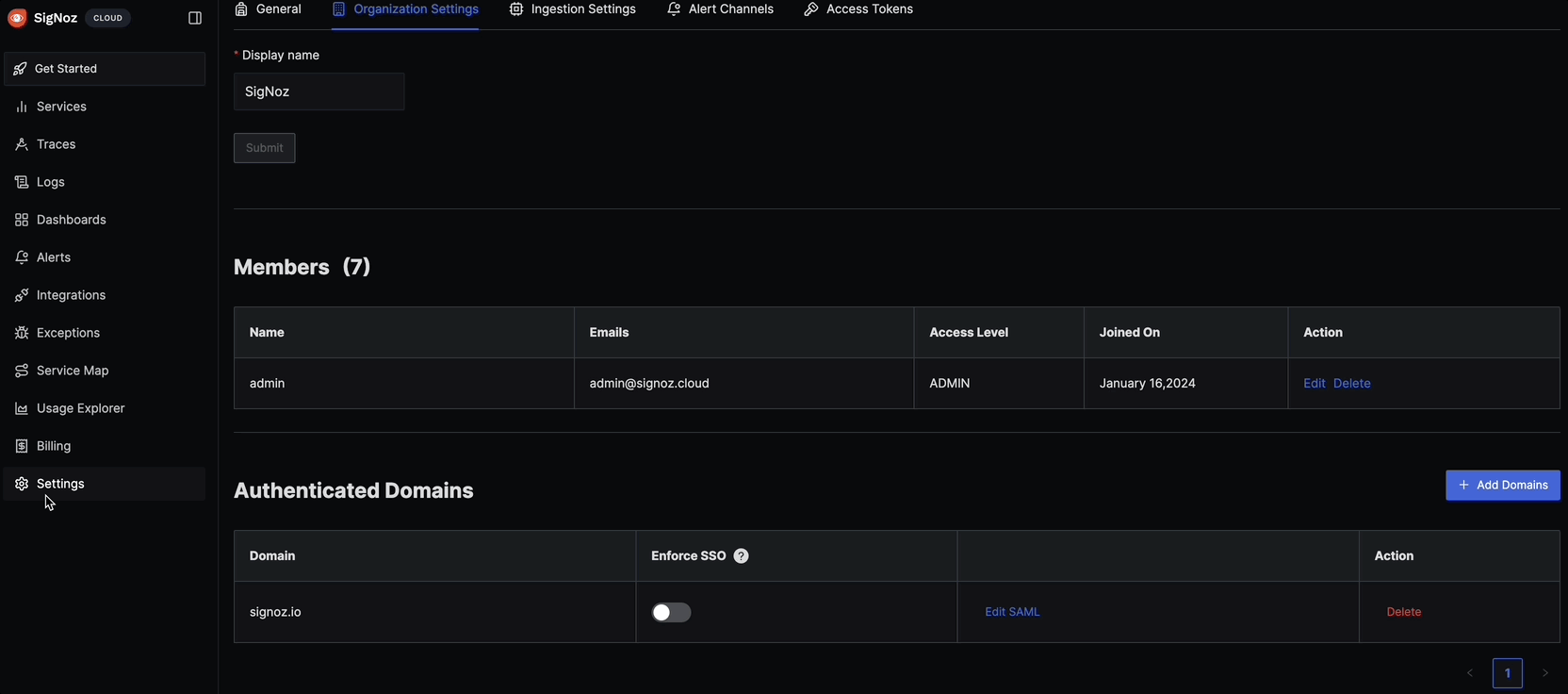

Step 6: Configure SigNoz for SAML Authentication

Now you'll configure SigNoz to accept authentication from Okta:

1. Navigate to SigNoz Settings:

   • Go to your SigNoz dashboard
   • Click on Settings in the left sidebar
   • Navigate to Organization Settings
   • Click on Authenticated Domains

2. Add New Domain:

   • Click Add Domain
   • Enter the domain that your users would login with (e.g., if your user emails are in format john@example.com, enter example.com)

3. Enter Configuration Details:

   Domain: example.com
   SAML ACS URL/SAML IDP URL: <idp-url>
   SAML X.509 Certificate: <some-certificate-data>
   SAML Entity ID: <entity-id>
   Skip AuthN Requests Signed: False


   Where to find these values:

   • Domain: The email domain for users who should use SSO (e.g., example.com for users with @example.com emails)
   • SAML ACS URL/SAML IDP URL: The ACS URL from the metadata file (between <md:SingleSignOnService Location="..."> tags)
   • SAML X.509 Certificate: The certificate content from the metadata file (between <ds:X509Certificate> tags)
   • SAML Entity ID: The entityID value from the metadata file

4. Save Configuration:

   • Click Save to apply the SAML configuration

Step 7: Test the Integration

1. Log out of SigNoz if you're currently logged in
2. Navigate to your SigNoz login page
3. Try logging in with an Okta user email
4. Verify that you're redirected to Okta for authentication
5. Complete the Okta login process
6. Confirm you're successfully logged into SigNoz

Troubleshooting

Common issues and solutions:

• "Authentication failed" error: Check that the redirect URI exactly matches <your-instance-url>/api/v1/complete/saml in Okta
• Locked out?: If you're unable to login because of faulty setup, use password authentication by appending ?password=Y to your login URL: <your-instance-url>/login?password=Y
