OpenAI Monitoring with OpenTelemetry

This guide walks you through setting up OpenAI monitoring using OpenTelemetry and SigNoz. You will instrument your OpenAI applications to capture traces, logs, and metrics and visualize them in real time in SigNoz.

OpenAI monitoring with SigNoz gives you visibility into:

Token usage — track input and output tokens per request to understand cost drivers
Model latency — measure response times across models and request types
Error rates — detect API failures, rate limit errors, and timeouts before they impact users
Request traces — follow individual LLM calls through your full application stack

Requirements

Python 3.8 or newer
OpenAI Python library (openai >= 1.0.0)
Valid OpenAI API key
SigNoz setup (choose one):
- SigNoz Cloud account with an active ingestion key
- Self-hosted SigNoz instance

Setup

Step 1. Create a virtual environment

python3 -m venv .venv
source .venv/bin/activate

Step 2. Install the OpenTelemetry dependencies

pip install opentelemetry-distro~=0.51b0
pip install opentelemetry-exporter-otlp~=1.30.0
pip install opentelemetry-instrumentation-openai-v2

Step 3. Add automatic instrumentation

opentelemetry-bootstrap --action=install

Step 4. Run your application

OTEL_SERVICE_NAME=<service-name> \
OTEL_EXPORTER_OTLP_ENDPOINT="https://ingest.<region>.signoz.cloud:443" \
OTEL_EXPORTER_OTLP_HEADERS="signoz-ingestion-key=<your-ingestion-key>" \
OTEL_EXPORTER_OTLP_PROTOCOL=grpc \
OTEL_PYTHON_LOGGING_AUTO_INSTRUMENTATION_ENABLED=true \
OTEL_INSTRUMENTATION_GENAI_CAPTURE_MESSAGE_CONTENT=true \
OPENAI_API_KEY=<your-openai-key> \
opentelemetry-instrument <your_run_command>

Environment Variables Explained:

OTEL_PYTHON_LOGGING_AUTO_INSTRUMENTATION_ENABLED - Enables automatic logging instrumentation
OTEL_INSTRUMENTATION_GENAI_CAPTURE_MESSAGE_CONTENT - Captures prompts and completions as logs
<region>: Your SigNoz Cloud region
<your-ingestion-key>: Your SigNoz ingestion key
Replace <service-name> with the name of your service
Replace <your-openai-key> with your OpenAI API key

Using self-hosted SigNoz? Most steps are identical. To adapt this guide, update the endpoint and remove the ingestion key header as shown in Cloud → Self-Hosted.

Requirements

Java 8 or newer
OpenAI Java SDK (openai-java >= 1.1.0)
Valid OpenAI API key
SigNoz setup (choose one):
- SigNoz Cloud account with an active ingestion key
- Self-hosted SigNoz instance

Setup

Step 1. Add dependencies

For Gradle (build.gradle.kts):

dependencies {
    implementation("com.openai:openai-java:3.6.1")
    implementation("io.github.cdimascio:dotenv-java:3.0.0")
    implementation("io.opentelemetry:opentelemetry-api:1.54.1")
    implementation("io.opentelemetry:opentelemetry-sdk:1.54.1")
    implementation("io.opentelemetry:opentelemetry-sdk-trace:1.54.1")
    implementation("io.opentelemetry:opentelemetry-sdk-metrics:1.54.1")
    implementation("io.opentelemetry:opentelemetry-sdk-logs:1.54.1")
    implementation("io.opentelemetry:opentelemetry-exporter-otlp:1.54.1")
    implementation("io.opentelemetry:opentelemetry-semconv:1.27.0-alpha")
    implementation(platform("io.opentelemetry.instrumentation:opentelemetry-instrumentation-bom-alpha:2.20.1-alpha"))
    implementation("io.opentelemetry.instrumentation:opentelemetry-openai-java-1.1")
}

For Maven (pom.xml):

<dependencies>
    <dependency>
        <groupId>com.openai</groupId>
        <artifactId>openai-java</artifactId>
        <version>3.6.1</version>
    </dependency>
    <dependency>
        <groupId>io.github.cdimascio</groupId>
        <artifactId>dotenv-java</artifactId>
        <version>3.0.0</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-api</artifactId>
        <version>1.54.1</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-sdk</artifactId>
        <version>1.54.1</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-sdk-trace</artifactId>
        <version>1.54.1</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-sdk-metrics</artifactId>
        <version>1.54.1</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-sdk-logs</artifactId>
        <version>1.54.1</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-exporter-otlp</artifactId>
        <version>1.54.1</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry</groupId>
        <artifactId>opentelemetry-semconv</artifactId>
        <version>1.27.0-alpha</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry.instrumentation</groupId>
        <artifactId>opentelemetry-openai-java-1.1</artifactId>
        <version>2.20.1-alpha</version>
    </dependency>
</dependencies>

Step 2. Import the necessary modules in your Java application

OpenTelemetry:

import io.opentelemetry.api.OpenTelemetry;
import io.opentelemetry.instrumentation.openai.v1_1.OpenAITelemetry;
import io.opentelemetry.sdk.OpenTelemetrySdk;
import io.opentelemetry.sdk.resources.Resource;
import io.opentelemetry.semconv.ServiceAttributes;

Traces:

import io.opentelemetry.sdk.trace.SdkTracerProvider;
import io.opentelemetry.sdk.trace.export.BatchSpanProcessor;
import io.opentelemetry.exporter.otlp.http.trace.OtlpHttpSpanExporter;

Logs:

import io.opentelemetry.sdk.logs.SdkLoggerProvider;
import io.opentelemetry.sdk.logs.export.BatchLogRecordProcessor;
import io.opentelemetry.exporter.otlp.http.logs.OtlpHttpLogRecordExporter;

Metrics:

import io.opentelemetry.sdk.metrics.SdkMeterProvider;
import io.opentelemetry.sdk.metrics.export.PeriodicMetricReader;
import io.opentelemetry.exporter.otlp.http.metrics.OtlpHttpMetricExporter;

Step 3. Setup Traces

import io.github.cdimascio.dotenv.Dotenv;

import io.opentelemetry.api.OpenTelemetry;
import io.opentelemetry.sdk.OpenTelemetrySdk;
import io.opentelemetry.sdk.resources.Resource;
import io.opentelemetry.semconv.ServiceAttributes;

import io.opentelemetry.sdk.trace.SdkTracerProvider;
import io.opentelemetry.sdk.trace.export.BatchSpanProcessor;
import io.opentelemetry.exporter.otlp.http.trace.OtlpHttpSpanExporter;

Dotenv dotenv = Dotenv.load();

String serviceName = "<service_name>";

Resource resource = Resource.getDefault()
            .toBuilder()
            .put(ServiceAttributes.SERVICE_NAME, serviceName)
            .build();

OtlpHttpSpanExporter otlpSpanExporter = OtlpHttpSpanExporter.builder()
            .setEndpoint(System.getenv("OTEL_EXPORTER_TRACES_ENDPOINT"))
            .addHeader("signoz-ingestion-key", System.getenv("SIGNOZ_INGESTION_KEY"))
            .build();

SdkTracerProvider tracerProvider = SdkTracerProvider.builder()
            .setResource(resource)
            .addSpanProcessor(BatchSpanProcessor.builder(otlpSpanExporter).build())
            .build();

<service_name> is the name of your service
OTEL_EXPORTER_TRACES_ENDPOINT → SigNoz Cloud endpoint with appropriate region:https://ingest.<region>.signoz.cloud:443/v1/traces
SIGNOZ_INGESTION_KEY → Your SigNoz ingestion key

Using self-hosted SigNoz? Most steps are identical. To adapt this guide, update the endpoint and remove the ingestion key header as shown in Cloud → Self-Hosted.

Step 4. Setup Logs

import io.opentelemetry.sdk.logs.SdkLoggerProvider;
import io.opentelemetry.sdk.logs.export.BatchLogRecordProcessor;
import io.opentelemetry.exporter.otlp.http.logs.OtlpHttpLogRecordExporter;

OtlpHttpLogRecordExporter otlpLogExporter = OtlpHttpLogRecordExporter.builder()
            .setEndpoint(System.getenv("OTEL_EXPORTER_LOGS_ENDPOINT"))
            .addHeader("signoz-ingestion-key", System.getenv("SIGNOZ_INGESTION_KEY"))
            .build();

SdkLoggerProvider loggerProvider = SdkLoggerProvider.builder()
            .setResource(resource)
            .addLogRecordProcessor(BatchLogRecordProcessor.builder(otlpLogExporter).build())
            .build();

OTEL_EXPORTER_LOGS_ENDPOINT → SigNoz Cloud endpoint with appropriate region:https://ingest.<region>.signoz.cloud:443/v1/logs
SIGNOZ_INGESTION_KEY → Your SigNoz ingestion key

Using self-hosted SigNoz? Most steps are identical. To adapt this guide, update the endpoint and remove the ingestion key header as shown in Cloud → Self-Hosted.

Step 5. Setup Metrics

import io.opentelemetry.sdk.metrics.SdkMeterProvider;
import io.opentelemetry.sdk.metrics.export.PeriodicMetricReader;
import io.opentelemetry.exporter.otlp.http.metrics.OtlpHttpMetricExporter;

OtlpHttpMetricExporter otlpMetricExporter = OtlpHttpMetricExporter.builder()
            .setEndpoint(System.getenv("OTEL_EXPORTER_METRICS_ENDPOINT"))
            .addHeader("signoz-ingestion-key", System.getenv("SIGNOZ_INGESTION_KEY"))
            .build();

SdkMeterProvider meterProvider = SdkMeterProvider.builder()
            .setResource(resource)
            .registerMetricReader(PeriodicMetricReader.builder(otlpMetricExporter).build())
            .build();

OTEL_EXPORTER_METRICS_ENDPOINT → SigNoz Cloud endpoint with appropriate region:https://ingest.<region>.signoz.cloud:443/v1/metrics
SIGNOZ_INGESTION_KEY → Your SigNoz ingestion key

Using self-hosted SigNoz? Most steps are identical. To adapt this guide, update the endpoint and remove the ingestion key header as shown in Cloud → Self-Hosted.

Step 6. Setup OpenTelemetry SDK with your created providers

OpenTelemetrySdk openTelemetry = OpenTelemetrySdk.builder()
            .setTracerProvider(tracerProvider)
            .setMeterProvider(meterProvider)
            .setLoggerProvider(loggerProvider)
            .build();

Step 7. Run an Example using OpenAI Instrumentor

import io.opentelemetry.instrumentation.openai.v1_1.OpenAITelemetry;
import com.openai.client.OpenAIClient;
import com.openai.client.okhttp.OpenAIOkHttpClient;
import com.openai.models.ChatModel;
import com.openai.models.chat.completions.ChatCompletion;
import com.openai.models.chat.completions.ChatCompletionCreateParams;

OpenAIClient client = OpenAIOkHttpClient.builder()
            .apiKey(System.getenv("OPENAI_API_KEY"))
            .build();

OpenAIClient otelClient = OpenAITelemetry.builder(openTelemetry)
            .build()
            .wrap(client);

ChatCompletionCreateParams params = ChatCompletionCreateParams.builder()
            .addUserMessage("What is SigNoz?")
            .model("gpt-4.1")
            .build();

ChatCompletion chatCompletion = otelClient.chat().completions().create(params);
System.out.println(chatCompletion);

// Force flush with timeout to ensure all telemetry is exported before shutdown
sdk.getSdkTracerProvider().forceFlush().join(10, java.util.concurrent.TimeUnit.SECONDS);
sdk.getSdkMeterProvider().forceFlush().join(10, java.util.concurrent.TimeUnit.SECONDS);
sdk.getSdkLoggerProvider().forceFlush().join(10, java.util.concurrent.TimeUnit.SECONDS);

sdk.getSdkTracerProvider().shutdown();
sdk.getSdkMeterProvider().shutdown();
sdk.getSdkLoggerProvider().shutdown();

📌 Note: Before running this code, ensure that you have set the environment variable or .env file OPENAI_API_KEY with your generated API key.

Requirements

Java 8 or newer
OpenAI Java SDK (openai-java >= 1.1.0)
Valid OpenAI API key
OpenTelemetry Java agent (if not already installed)
SigNoz setup (choose one):
- SigNoz Cloud account with an active ingestion key
- Self-hosted SigNoz instance

Setup with Auto-Instrumentation

If you're already using the OpenTelemetry Java agent for auto-instrumentation, you can add OpenAI instrumentation on top of your existing setup.

Step 1. Add dependencies

For Gradle (build.gradle.kts):

dependencies {
    implementation("com.openai:openai-java:3.6.1")
    implementation(platform("io.opentelemetry.instrumentation:opentelemetry-instrumentation-bom-alpha:2.20.1-alpha"))
    implementation("io.opentelemetry.instrumentation:opentelemetry-openai-java-1.1")
}

For Maven (pom.xml):

<dependencies>
    <dependency>
        <groupId>com.openai</groupId>
        <artifactId>openai-java</artifactId>
        <version>3.6.1</version>
    </dependency>
    <dependency>
        <groupId>io.opentelemetry.instrumentation</groupId>
        <artifactId>opentelemetry-openai-java-1.1</artifactId>
        <version>2.20.1-alpha</version>
    </dependency>
</dependencies>

Step 2. Import the necessary modules in your Java application

import io.opentelemetry.api.GlobalOpenTelemetry;
import io.opentelemetry.api.OpenTelemetry;
import io.opentelemetry.instrumentation.openai.v1_1.OpenAITelemetry;
import com.openai.client.OpenAIClient;
import com.openai.client.okhttp.OpenAIOkHttpClient;
import com.openai.models.ChatModel;
import com.openai.models.chat.completions.ChatCompletion;
import com.openai.models.chat.completions.ChatCompletionCreateParams;

Step 3. Wrap your OpenAI client with OpenTelemetry instrumentation

// Get the global OpenTelemetry instance configured by the Java agent
OpenTelemetry openTelemetry = GlobalOpenTelemetry.get();

// Create your OpenAI client
OpenAIClient client = OpenAIOkHttpClient.builder()
    .apiKey(System.getenv("OPENAI_API_KEY"))
    .build();

// Wrap it with OpenTelemetry instrumentation
OpenAIClient otelClient = OpenAITelemetry.builder(openTelemetry)
    .build()
    .wrap(client);

// Use otelClient for all OpenAI API calls
ChatCompletionCreateParams params = ChatCompletionCreateParams.builder()
    .addUserMessage("What is SigNoz?")
    .model("gpt-4")
    .build();

ChatCompletion chatCompletion = otelClient.chat().completions().create(params);
System.out.println(chatCompletion);

Step 4. Download the OpenTelemetry Java agent (if not already installed)

curl -L -O https://github.com/open-telemetry/opentelemetry-java-instrumentation/releases/latest/download/opentelemetry-javaagent.jar

Step 5. Run your application with the Java agent

OTEL_RESOURCE_ATTRIBUTES=service.name=<service_name> \
OTEL_EXPORTER_OTLP_HEADERS="signoz-ingestion-key=<your-ingestion-key>" \
OTEL_EXPORTER_OTLP_ENDPOINT=https://ingest.<region>.signoz.cloud:443 \
java -javaagent:$PWD/opentelemetry-javaagent.jar -jar <my-app>.jar

Configuration Variables:

Set <service_name> to the name of your service
<region>: Your SigNoz Cloud region
<your-ingestion-key>: Your SigNoz ingestion key
Replace <my-app> with your application JAR file name

Using self-hosted SigNoz? Most steps are identical. To adapt this guide, update the endpoint and remove the ingestion key header as shown in Cloud → Self-Hosted.

📌 Note: This approach uses GlobalOpenTelemetry.get() to retrieve the OpenTelemetry instance configured by the Java agent. This ensures that OpenAI traces are properly correlated with traces from auto-instrumented components (HTTP servers, databases, etc.).

📌 Note: Before running this code, ensure that you have set the environment variable OPENAI_API_KEY with your generated API key.

📌 Note: The Java agent will automatically instrument common frameworks and libraries (Spring Boot, JDBC, HTTP clients, etc.). The OpenAI instrumentation library adds specific telemetry for OpenAI API calls on top of this existing instrumentation.

📌 Note: If you're running a web application or microservice, the OpenAI spans will automatically be linked as child spans to incoming HTTP request spans, providing full distributed tracing across your application.

What Does OpenAI Monitoring Capture?

This instrumentation captures comprehensive telemetry data for your OpenAI applications:

Traces

Spans for each OpenAI API call with timing information
Operation details like model name, max tokens etc.
Token usage including input and output
Request and response metadata such as finish reason and model used

Logs

Structured logs for each API call when OTEL_PYTHON_LOGGING_AUTO_INSTRUMENTATION_ENABLED=true is set
Message content logs (prompts and completions) when OTEL_INSTRUMENTATION_GENAI_CAPTURE_MESSAGE_CONTENT=true is enabled
Error logs for failed API calls with detailed error information and stack traces
Performance logs showing request duration and timing information

Log Levels and Content:

INFO level logs for successful API calls with metadata
ERROR level logs for failed requests with error details
DEBUG level logs for detailed request/response information (when debug logging is enabled)

Metrics

Duration metrics showing how long OpenAI calls take
Token usage metrics tracking consumption over time
Request rate metrics showing API call frequency
Error rate metrics for monitoring API failures

More details about the metrics can be found here.

Validating Your OpenAI Monitoring Setup

Validate your traces, logs, and metrics in SigNoz:

Trigger OpenAI API calls in your app. Make several API calls to generate some data. Then, wait for some time.
In SigNoz, open the Services tab. Hit the Refresh button on the top right corner, and your application should appear in the list of Applications.
Go to the Traces tab, and apply relevant filters to see your application's traces.
Check the Logs tab to see captured logs from your OpenAI calls.
Visit the Metrics tab to view token usage and performance metrics.

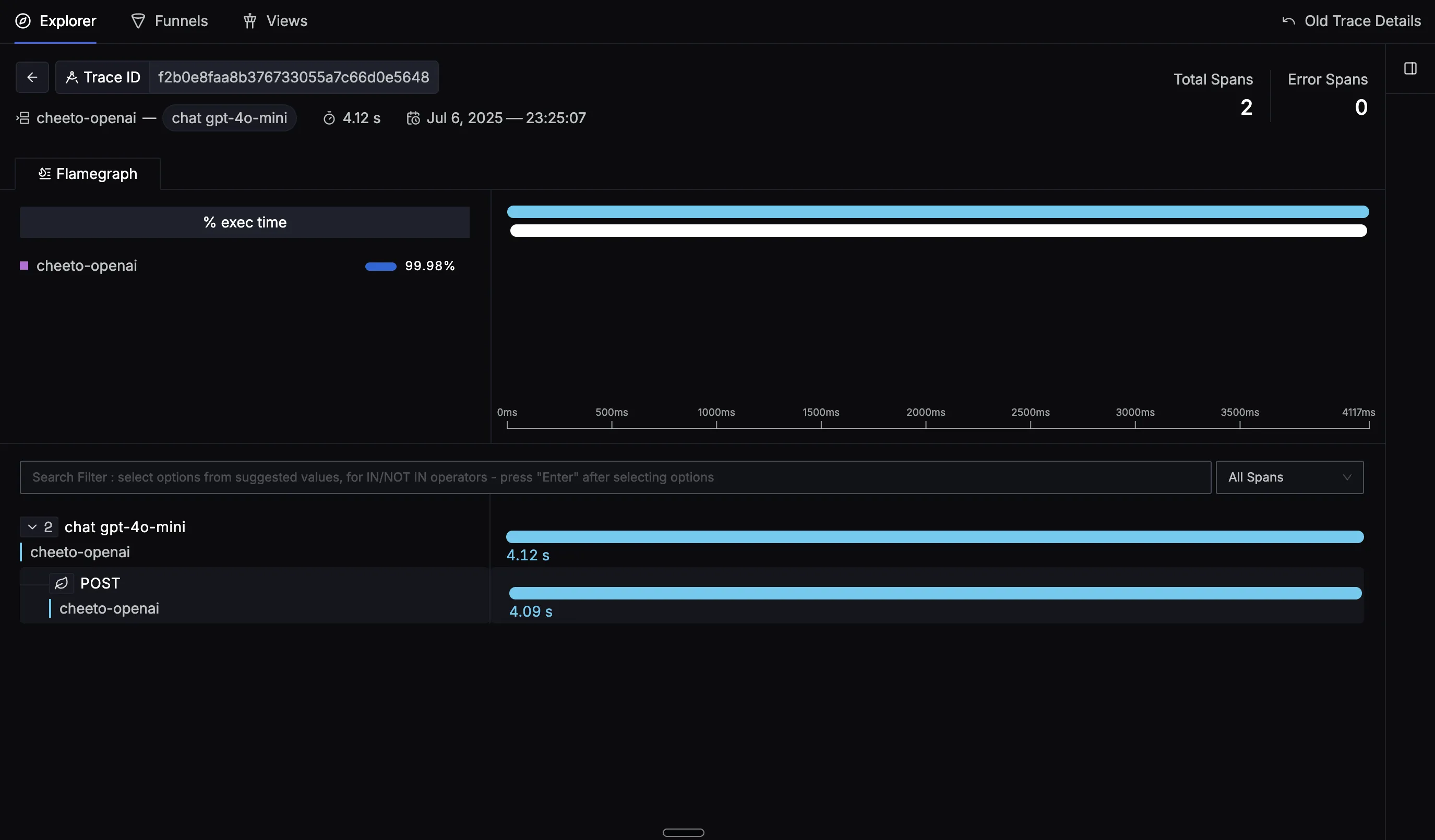

OpenAI monitoring traces in SigNoz showing span details and token usage — *OpenAI request traces in SigNoz*

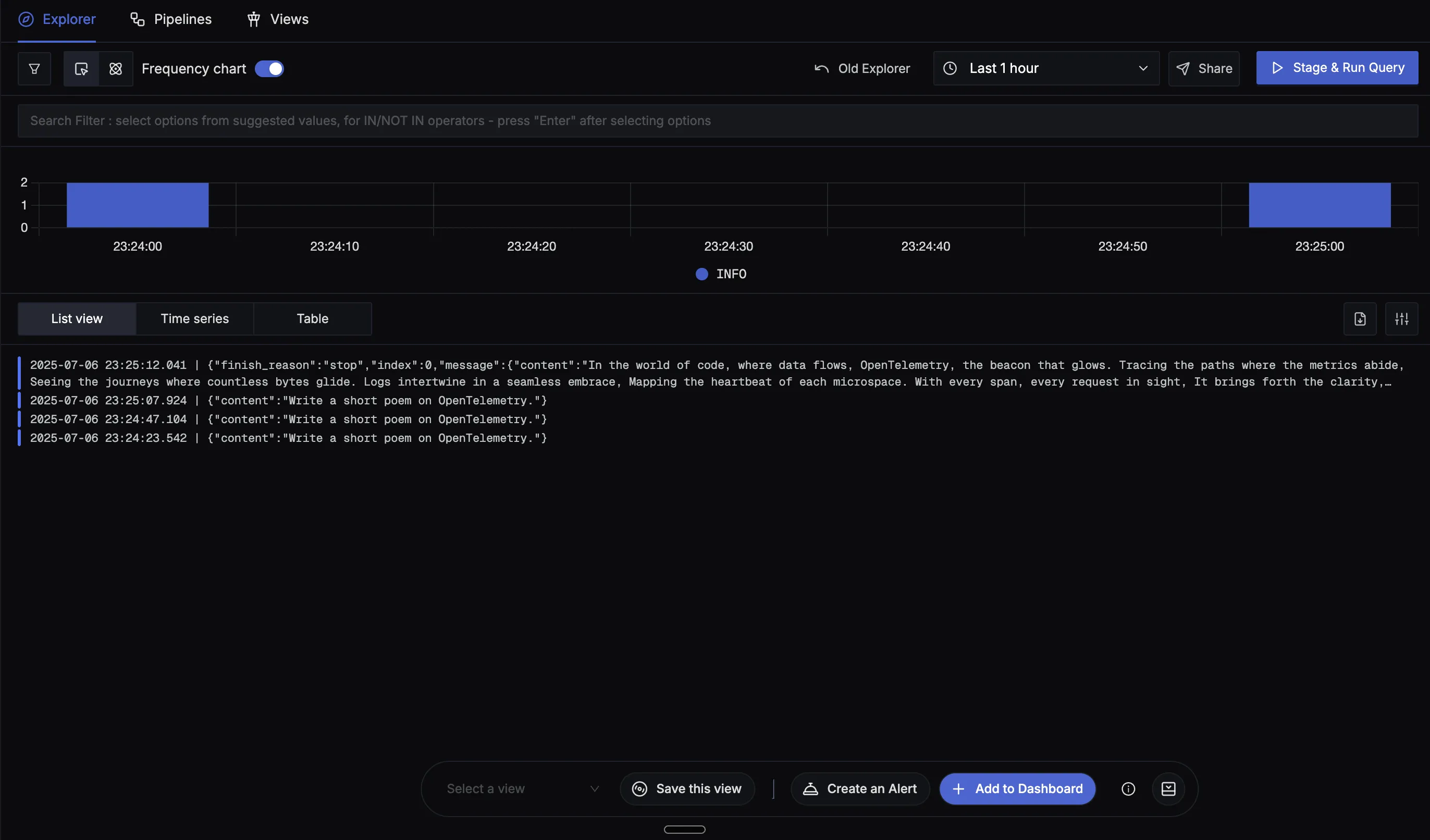

OpenAI application logs captured in SigNoz via OpenTelemetry — *OpenAI API logs in SigNoz*

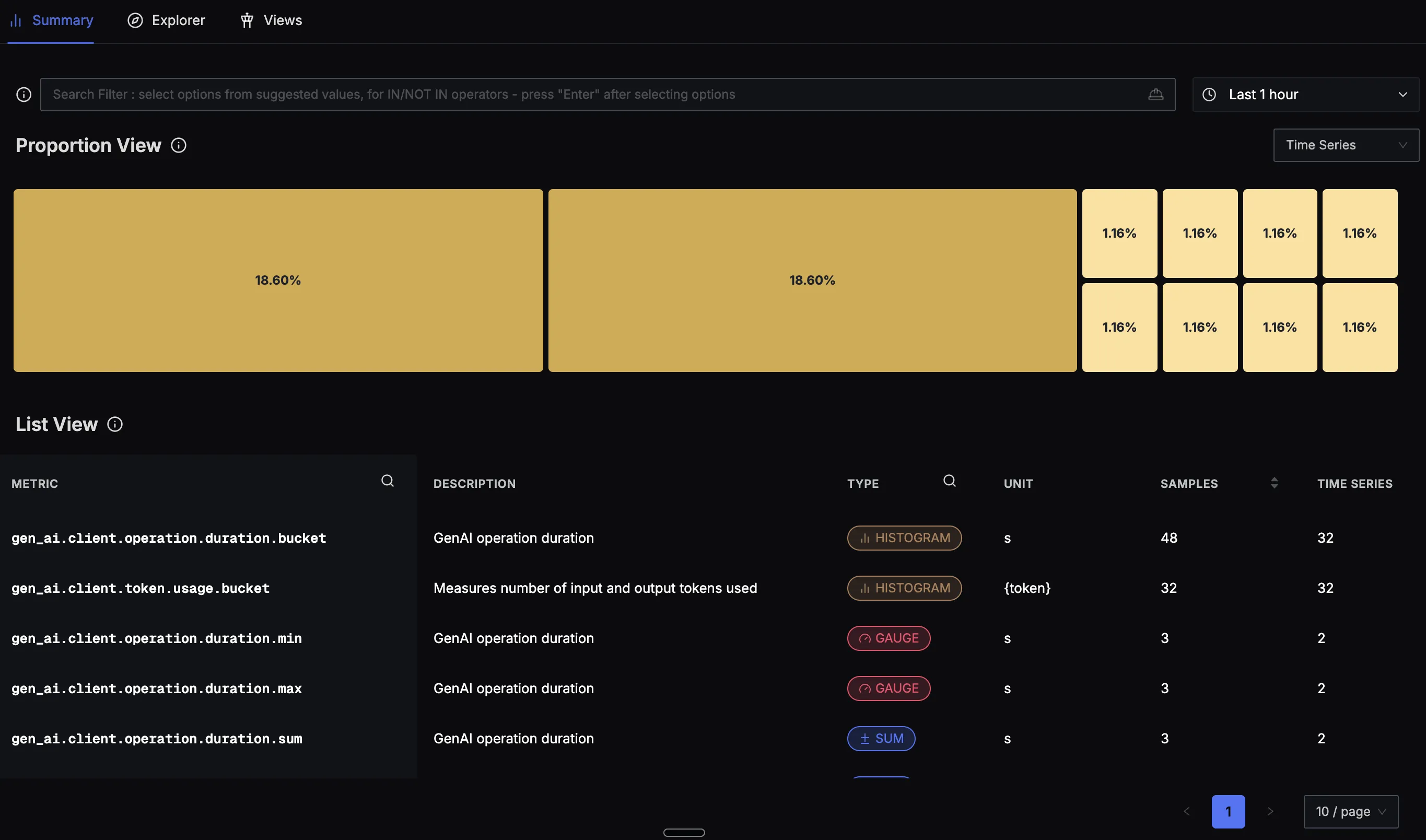

OpenAI monitoring metrics in SigNoz showing token usage and latency — *OpenAI API metrics in SigNoz*

Capturing Message Content (Optional)

By default, message content such as prompts and completions are not captured. To capture message content as log events, set the environment variable:

export OTEL_INSTRUMENTATION_GENAI_CAPTURE_MESSAGE_CONTENT=true

Note: Be cautious when enabling this in production as it may capture sensitive user data. This feature is already included in the run command above.

Troubleshooting your installation

Spans are not being reported

If spans are not being reported to SigNoz, try enabling debug exporter which writes the JSON formatted trace data to the console by setting env var OTEL_TRACES_EXPORTER=console.

OTEL_SERVICE_NAME=my-openai-app \
OTEL_TRACES_EXPORTER=console \
opentelemetry-instrument python app.py

You should see trace data in your console output that looks like:

{
  "name": "chat_completions_create",
  "context": {
    "trace_id": "0xedb7caf0c8b082a9578460a201759193",
    "span_id": "0x57cf7eee198e1fed",
    "trace_state": "[]"
  },
  "kind": "SpanKind.CLIENT",
  "parent_id": null,
  "start_time": "2025-01-15T10:30:00.804758Z",
  "end_time": "2025-01-15T10:30:01.204805Z",
  "status": {
    "status_code": "UNSET"
  },
  "attributes": {
    "gen_ai.system": "openai",
    "gen_ai.request.model": "gpt-4o-mini",
    "gen_ai.usage.total_tokens": 150
  },
  "events": [],
  "links": [],
  "resource": {
    "telemetry.sdk.language": "python",
    "telemetry.sdk.name": "opentelemetry",
    "telemetry.sdk.version": "1.30.0",
    "service.name": "my-openai-app"
  }
}

Common Issues

If you don't see your telemetry data:

Check your OpenAI API key - Make sure OPENAI_API_KEY environment variable is set
Verify network connectivity - Ensure your application can reach SigNoz Cloud endpoints
Check ingestion key - Verify your SigNoz ingestion key is correct
Wait for data - OpenTelemetry batches data before sending, so wait 10-30 seconds after making API calls

OpenAI Monitoring Dashboard

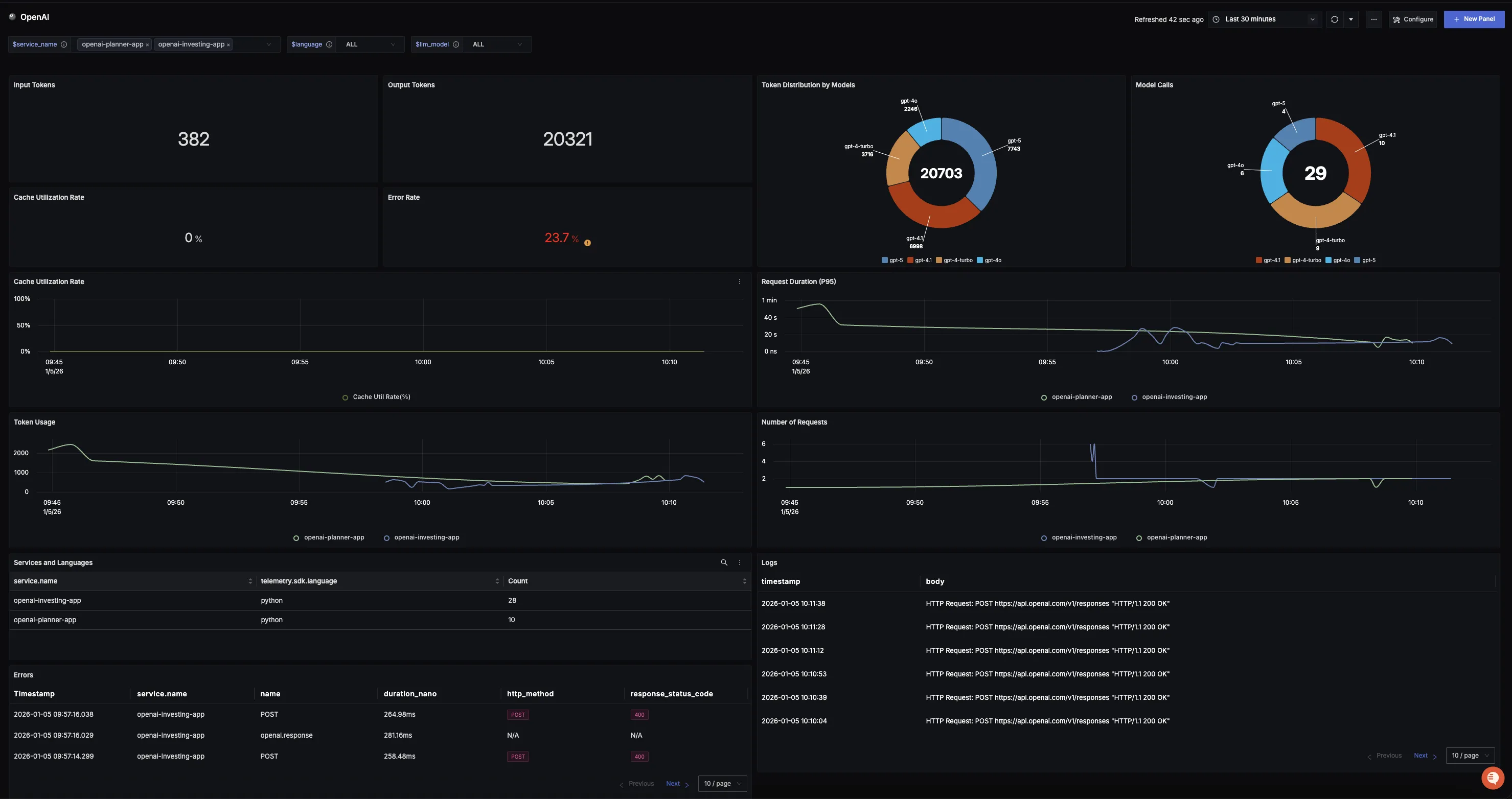

You can also check out our custom OpenAI dashboard here which provides specialized visualizations for monitoring your OpenAI usage in applications. The dashboard includes pre-built charts specifically tailored for LLM usage, along with import instructions to get started quickly.

OpenAI Monitoring with OpenTelemetry

Requirements

Setup

Step 1. Create a virtual environment

Step 2. Install the OpenTelemetry dependencies

Step 3. Add automatic instrumentation

Step 4. Run your application

Requirements

Setup

Step 1. Add dependencies

Step 2. Import the necessary modules in your Java application

Step 3. Setup Traces

Step 4. Setup Logs

Step 5. Setup Metrics

Step 6. Setup OpenTelemetry SDK with your created providers

Step 7. Run an Example using OpenAI Instrumentor

Requirements

Setup with Auto-Instrumentation

Step 1. Add dependencies

Step 2. Import the necessary modules in your Java application

Step 3. Wrap your OpenAI client with OpenTelemetry instrumentation

Step 4. Download the OpenTelemetry Java agent (if not already installed)

Step 5. Run your application with the Java agent

What Does OpenAI Monitoring Capture?

Traces

Logs

Metrics

Validating Your OpenAI Monitoring Setup

Capturing Message Content (Optional)

Troubleshooting your installation

Spans are not being reported

Common Issues

OpenAI Monitoring Dashboard

Was this page helpful?

Is this page helpful?
