Guide to perform PII Scrubbing in Traces using SigNoz

Overview

Traces often come with a lot of data, attributes which may include sensitive information, and needs to be treated before they're stored to comply with regulations like GDPR and CCPA. SigNoz simplifies this process by making use of OpenTelemetry's Processors. This guide explains how you can set up an OpenTelemetry Collector (OTel) to scrub PII data.

Prerequisites

• SigNoz Cloud account
• OpenTelemetry Collector to receive traces from your application

Set up OpenTelemetry Collector

Set up OTel Collector to send traces to SigNoz if you have not already. The OTel Collector allows you to process, transform, and scrub sensitive data before it reaches SigNoz. Checkout SigNoz OTel Collector setup guide to get started with OTel Collector.

1. Instrument your application to send traces to the OTel Collector.
2. Configure the OTel Collector to receive traces, apply processors, and export to SigNoz.
3. If you are currently sending traces directly to SigNoz, update your configuration to send them to the OTel Collector instead.

Process of scrubbing PII data

OpenTelemetry Collector provides a powerful transform processor to filter or modify sensitive data before it's sent to SigNoz. We'll use this processor to scrub PII data from our traces.

Sample trace

Let's use the following sample trace data to demonstrate PII data scrubbing process:

{
    ...
    "Attributes": [
        ...
        {
            "Key": "client.address",
            "Value": {
                "Type": "STRING",
                "Value": "127.0.0.1"
            }
        },
        {
            "Key": "http.response.status_code",
            "Value": {
                "Type": "INT64",
                "Value": 200
            }
        },
        ...
    ]
    ...
}

This trace contains an attribute that we want to scrub: IP address of client.

Configuring the transform processor

To scrub PII data, we're going to use a transform processor in the OpenTelemetry Collector configuration. Transform processor works by using regular expressions for scrubbing the data, you can find more about regular expressions here. Here's an example of how we can use the transform processor:

processors:
  ...
  transform:
    error_mode: ignore
    trace_statements:
      - replace_pattern(span.attributes["client.address"], "((25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9]?)(\\.|$)){4}", "*.*.*.*")

Let's understand what the above statement does: replace_pattern function replaces the client IP address with asterisks in a trace with span attribute client.address.

Applying the processor

To apply this processor, add it to the processors pipeline:

service:
  ...
  pipelines:
    traces:
      receivers: [otlp]
      processors: [batch,transform]
      exporters: [otlp]
    ...

Result

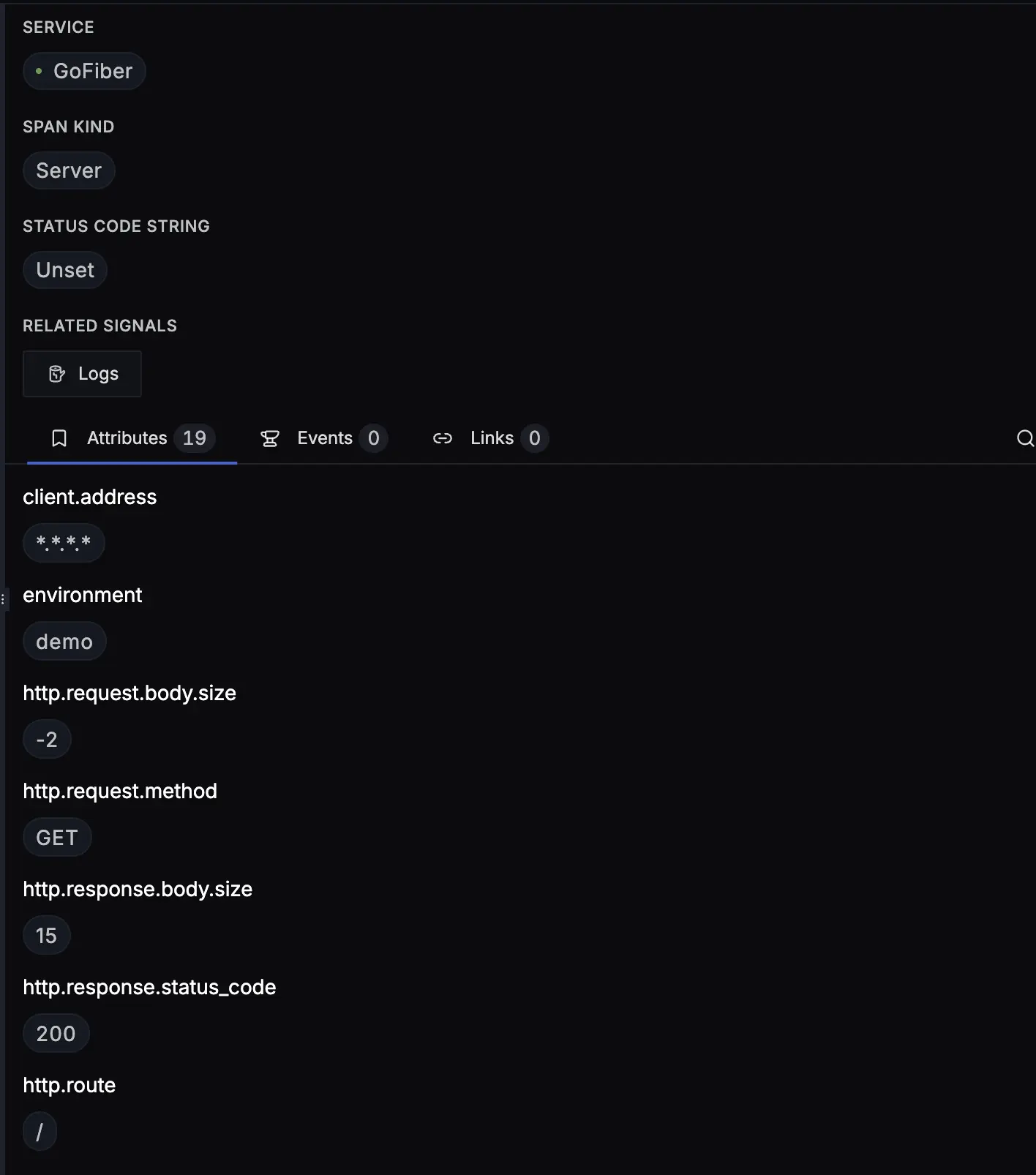

After applying the transform processor and restarting OpenTelemetry Collector, the sample trace would be transformed to:

As you can see, the IP address is no longer visible as it has been scrubbed out by the OpenTelemetry Collector before the data was sent to SigNoz.

Learn more about Transform processor here.
