How OpenTelemetry Baggage Enables Global Context for Distributed Systems

OpenTelemetry (OTel) baggage is a signal that allows you to pass “global” metadata, like a customer ID or a feature flag, across every service in a distributed system. While standard tracing captures the what of an operation, it is often restricted to individual spans. Baggage fills this gap by facilitating arbitrary metadata propagation across distributed systems.

This write-up explains how Baggage works, how it helps resolve "parameter drilling", and enables you to affect application behaviour during a request. You’ll also see how it works practically via a hands-on demo.

What is OpenTelemetry Baggage?

Baggage is one of OpenTelemetry’s established observability signals, that primarily complements the three major signals considered the “pillars of observability” - traces, metrics, and logs. It introduces a standard way of propagating context across components in a distributed request, even if you aren’t exporting other signals for that request.

A baggage is an immutable object that holds metadata as key-value pairs, similar to how resource attributes are defined. When applications auto-instrumented by OpenTelemetry make or receive API calls, most libraries (such as HTTP clients) automatically inject and extract the baggage via HTTP header or gRPC metadata.

With its implementation as a “utility” signal, baggage solves two primary problems for developers of modern applications.

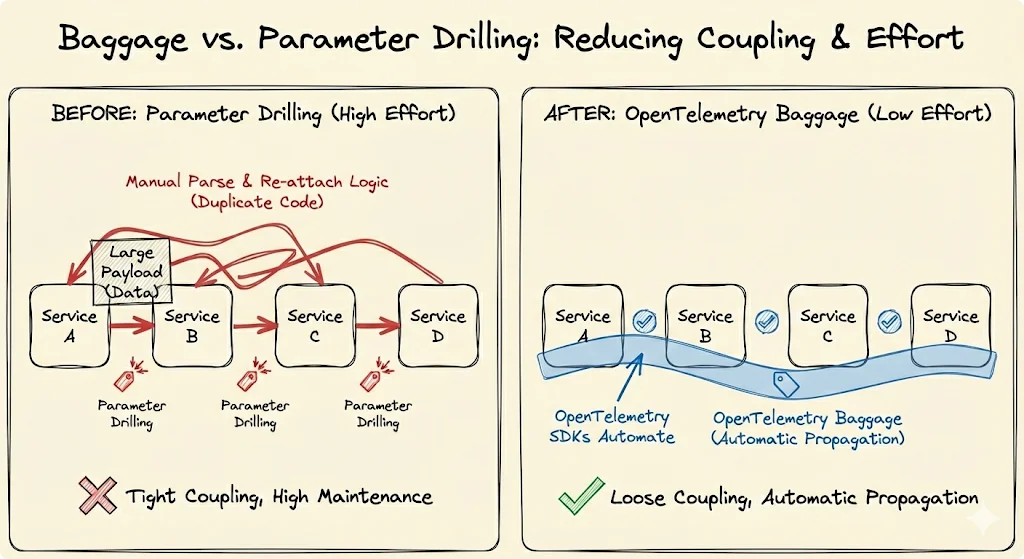

Baggage Reduces Parameter “Drilling” & Tight Coupling Across Services

Typically, to propagate data across services, you must either use custom headers or pass parameters via request payload. The problem arises when the data being sent from one service is required by a downstream service with multiple services in-between. Each service must implement logic to parse the data from incoming requests and re-attach it during API calls to downstream services.

All services between the initial and the target service must maintain common logic, leading to tight coupling. For a parameter name change, you would adjust the logic across all services and deploy a new version for the changes to take effect! This is known as parameter drilling, where some code is stuck propagating information for components down the line.

Just like trace context (trace_id and span_id), OpenTelemetry SDKs parse the baggage context, and instrumentation libraries propagate it across service boundaries automatically. This frees application developers from writing custom code to manage arbitrary metadata for downstream services, cutting down on high-maintenance duplicate code and preventing tight coupling across the application system.

In some cases, this can reduce the need for a central data source to manage contextual metadata, such as a NoSQL database like Redis, saving developer time spent on maintaining relevant application logic.

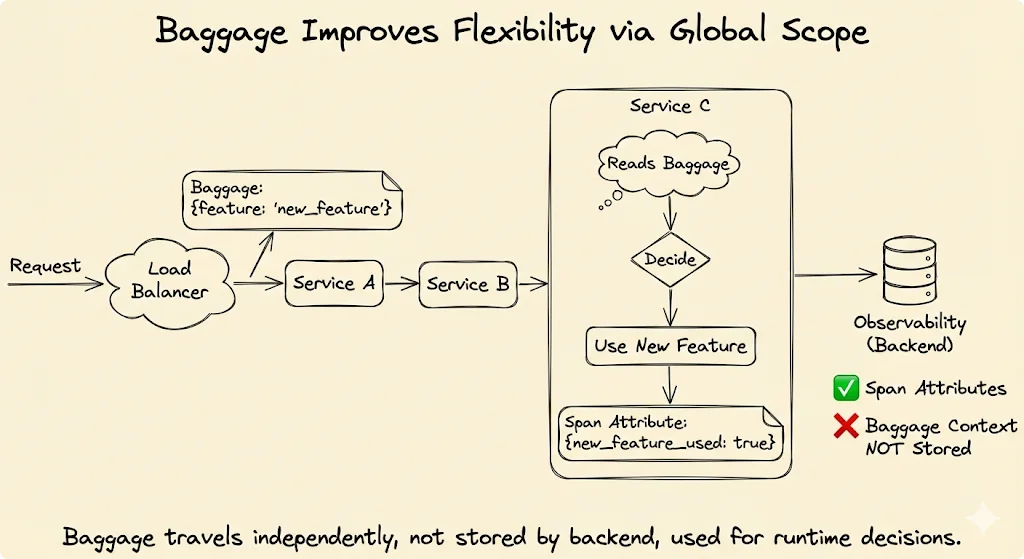

Using Baggage to Drive Real-Time Application Logic

Metadata associated via baggage travels independently of the trace context and can be used by services independently. Since trace context is focused on correlating requests across services, and span attributes describe the operations as they happen for later analysis, applications cannot use this context proactively. But by utilizing baggage context, applications can decide which operations to execute (whether to call a function/method), or how the trace will take shape during its execution itself.

For example, a load balancer can mark an incoming request for A/B testing of a new feature maintained by service C. In this case, service C can read the baggage when processing the request, check the baggage, and accordingly call the method for the new feature, or default to the old method.

The service can then set a span attribute capturing the context of the A/B testing, such as span.set_attribute("new_feature_used", True), enabling users to filter by traces where the new feature is being used.

Unlike span attributes, which are stored in the observability backend for analyzing and visualizing operations in microscopic detail, baggage context is more arbitrary, and observability backends do not store it by default. As seen in the above example, you can choose to store it through telemetry attributes based on your business needs.

We’ll now look at how the OpenTelemetry baggage implementation works with Python code with a comprehensive hands-on demo.

Implementing OTel Baggage in Applications

Now that you understand the problems that baggage solves for distributed systems, the next step is understanding how it actually works with application code. We’ve prepared an example that emulates a microservice architecture, and showcases how services interact with baggage during a request flow.

Prerequisites

• Python 3.10 (or later) installed (Download from here).
• A SigNoz Cloud account to export and analyze the generated telemetry data.

Setting up SigNoz

SigNoz is an OpenTelemetry-native observability platform that provides logs, traces, and metrics in a single pane. To set it up:

• Sign up for a free SigNoz Cloud account.
• Follow this guide to create ingestion keys for your account.
• Ensure the region and ingestion key information is readily accessible for the next steps.

Preparing the OTel Baggage Demo

To prepare the OTel baggage demo for use, you must first clone the SigNoz examples GitHub repo, that hosts all examples we maintain for various blogs.

git clone https://github.com/SigNoz/examples.git
cd examples/python/otel-baggage-demo

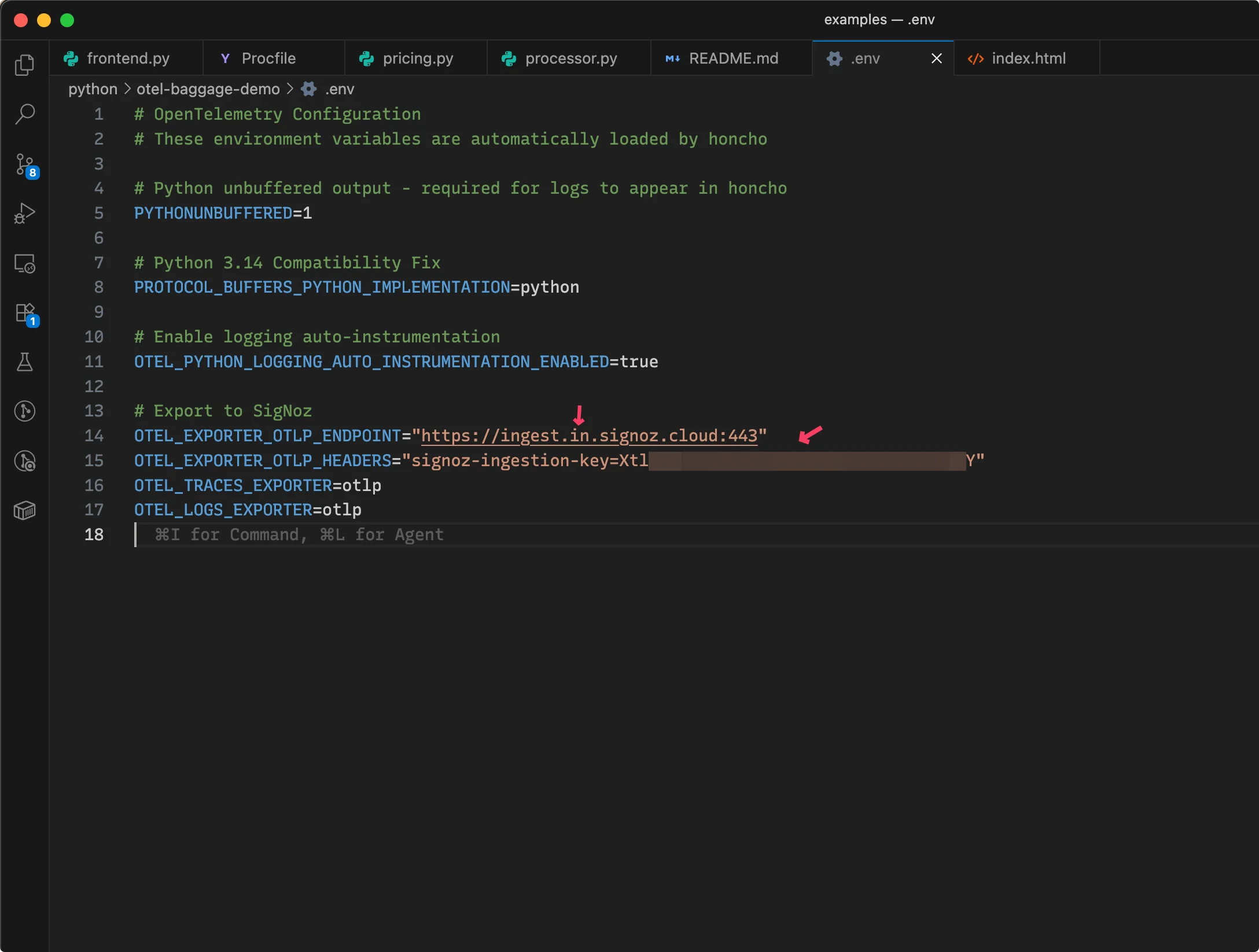

Copy the .env.example to .env and set your SigNoz region and ingestion key values in the OTEL_EXPORTER_OTLP_ENDPOINT and OTEL_EXPORTER_OTLP_HEADERS environment variables respectively.

cp .env.example .env

Setup the virtual environment, activate it, and install the dependencies.

python3.10 -m venv .venv
source .venv/bin/activate
pip install -r requirements.txt

We’ll use honcho to automatically source our environment variables and run all three scripts in one terminal window. This allows us to manage all three services from a single terminal window.

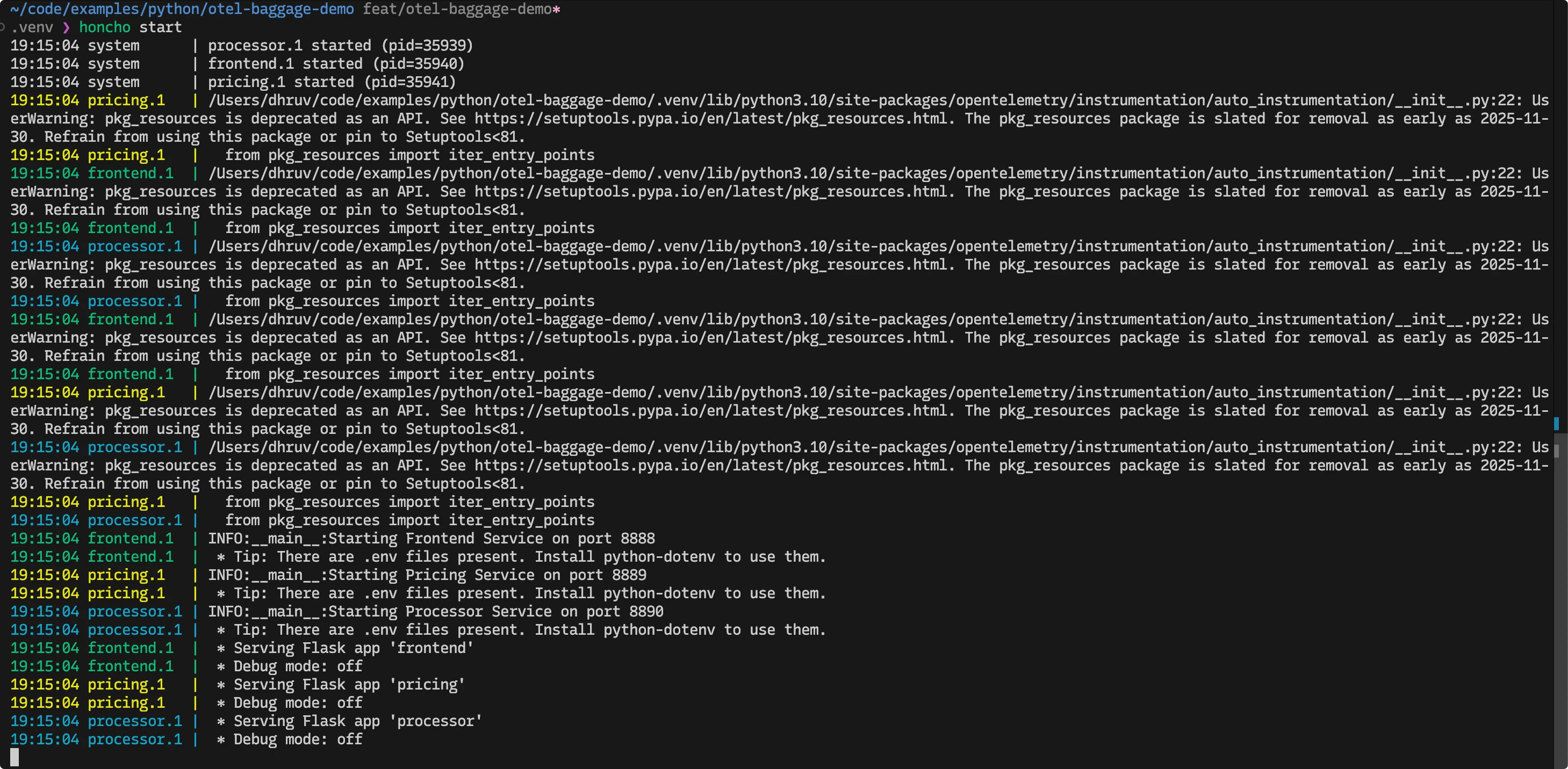

honcho start

You’ll see honcho start the three scripts as separate processes; it injects the environment variables it reads from the .env file into each child process. We can safely ignore any deprecation warnings from external libraries as these do not affect our application.

Before we actually go ahead with interacting with the application in the browser, you should understand its architecture and logical flow, and how we have each service interacts with baggage metadata.

Demo Application Architecture Overview

The demo application has a relatively simple architecture, where the user interacts with the frontend via web browser. The frontend then interacts with the pricing service which gets item data from processor.

These services are nothing but simple Python scripts serving web requests using the Flask web framework, and emulate more complex web services present in real distributed systems.

❯ tree -L 2 --du .
[      30534]  .
├── [       2614]  frontend.py
├── [       3029]  pricing.py
├── [       2975]  processor.py
├── [        542]  Procfile
├── [       5536]  README.md
├── [       1352]  requirements.txt
└── [      14102]  templates
    └── [      14006]  index.html

       30534 bytes used in 2 directories, 7 files

The frontend script acts like a real frontend by calling a backend API, parsing its JSON response, and rendering the UI in the browser. pricing acts like a thin wrapper by calculating the discount percentage, and calling processor which returns items with their original and discounted pricing.

How Baggage Propagation Works in Code

For each request, the frontend determines whether the user is “lucky” and receives a discount or not. It adds its decision as context to the baggage, and calls the pricing service. Since our Python scripts use auto-instrumentation (ran via the opentelemetry-instrument python ... commands), baggage context is automatically propagated across requests.

# Set baggage; key-value pairs should be strings
ctx = set_baggage("discount_eligible", str(discount_eligible).lower())
token = context.attach(ctx)

try:
    # Call pricing to get items (baggage auto-propagates)
    response = requests.get("http://localhost:8889/", timeout=5)
		...

pricing receives the request, and checks the baggage. If the user is lucky, it calculates the discount percentage and adds the discount percentage to the baggage and calls the processor service’s /get-items endpoint.

# Read baggage set by frontend
discount_eligible = get_baggage("discount_eligible")

...

# Add discount percentage to baggage
ctx = set_baggage("discount_pct", str(discount_pct))
token = context.attach(ctx)

# Call processor to get items (baggage auto-propagates)
response = requests.get("http://localhost:8890/get-items", timeout=5)

The processor checks whether the user is lucky. If lucky, it gets the discount percentage, and applies the discount to all items and returns the processed list as response to the pricing service.

# Read baggage
discount_eligible = get_baggage("discount_eligible")
discount_pct = get_baggage("discount_pct")

# Process items with discount calculations
processed_items = []
for item in ITEMS:
    ...
    processed_items.append({
        "id": item["id"],
        "name": item["name"],
        "original_price": round(original_price, 2),
        "discounted_price": round(discounted_price, 2),
        "has_discount": discount_eligible == "true" and original_price != discounted_price
    })

pricing wraps this data and returns its own JSON response to the frontend, which finally renders a Jinja HTML template to the user with item details and the prices, based on whether the user was lucky or not.

# skipping previously showcased code for brevity
...

# set baggage attributes for tracing for analysis with observability backend like SigNoz
span = trace.get_current_span()
span.set_attribute("discount_eligible", discount_eligible)
span.set_attribute("discount_pct", discount_pct)

# Render template
return render_template(
    'index.html',
		...
)

At each step of the request flow, services in the application system interact with baggage without having to manually extract it. OTel SDKs automatically attach the baggage context with the current request context for us, enabling us to focus on our business logic.

However, implementations must re-attach baggage to the execution context when modifying the contents of the baggage object. For example, when processing the request in the pricing service, we first read the baggage value from the context, add a new value to the baggage, and re-attach it to the current context.

Since baggage is immutable, the SDK creates a new instance each time we modify the contents of the active baggage object. We must attach the final instance to the context before making API calls to ensure the correct metadata gets propagated to downstream services.

Visualizing Telemetry Flow with SigNoz

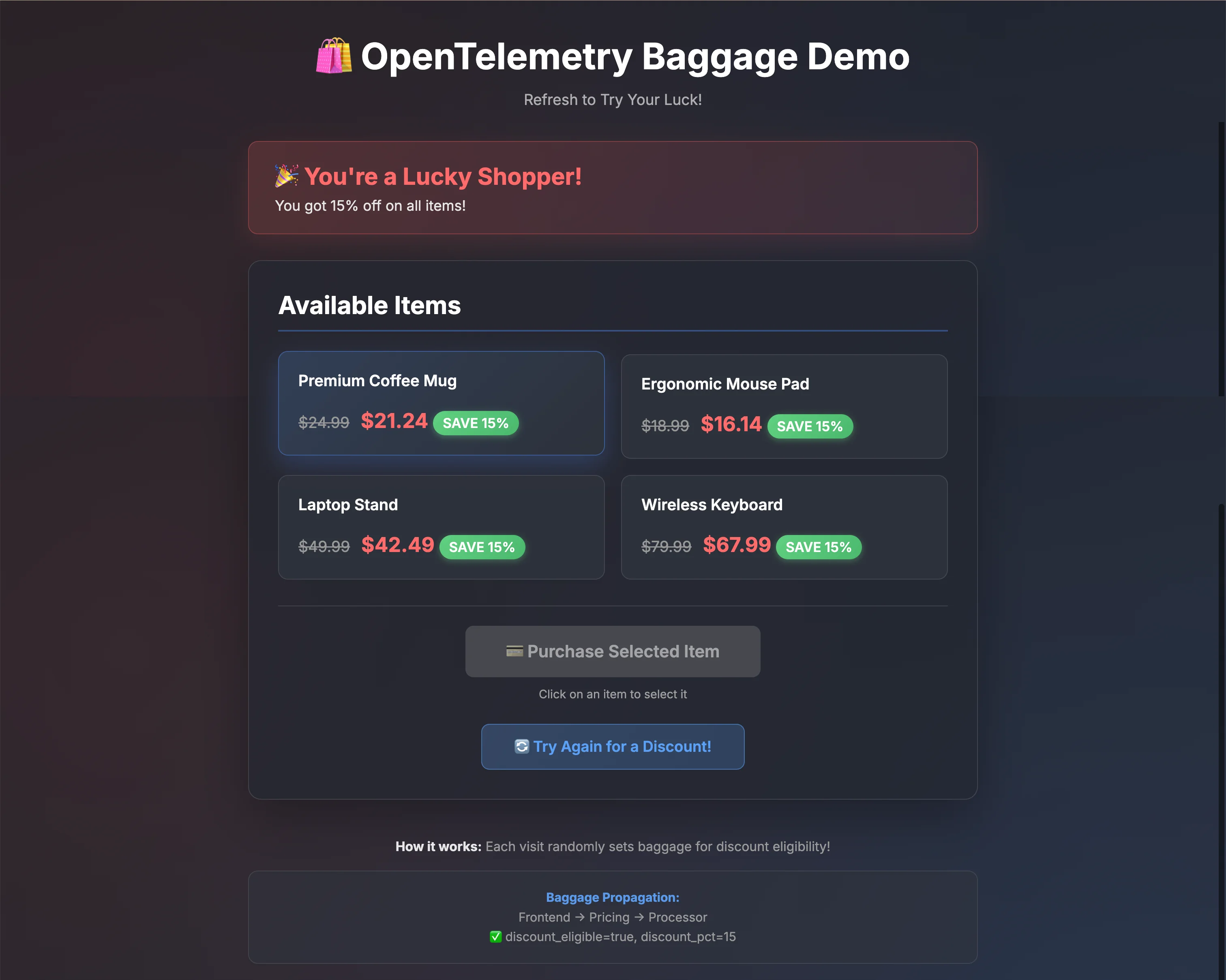

To begin visualizing the data flow, first visit http://localhost:8888/ , where you will be greeted by a page like below. Based on a random chance, you will receive 10 to 25% discount on listed items, or no discount at all. You can use the Try Again button to refresh the page and try your luck again.

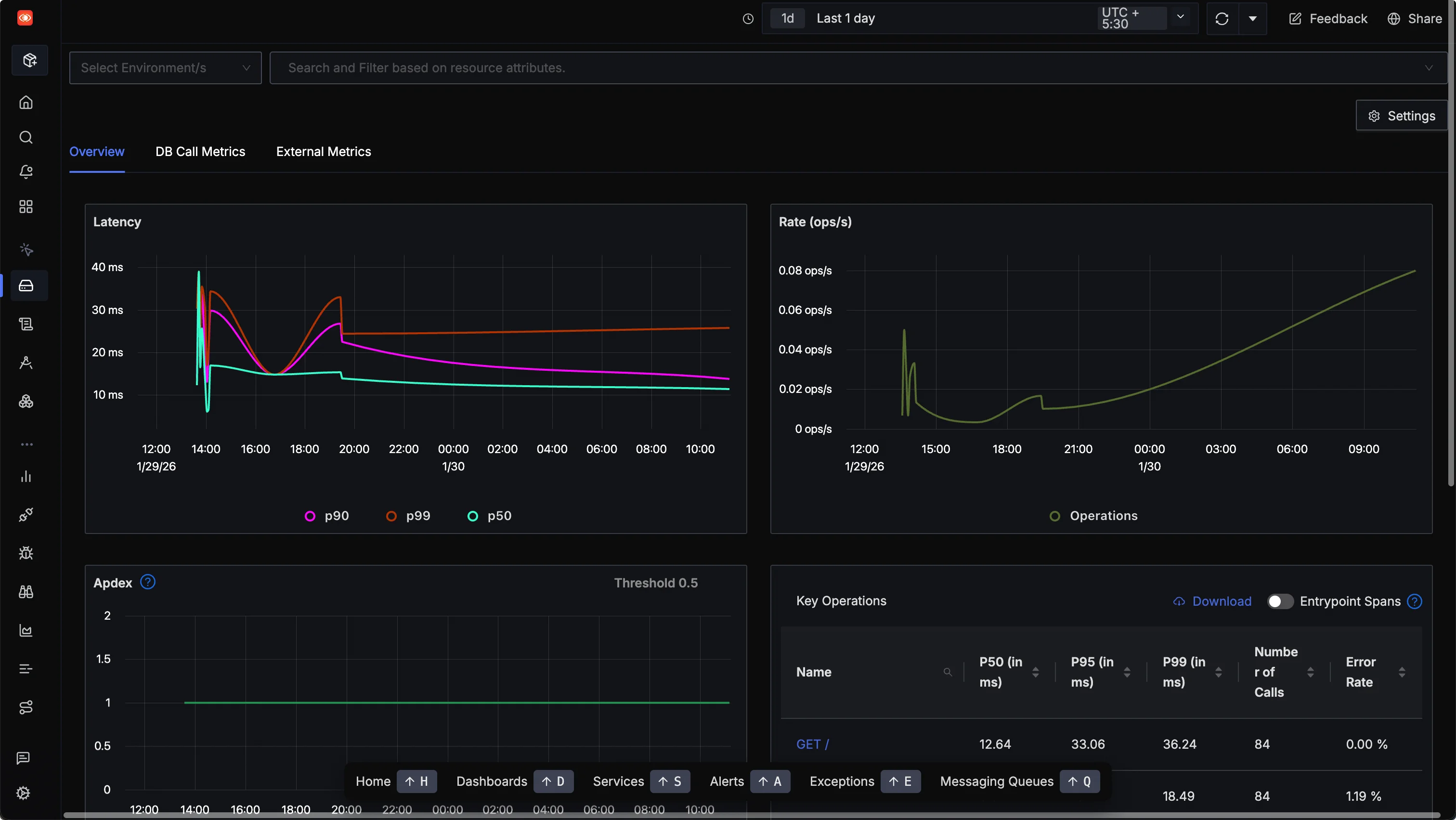

To visualize the telemetry data generated by the application, visit your SigNoz instance once you have refreshed the page several times and understood how the propagation mechanism works.

On opening the Trace Explorer view, you will see that you have multiple spans coming from services with baggage- in the name prefix. You can open any single span, or use this query to filter to only root spans:

service.name in ['baggage-frontend', 'baggage-processor', 'baggage-pricing'] AND isRoot = 'true'

Then, click on any root span to open the trace detail view. This page breaks down the operations that happen when we visit our application at http://localhost:8888/ or refresh the page. Click on the tiny arrows on the spans to further expand the waterfall view.

The flow matches with what we explained above, where the frontend calls the pricing service, which then calls the processor. After gathering the item data and pricing details, the frontend serves a Jinja HTML template, which is rendered in our browser.

We can also see that the root span contains our custom discount_-based span attributes. By attaching baggage context to the attributes of other signals, we can store them in observability backends to gain more insights into application behaviour.

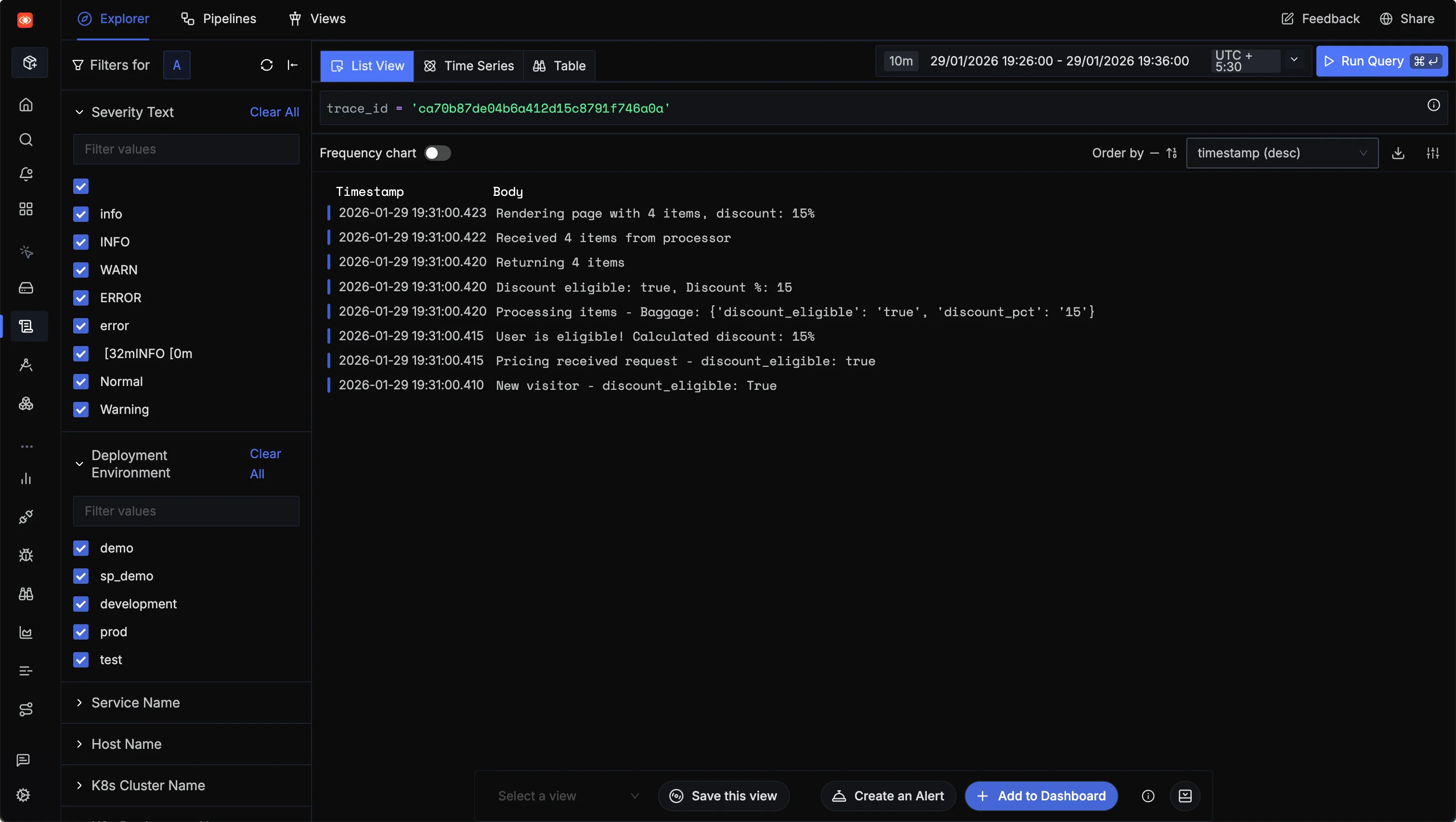

We are also correlating telemetry signals: OpenTelemetry auto-instrumentation links application logs to all emitted traces as we’ve configured the OTEL_PYTHON_LOGGING_AUTO_INSTRUMENTATION_ENABLED variable. Click on the Logs button under the Related Signals label on the right to view logs associated with that particular span.

Clicking on the Open in Logs Explorer button will open the dedicated logs view for the complete trace.

Conclusion

We’ve now covered in detail what baggage is, how it works and its utility for OpenTelemetry-instrumented applications. We’ve also gone over a hands-on demo that showcases how helpful baggage is for scaling distributed microservices and reducing the manual overhead of global context management.

If you have utilized SigNoz like we showcased above, you must also realize the importance of telemetry correlation, and how it quickly allows developers to understand how their applications are behaving, and cross-check the events that led to a particular outcome (by jumping from traces → logs in one click).
