Cloud Run Metrics

Overview

This documentation provides a detailed walkthrough on how to set up Cloud Run to send the metrics directly to SigNoz. By the end of this guide, you will have a setup that automatically sends your Cloud Run metrics to SigNoz.

Here's a quick summary of what we will be doing in this guide

  • Create and configure Cloud Run
  • Deploy OpenTelemetry Collector to fetch the metrics from Google Cloud Monitoring
  • Send and Visualize the metrics obtained by OpenTelemetry in SigNoz Cloud

Prerequisites

  • Google Cloud account with administrative privilege or Cloud Run Admin and Compute Engine Admin privileges.
  • SigNoz Cloud Account (we are using SigNoz Cloud for this demonstration, we will also need ingestion details. To get your Ingestion Key and Ingestion URL, sign-in to your SigNoz Cloud Account and go to Settings >> Ingestion Settings)
  • Access to a project in GCP

Setup

Get started with Cloud Run service setup

Follow the steps mentioned in the Cloud Run Service Setup page to create Cloud Run Service.

Deploy OpenTelemetry Collector to fetch the metrics from Google Cloud Monitoring

You will need a Compute Engine instance to install OpenTelemetry Collector. You can follow the instructions on the Creating Compute Engine document to create the Compute Engine instance.

Step 1: Install and configure OpenTelemetry for scraping the metrics from Google Cloud Run. Follow OpenTelemetry Binary Usage in Virtual Machine guide for detailed instructions.

๐Ÿ“ Note

Note that googlecloudmonitoring receiver is supported only from version 0.112.0 and above of opentelemetry-collector. So, ensure you download and use the appropriate release.

Step 2: Create config.yaml.

Under the googlecloudmonitoring receiver, you need to specify the metrics that you want to capture in the metrics_list. You can include all the metrics that you would like to capture from Cloud Run, see the available metrics for Cloud Run.

Here is the config.yaml file for capturing Cloud Run metrics:

receivers:
  googlecloudmonitoring:
    collection_interval: 5m # Can be specified in seconds (s), minutes (m), or hours (h)
    project_id: gcp-project-id
    metrics_list:
      - metric_name: "run.googleapis.com/container/billable_instance_time"
      - metric_name: "run.googleapis.com/container/containers"
      - metric_name: "run.googleapis.com/request_count"
      - metric_name: "run.googleapis.com/request_latencies"
      - metric_name: "run.googleapis.com/container/network/received_bytes_count"
      - metric_name: "run.googleapis.com/container/network/sent_bytes_count"
processors:
  resource/env:
    attributes:
    - key: deployment.environment
      value: prod
      action: upsert
  batch: {}
exporters:
  otlp:
    endpoint: "ingest.{region}.signoz.cloud:443"
    tls:
      insecure: false
    headers:
      "signoz-access-token": "<SIGNOZ_INGESTION_KEY>"
service:
  pipelines:
    metrics:
      receivers: [googlecloudmonitoring]
      processors: [resource/env,batch]
      exporters: [otlp]

Depending on the choice of your region for SigNoz cloud, the otlp endpoint will vary according to this table.

RegionEndpoint
USingest.us.signoz.cloud:443
INingest.in.signoz.cloud:443
EUingest.eu.signoz.cloud:443

After successful configuration start the OpenTelemetry Collector using following command:

./otelcol-contrib --config ./config.yaml &> otelcol-output.log & echo "$!" > otel-pid

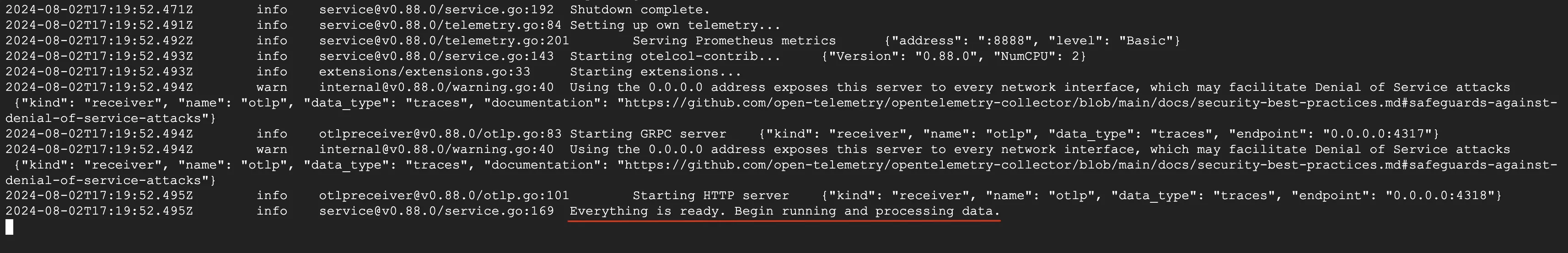

Step 3: If the configurations are configured correctly, you can see the output logs from OpenTelemtry as follows:

OTel Collector Logs

Viewing OTel Collector Logs

Send and Visualize the metrics obtained by OpenTelemetry in SigNoz

Step 1: Go to the SigNoz Cloud URL and head over to the dashboard.

Step 2: If not already created, create a new dashboard. You can create the dashboard and multiple panel under it by following the instructions here.

Step 3: Select metric for Cloud Run

All metrics starting with run_googleapis_com_ have been collected from Cloud Run.

For example run_googleapis_com_request_count is one of the metrics that was collected.

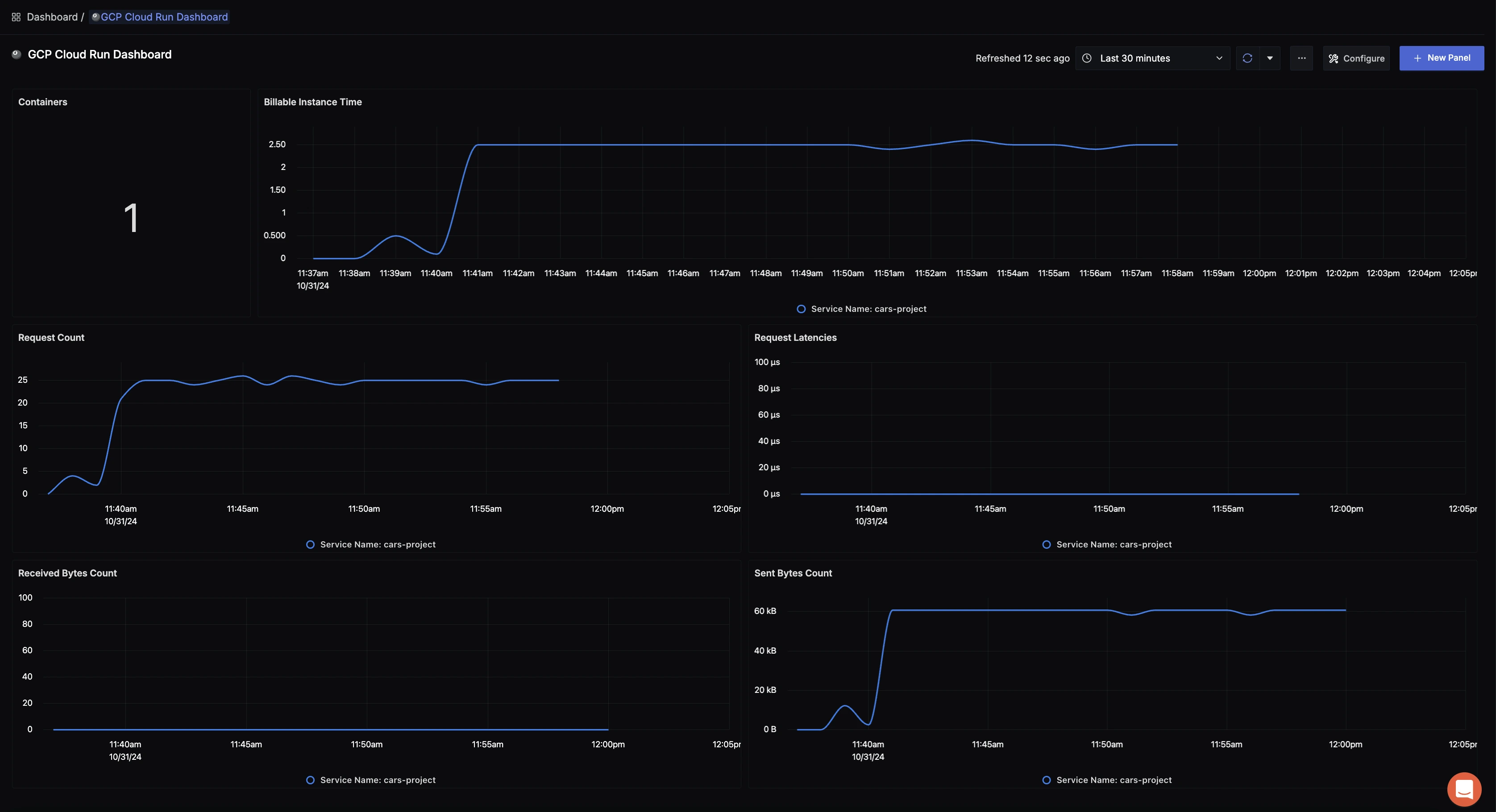

GCP Cloud Run dashboard

GCP Cloud Run dashboard

Troubleshooting

If you run into any problems while setting up monitoring for Cloud Run metrics with SigNoz, consider these troubleshooting steps:

  • Verify Configuration: Double-check your config.yaml file to ensure all settings, including the ingestion key and endpoint, are correct.
  • Review Logs: Look at the logs of the OpenTelemetry Collector to identify any error messages or warnings that might provide insights into whatโ€™s going wrong.
  • Update Dependencies: Ensure all relevant packages and dependencies are up-to-date to avoid compatibility issues.
  • Consult Documentation: Review the SigNoz and OpenTelemetry documentation for any additional troubleshooting of the common issues.
