Parse Log Severity Levels with Pipelines

Overview

In many logging setups, severity information is embedded within JSON structures in the log body. You might have severity fields like severity_text and severity_number that you want to extract and map to the standard OpenTelemetry severity fields to enable proper log level filtering and alerting.

Example Log

Throughout this guide, we'll reference the following example raw log entry:

{"message":"applying telemetry collection strategy for region","otel":{"trace_id":"000000000000000018c51935df0b93b9","span_id":"18c51935df0b93b9","severity_text":"info","severity_number":"4"}}

The body field contains a JSON string with fields like message and otel.severity_text.
The severity information is nested within the otel object in the JSON body.
We need to extract this severity information to enable proper log level categorization.

Desired Outcome

By the end of this guide, we want to:

Parse the JSON string in body into structured fields under attributes.
Extract the severity information from the nested otel object.
Map the severity values to standard OpenTelemetry severity fields.

Here's how the log should look after we apply our pipeline transformations:

{
  "body": "applying telemetry collection strategy for region",
  "id": "0h1FsDchlAnA8giHLlSkdd4UNnz",
  "timestamp": 1750417406945,
  "attributes": {
    "log.file.name": "app.log",
    "parsed_body": "{\"otel\":{\"severity_number\":\"4\",\"severity_text\":\"info\",\"span_id\":\"18c51935df0b93b9\",\"trace_id\":\"000000000000000018c51935df0b93b9\"}}"
  },
  "resources": {},
  "scope": {},
  "severity_text": "INFO",
  "severity_number": 9,
  "trace_id": "",
  "span_id": "",
  "trace_flags": 0
}

Steps to Parse JSON and Extract Severity

We'll use three processors in SigNoz Logs Pipeline to transform the example log into the desired format:

JSON Parser – Convert the JSON in body into structured fields under attributes.
Move Processor – Move the message field from the parsed JSON into body.
Severity Parser – Extract and map severity information from the nested otel object.

Let's walk through each step in detail.

Step 1: JSON Parser – Convert JSON in `body` to Structured Attributes

Our first step is to parse the raw JSON string residing in the body field so we can work with its fields directly (e.g., message, otel.severity_text) under attributes.

Before Parsing

{"message":"applying telemetry collection strategy for region","otel":{"trace_id":"000000000000000018c51935df0b93b9","span_id":"18c51935df0b93b9","severity_text":"info","severity_number":"4"}}

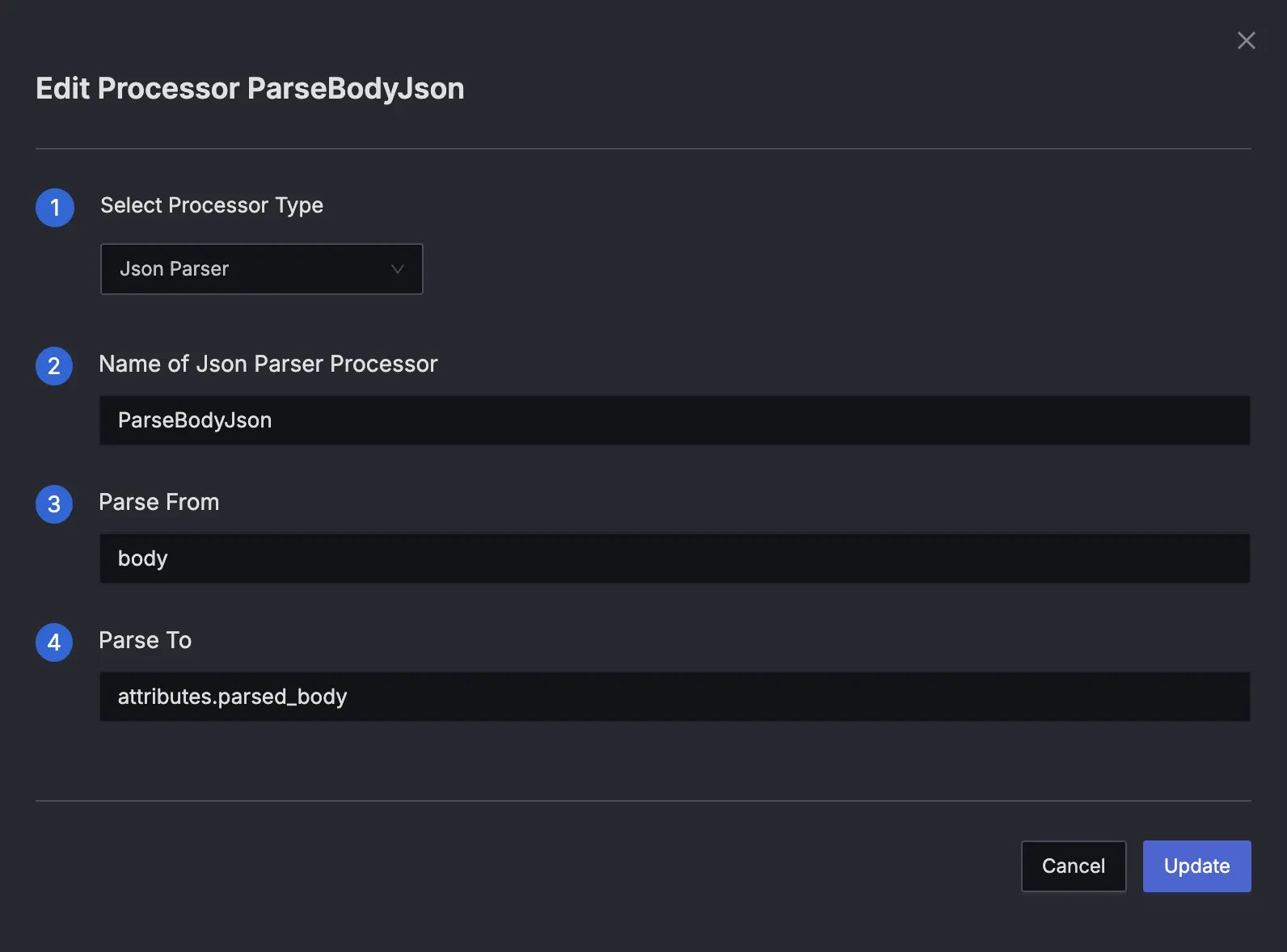

Processor Configuration

Type: JSON Parser
Name: ParseBodyJson
Parse From: body
Parse To: attributes.parsed_body

After Parsing

{
  "body": "{\"message\":\"applying telemetry collection strategy for region\",\"otel\":{\"trace_id\":\"000000000000000018c51935df0b93b9\",\"span_id\":\"18c51935df0b93b9\",\"severity_text\":\"info\",\"severity_number\":\"4\"}}",
  "id": "0h1FsDchlAnA8giHLlSkdd4UNnz",
  "timestamp": 1750417406945,
  "attributes": {
    "log.file.name": "app.log",
    "parsed_body": "{\"message\":\"applying telemetry collection strategy for region\",\"otel\":{\"severity_number\":\"4\",\"severity_text\":\"info\",\"span_id\":\"18c51935df0b93b9\",\"trace_id\":\"000000000000000018c51935df0b93b9\"}}"
  },
  "resources": {},
  "scope": {},
  "severity_text": "",
  "severity_number": 0,
  "trace_id": "",
  "span_id": "",
  "trace_flags": 0
}

Key Observations:

Fields like message and otel.severity_text are now accessible in attributes.parsed_body.
The original body field still holds the raw JSON string.

Step 2: Move Processor – Extract the Message Field to `body`

Now that message is available at attributes.parsed_body.message, we can move it to the top-level body to clearly indicate that this is the main log message. This is an optional step and you can skip it if you want.

Before Moving Message

{
  "body": "{\"message\":\"applying telemetry collection strategy for region\",\"otel\":{\"trace_id\":\"000000000000000018c51935df0b93b9\",\"span_id\":\"18c51935df0b93b9\",\"severity_text\":\"info\",\"severity_number\":\"4\"}}",
  "id": "0h1FsDchlAnA8giHLlSkdd4UNnz",
  "timestamp": 1750417406945,
  "attributes": {
    "log.file.name": "app.log",
    "parsed_body": "{\"message\":\"applying telemetry collection strategy for region\",\"otel\":{\"severity_number\":\"4\",\"severity_text\":\"info\",\"span_id\":\"18c51935df0b93b9\",\"trace_id\":\"000000000000000018c51935df0b93b9\"}}"
  },
  "resources": {},
  "scope": {},
  "severity_text": "",
  "severity_number": 0,
  "trace_id": "",
  "span_id": "",
  "trace_flags": 0
}

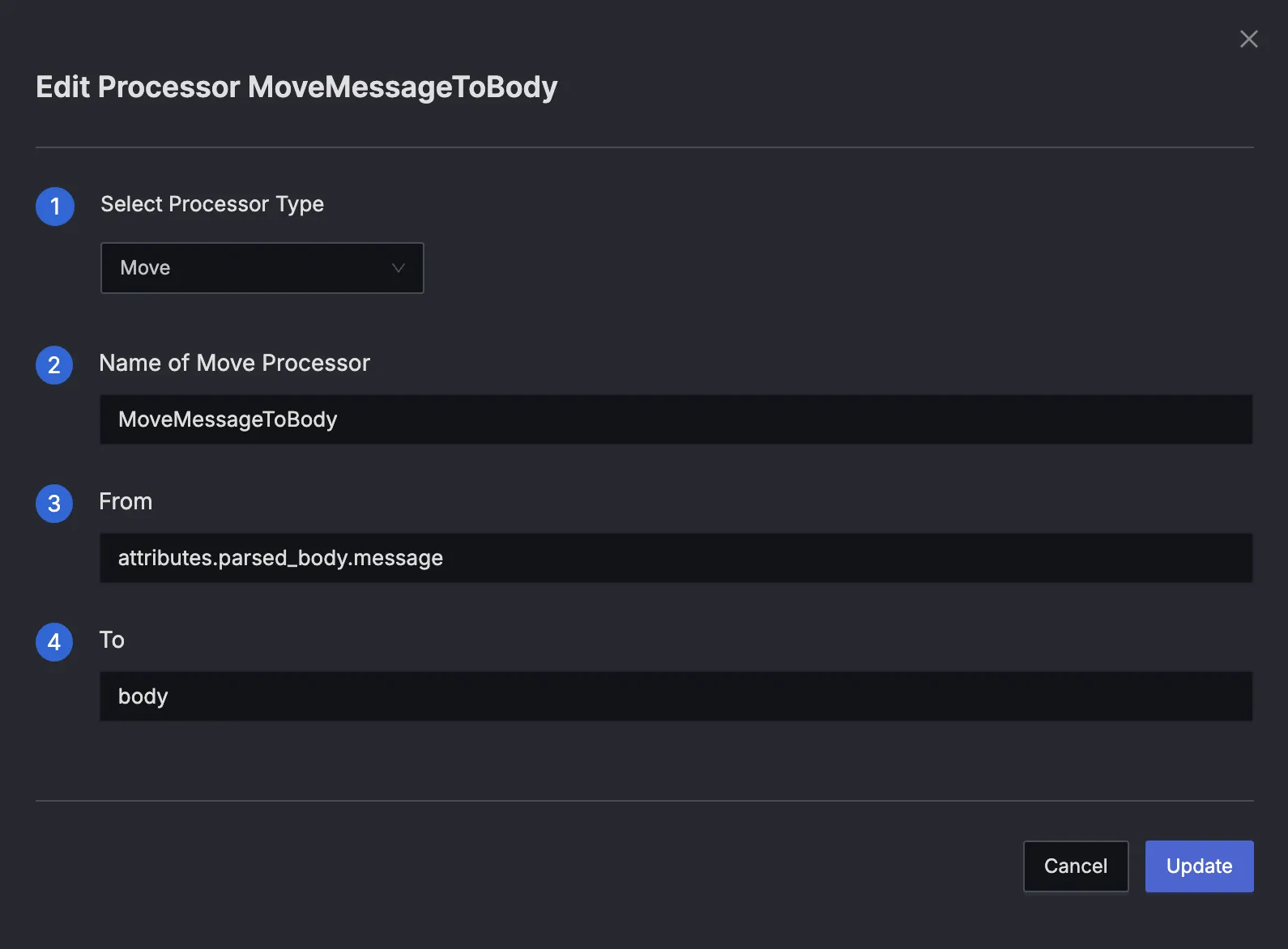

Processor Configuration

Type: Move
Name: MoveMessageToBody
From: attributes.parsed_body.message
To: body

After Moving Message

{
  "body": "applying telemetry collection strategy for region",
  "id": "0h1FsDchlAnA8giHLlSkdd4UNnz",
  "timestamp": 1750417406945,
  "attributes": {
    "log.file.name": "app.log",
    "parsed_body": "{\"otel\":{\"severity_number\":\"4\",\"severity_text\":\"info\",\"span_id\":\"18c51935df0b93b9\",\"trace_id\":\"000000000000000018c51935df0b93b9\"}}"
  },
  "resources": {},
  "scope": {},
  "severity_text": "",
  "severity_number": 0,
  "trace_id": "",
  "span_id": "",
  "trace_flags": 0
}

Key Observations:

The main log message is now in body.
attributes.parsed_body.message has been removed because Move transfers data rather than copying.

Step 3: Severity Parser – Extract and Map Severity Information

Now we'll use the Severity Parser to extract the severity information from the nested otel object and map it to standard OpenTelemetry severity fields.

Before Parsing Severity

{
  "body": "applying telemetry collection strategy for region",
  "id": "0h1FsDchlAnA8giHLlSkdd4UNnz",
  "timestamp": 1750417406945,
  "attributes": {
    "log.file.name": "app.log",
    "parsed_body": "{\"otel\":{\"severity_number\":\"4\",\"severity_text\":\"info\",\"span_id\":\"18c51935df0b93b9\",\"trace_id\":\"000000000000000018c51935df0b93b9\"}}"
  },
  "resources": {},
  "scope": {},
  "severity_text": "",
  "severity_number": 0,
  "trace_id": "",
  "span_id": "",
  "trace_flags": 0
}

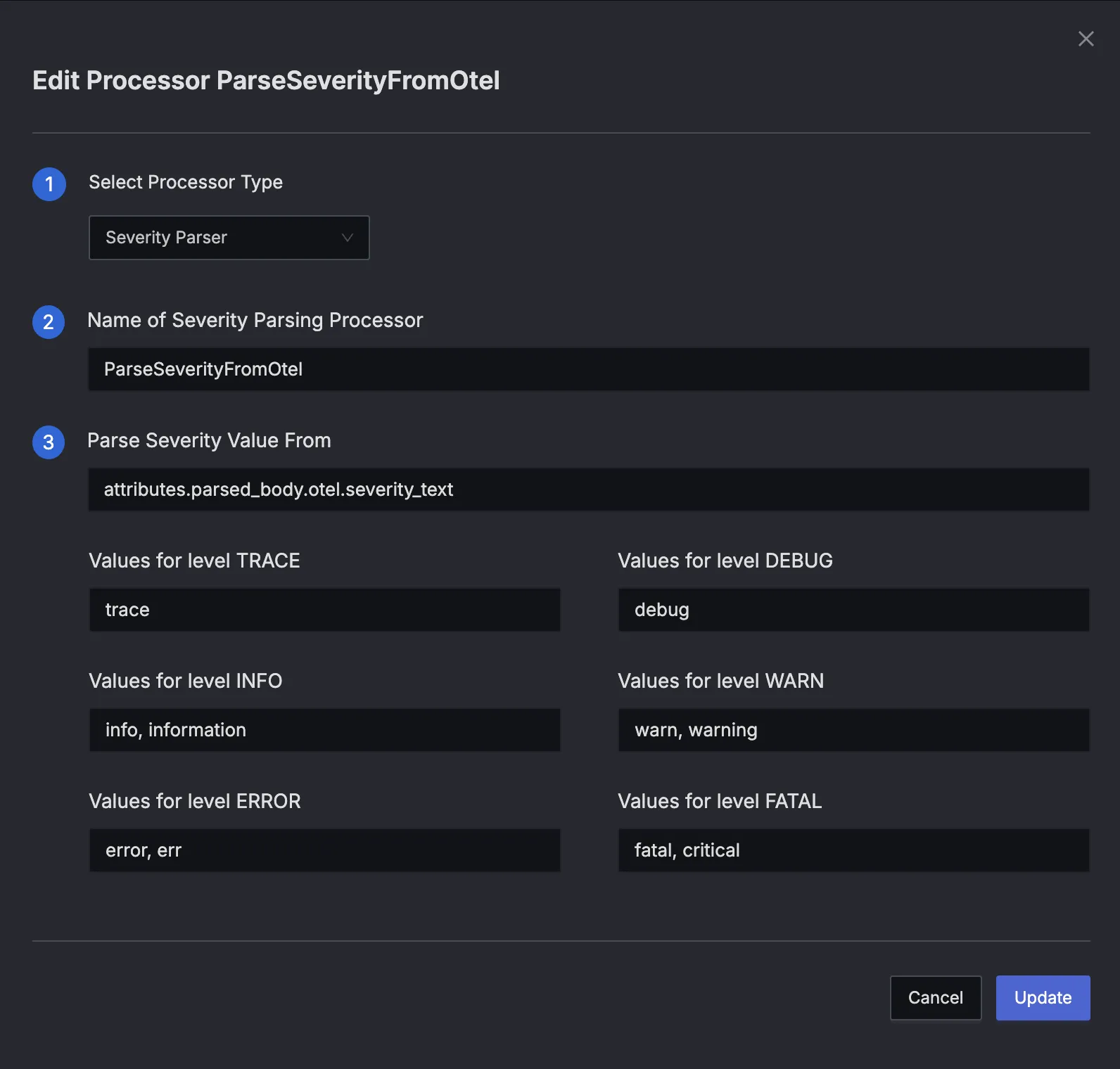

Processor Configuration

Type: Severity Parser
Name: ParseSeverityFromOtel
Parse Severity Value From: attributes.parsed_body.otel.severity_text
Values for level INFO: info, information
Values for level DEBUG: debug
Values for level WARN: warn, warning
Values for level ERROR: error, err
Values for level FATAL: fatal, critical

After Parsing Severity

{
  "body": "applying telemetry collection strategy for region",
  "id": "0h1FsDchlAnA8giHLlSkdd4UNnz",
  "timestamp": 1750417406945,
  "attributes": {
    "log.file.name": "app.log",
    "parsed_body": "{\"otel\":{\"severity_number\":\"4\",\"severity_text\":\"info\",\"span_id\":\"18c51935df0b93b9\",\"trace_id\":\"000000000000000018c51935df0b93b9\"}}"
  },
  "resources": {},
  "scope": {},
  "severity_text": "INFO",
  "severity_number": 9,
  "trace_id": "",
  "span_id": "",
  "trace_flags": 0
}

Key Observations:

severity_text is now set to "INFO" at the top level.
severity_number is automatically set to 9 (the OpenTelemetry numeric value for INFO level).
The original severity fields remain in the nested structure.

Step 4 (Optional): Move and Clean Up – Organize Final Structure

Finally, let's move the trace information to a cleaner location and remove the temporary parsed_body structure.

Before cleanup

{
  "body": "applying telemetry collection strategy for region",
  "id": "0h1FsDchlAnA8giHLlSkdd4UNnz",
  "timestamp": 1750417406945,
  "attributes": {
    "log.file.name": "app.log",
    "parsed_body": "{\"otel\":{\"severity_number\":\"4\",\"severity_text\":\"info\",\"span_id\":\"18c51935df0b93b9\",\"trace_id\":\"000000000000000018c51935df0b93b9\"}}"
  },
  "resources": {},
  "scope": {},
  "severity_text": "INFO",
  "severity_number": 9,
  "trace_id": "",
  "span_id": "",
  "trace_flags": 0
}

Move Trace Information

Processor Configuration:

Type: Move
Name: MoveOtelFields
From: attributes.parsed_body.otel
To: attributes.otel

Remove parsed_body attribute

Processor Configuration:

Type: Remove
Name: RemoveParsedBody
From: attributes.parsed_body

After cleanup

{
  "body": "applying telemetry collection strategy for region",
  "id": "0h1FsDchlAnA8giHLlSkdd4UNnz",
  "timestamp": 1750417406945,
  "attributes": {
    "log.file.name": "app.log",
    "otel": "{\"severity_number\":\"4\",\"severity_text\":\"info\",\"span_id\":\"18c51935df0b93b9\",\"trace_id\":\"000000000000000018c51935df0b93b9\"}"
  },
  "resources": {},
  "scope": {},
  "severity_text": "INFO",
  "severity_number": 9,
  "trace_id": "",
  "span_id": "",
  "trace_flags": 0
}

Final Outcome

After applying these three processors in sequence, your log now has:

The main log message clearly displayed in body.
Properly mapped severity levels at the top level for filtering and alerting.
Trace information preserved in attributes.otel.

With these steps, you've successfully extracted severity information from nested JSON structures and mapped it to standard OpenTelemetry severity fields, enabling proper log level categorization and filtering in SigNoz.
