SAML Authentication with AWS SSO

Overview

This guide walks you through setting up SAML (Security Assertion Markup Language) authentication between AWS SSO and SigNoz.

What you'll accomplish:

• Configure AWS SSO as an identity provider (IdP) for SigNoz
• Enable your team to access SigNoz using their existing AWS SSO accounts

Prerequisites

Before starting, ensure you have:

• AWS SSO account with administrative access
• SigNoz account (Cloud or Self-Hosted with License) with administrative access
• Your SigNoz instance URL (e.g., https://signoz.example.com)

Configuration Steps

Step 1: Create SAML Application in AWS Identity Center

1. Log in to your AWS Identity Center admin console and create a new SAML application.
2. The name of the application should be the URL of your SigNoz instance. For instance, if your SigNoz instance URL is https://signoz.example.com, then the name of the application should be https://signoz.example.com.

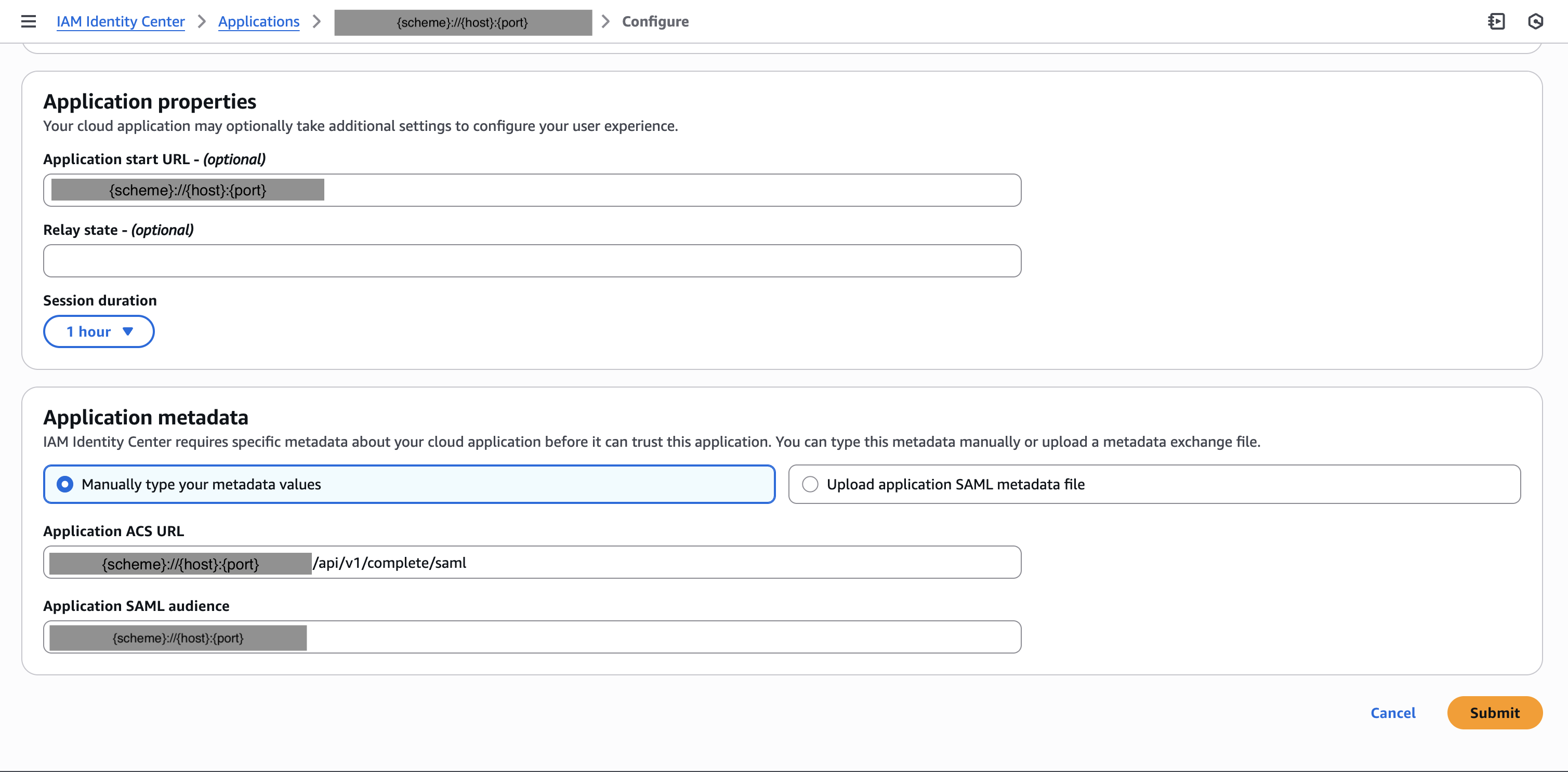

Step 2: Configure Entity ID and URLs

In the SAML application configuration:

1. Application Start URL: Enter your SigNoz instance URL (e.g., https://signoz.example.com)

2. ACS URL: Enter your SigNoz instance URL with the redirect path /api/v1/complete/saml appended to it (e.g., https://signoz.example.com/api/v1/complete/saml)

3. Application SAML Audience: Enter your SigNoz instance host:port (e.g., signoz.example.com if your SigNoz instance URL is https://signoz.example.com)

Step 3: Configure Additional Settings

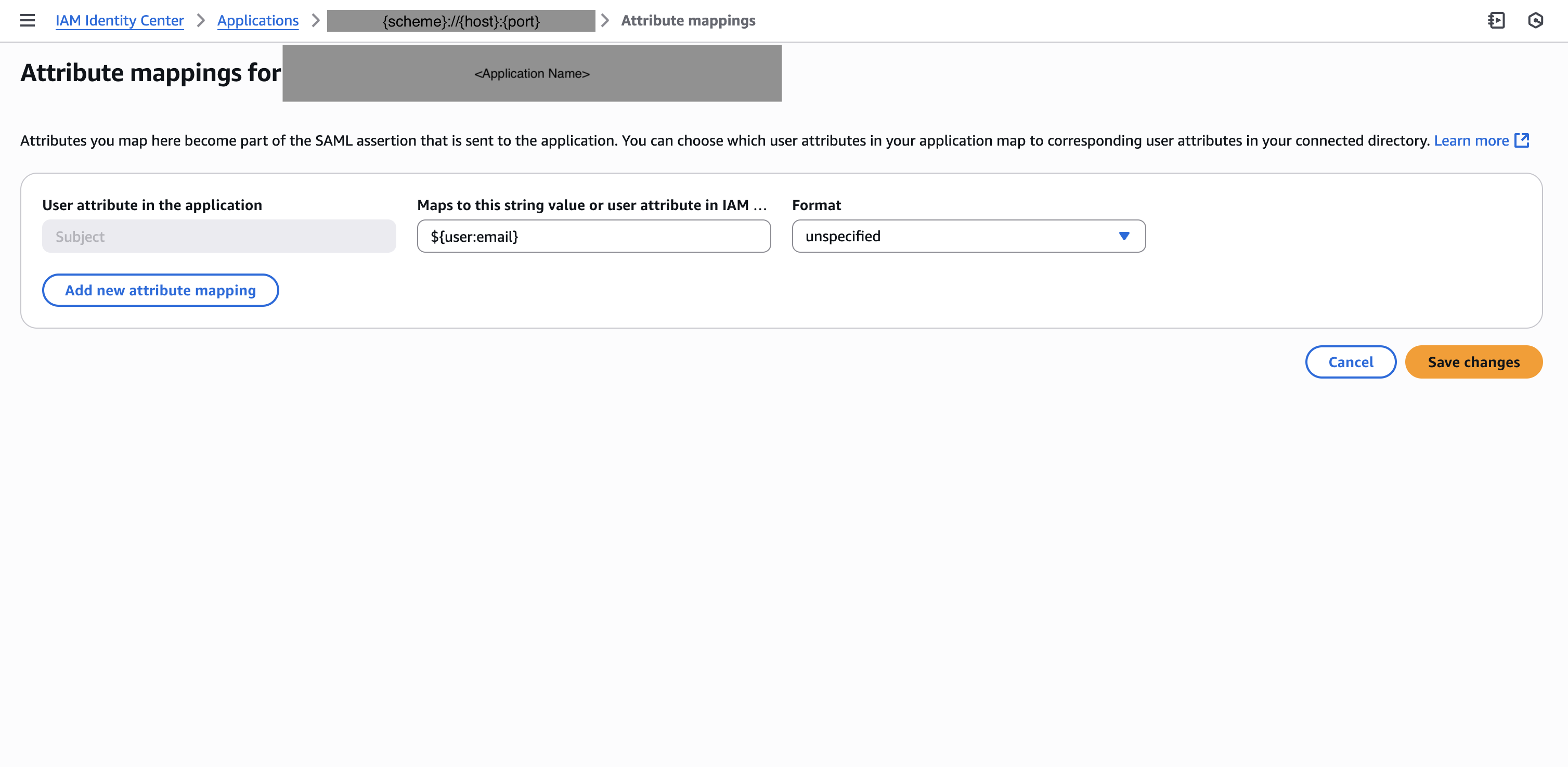

Ensure the following settings match the configuration shown in the image below:

Step 4: Save Configuration

Click the Save button to create your SAML application.

Step 5: Export Metadata

1. Export the AWS SSO metadata file.

The metadata file contains important configuration details like:

• AWS SSO's signing certificate
• Single Sign-On service URLs
• Entity identifiers

Example metadata file structure:

<?xml version="1.0" encoding="UTF-8"?><md:EntityDescriptor xmlns:md="urn:oasis:names:tc:SAML:2.0:metadata" entityID="<entity-id>">
  <md:IDPSSODescriptor WantAuthnRequestsSigned="false" protocolSupportEnumeration="urn:oasis:names:tc:SAML:2.0:protocol">
    <md:KeyDescriptor use="signing">
      <ds:KeyInfo xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
        <ds:X509Data>
          <ds:X509Certificate>cert</ds:X509Certificate>
        </ds:X509Data>
      </ds:KeyInfo>
    </md:KeyDescriptor>
    <md:SingleLogoutService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="<idp-url>"/>
    <md:SingleLogoutService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect" Location="<idp-url>"/>
    <md:NameIDFormat>urn:oasis:names:tc:SAML:1.1:nameid-format:unspecified</md:NameIDFormat>
    <md:SingleSignOnService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="<idp-url>"/>
    <md:SingleSignOnService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect" Location="<idp-url>"/>
  </md:IDPSSODescriptor>
</md:EntityDescriptor>

Step 6: Configure SigNoz for SAML Authentication

Now you'll configure SigNoz to accept authentication from AWS SSO:

1. Navigate to SigNoz Settings:

   • Go to your SigNoz dashboard
   • Click on Settings in the left sidebar
   • Navigate to Members & SSO
   • Click on Authenticated Domains

2. Add New Domain:

   • Click Add Domain
   • Select SAML as the authentication method

3. Enter Configuration Details:

   Domain: example.com
   SAML ACS URL/SAML IDP URL: <idp-url>
   SAML X.509 Certificate: <cert>
   SAML Entity ID: <entity-id>
   Skip AuthN Requests Signed: True


   Where to find these values:

   • Domain: The email domain for users who should use SSO (e.g., example.com for users with @example.com emails)
   • SAML IDP URL: Found in the metadata file under <md:SingleSignOnService Location="...">
   • SAML X.509 Certificate: The certificate content from the metadata file (between <ds:X509Certificate> tags)
   • SAML Entity ID: The entityID value from the metadata file

4. Save Configuration:

   • Click Save to apply the SAML configuration

Step 7: Test the Integration

1. Log out of SigNoz if you're currently logged in
2. Navigate to your SigNoz login page
3. Try logging in with a AWS SSO user email
4. Verify that you're redirected to AWS SSO for authentication
5. Complete the AWS SSO login process
6. Confirm you're successfully logged into SigNoz

Troubleshooting

Common issues and solutions:

• If AWS SSO keeps failing, double check the SAML Audience. It should match the SigNoz instance host:port.
