SAML Authentication with JumpCloud

Overview

This guide walks you through setting up SAML (Security Assertion Markup Language) authentication between JumpCloud and SigNoz.

What you'll accomplish:

• Configure JumpCloud as an identity provider (IdP) for SigNoz
• Enable your team to access SigNoz using their existing JumpCloud accounts

Prerequisites

Before starting, ensure you have:

• JumpCloud account with administrative access
• SigNoz account (Cloud or Self-Hosted with License) with administrative access
• Your SigNoz instance URL (e.g., https://signoz.example.com)

Configuration Steps

Step 1: Create SAML Application in JumpCloud

1. Log in to your JumpCloud admin console
2. Navigate to SSO > Applications
3. Click + Add New Application
4. Select SAML as the application type

Step 2: Configure Entity ID and URLs

In the SAML application configuration:

1. Entity ID: Enter your SigNoz instance URL (e.g., https://signoz.example.com)

2. ACS URL: Enter your SigNoz instance URL with the redirect path /api/v1/complete/saml appended to it (e.g., https://signoz.example.com/api/v1/complete/saml)

Step 3: Configure Additional Settings

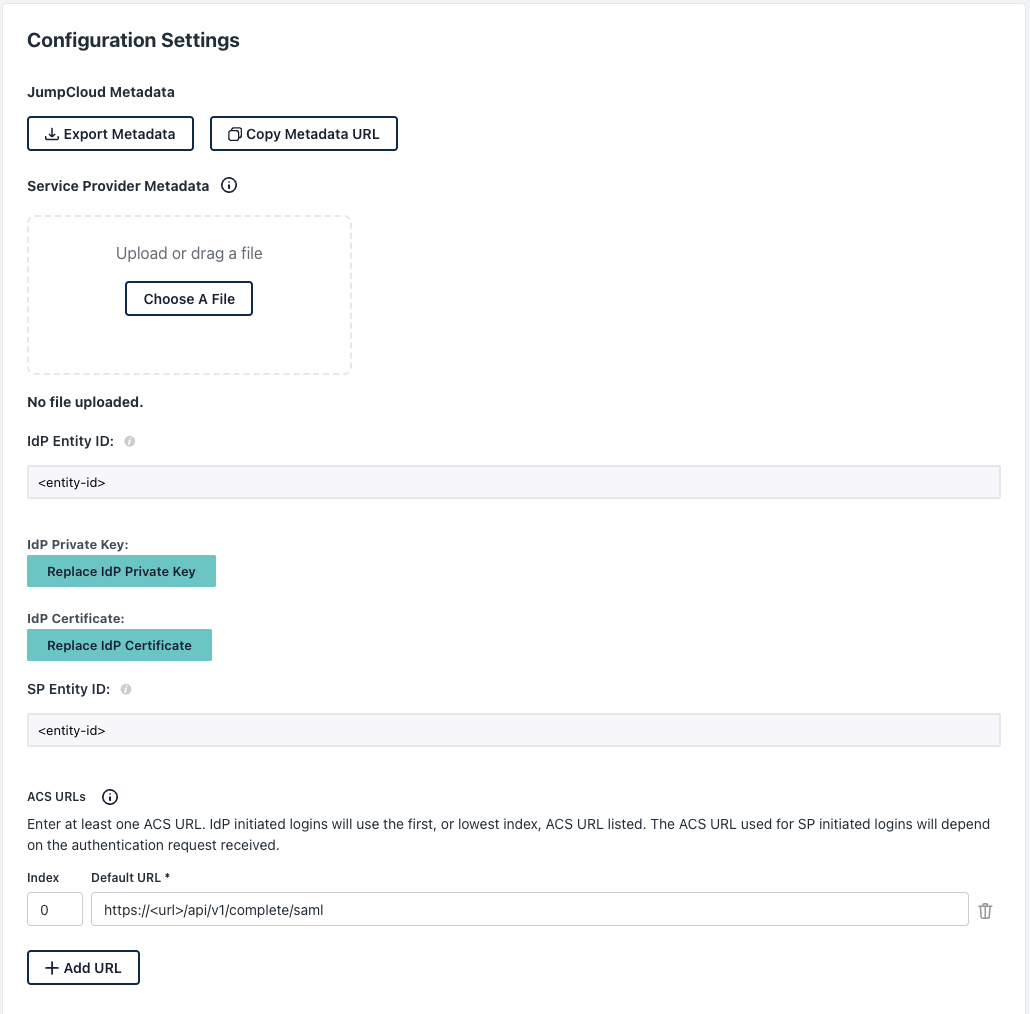

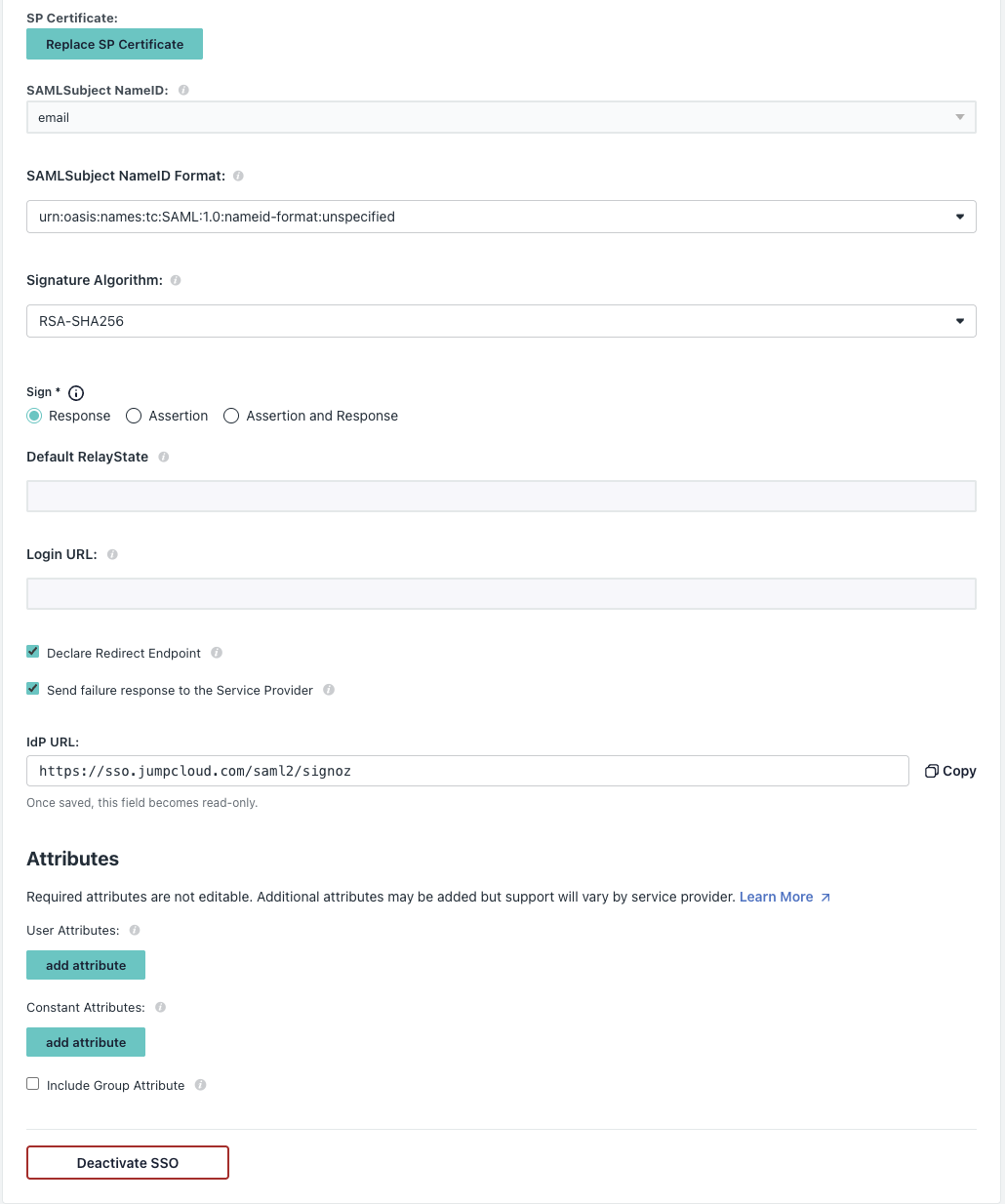

Ensure the following settings match the configuration shown in the image below:

Step 4: Save Configuration

Click the Save button to create your SAML application.

Step 5: Export Metadata

1. After saving, locate the Export Metadata button (usually at the top of the configuration page)
2. Click Export Metadata to download the XML metadata file
3. Save this file - you'll need it for the next step

The metadata file contains important configuration details like:

• JumpCloud's signing certificate
• Single Sign-On service URLs
• Entity identifiers

Example metadata file structure:

<?xml version="1.0" encoding="UTF-8"?>
<md:EntityDescriptor xmlns:md="urn:oasis:names:tc:SAML:2.0:metadata" entityID="<entity-id>">
    <md:IDPSSODescriptor WantAuthnRequestsSigned="false" protocolSupportEnumeration="urn:oasis:names:tc:SAML:2.0:protocol">
    <md:KeyDescriptor use="signing">
        <ds:KeyInfo xmlns:ds="http://www.w3.org/2000/09/xmldsig#">
            <ds:X509Data>
                <ds:X509Certificate>some-certificate-data</ds:X509Certificate>
            </ds:X509Data>
        </ds:KeyInfo>
    </md:KeyDescriptor>
    <md:NameIDFormat>urn:oasis:names:tc:SAML:1.0:nameid-format:unspecified</md:NameIDFormat>
    <md:SingleSignOnService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST" Location="<idp-url>"/>
    <md:SingleSignOnService Binding="urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect" Location="<idp-url>"/>
    </md:IDPSSODescriptor>
</md:EntityDescriptor>

Step 6: Configure SigNoz for SAML Authentication

Now you'll configure SigNoz to accept authentication from JumpCloud:

1. Navigate to SigNoz Settings:

   • Go to your SigNoz dashboard
   • Click on Settings in the left sidebar
   • Navigate to Members & SSO
   • Click on Authenticated Domains

2. Add New Domain:

   • Click Add Domain
   • Select SAML as the authentication method

3. Enter Configuration Details:

   Domain: example.com
   SAML ACS URL/SAML IDP URL: <idp-url>
   SAML X.509 Certificate: <some-certificate-data>
   SAML Entity ID: <entity-id>
   Skip AuthN Requests Signed: True


   Where to find these values:

   • Domain: The email domain for users who should use SSO (e.g., example.com for users with @example.com emails)
   • SAML IDP URL: Found in the metadata file under <md:SingleSignOnService Location="...">
   • SAML X.509 Certificate: The certificate content from the metadata file (between <ds:X509Certificate> tags)
   • SAML Entity ID: The entityID value from the metadata file

4. Save Configuration:

   • Click Save to apply the SAML configuration

Step 7: Test the Integration

1. Log out of SigNoz if you're currently logged in
2. Navigate to your SigNoz login page
3. Try logging in with a JumpCloud user email
4. Verify that you're redirected to JumpCloud for authentication
5. Complete the JumpCloud login process
6. Confirm you're successfully logged into SigNoz

Troubleshooting

Common issues and solutions:

• "Invalid certificate" error: Ensure you copied the complete certificate from the metadata file
• "Entity ID mismatch" error: Verify the Entity ID matches exactly between JumpCloud and SigNoz
• Users can't access SigNoz: Check that their email domain matches the configured domain in SigNoz
