How to Monitor AWS ELB Logs using CloudWatch and Athena?

In the previous parts of this series, we covered the fundamentals of AWS Elastic Load Balancer (ELB) monitoring, focusing on what to monitor and why it matters in production systems. We also covered the core ELB metrics and demonstrated how to collect and visualize these metrics using a centralized observability backend instead of relying solely on native tooling.

In this guide, we will cover how to enable Application Load Balancer (ALB) access logs and how to analyze them using Athena, CloudWatch Logs and Signoz. Let's start by understanding how to enable logs on your ALB.

How to Enable ALB Access Logs?

ALB access logs are disabled by default. Once enabled, the load balancer writes detailed request-level logs to an S3 bucket you specify. This is a prerequisite step before you can query logs with Athena, forward them to CloudWatch, or stream them to SigNoz.

Step 1: Create an S3 Bucket

Go to the S3 console and create a dedicated bucket (e.g., alb-demo-logs-1234). Make sure to select the same region as your application load balancer. Leave the other settings at their defaults and click Create bucket.

ALB requires permissions to write logs to your bucket. You need to add the policy to grant permission to it. To add the policy, go to the Permissions tab of your S3 bucket, scroll to Bucket policy and click Edit. Copy the policy in it and click Save changes.

Replace the YOUR-BUCKET-NAME and YOUR-ACCOUNT-ID with your values.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Service": "logdelivery.elasticloadbalancing.amazonaws.com"
            },
            "Action": "s3:PutObject",
            "Resource": "arn:aws:s3:::YOUR-BUCKET-NAME/AWSLogs/YOUR-ACCOUNT-ID/*",
            "Condition": {
                "StringEquals": {
                    "s3:x-amz-acl": "bucket-owner-full-control"
                }
            }
        }
    ]
}

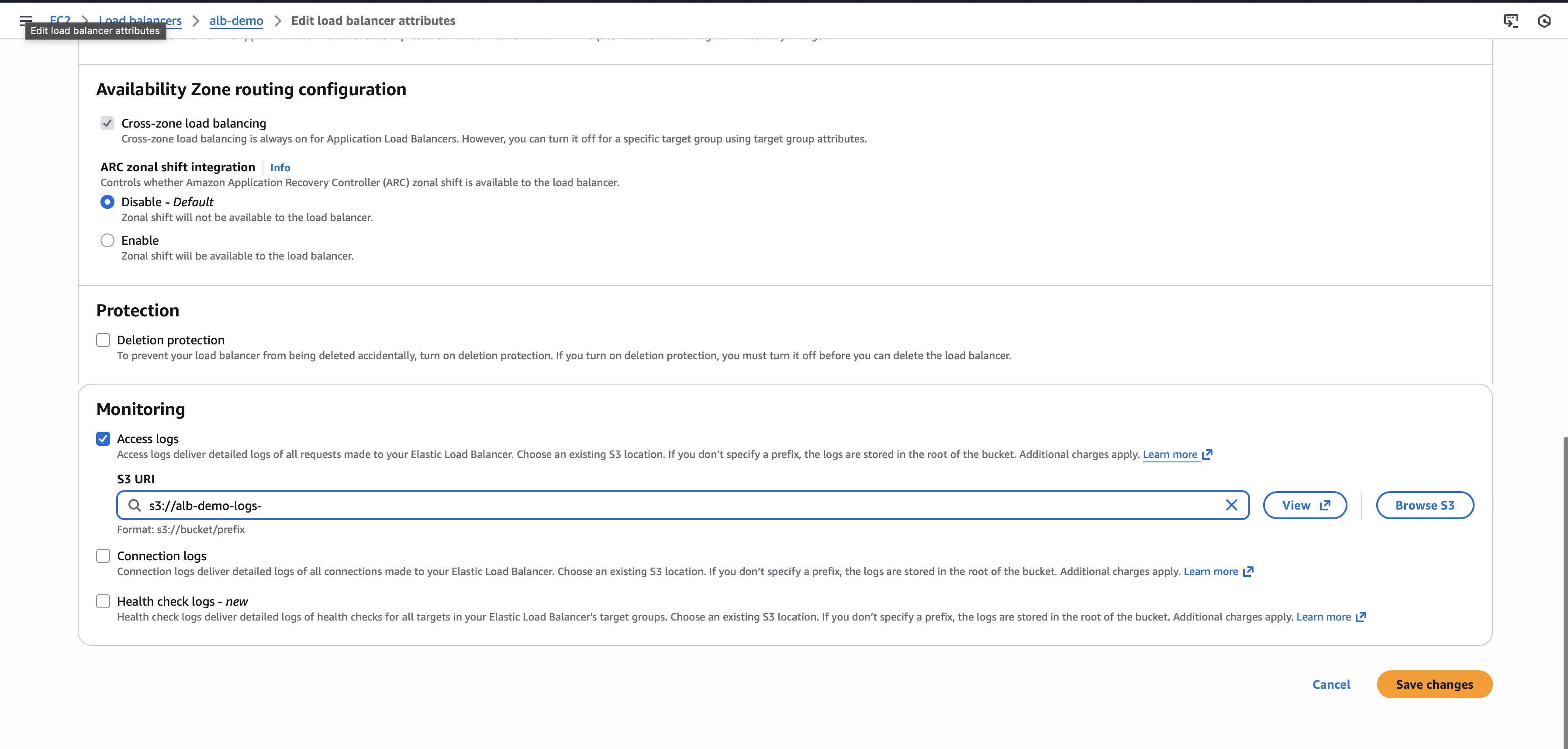

Step 2: Enable Access Logs on Your ALB

Open the EC2 Console and navigate to Load Balancers. Select your Application Load Balancer, go to the Attributes tab, and click Edit. Toggle Access logs to Enabled, enter your S3 bucket name, and click Save changes.

AWSLogs/{account-id}/elasticloadbalancing/{region}/{year}/{month}/{day}/

With access logs enabled, you can now query them using Athena, forward them to CloudWatch Logs, or stream them to SigNoz.

Method 1: Querying AWS ELB Logs with Amazon Athena

Amazon Athena lets you run SQL queries directly on your ALB logs stored in S3, without moving the data.

Step 1: Set up Athena for Querying Logs in an S3 Bucket

Open the AWS Console and search for "Athena" to access the query editor. Before running any query, configure a query result location by clicking the Query Settings tab, then Manage. Enter an S3 path like s3://your-bucket-name/ (make sure to replace your-bucket-name) and click Save.

Step 2: Create a Database

You first need a database to hold your table definitions. In the query editor, run:

CREATE DATABASE alb_logs;

The database will appear in the left sidebar under the "Database" dropdown.

Step 3: Create the Table Schema

ALB logs are space-delimited. You need a regex serializer to map the raw text lines to columns. Replace the LOCATION with your specific S3 bucket path. Ensure you include the trailing slash / in your S3 path.

Run the following query once ready.

CREATE EXTERNAL TABLE alb_logs.alb_access_logs (
    type string,
    time string,
    elb string,
    client_ip string,
    client_port int,
    target_ip string,
    target_port int,
    request_processing_time double,
    target_processing_time double,
    response_processing_time double,
    elb_status_code int,
    target_status_code string,
    received_bytes bigint,
    sent_bytes bigint,
    request_verb string,
    request_url string,
    request_proto string,
    user_agent string,
    ssl_cipher string,
    ssl_protocol string,
    target_group_arn string,
    trace_id string,
    domain_name string,
    chosen_cert_arn string,
    matched_rule_priority string,
    request_creation_time string,
    actions_executed string,
    redirect_url string,
    lambda_error_reason string,
    target_port_list string,
    target_status_code_list string,
    classification string,
    classification_reason string
)
ROW FORMAT SERDE 'org.apache.hadoop.hive.serde2.RegexSerDe'
WITH SERDEPROPERTIES (
    'serialization.format' = '1',
    'input.regex' = '([^ ]**) ([^ ]**) ([^ ]**) ([^ ]**):([0-9]**) ([^ ]**)[:-]([0-9]**) ([-.0-9]**) ([-.0-9]**) ([-.0-9]**) (|[-0-9]**) (-|[-0-9]**) ([-0-9]**) ([-0-9]**) \"([^ ]**) (.**) (- |[^ ]**)\" \"([^\"]**)\" ([A-Z0-9-_]+) ([A-Za-z0-9.-]**) ([^ ]**) \"([^\"]**)\" \"([^\"]**)\" \"([^\"]**)\" ([-.0-9]**) ([^ ]**) \"([^\"]**)\" \"([^\"]**)\" \"([^ ]**)\" \"([^\s]+?)\" \"([^\s]+)\" \"([^ ]**)\" \"([^ ]**)\"'
)
LOCATION 's3://your-alb-logs-bucket/AWSLogs/YOUR_ACCOUNT_ID/elasticloadbalancing/YOUR_REGION/';

The table "alb_access_logs" will appear under Tables in the left sidebar.

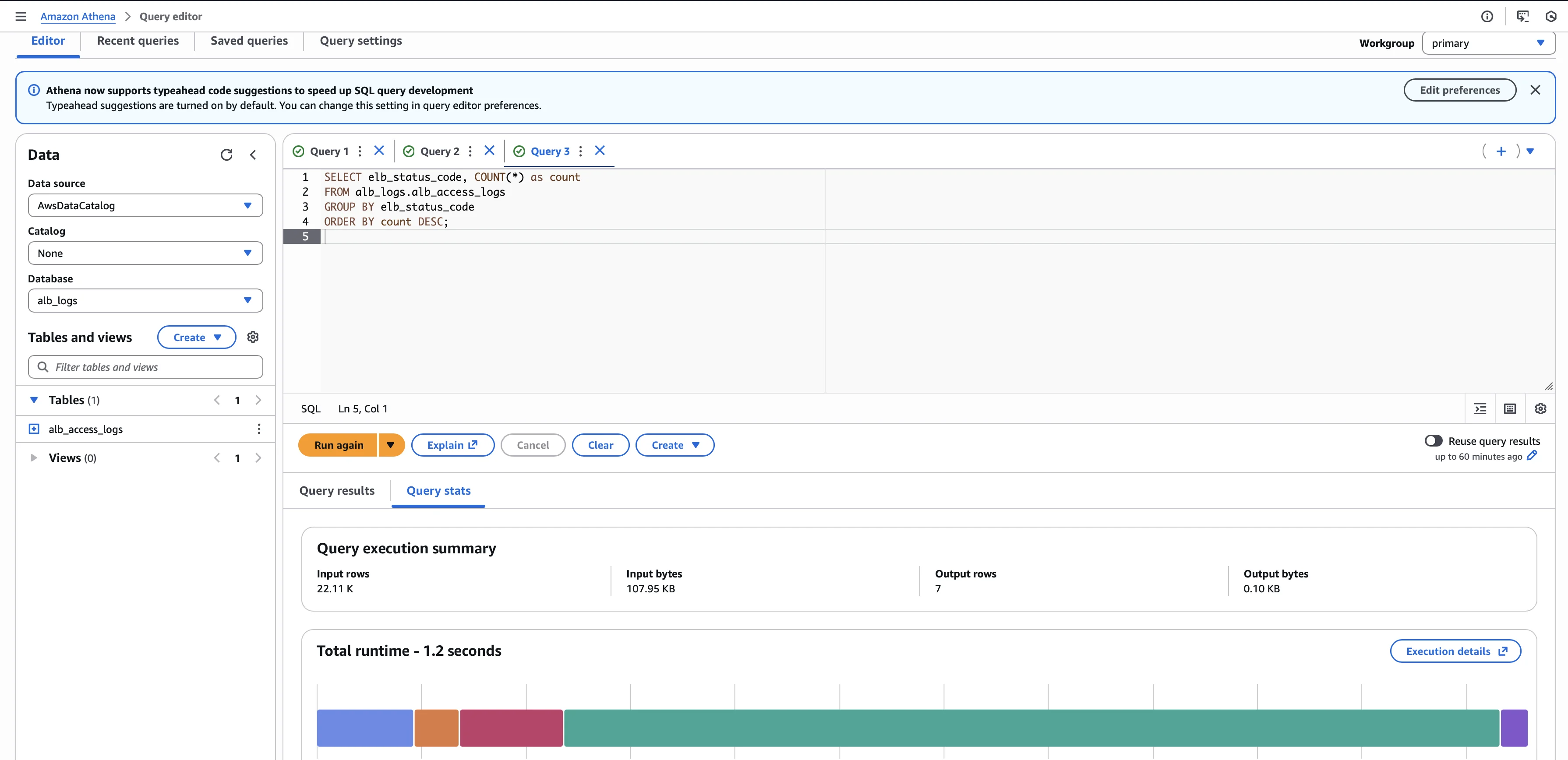

Step 4: Run Analysis Queries

Now you can run SQL queries. Here is a sample troubleshooting query to find the distribution of HTTP status codes:

SELECT elb_status_code, COUNT(*) as count
FROM alb_logs.alb_access_logs
GROUP BY elb_status_code
ORDER BY count DESC;

Limitations of Athena for Log Analysis

While Athena is powerful for ad-hoc SQL queries, several limitations make it less suitable for operational log analysis:

• Complex table setup: The ALB log format requires a RegexSerDe with a lengthy regex pattern. Any schema mismatch or regex error results in NULL values or failed queries, making initial setup error-prone.
• Cost unpredictability: Athena charges per data scanned, not per query. A broad query without proper partitioning or WHERE clauses can scan terabytes of historical logs, resulting in unexpected costs.
• No alerting or dashboards: Athena is a query engine, not a monitoring tool. You cannot create alerts on log patterns or build real-time dashboards without additional infrastructure.
• Manual partitioning required: For cost-effective queries on large log volumes, you must configure partitions by date. Without partitioning, every query scans the entire dataset.
• No correlation with metrics: Athena operates in isolation. Correlating a query result with CloudWatch metrics or distributed traces requires manual context-switching between services.

For teams needing visibility, alerting, or correlation with other telemetry, Athena alone is insufficient.

Method 2: Forwarding ALB Logs to CloudWatch Logs

Many teams prefer CloudWatch Logs because they are already using Logs Insights for application logs. However, AWS does not natively support sending ALB logs to CloudWatch. You must build a custom pipeline using an AWS Lambda function that reads logs from an S3 bucket and forwards them to CloudWatch.

Step 1: Create a CloudWatch Log Group

CloudWatch Logs requires a log group as the destination for incoming logs. The Lambda function will write parsed ALB log entries to this group.

Open the CloudWatch Console and expand Logs in the left sidebar, then click Log management. Click Create log group, enter a name like /aws/alb/access-logs, set a retention period based on your needs (1 day, 1 week, 1 month, etc.), then click Create.

Step 2: Create the Lambda Function

Open the Lambda Console and click Create function. Choose Author from scratch, enter the function name as alb-logs-to-cloudwatch, select (Python 3.12+) as the runtime, and click Create function.

Add the Lambda Code in the Code section by replacing the default code with the code below, and click on Deploy.

import boto3
import gzip
import os
from io import BytesIO
import time

logs_client = boto3.client('logs')
s3_client = boto3.client('s3')

LOG_GROUP = os.environ.get('LOG_GROUP', '/aws/alb/access-logs')

def lambda_handler(event, context):
    for record in event['Records']:
        bucket = record['s3']['bucket']['name']
        key = record['s3']['object']['key']

        response = s3_client.get_object(Bucket=bucket, Key=key)
        with gzip.GzipFile(fileobj=BytesIO(response['Body'].read())) as gz:
            log_content = gz.read().decode('utf-8')

        log_stream = key.replace('/', '-').replace('.gz', '')

        try:
            logs_client.create_log_stream(logGroupName=LOG_GROUP, logStreamName=log_stream)
        except logs_client.exceptions.ResourceAlreadyExistsException:
            pass

        log_events = []
        for line in log_content.strip().split('\n'):
            if line:
                log_events.append({
                    'timestamp': int(time.time() * 1000),
                    'message': line
                })

        if log_events:
            logs_client.put_log_events(
                logGroupName=LOG_GROUP,
                logStreamName=log_stream,
                logEvents=log_events
            )

    return {'statusCode': 200}

This function triggers whenever a new file lands in S3, unzips it, parses the lines, and pushes them to CloudWatch.

Step 3: Configure Environment Variables for the function

Go to the Configuration tab and select Environment variables. Click Edit, then Add environment variable. Set the Key-Value pair, then click Save.

Step 4: Add IAM Permissions

Navigate to Configuration > Permissions and click the role name. In IAM, attach the AmazonS3ReadOnlyAccess policy. Then create an inline policy using the JSON editor and paste the following:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "logs:CreateLogStream",
                "logs:PutLogEvents"
            ],
            "Resource": "arn:aws:logs:**:**:log-group:/aws/alb/access-logs:*"
        }
    ]
}

Name the policy CloudWatchLogsAccess and click Create policy.

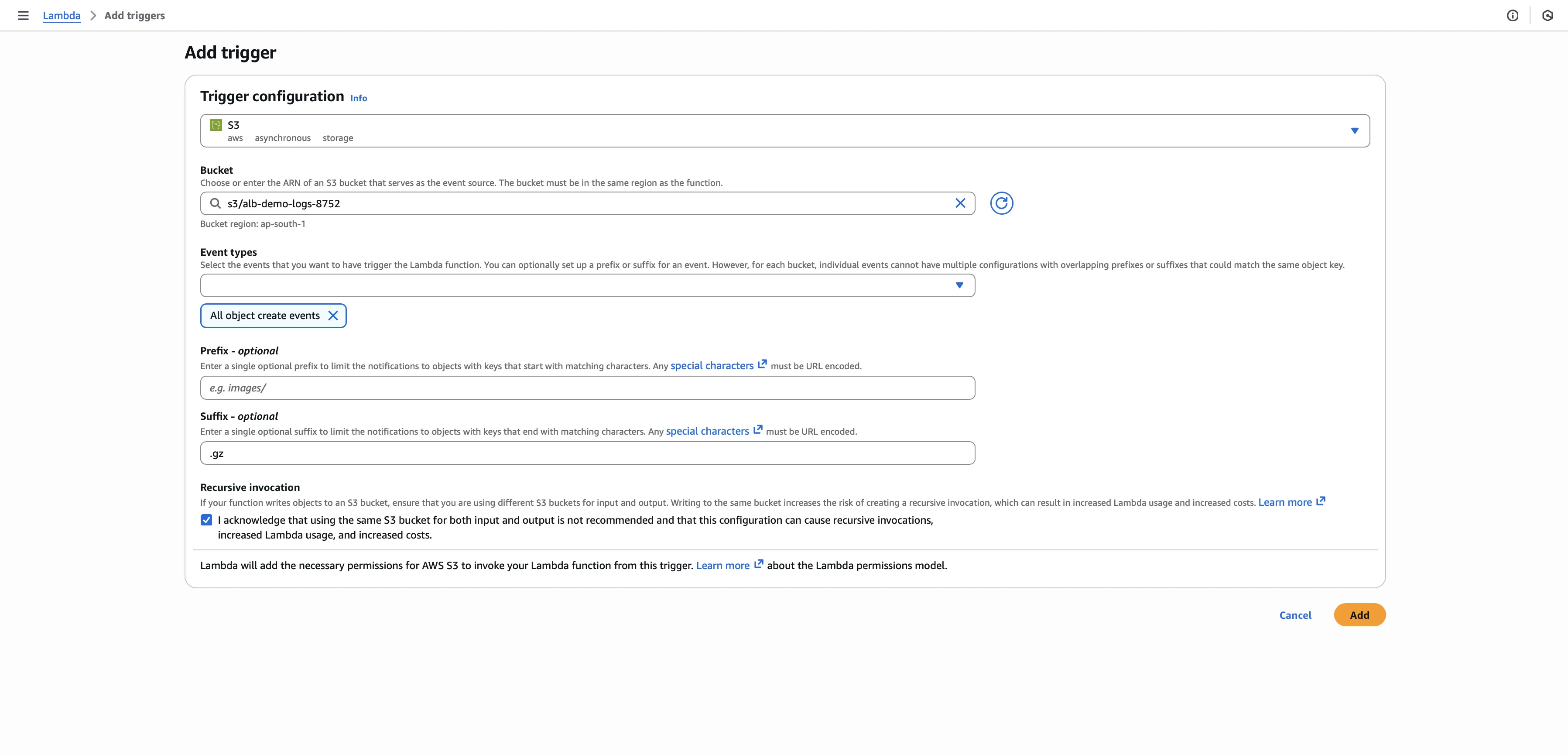

Step 5: Add S3 Trigger

In the Lambda function overview, click + Add trigger and select S3 as the source. Choose your ALB logs bucket, set the event type to All object create events, add  .gz as the suffix filter, acknowledge the recursive invocation warning, and click Add.

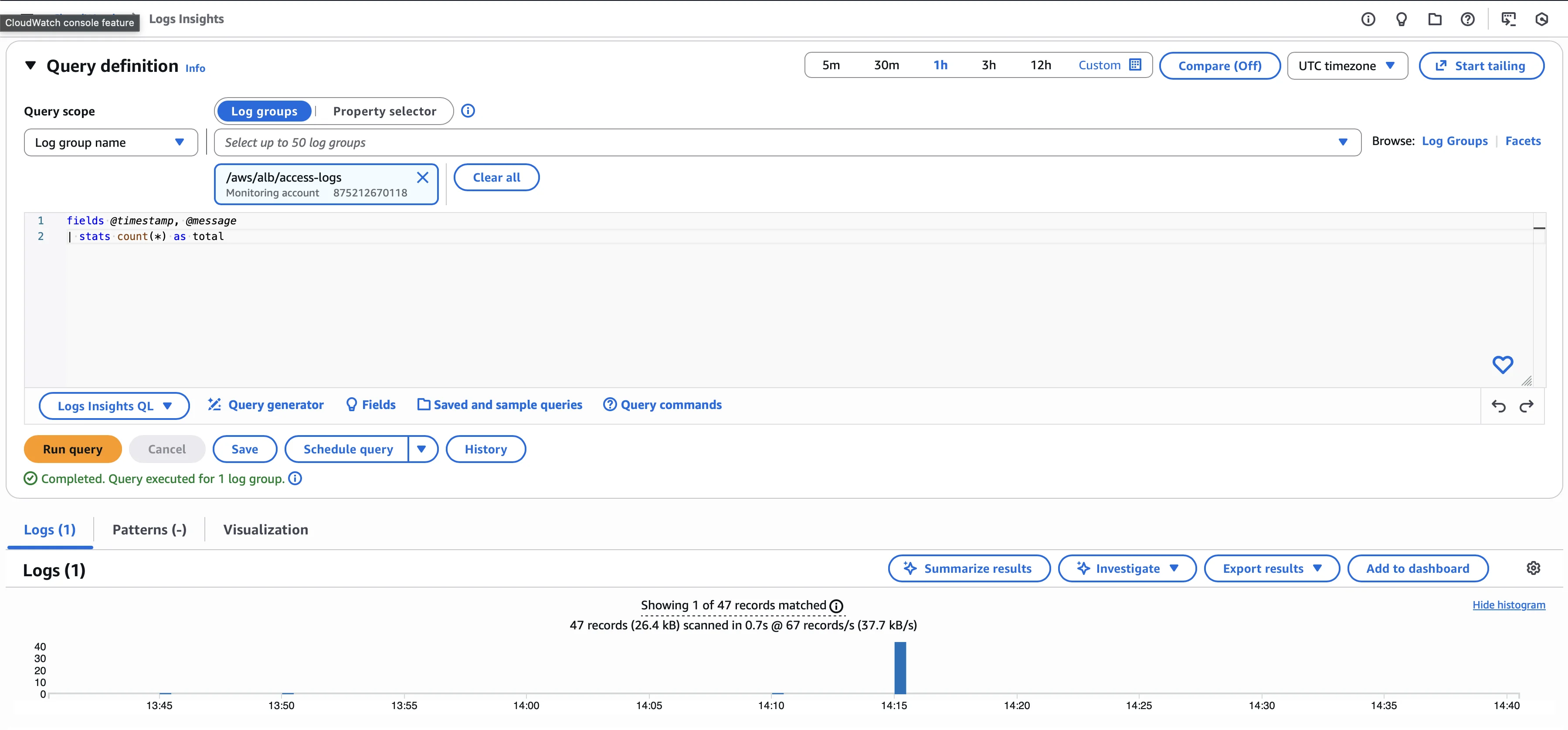

Step 6: Query Logs with CloudWatch Logs Insights

Open the CloudWatch Console, navigate to Logs → Logs Insights, and select your log group /aws/alb/access-logs. You can now run queries to analyze your ALB access logs. Here are some useful examples:

Count all requests:

fields @timestamp, @message
| stats count(*) as total

Limitations of CloudWatch Logs for ALB Log Analysis

While CloudWatch Logs Insights enables log analysis, several limitations make it less practical for production ALB monitoring at scale.

• Ingestion and storage costs: CloudWatch Logs charges 0.50/GB for ingestion and 0.03/GB per month for storage. High-traffic ALBs can generate gigabytes of logs daily, making costs unpredictable.
• Limited query language: CloudWatch Logs Insights uses a proprietary query syntax that lacks the flexibility of SQL or full-text search engines. Complex log analysis requires regex parsing within queries.
• Unstructured log format: ALB logs arrive as space-delimited strings rather than JSON. Extracting fields like status codes or latency requires regex parsing in every query, adding complexity and slowing down analysis.
• No built-in dashboards for access logs: Unlike metrics, CloudWatch does not provide automatic dashboards for ALB access logs. You must manually create dashboards or use Logs Insights for every query.
• Limited alerting on log patterns: Creating metric filters for log-based alerts requires additional configuration. Alerting on complex patterns like "5XX rate exceeds 5% of requests" is hard.
• Retention cost trade-offs: Longer retention periods increase storage costs, but shorter retention means losing historical data for trend analysis or compliance.

The limitations above compound when you need to troubleshoot production issues quickly. SigNoz addresses these gaps by providing a unified platform where ALB access logs and metrics coexist with native correlation capabilities.

How SigNoz Addresses Log Limitations

SigNoz is an open-source, all-in-one observability platform that addresses these limitations. It correlates your ALB logs directly with metrics, allowing you to go from a "High Latency" alert to the exact log line in one click.

Real-Time Log Ingestion

The log ingestion model differs fundamentally. Instead of querying logs where they land in S3, a lambda function forwards them to SigNoz as they arrive. The function is triggered by S3 events, parses each log entry, and sends structured data to SigNoz over HTTPS. This reduces delay after S3 delivery by forwarding logs as soon as new objects land in S3.

Structured Fields Without Regex

SigNoz indexes log content for full-text search and extracts fields such as client IP, status code, and latency as typed attributes. Logs can be filtered using both free-text queries and precise field-based conditions without writing complex regex patterns.

Built-In Alerting

SigNoz allows you to create alerts directly on log patterns or aggregations. If 5XX responses exceed a threshold within a time window, SigNoz triggers a notification without requiring intermediate infrastructure.

Correlation with Metrics, Logs and Traces

When you see an error spike in your ALB metrics dashboard, you can pivot to access logs filtered to that exact time window. If your application emits distributed traces, you can drill from a slow request in the logs to the full trace showing which downstream service caused the latency.

Method 3: Forwarding ALB Access Logs to SigNoz

If you followed the CloudWatch Logs setup earlier, the Lambda architecture remains the same: an S3 trigger invokes a function whenever new ALB log files arrive. The only differences are the Lambda code (which sends logs to SigNoz instead of CloudWatch) and the environment variables (SigNoz ingestion endpoint and access token instead of the CloudWatch log group name). The S3 trigger configuration and IAM permissions for S3 access stay unchanged.

If you're setting this up fresh, you'll create a new Lambda function with the S3 trigge same steps as before, just with SigNoz-specific code and configuration.

Lambda Code

Replace the Lambda function code with the following:

import json
import gzip
import urllib.request
import os
import boto3
import re
from io import BytesIO

def parse_alb_log(line):
    """
    Parse an ALB access log line into structured fields.
    ALB log format: https://docs.aws.amazon.com/elasticloadbalancing/latest/application/load-balancer-access-logs.html
    """
    # Regex to handle quoted fields and space-separated values
    pattern = r'([^ ]**) ([^ ]**) ([^ ]**) ([^ ]**):([0-9]**) ([^ ]**):([0-9]**) ([-.0-9]**) ([-.0-9]**) ([-.0-9]**) ([0-9]**) ([0-9]**) ([0-9]**) ([0-9]**) "([^"]**)" "([^"]**)" ([^ ]**) ([^ ]**) ([^ ]**) "([^"]**)" "([^"]**)" "([^"]**)" ([-.0-9]**) ([^ ]**) "([^"]**)" "([^"]**)" "([^"]**)" "([^"]**)" "([^"]**)"'

    match = re.match(pattern, line)
    if not match:
        # Fallback: return basic parsed data
        parts = line.split(' ')
        return {
            "type": parts[0] if len(parts) > 0 else "",
            "timestamp": parts[1] if len(parts) > 1 else "",
            "raw": line
        }

    groups = match.groups()

    return {
        "type": groups[0],
        "timestamp": groups[1],
        "elb": groups[2],
        "client_ip": groups[3],
        "client_port": groups[4],
        "target_ip": groups[5],
        "target_port": groups[6],
        "request_processing_time": float(groups[7]) if groups[7] != '-' else 0,
        "target_processing_time": float(groups[8]) if groups[8] != '-' else 0,
        "response_processing_time": float(groups[9]) if groups[9] != '-' else 0,
        "elb_status_code": groups[10],
        "target_status_code": groups[11],
        "received_bytes": int(groups[12]) if groups[12] != '-' else 0,
        "sent_bytes": int(groups[13]) if groups[13] != '-' else 0,
        "request": groups[14],
        "user_agent": groups[15],
        "ssl_cipher": groups[16],
        "ssl_protocol": groups[17],
        "target_group_arn": groups[18],
        "trace_id": groups[19],
        "domain_name": groups[20],
        "chosen_cert_arn": groups[21],
        "matched_rule_priority": groups[22],
        "request_creation_time": groups[23],
        "actions_executed": groups[24],
        "redirect_url": groups[25],
        "error_reason": groups[26],
        "target_list": groups[27],
        "target_status_list": groups[28]
    }

def lambda_handler(event, context):
    """
    Lambda function to forward ALB access logs from S3 to SigNoz.
    Parses logs into structured fields for better querying.
    """
    signoz_endpoint = os.environ.get('SIGNOZ_ENDPOINT')
    signoz_token = os.environ.get('SIGNOZ_TOKEN')

    if not signoz_endpoint or not signoz_token:
        print("Missing SIGNOZ_ENDPOINT or SIGNOZ_TOKEN")
        return {'statusCode': 500, 'body': 'Missing configuration'}

    s3 = boto3.client('s3')
    logs_sent = 0

    for record in event['Records']:
        bucket = record['s3']['bucket']['name']
        key = record['s3']['object']['key']

        print(f"Processing: s3://{bucket}/{key}")

        # Download and decompress log file
        response = s3.get_object(Bucket=bucket, Key=key)
        with gzip.GzipFile(fileobj=BytesIO(response['Body'].read())) as gz:
            log_content = gz.read().decode('utf-8')

        # Parse and send each log line
        for line in log_content.strip().split('\n'):
            if not line:
                continue

            # Parse the log line
            parsed = parse_alb_log(line)

            # Extract method and path from request
            request_parts = parsed.get('request', '').split(' ')
            http_method = request_parts[0] if len(request_parts) > 0 else ''
            request_url = request_parts[1] if len(request_parts) > 1 else ''

            # Build structured log entry (service.name is in resources, not here)
            attributes = [
                {"key": "log.source", "value": {"stringValue": "alb-access-logs"}},
                {"key": "client_ip", "value": {"stringValue": parsed.get('client_ip', '')}},
                {"key": "elb_status_code", "value": {"stringValue": parsed.get('elb_status_code', '')}},
                {"key": "target_status_code", "value": {"stringValue": parsed.get('target_status_code', '')}},
                {"key": "http_method", "value": {"stringValue": http_method}},
                {"key": "request_url", "value": {"stringValue": request_url}},
                {"key": "user_agent", "value": {"stringValue": parsed.get('user_agent', '')}},
                {"key": "target_processing_time_ms", "value": {"doubleValue": parsed.get('target_processing_time', 0) ** 1000}},
                {"key": "received_bytes", "value": {"intValue": parsed.get('received_bytes', 0)}},
                {"key": "sent_bytes", "value": {"intValue": parsed.get('sent_bytes', 0)}},
                {"key": "elb", "value": {"stringValue": parsed.get('elb', '')}},
            ]

            log_entry = {
                "resourceLogs": [{
                    "resource": {
                        "attributes": [
                            {"key": "service.name", "value": {"stringValue": "alb-demo"}},
                            {"key": "source", "value": {"stringValue": "alb-access-logs"}}
                        ]
                    },
                    "scopeLogs": [{
                        "logRecords": [{
                            "body": {"stringValue": line},
                            "attributes": attributes
                        }]
                    }]
                }]
            }

            # Send to SigNoz
            req = urllib.request.Request(
                f"{signoz_endpoint}/v1/logs",
                data=json.dumps(log_entry).encode('utf-8'),
                headers={
                    'Content-Type': 'application/json',
                    'signoz-ingestion-key': signoz_token
                }
            )

            try:
                urllib.request.urlopen(req)
                logs_sent += 1
            except Exception as e:
                print(f"Error sending log: {e}")

    print(f"Successfully sent {logs_sent} logs to SigNoz")
    return {'statusCode': 200, 'body': f'Processed {logs_sent} logs'}

Environment Variables

Go to Configuration → Environment variables, click Edit, and add the following variables:

You can generate your SigNoz ingestion key by following the Generate Ingestion Keys guide.

Viewing ALB Logs in SigNoz

Once logs start flowing, navigate to Logs → Logs Explorer in SigNoz. Filter by service name to see only ALB logs:

service.name = alb-demo

You'll see your ALB access logs with parsed fields ready for filtering and analysis.

Conclusion

This completes our AWS ELB monitoring series. You've set up both metrics and access logs streaming to SigNoz, giving you unified visibility into load balancer performance and request-level details.

To receive more insights from observability nerds at SigNoz straight to your inbox, you can subscribe to our newsletter.

Further Reading

• AWS Monitoring: A Complete Guide
• AWS Lambda Monitoring
• EC2 Monitoring
