How to Set Up Prometheus and Grafana on Docker - A Guide

Last Updated: November 02, 202612 min read

Monitoring containerized environments effectively is crucial for debugging, capacity planning, and maintaining uptime. In this guide, we'll walk through a hands-on setup of Prometheus and Grafana entirely on Docker, ideal for local development, POCs, or staging environments, no Kubernetes required.

Need metrics, logs, and traces in one place without managing Prometheus + Grafana + Loki separately? SigNoz gives you unified observability out of the box.

Learn More

Why Use Docker for Prometheus and Grafana?

Docker simplifies and secures the deployment of Prometheus and Grafana with these key benefits:

  1. Isolation & Security

    Containers provide process isolation via namespaces and cgroups. Combined with Docker's security features like seccomp and read-only filesystems, this reduces risk and surface area for attacks.

  2. Persistent Storage

    Docker volumes retain Prometheus TSDB data and Grafana configs across restarts, ensuring observability data isn’t lost during container lifecycle events.

  3. Network Control

    Docker networks (bridge, overlay) enable secure, isolated communication. Port mapping and firewall rules limit external exposure (e.g., 9090, 3000), enhancing security.

  4. Environment Consistency

    Docker guarantees consistent behavior across dev, staging, and prod, eliminating environment drift and simplifying debugging.

Prerequisites for Installing Prometheus and Grafana on Docker

Before setting up, ensure the following prerequisites are met to avoid compatibility or runtime issues:

  • Docker ≥ 20.10 and Docker Compose ≥ 1.29 installed. Install Docker | Install Compose
  • System resources: Minimum 2 vCPUs, 4 GB RAM, and 2 GB of free disk space.
  • Open ports: Ensure default ports — 9090 (Prometheus), 3000 (Grafana), and optionally 8080 (cAdvisor) — are available, unless you've configured these services to use different ports.
  • Administrative privileges: sudo or root access to install Docker and manage containers.

Step-by-Step Guide to Install Prometheus on Docker

Prometheus is a robust monitoring and alerting system, and Docker makes it easy to deploy and manage. Follow these steps to containerize Prometheus using Docker Compose.

  1. Create a Dedicated Docker Network

    Create a user-defined bridge network for Prometheus and Grafana to enable container-to-container communication without exposing internal ports externally.

    docker network create monitoring

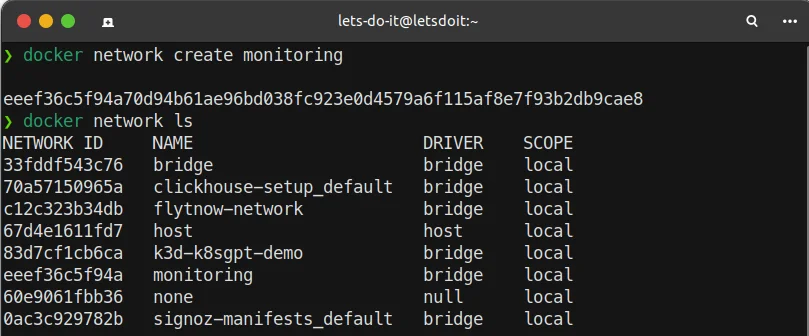

    command: docker network ls
    command: docker network ls
  2. Create a Prometheus Configuration File

    Define scrape settings and specify the Prometheus server itself as a target in a file named prometheus.yml:

    global:
      scrape_interval: 15s  # Frequency of metric scraping

    scrape_configs:
      - job_name: 'prometheus'
        static_configs:
          - targets: ['localhost:9090']

    📌 This configuration tells Prometheus to scrape metrics from itself every 15 seconds.

  3. Create a Docker Compose File

    With the scrape configuration ready, define the Prometheus service in docker-compose.yml. Pin the image version for stability and mount prometheus.yml so the container uses that configuration. Add a named volume at /prometheus to keep the collected metrics available when you replace the container:

    version: '3.8'

    services:
      prometheus:
        image: prom/prometheus:v2.52.0
        container_name: prometheus
        ports:
          - "9090:9090"
        volumes:
          - ./prometheus.yml:/etc/prometheus/prometheus.yml
          - prometheus-data:/prometheus
        networks:
          - monitoring
        restart: unless-stopped
    volumes:
      prometheus-data:
    networks:
      monitoring:
        external: true

    Compose creates the prometheus-data volume when you launch the service and mounts it where Prometheus stores its metrics. The restart: unless-stopped setting restarts the container automatically if it crashes or the system reboots.

  4. Launch Prometheus

    Start the service in detached mode:

    docker-compose up -d
  5. Verify Prometheus is Running

    Check if the container is active:

    docker ps

    You should see the prometheus container listed and listening on port 9090.

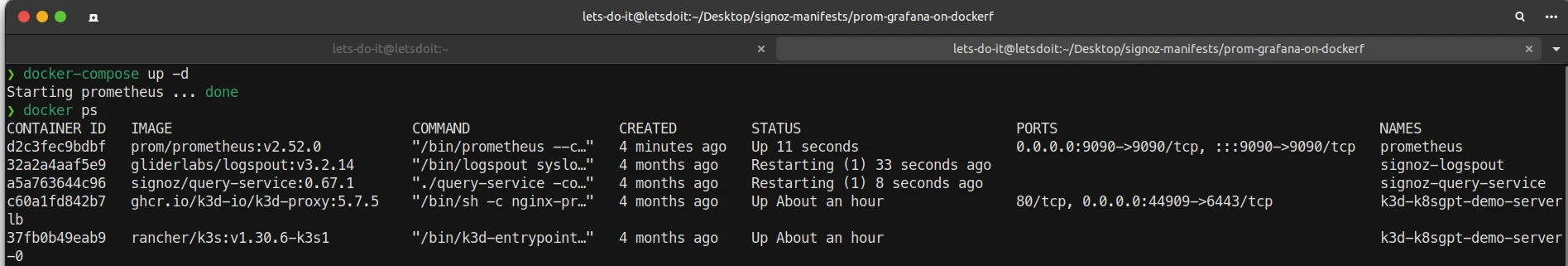

    command: docker ps
    command: docker ps
  6. Access the Prometheus UI

    Navigate to http://localhost:9090 in your browser. You should see the Prometheus web interface.

  7. Check That Metrics Survive Container Replacement

    Prometheus is already scraping itself using the configuration you created earlier. Let it run for a minute, then enter up{job="prometheus"} in the UI and view the last five minutes as a graph. A value of 1 shows that Prometheus is scraping the target successfully.

    To check that the volume retains these samples, recreate the Prometheus container from the same project directory:

    docker-compose up -d --force-recreate prometheus

    Once the container is running again, rerun the query over the same time range. You should still see samples collected before the replacement. Keep the prometheus-data volume when updating the stack. Running docker-compose down -v deletes it along with any other named volumes declared in the Compose file.

Troubleshooting

If Prometheus doesn't start:

  • Check logs:

    docker-compose logs prometheus
  • Ensure the config file path and syntax are correct.

  • Confirm port 9090 is not in use.

  • If the logs show permission denied for /prometheus, check that the container’s Prometheus user has write access to the mounted data directory.

Configuring Prometheus for Metric Collection

So far, Prometheus is collecting its own metrics. To monitor your services as well, add scrape jobs to the same configuration file so Prometheus knows where to pull their metrics from.

  1. Add a New Scrape Job to prometheus.yml

    Each job in Prometheus represents a set of targets that expose metrics. Update your configuration file to include your app:

    scrape_configs:
      - job_name: 'my-app'  # Descriptive name for the service
        static_configs:
          - targets: ['app-host:8000']  # Replace with container name or IP and port

    📌 Ensure app-host is resolvable from within the Prometheus container—use a Docker service name or internal container name if they're on the same network.

    💡 You can also customize the scrape interval per job:

    scrape_interval: 10s
    scrape_timeout: 5s
  2. Restart Prometheus to Apply the New Configuration

    Use Docker Compose to reload the updated configuration:

    docker-compose restart prometheus

    🔍 Alternatively, use docker exec to test the config before restarting:

    docker exec -it prometheus promtool check config /etc/prometheus/prometheus.yml
  3. Verify Metric Collection in the Prometheus UI

    • Open: http://localhost:9090

    • Go to Status → Targets to ensure your new job appears and is marked as UP

    • Use the Graph tab to query example metrics, such as:

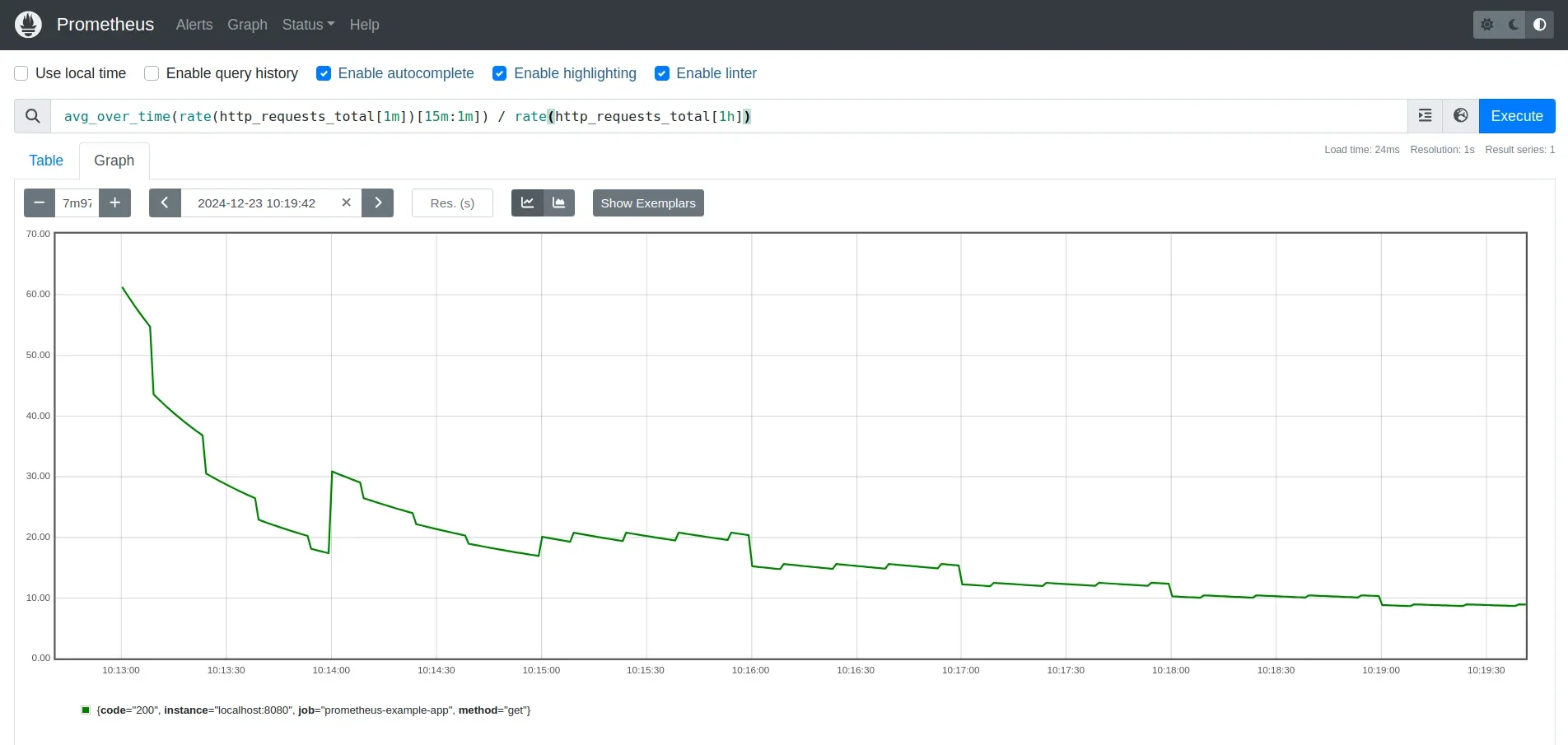

      Prometheus graph using PromQL Query
      Prometheus graph using PromQL Query

Installing Grafana on Docker

Grafana is a powerful visualization tool that complements Prometheus by turning raw metrics into insightful dashboards. By containerizing Grafana with Docker, you can easily manage, deploy, and persist your monitoring setup alongside Prometheus.

  1. Update Your docker-compose.yml to Include Grafana

    Keep the Prometheus service and its data volume in your Compose file, then add Grafana with its own grafana-storage volume. Both services use the monitoring network so Grafana can query Prometheus:

    version: '3.8'

    services:
      prometheus:
        image: prom/prometheus:v2.52.0
        container_name: prometheus
        ports:
          - "9090:9090"
        volumes:
          - ./prometheus.yml:/etc/prometheus/prometheus.yml
          - prometheus-data:/prometheus
        networks:
          - monitoring
        restart: unless-stopped

      grafana:
        image: grafana/grafana:10.2.2
        container_name: grafana
        ports:
          - "3000:3000"
        environment:
          - GF_SECURITY_ADMIN_PASSWORD=your_password
        volumes:
          - grafana-storage:/var/lib/grafana
        networks:
          - monitoring
        restart: unless-stopped

    volumes:
      prometheus-data:
      grafana-storage:

    networks:
      monitoring:
        external: true

    The grafana-storage volume preserves Grafana’s dashboards and data sources across container replacements, just as prometheus-data preserves the metrics they display.

  2. Launch Grafana

    Run the following command to bring up the updated stack:

    docker-compose up -d

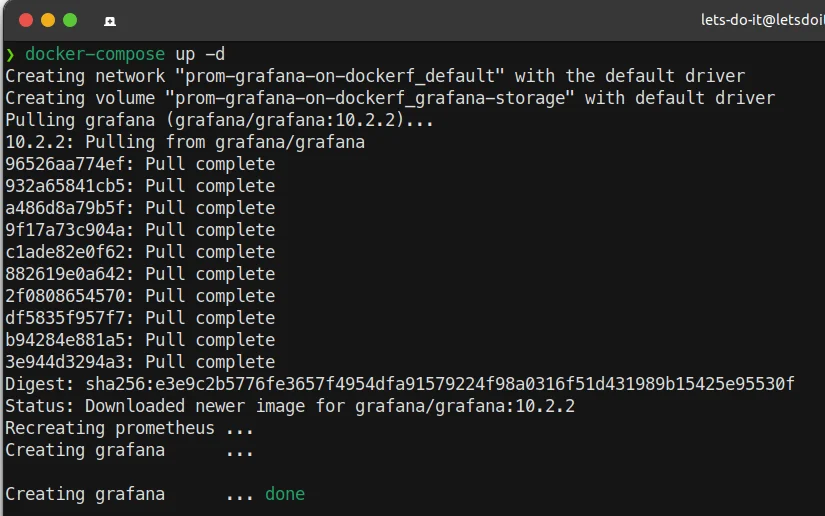

    Command: docker-compose up -d
    Command: docker-compose up -d

    Once running, access the web interface at:

    ➡️ http://localhost:3000

Connecting Grafana to Prometheus

To visualize Prometheus metrics effectively in Grafana, the first step is to establish a connection between the two. This involves configuring Prometheus as a data source and building a dashboard to display meaningful insights.

  1. Set up Prometheus as a Data Source in Grafana
    • Navigate to Connections → Data Sources → Add data source in the left side panel.

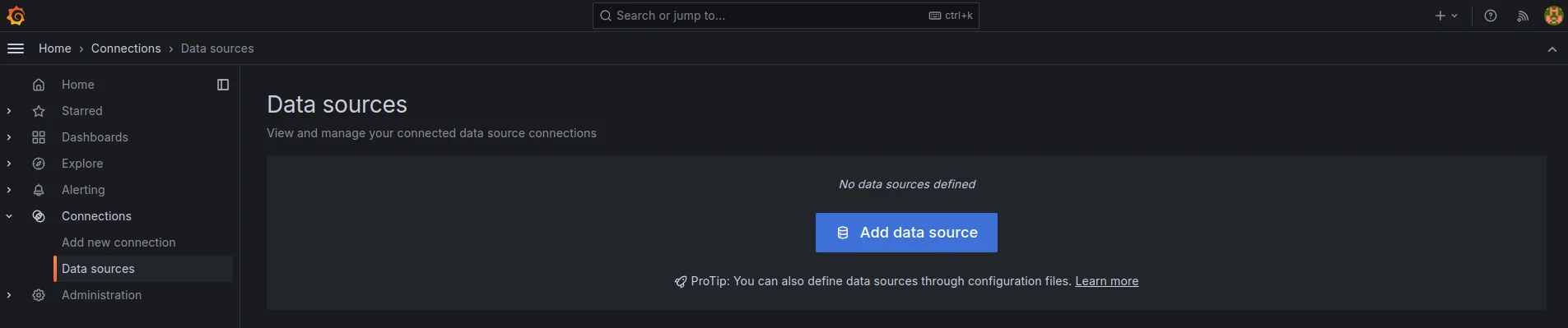

      Adding a data source in Grafana
      Adding a data source in Grafana
    • Enter the Prometheus server URL in the configuration field.

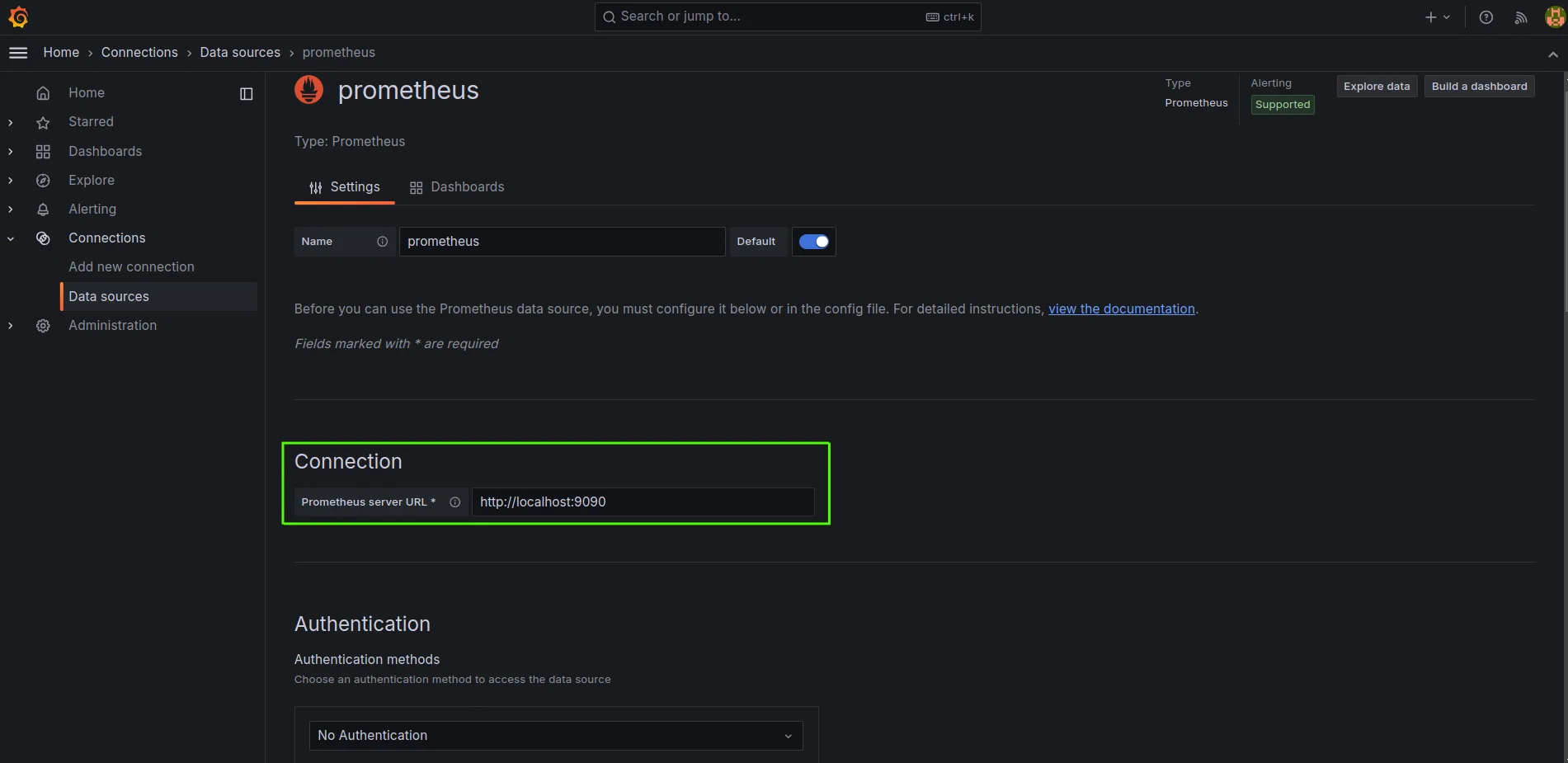

      Enter Prometheus server URL in the config field
      Enter Prometheus server URL in the config field
    • Configure authentication settings (if required).

    • Click "Save & Test" to verify the connection

  2. Create a New Dashboard and Panel
    • Navigate to Dashboards → New Dashboard → Click on the Add Visualization button

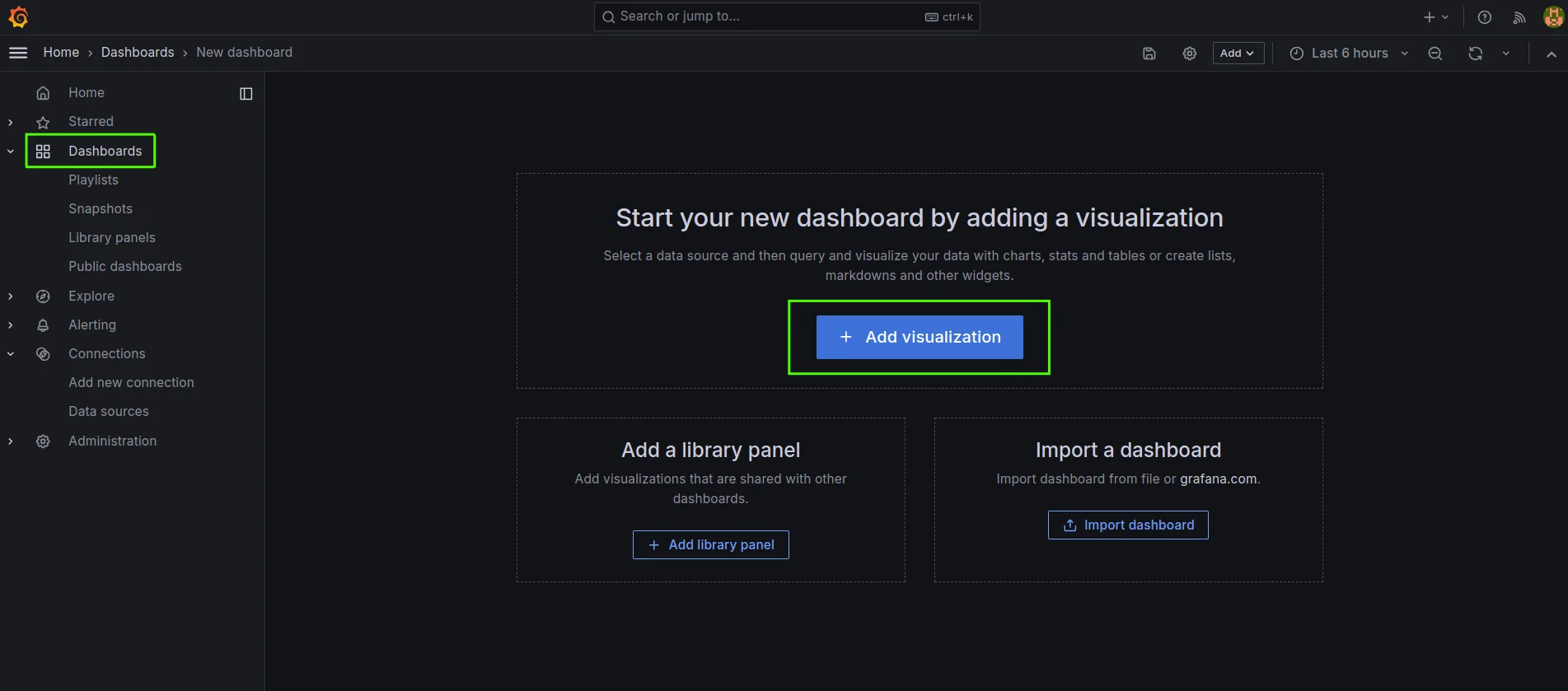

      Create a new dashboard and add a visualization
      Create a new dashboard and add a visualization
    • Select Prometheus from the data source dropdown

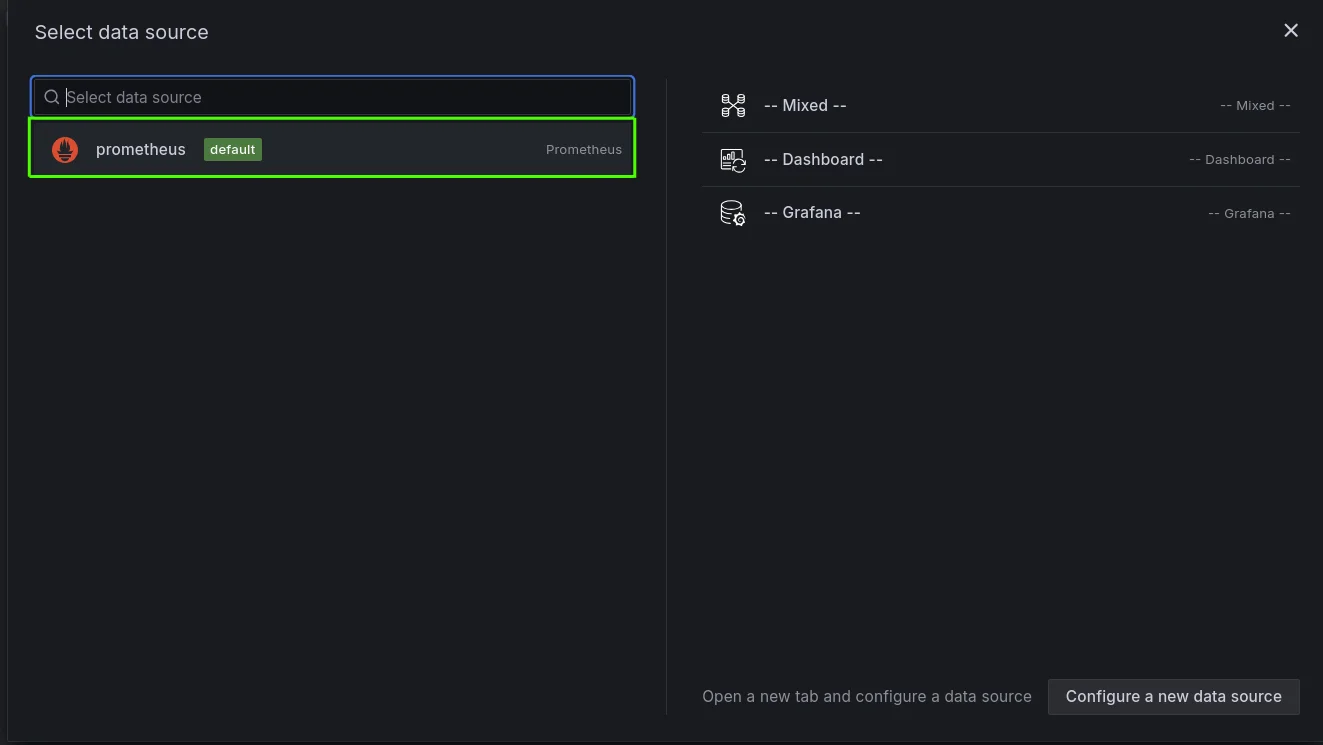

      Select Prometheus as the data source
      Select Prometheus as the data source
    • Choose the appropriate visualization type

  3. Input Your PromQL Expression
    • In the query editor, enter your metric division expression. For example, to calculate CPU usage for each core:

      100 - (rate(node_cpu_seconds_total{mode="idle"}[5m]) * 100

      This query breaks down CPU usage for each core individually, showing how much time each core is spending on active tasks over a 5-minute interval.

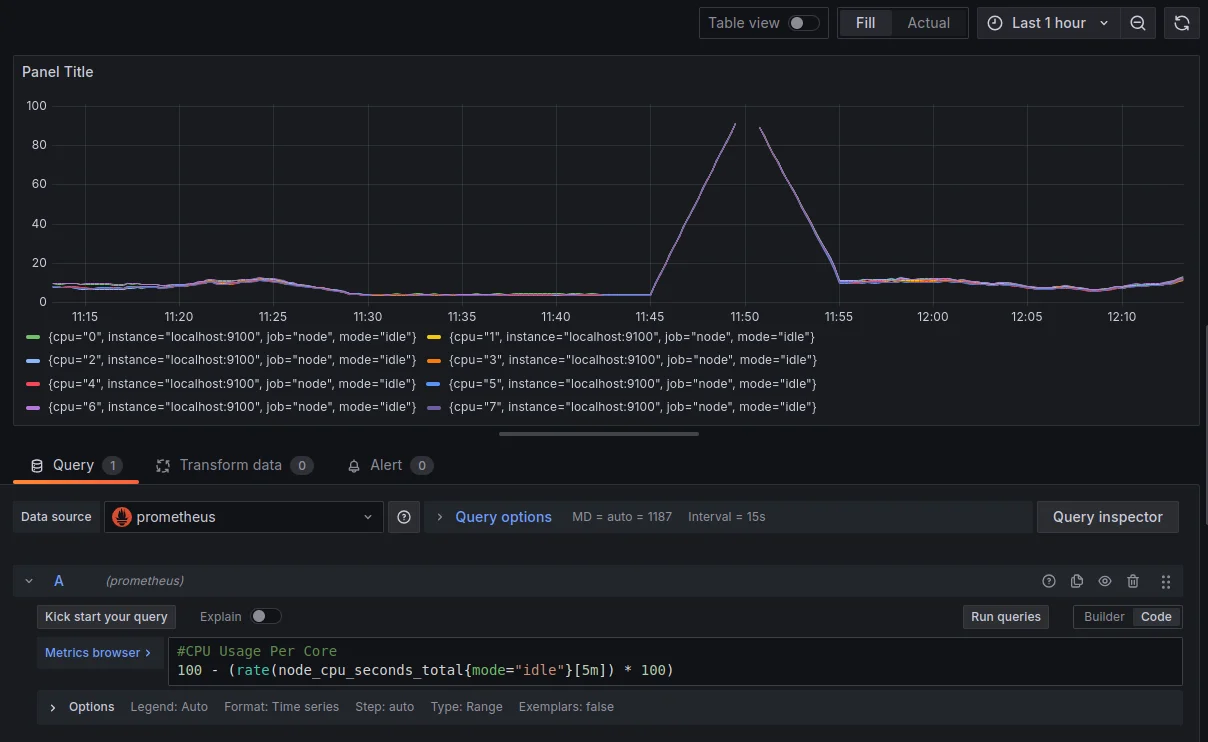

      PromQL expression for CPU usage
      PromQL expression for CPU usage

Monitoring Docker with cAdvisor

While Prometheus is excellent at scraping and storing metrics, it needs exporters to expose metrics from different systems. cAdvisor (Container Advisor) is a lightweight exporter developed by Google that collects real-time resource usage and performance metrics directly from Docker containers. It provides detailed insights such as:

  • CPU and memory usage
  • Network I/O
  • Filesystem utilization
  • Container lifecycle stats

This makes cAdvisor an essential tool for gaining container-level observability, especially when you're working with microservices or multiple Docker containers.

  1. Add cAdvisor to Your docker-compose.yml:

    Add the following service to your existing Docker Compose setup:

    cadvisor:
        image: gcr.io/cadvisor/cadvisor:v0.47.2
        container_name: cadvisor
        ports:
          - "8080:8080"
        volumes:
          - /:/rootfs:ro
          - /var/run:/var/run:ro
          - /sys:/sys:ro
          - /var/lib/docker/:/var/lib/docker:ro
          - /var/run/docker.sock:/var/run/docker.sock:ro  # Only needed on Docker Desktop for Mac
        networks:
          - monitoring
        restart: unless-stopped


    📝 cAdvisor provides insights like memory, CPU, and network usage for each container.

  2. Update prometheus.yml to Scrape cAdvisor

    Now that cAdvisor is part of your stack, configure Prometheus to collect metrics from it:

    scrape_configs:
      - job_name: 'cadvisor'
        static_configs:
          - targets: ['cadvisor:8080']
  3. Restart the Stack

    Apply your changes and restart the Docker stack:

    docker-compose up -d

    Once it's up and running, you’ll start seeing per-container metrics in Prometheus and can visualize them in Grafana for deeper analysis.

Best Practices and Optimization

To maximize performance, reliability, and security in your monitoring setup:

  • Secure your stack:
    • Enable authentication for both Prometheus and Grafana.
    • Serve both tools behind a reverse proxy with HTTPS (e.g., Nginx + Let's Encrypt).
    • Use network policies or firewalls to restrict access to monitoring ports.
  • Optimize storage:
    • Monitor disk usage and configure Prometheus's --storage.tsdb.retention.time to limit historical data retention based on your storage capacity.
    • Regularly clean up unused dashboards or data sources in Grafana.
  • Alert proactively:
    • Define alerting rules in Prometheus and route them using Alertmanager.
    • Integrate alerts with tools like Slack, PagerDuty, or email.
    • Use Grafana's alerting engine for panel-based threshold alerts.
  • Maintain your stack:
    • Pin image versions to avoid unexpected changes (grafana/grafana:10.2.2, prom/prometheus:v2.52.0).
    • Monitor Prometheus's own metrics (e.g., prometheus_tsdb_head_series) to detect performance bottlenecks.
    • Back up Grafana’s grafana-storage volume regularly. For the metrics in prometheus-data, use Prometheus snapshots and keep a backup copy outside the volume. Persistent volumes survive container replacements, but backups let you recover if the stored data is lost.

Key Takeaways

  • Prometheus and Grafana on Docker provide a flexible and powerful monitoring solution.
  • Proper configuration is crucial for effective metric collection and visualization.
  • Regular maintenance ensures long-term performance and reliability.
  • Customizing dashboards allows you to focus on metrics that matter most to your applications.

FAQs

What are the minimum system requirements?

For small to medium workloads:

  • CPU: 2 cores
  • Memory: 4–8 GB RAM
  • Disk: 20–50 GB (SSD preferred for better Prometheus performance)

For production or large-scale environments, scale based on data volume and scrape intervals.

Can Prometheus and Grafana monitor non-Docker applications?

Yes. Prometheus can scrape metrics from:

  • Bare-metal or VM-hosted services
  • Kubernetes clusters
  • Cloud services (via exporters)
  • Custom apps exposing /metrics endpoints

How can I secure my setup?

  • Use strong credentials and environment variables (GF_SECURITY_ADMIN_PASSWORD)
  • Reverse proxy with HTTPS (e.g., Nginx or Traefik)
  • Restrict network access via firewalls or docker-compose network isolation
  • Enable Grafana alerting audit logs and role-based access

What are common setup issues and their solutions?

IssueSolution
Prometheus can’t scrape metricsVerify targets in prometheus.yml and container DNS
Grafana can’t connect to PrometheusCheck http://prometheus:9090 URL and Docker network
High memory usageTune scrape intervals and retention time
Dashboard data is missingEnsure correct time range and valid PromQL queries
