Google ADK Observability & Monitoring with OpenTelemetry

Overview

This guide walks you through setting up observability and monitoring for Google ADK using OpenTelemetry and exporting traces, logs, and metrics to SigNoz. With this integration, you can observe various metrics for your Google ADK applications and llm usage.

Monitoring Google ADK in your AI agent applications with telemetry ensures full observability across your AI and LLM workflows. By leveraging SigNoz, you can analyze correlated traces, logs, and metrics in unified dashboards, configure alerts, and gain actionable insights to continuously improve reliability, responsiveness, and user experience.

Prerequisites

A SigNoz Cloud account with an active ingestion key or Self Hosted SigNoz instance
Internet access to send telemetry data to SigNoz Cloud
Python 3.10+ with google-adk installed
For Python: pip installed for managing Python packages
A Google Gemini API key. You can get it from Google AI Studio platform

Monitoring Google ADK

For more information on getting started with Google ADK in your Python environment, refer to the Google ADK Python quickstart guide.

Step 1: Install dependencies

pip install \
  opentelemetry-api \
  opentelemetry-sdk \
  opentelemetry-exporter-otlp \
  opentelemetry-instrumentation-httpx \
  opentelemetry-instrumentation-system-metrics \
  google-adk \
  openinference-instrumentation-google-adk

Step 2: Create an agent project

Run the adk create command to start a new agent project.

adk create my_agent

Step 3: Update the .env file

Update the .env file in your generated module to include your generated Gemini API key:

my_agent/.env

GOOGLE_API_KEY=<YOUR_API_KEY>

Step 4: Import the necessary modules in your generated `agent.py`

Traces:

from opentelemetry import trace
from opentelemetry.sdk.resources import Resource
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import BatchSpanProcessor
from opentelemetry.exporter.otlp.proto.http.trace_exporter import OTLPSpanExporter
from openinference.instrumentation.google_adk import GoogleADKInstrumentor

Logs:

from opentelemetry.sdk._logs import LoggerProvider, LoggingHandler
from opentelemetry.sdk._logs.export import BatchLogRecordProcessor
from opentelemetry.exporter.otlp.proto.http._log_exporter import OTLPLogExporter
from opentelemetry._logs import set_logger_provider
import logging

Metrics:

from opentelemetry.sdk.metrics import MeterProvider
from opentelemetry.exporter.otlp.proto.http.metric_exporter import OTLPMetricExporter
from opentelemetry.sdk.metrics.export import PeriodicExportingMetricReader
from opentelemetry import metrics
from opentelemetry.instrumentation.system_metrics import SystemMetricsInstrumentor
from opentelemetry.instrumentation.httpx import HTTPXClientInstrumentor

Step 5: Set up Traces

from opentelemetry.sdk.resources import Resource
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import BatchSpanProcessor
from opentelemetry.exporter.otlp.proto.http.trace_exporter import OTLPSpanExporter
from opentelemetry import trace
from openinference.instrumentation.google_adk import GoogleADKInstrumentor
import os



resource = Resource.create({"service.name": "<service_name>"})
provider = TracerProvider(resource=resource)
span_exporter = OTLPSpanExporter(
    endpoint= os.getenv("OTEL_EXPORTER_TRACES_ENDPOINT"),
    headers={"signoz-ingestion-key": os.getenv("SIGNOZ_INGESTION_KEY")},
)
processor = BatchSpanProcessor(span_exporter)
provider.add_span_processor(processor)
trace.set_tracer_provider(provider)

GoogleADKInstrumentor().instrument()

<service_name> is the name of your service
OTEL_EXPORTER_TRACES_ENDPOINT → SigNoz Cloud trace endpoint with appropriate region: https://ingest.<region>.signoz.cloud:443/v1/traces
SIGNOZ_INGESTION_KEY → Your SigNoz ingestion key

✅ Info

Using self-hosted SigNoz? Most steps are identical. To adapt this guide, update the endpoint and remove the ingestion key header as shown in Cloud → Self-Hosted.

Step 6: Set up Metrics

from opentelemetry.sdk.resources import Resource
from opentelemetry.sdk.metrics import MeterProvider
from opentelemetry.exporter.otlp.proto.http.metric_exporter import OTLPMetricExporter
from opentelemetry.sdk.metrics.export import PeriodicExportingMetricReader
from opentelemetry import metrics
from opentelemetry.instrumentation.system_metrics import SystemMetricsInstrumentor
import os

resource = Resource.create({"service.name": "<service_name>"})
metric_exporter = OTLPMetricExporter(
    endpoint= os.getenv("OTEL_EXPORTER_METRICS_ENDPOINT"),
    headers={"signoz-ingestion-key": os.getenv("SIGNOZ_INGESTION_KEY")},
)
reader = PeriodicExportingMetricReader(metric_exporter)
metric_provider = MeterProvider(metric_readers=[reader], resource=resource)
metrics.set_meter_provider(metric_provider)

meter = metrics.get_meter(__name__)

# turn on out-of-the-box metrics
SystemMetricsInstrumentor().instrument()
HTTPXClientInstrumentor().instrument()

<service_name> is the name of your service
OTEL_EXPORTER_METRICS_ENDPOINT → SigNoz Cloud endpoint with appropriate region: https://ingest.<region>.signoz.cloud:443/v1/metrics
SIGNOZ_INGESTION_KEY → Your SigNoz ingestion key

✅ Info

Using self-hosted SigNoz? Most steps are identical. To adapt this guide, update the endpoint and remove the ingestion key header as shown in Cloud → Self-Hosted.

📝 Note

SystemMetricsInstrumentor provides system metrics (CPU, memory, etc.), and HTTPXClientInstrumentor provides outbound HTTP request metrics such as request duration. If you want to add custom metrics to your Google ADK application, see Python Custom Metrics.

Step 7: Set up Logs

import logging
from opentelemetry.sdk.resources import Resource
from opentelemetry._logs import set_logger_provider
from opentelemetry.sdk._logs import LoggerProvider, LoggingHandler
from opentelemetry.sdk._logs.export import BatchLogRecordProcessor
from opentelemetry.exporter.otlp.proto.http._log_exporter import OTLPLogExporter
import os

resource = Resource.create({"service.name": "<service_name>"})
logger_provider = LoggerProvider(resource=resource)
set_logger_provider(logger_provider)

otlp_log_exporter = OTLPLogExporter(
    endpoint= os.getenv("OTEL_EXPORTER_LOGS_ENDPOINT"),
    headers={"signoz-ingestion-key": os.getenv("SIGNOZ_INGESTION_KEY")},
)
logger_provider.add_log_record_processor(
    BatchLogRecordProcessor(otlp_log_exporter)
)
# Attach OTel logging handler to root logger
handler = LoggingHandler(level=logging.INFO, logger_provider=logger_provider)
logging.basicConfig(level=logging.INFO, handlers=[handler])

logger = logging.getLogger(__name__)

# Enable httpx logging to capture HTTP requests
httpx_logger = logging.getLogger("httpx")
httpx_logger.setLevel(logging.DEBUG)
httpx_logger.addHandler(handler)

<service_name> is the name of your service
OTEL_EXPORTER_LOGS_ENDPOINT → SigNoz Cloud endpoint with appropriate region: https://ingest.<region>.signoz.cloud:443/v1/logs
SIGNOZ_INGESTION_KEY → Your SigNoz ingestion key

✅ Info

Using self-hosted SigNoz? Most steps are identical. To adapt this guide, update the endpoint and remove the ingestion key header as shown in Cloud → Self-Hosted.

Step 8: Run your Google ADK Agent

📝 Note

Ensure you have completed the steps above (traces, logs, and metrics configuration) before running your agent. All OpenTelemetry instrumentation must be initialized first.

Run with command-line interface

Run your agent using the adk run command-line tool.

adk run my_agent

Run with web interface

The ADK framework provides a web interface you can use to test and interact with your agent. You can start the web interface using the following command:

adk web --port 8000

View Traces, Logs, and Metrics in SigNoz

Your Google ADK agent usage should now automatically emit traces, logs, and metrics.

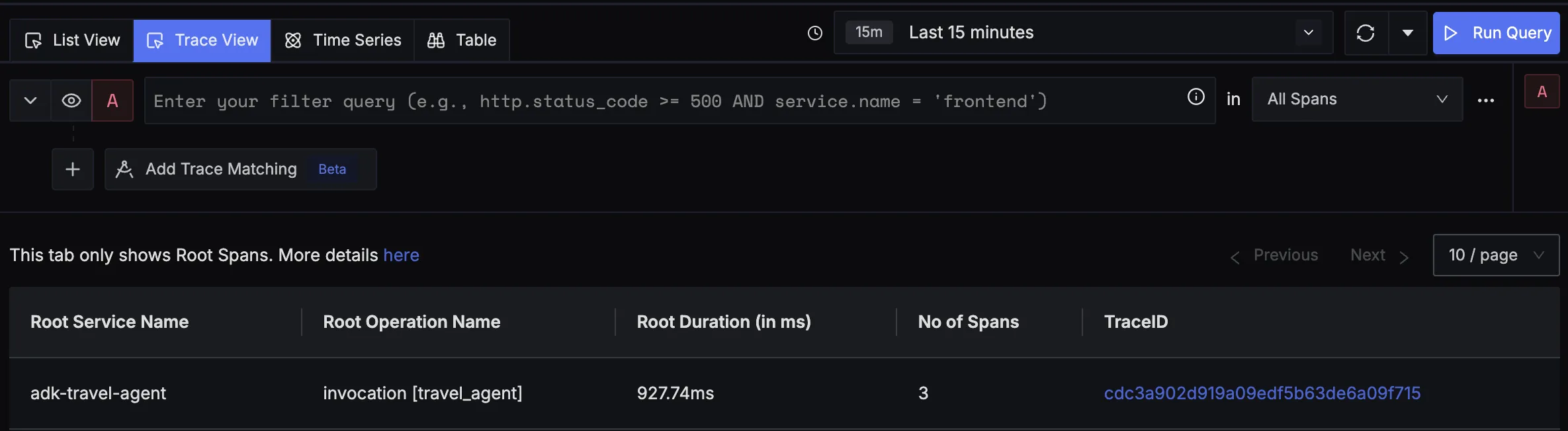

You should be able to view traces in SigNoz Cloud under the traces tab:

When you click on a trace in SigNoz, you'll see a detailed view of the trace, including all associated spans, along with their events and attributes.

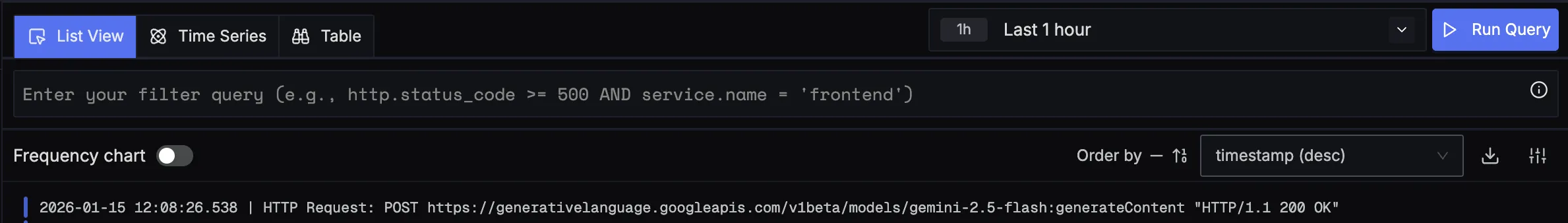

You should be able to view logs in SigNoz Cloud under the logs tab. You can also view logs by clicking on the “Related Logs” button in the trace view to see correlated logs:

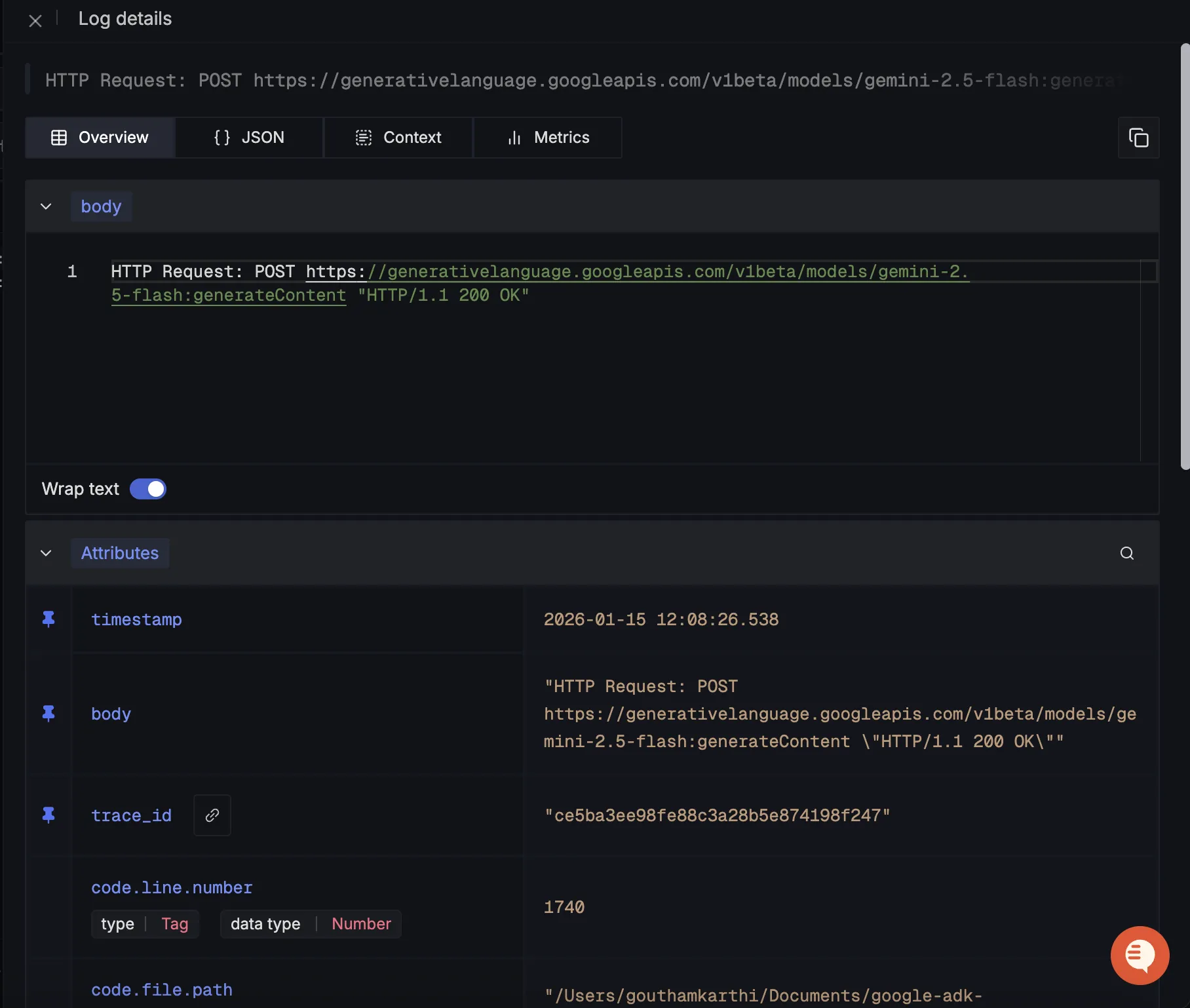

When you click on any of these logs in SigNoz, you'll see a detailed view of the log, including attributes:

Google ADK Detailed Log View — *Google ADK Detailed Logs View*

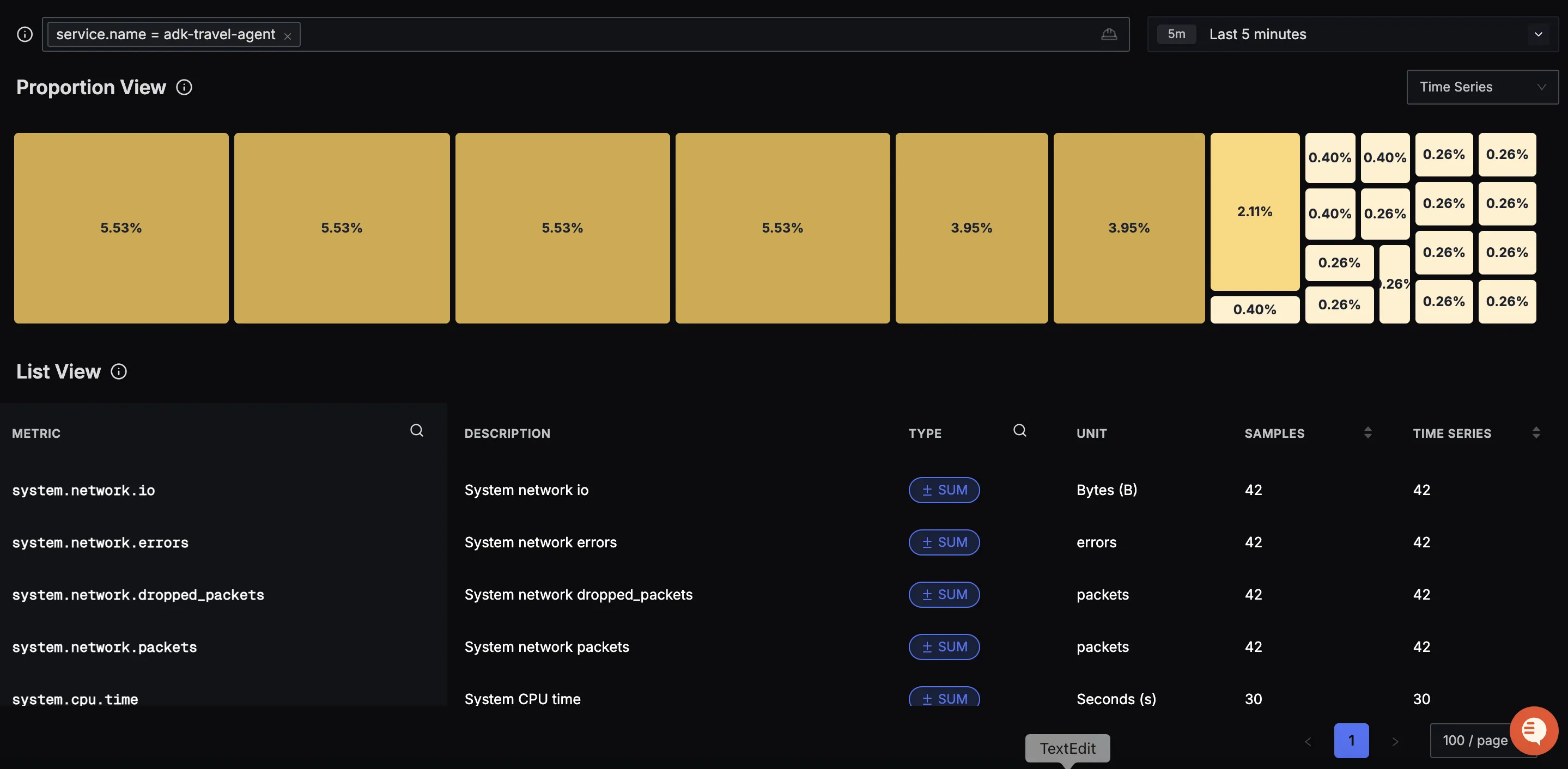

You should be able to see Google ADK related metrics in SigNoz Cloud under the metrics tab:

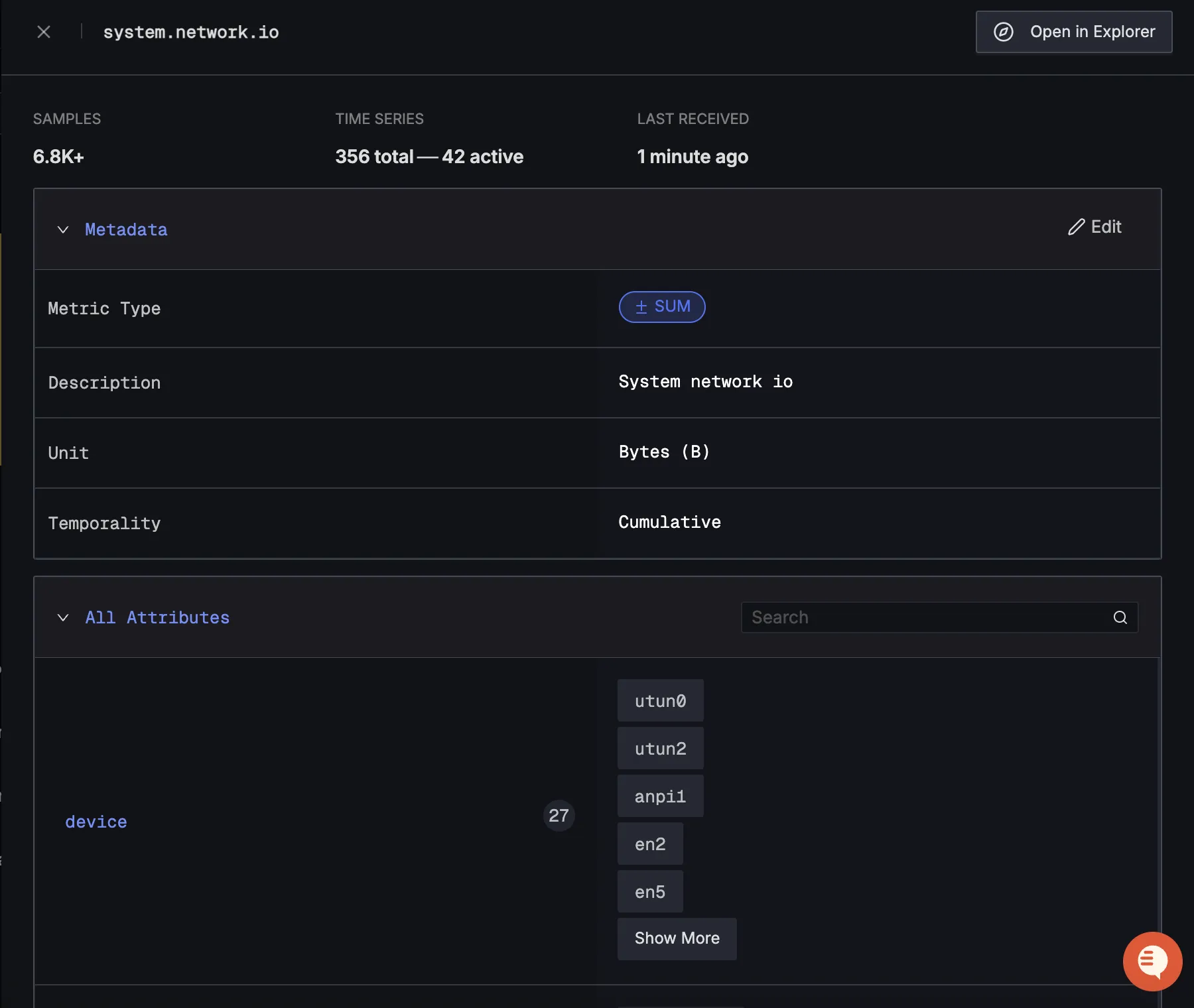

When you click on any of these metrics in SigNoz, you'll see a detailed view of the metric, including attributes:

Troubleshooting

If you don't see your telemetry data:

Verify network connectivity - Ensure your application can reach SigNoz Cloud endpoints
Check ingestion key - Verify your SigNoz ingestion key is correct
Wait for data - OpenTelemetry batches data before sending, so wait 10-30 seconds after making API calls
Try a console exporter — Enable a console exporter locally to confirm that your application is generating telemetry data before it’s sent to SigNoz

Next Steps

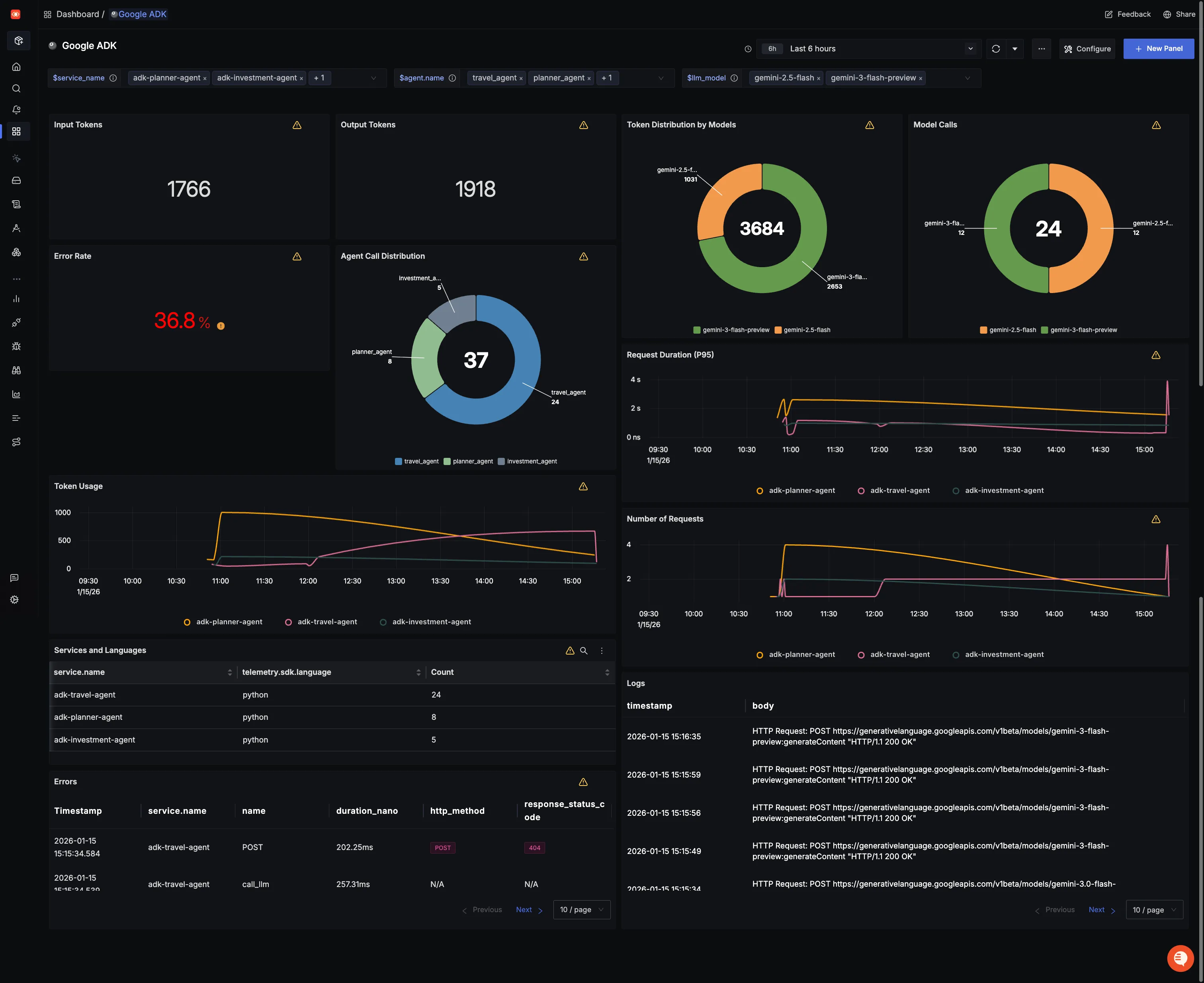

You can also check out our custom Google ADK dashboard here which provides specialized visualizations for monitoring your Google ADK usage in applications. The dashboard includes pre-built charts specifically tailored for LLM usage, along with import instructions to get started quickly.

Setup OpenTelemetry Collector (Optional)

What is the OpenTelemetry Collector?

Think of the OTel Collector as a middleman between your app and SigNoz. Instead of your application sending data directly to SigNoz, it sends everything to the Collector first, which then forwards it along.

Why use it?

Cleaning up data — Filter out noisy traces you don't care about, or remove sensitive info before it leaves your servers.
Keeping your app lightweight — Let the Collector handle batching, retries, and compression instead of your application code.
Adding context automatically — The Collector can tag your data with useful info like which Kubernetes pod or cloud region it came from.
Future flexibility — Want to send data to multiple backends later? The Collector makes that easy without changing your app.

See Switch from direct export to Collector for step-by-step instructions to convert your setup.

For more details, see Why use the OpenTelemetry Collector? and the Collector configuration guide.

Additional resources:

Set up alerts for high latency or error rates
Learn more about querying traces
Explore log correlation
