Inkeep Monitoring with OpenTelemetry and SigNoz

Overview

This guide walks you through setting up monitoring and observability for Inkeep using OpenTelemetry and exporting traces to SigNoz. With this integration, you can observe the performance of various models, capture request/response details, and track system-level metrics in SigNoz, giving you real-time visibility into latency, error rates, and usage trends for your Inkeep applications.

Instrumenting Inkeep agents in your AI applications with telemetry ensures full observability across your agent workflows, making it easier to debug issues, optimize performance, and understand user interactions. By leveraging SigNoz, you can analyze correlated traces in dashboards, configure alerts, and gain actionable insights to continuously improve reliability, responsiveness, and user experience.

Prerequisites

Before getting started, ensure you have the following installed on your system:

• A SigNoz Cloud account with an active ingestion key or Self Hosted SigNoz instance
• Node.js version 22 or higher
• Docker
• pnpm version 10 or higher

You can verify by running:

node --version
pnpm --version
docker --version

Monitoring Inkeep

For more information on getting started with Inkeep, visit the Inkeep Quick Start Guide. To learn more about setting up traces in Inkeep and sending them to SigNoz, see the Inkeep Traces Documentation.

Step 1: Create a new agents project

Run the Inkeep quickstart script on a target folder:

npx @inkeep/create-agents my-agents

Navigate to the folder

cd my-agents

Open the folder using your coding editor. To open with Cursor, you can run cursor .

Step 2: Save Your SigNoz Credentials

You'll need to collect three pieces of information from your SigNoz dashboard:

API Key:

1. Navigate to Settings → Workspace Settings → API Keys → New Key
2. Choose any role (Admin, Editor, or Viewer) - Viewer is sufficient for observability
3. Set the expiration field to "No Expiry" to prevent the key from expiring
4. Copy the generated API key

Ingestion Key:

1. Navigate to Settings → Workspace Settings → Ingestion
2. Set the expiration field to "No Expiry" to prevent the key from expiring
3. Copy the ingestion key

SigNoz URL:

1. Copy the URL from your browser's address bar
2. It will look like: https://<your-organization>.signoz.cloud

Step 3: Configure Your Root .env File

# SigNoz
SIGNOZ_URL=https://<your-organization>.signoz.cloud
SIGNOZ_API_KEY=<your-signoz-api-key>

OTEL_EXPORTER_OTLP_TRACES_ENDPOINT=https://ingest.<region>.signoz.cloud:443/v1/traces
OTEL_EXPORTER_OTLP_TRACES_HEADERS=signoz-ingestion-key=<your_ingestion_key>

# SigNoz Configuration
SIGNOZ_URL=<your-local-signoz-instance>
SIGNOZ_API_KEY=<your-signoz-api-key>

Step 4: Run the setup script

Ensure Docker Desktop (or Docker daemon) is running before running the setup script.

pnpm setup-dev

Or if you are using a cloud database, you can skip the docker database startup by running:

pnpm setup-dev --skip-docker

Make sure your DATABASE_URL environment variable is configured for your cloud database.

Step 5: Launch the dev environment

pnpm dev

The Visual Builder will auto-open at http://localhost:3000.

View Traces in SigNoz

Your Inkeep agents usage should now automatically emit traces.

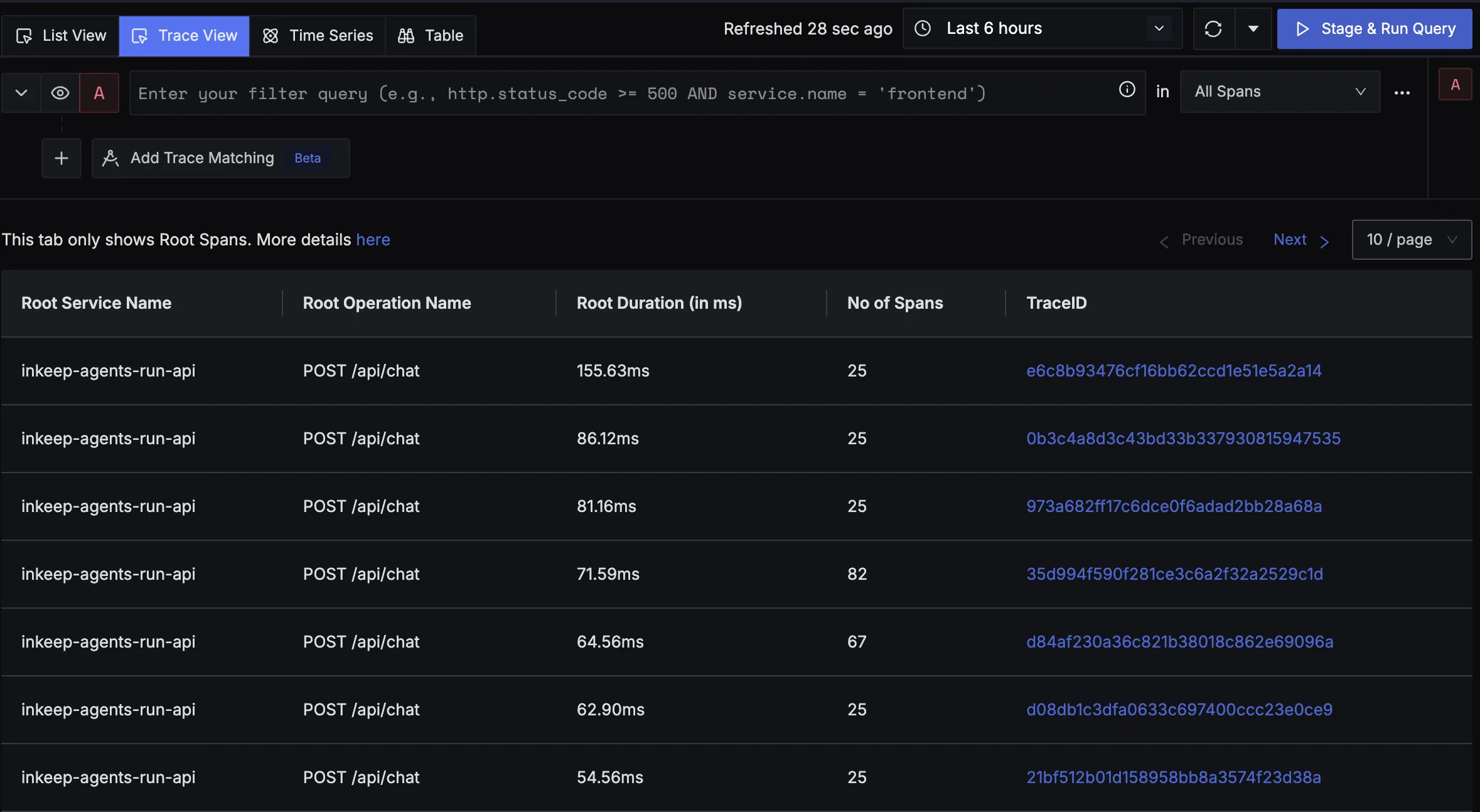

You should be able to view traces in Signoz Cloud under the traces tab:

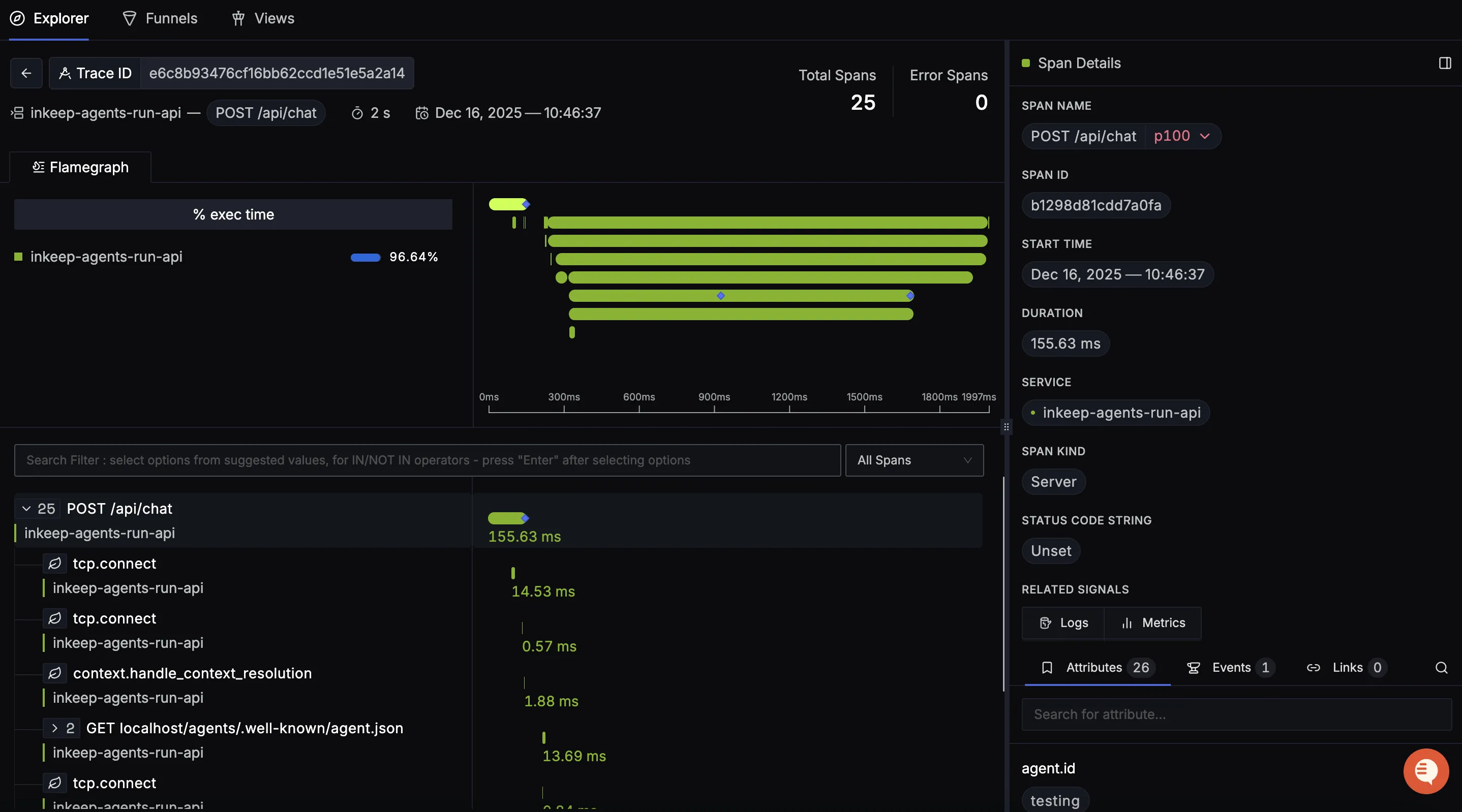

When you click on a trace in SigNoz, you'll see a detailed view of the trace, including all associated spans, along with their events and attributes.

Next Steps

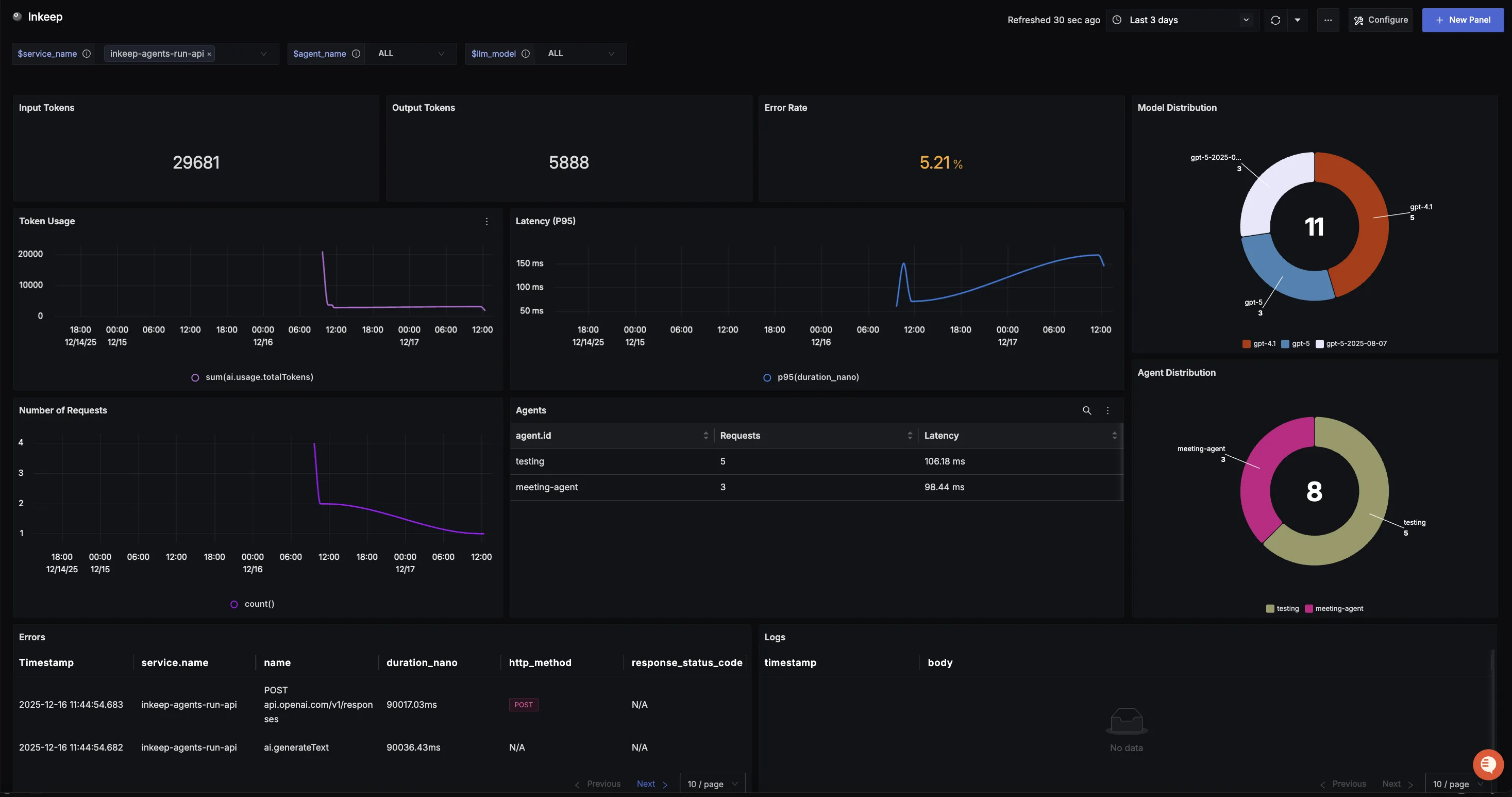

You can also check out our custom Inkeep dashboard here which provides specialized visualizations for monitoring your Inkeep usage in applications. The dashboard includes pre-built charts specifically tailored for LLM usage, along with import instructions to get started quickly.

Additional resources:

• Set up alerts for high latency or error rates
• Learn more about querying traces
• Explore log correlation
