OpenClaw Monitoring & Observability with OpenTelemetry

Overview

This guide walks you through setting up observability and monitoring for OpenClaw using OpenTelemetry and exporting traces, logs, and metrics to SigNoz. With this integration, you can observe and track various metrics for your OpenClaw applications and LLM usage.

Monitoring your OpenClaw usage and performance with telemetry ensures full observability across your AI and LLM workflows. By leveraging SigNoz, you can analyze correlated traces, logs, and metrics in unified dashboards, configure alerts, and gain actionable insights to continuously improve reliability, responsiveness, and user experience.

Prerequisites

A SigNoz Cloud account with an active ingestion key or Self Hosted SigNoz instance
For Python: pip installed for managing Python packages
A running OpenClaw instance

Monitoring OpenClaw

For more information on getting started with OpenClaw in your environment, refer to the OpenClaw quickstart guide.

Current version of OpenClaw still has some issues with log ingestion. To enable it we have made some changes in a forked repo and created a PR#22478. Feel free to follow below steps to enable logs. If you just want traces and metrics then you can ignore these steps.

Preconditions

Node.js and pnpm are installed.
Your npm global prefix is set to a user-level directory (e.g., ~/.npm-global).

Clone the Repository & Checkout the Fix Branch

git clone https://github.com/LuffySama-Dev/openclaw.git
cd openclaw
git switch logsIsolationIssueFixed

Install dependencies and build

pnpm install
pnpm build

Install globally from the local repo (important: do not use sudo)

npm install -g .

Ensure the user-level npm bin directory is first in your PATH

echo 'export PATH="$HOME/.npm-global/bin:$PATH"' >> ~/.bashrc
source ~/.bashrc
hash -r

Verify that OpenClaw resolves to the user path (not /usr/bin)

which openclaw
openclaw --version
npm ls -g openclaw --depth=0

Step 1: Enable Diagnostic-OTel plugin

The diagnostics-otel plugin ships with OpenClaw but is disabled by default. You can enable it via CLI:

openclaw plugins enable diagnostics-otel

Or add it directly to your config file (~/.openclaw/openclaw.json):

{
  "plugins": {
    "allow": ["diagnostics-otel"],
    "entries": {
      "diagnostics-otel": {
        "enabled": true
      }
    }
  }
}

Step 2: Configure the OTEL Exporter

You can configure the exporter via CLI:

openclaw config set diagnostics.enabled true
openclaw config set diagnostics.otel.enabled true
openclaw config set diagnostics.otel.traces true
openclaw config set diagnostics.otel.metrics true
openclaw config set diagnostics.otel.logs true
openclaw config set diagnostics.otel.protocol http/protobuf
openclaw config set diagnostics.otel.endpoint "https://ingest.<region>.signoz.cloud:443"
openclaw config set diagnostics.otel.headers '{"signoz-ingestion-key":"<your-ingestion-key>"}'
openclaw config set diagnostics.otel.serviceName "<service_name>"

<service_name> is the name of your service
<region>: Your SigNoz Cloud region
<your-ingestion-key>: Your SigNoz ingestion key

Step 3: Check your config (Optional)

You can quickly check your config using the following command:

openclaw config get diagnostics

Your output should look like this.

{
  "enabled": true,
  "otel": {
    "enabled": true,
    "endpoint": "https://ingest.<region>.signoz.cloud:443",
    "protocol": "http/protobuf",
    "headers": {
      "signoz-ingestion-key": "<YOUR_SIGNOZ_INGESTION_KEY>"
    },
    "serviceName": "openclaw-gateway",
    "traces": true,
    "metrics": true,
    "logs": true,
    "sampleRate": 1,
    "flushIntervalMs": 5000
  }
}

OR you can check your ~/.openclaw/openclaw.json config file too.

Step 4: Restart your OpenClaw gateway

openclaw gateway restart

View Traces and Metrics in SigNoz

Your OpenClaw instance should now automatically emit traces and metrics.

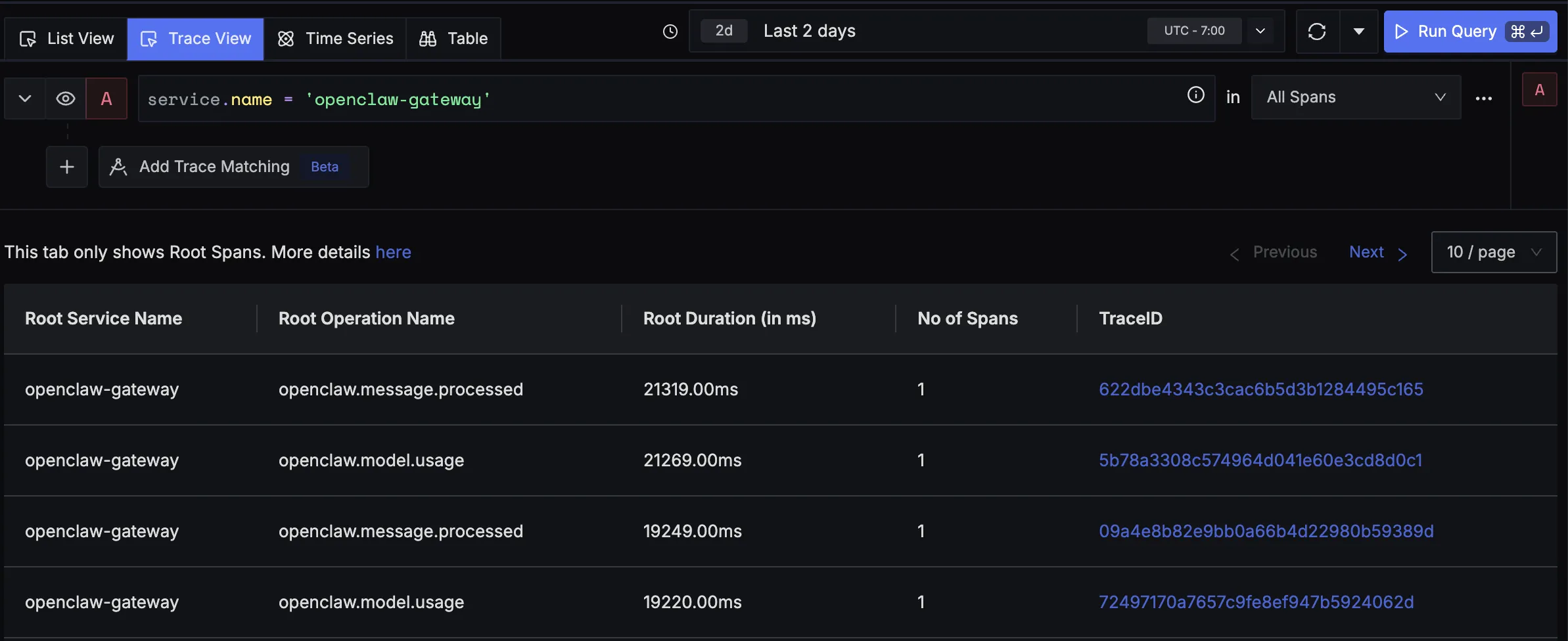

You should be able to view traces in SigNoz Cloud under the traces tab:

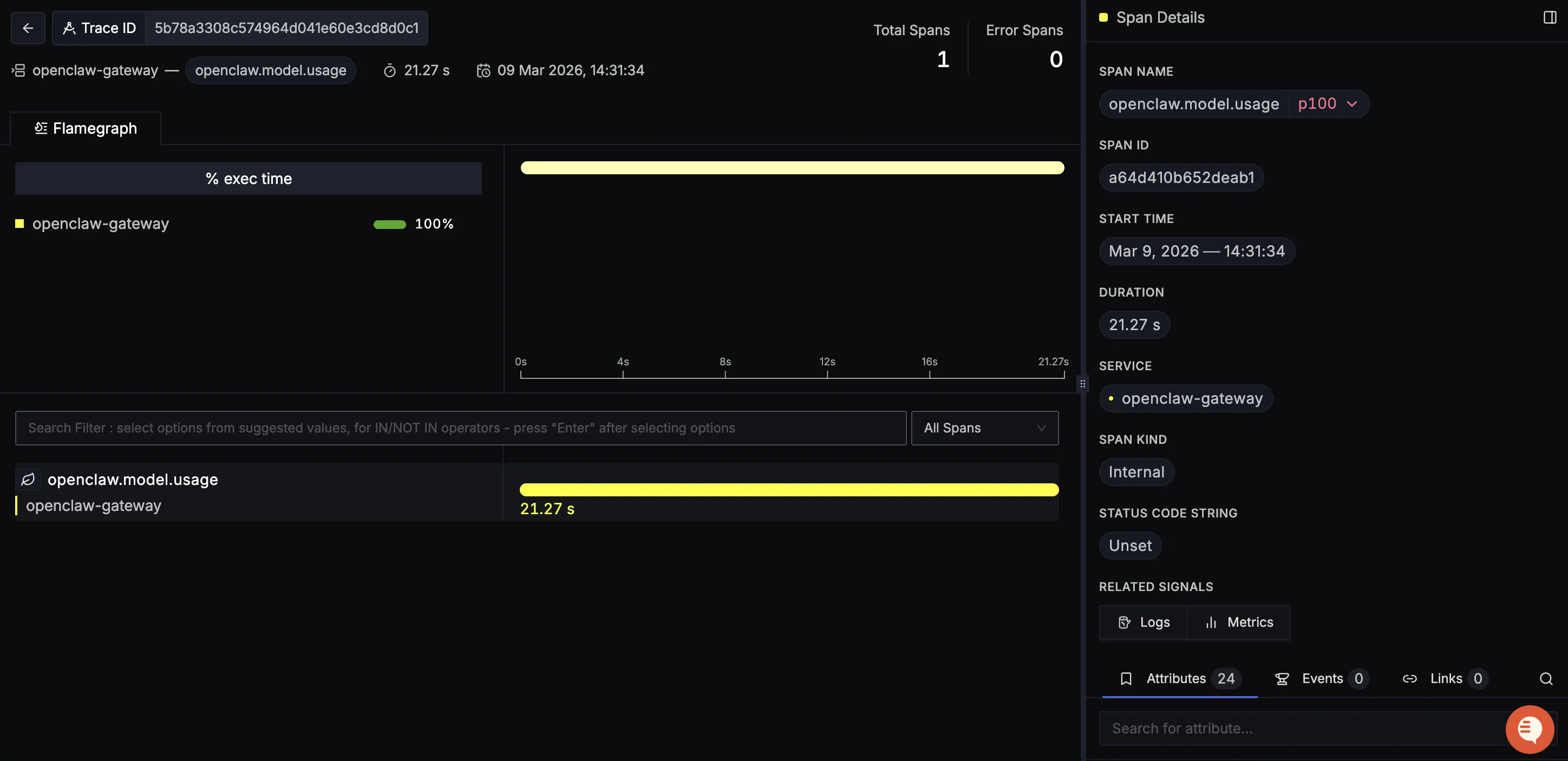

When you click on a trace in SigNoz, you'll see a detailed view of the trace, including all associated spans, along with their events and attributes.

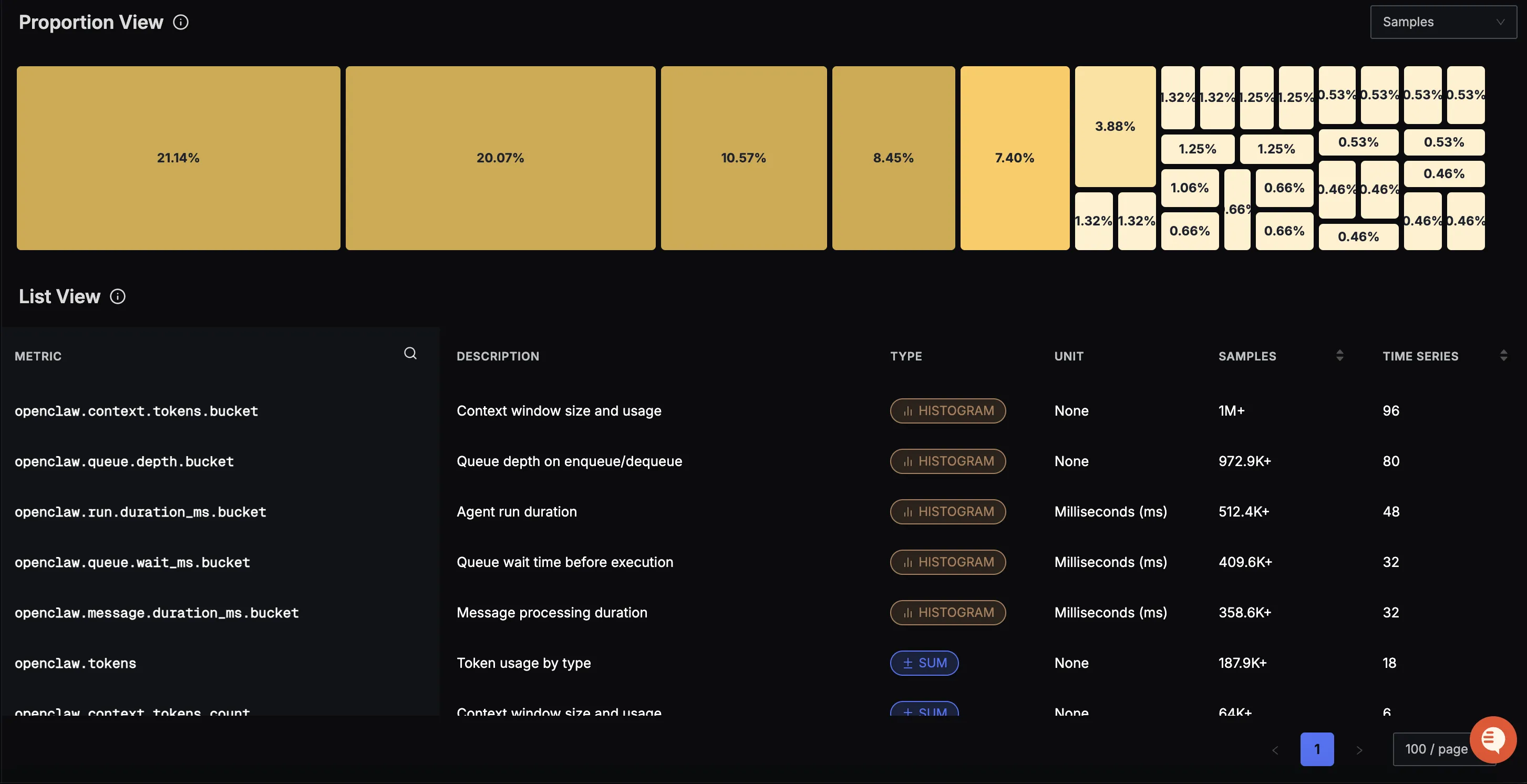

You should be able to see OpenClaw related metrics in SigNoz Cloud under the metrics tab:

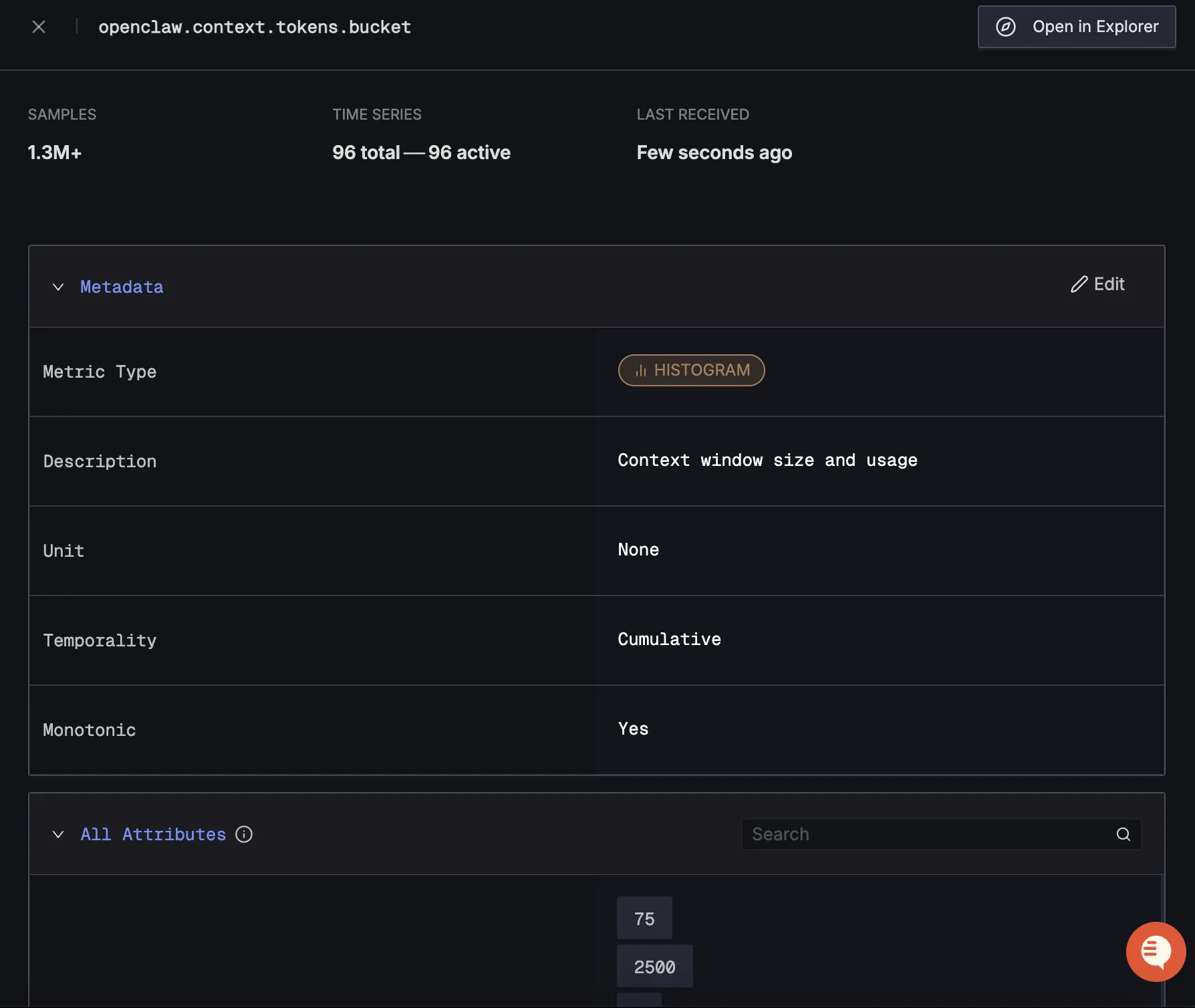

When you click on any of these metrics in SigNoz, you'll see a detailed view of the metric, including attributes:

Troubleshooting

If you don't see your telemetry data:

Verify network connectivity - Ensure your application can reach SigNoz Cloud endpoints
Check ingestion key - Verify your SigNoz ingestion key is correct
Wait for data - OpenTelemetry batches data before sending, so wait 10-30 seconds after making API calls
Try a console exporter — Enable a console exporter locally to confirm that your application is generating telemetry data before it’s sent to SigNoz

Next Steps

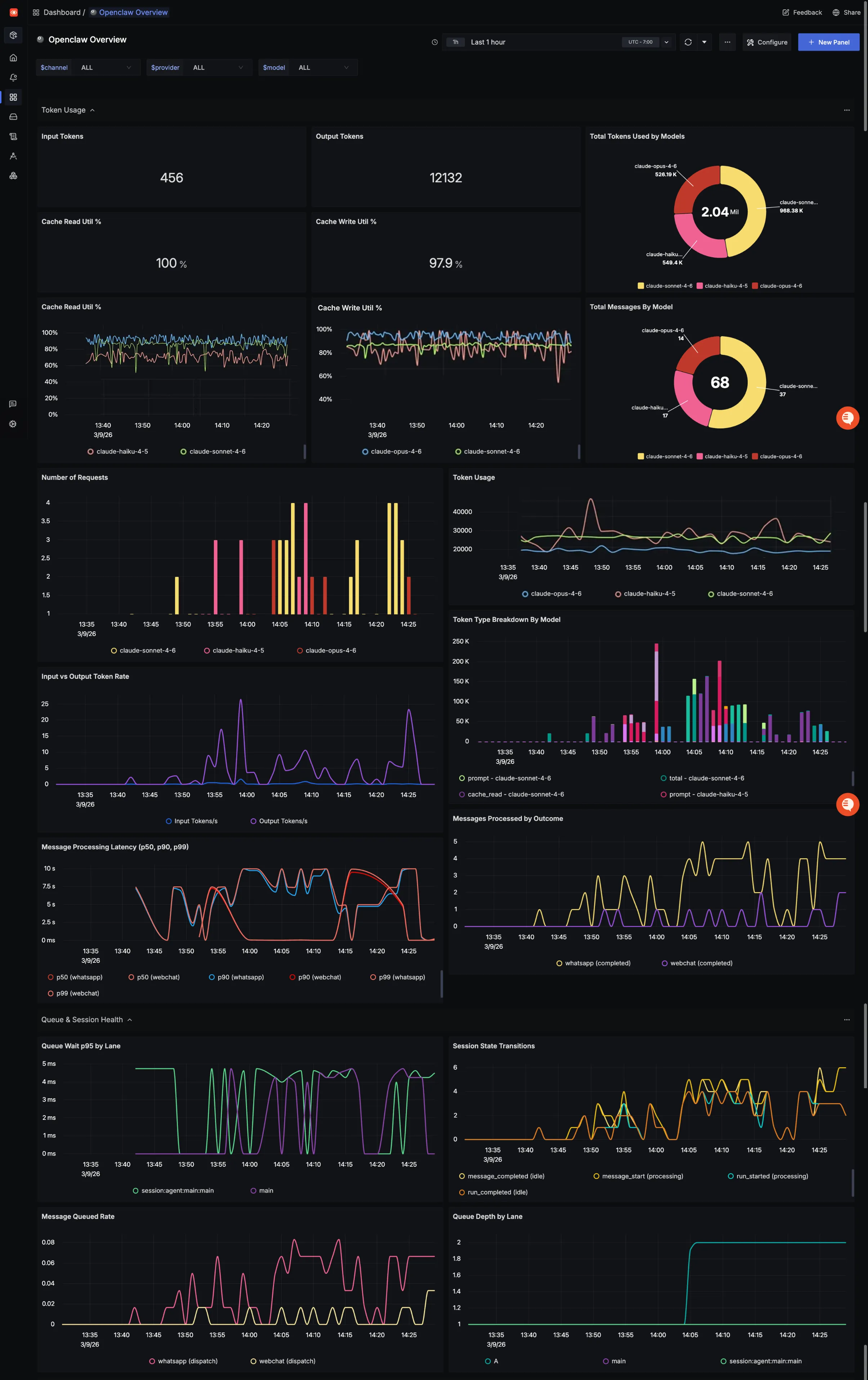

You can also check out our custom OpenClaw dashboard here which provides specialized visualizations for monitoring your OpenClaw usage in applications. The dashboard includes pre-built charts specifically tailored for LLM usage, along with import instructions to get started quickly.

Setup OpenTelemetry Collector (Optional)

What is the OpenTelemetry Collector?

Think of the OTel Collector as a middleman between your app and SigNoz. Instead of your application sending data directly to SigNoz, it sends everything to the Collector first, which then forwards it along.

Why use it?

Cleaning up data — Filter out noisy traces you don't care about, or remove sensitive info before it leaves your servers.
Keeping your app lightweight — Let the Collector handle batching, retries, and compression instead of your application code.
Adding context automatically — The Collector can tag your data with useful info like which Kubernetes pod or cloud region it came from.
Future flexibility — Want to send data to multiple backends later? The Collector makes that easy without changing your app.

See Switch from direct export to Collector for step-by-step instructions to convert your setup.

For more details, see Why use the OpenTelemetry Collector? and the Collector configuration guide.

Additional resources:

Set up alerts for high latency or error rates
Learn more about querying traces
Explore log correlation
