How Can I Monitor ActiveMQ [Classic and Artemis]?

Updated Feb 26, 202625 min read

ActiveMQ is an open-source message broker that sits between your applications, accepting messages from producers and routing them to consumers through queues (point-to-point) and topics (publish-subscribe). As message volume grows and more services depend on the broker for reliable delivery, issues like queue backlogs, consumer disconnects, or memory exhaustion can silently cascade into application-level failures. These problems can be caught early with an effective ActiveMQ monitoring setup.

This guide covers the steps to set up end-to-end monitoring of ActiveMQ, including collecting broker, queue, and JVM metrics with the OpenTelemetry Collector's JMX receiver, forwarding logs, building dashboards for broker and queue health, and configuring alerts for common failure modes.

How ActiveMQ Monitoring Works?

ActiveMQ exposes its internal state through JMX (Java Management Extensions). Every broker, address, queue, and connection is represented as an MBean, a Java object that publishes attributes like message count, consumer count, and memory usage. A JMX client can connect to the broker and read these values at regular intervals.

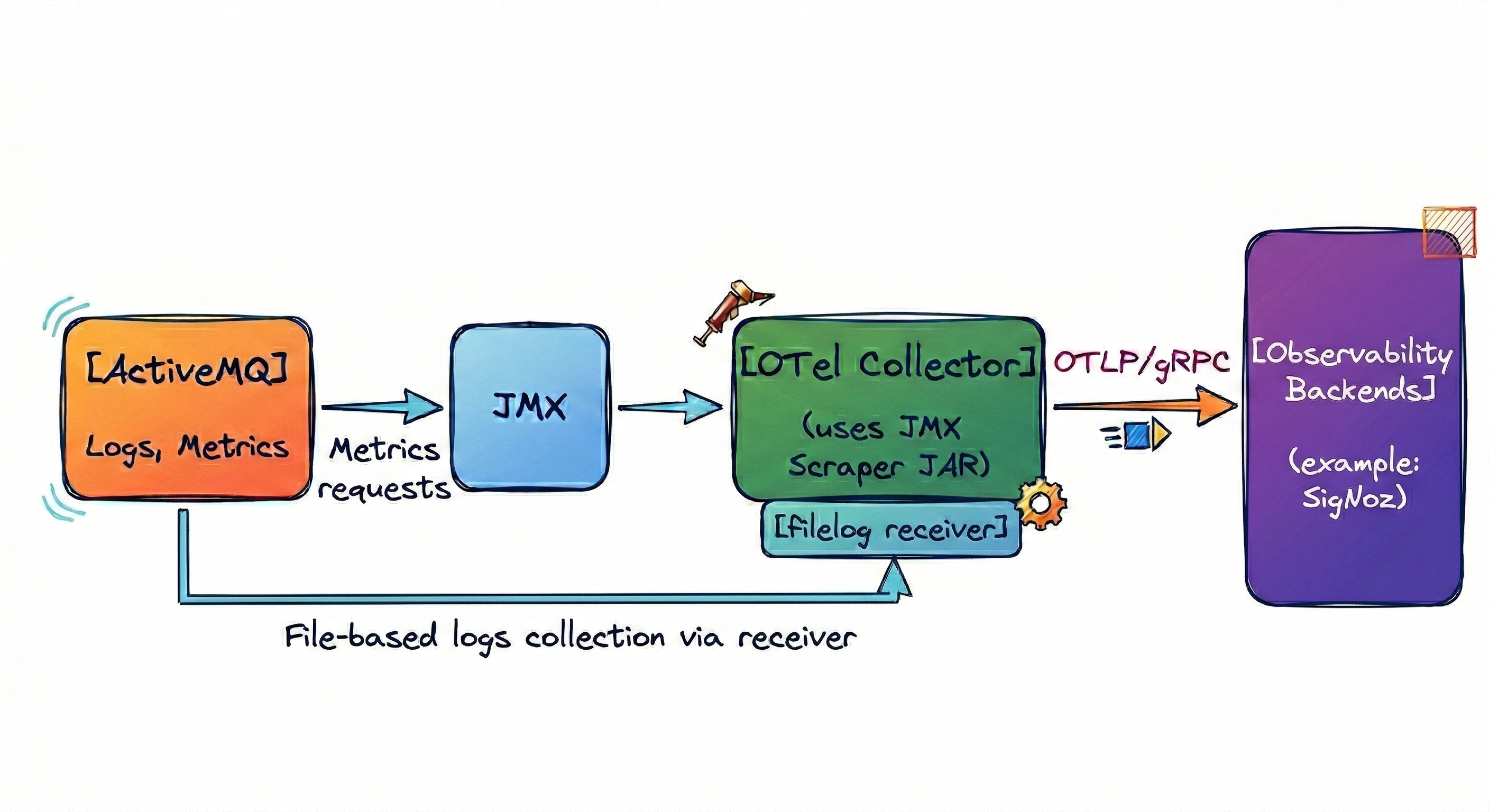

Architecture diagram showing ActiveMQ monitoring flow
Architecture diagram showing ActiveMQ monitoring flow

ActiveMQ comes in two flavours, and the monitoring approach differs slightly between them.

ActiveMQ Classic uses the MBean domain org.apache.activemq and exposes broker, queue, and topic metrics out of the box. The OpenTelemetry Collector's JMX receiver has built-in support for Classic through its target_system: activemq setting, so no custom metric definitions are needed.

ActiveMQ Artemis uses a different MBean domain, org.apache.activemq.artemis, and requires two additional steps: enabling optional metric categories (JVM, GC, threads, netty) in broker.xml, and writing custom YAML definitions to map Artemis MBeans to OpenTelemetry metrics.

The rest of the pipeline (collector setup, log collection, dashboards, alerts) is the same for both.

Key ActiveMQ Metrics to Monitor

Before jumping into the setup, it helps to know which metrics matter and what they tell you about your broker's health.

Queue and Topic Health

MetricClassic / ArtemisWhat to watch for
Queue sizeactivemq.message.queue.size / artemis.queue.message.countA steadily growing queue size means consumers are not keeping up with the production rate. If it grows past a few thousand and keeps climbing, you either need more consumers or there is a processing bottleneck downstream.
Consumer countactivemq.consumer.count / artemis.queue.consumer.countA sudden drop to zero while the queue size is growing is one of the most common incident patterns, usually caused by a consumer crash, network partition, or misconfigured connection pool.
Producer countactivemq.producer.countHelps you distinguish between "queue is growing because producers ramped up" and "queue is growing because consumers disappeared."
Enqueue countactivemq.message.enqueued / artemis.queue.message.addedUse the rate of change (messages per second) to understand traffic patterns and spot sudden spikes.
Dequeue countactivemq.message.dequeued / artemis.queue.message.acknowledgedComparing enqueue and dequeue rates tells you whether the queue is draining faster than it fills or vice versa.
Expired messagesactivemq.message.expired / artemis.queue.message.expiredA rising expired count means messages are going stale before consumers can process them. Often a sign that consumers are too slow or have stopped entirely.
Dead-lettered messagesartemis.queue.message.killedMessages moved to the DLQ after max delivery attempts. Indicates poison messages or consumer failures.

Broker Resource Usage

MetricClassic / ArtemisWhat to watch for
Memory usageactivemq.memory.utilization / artemis.address.memory.usage_percentWhen this hits 100%, the broker applies flow control and blocks producers. Alert when this crosses 70-80%.
Store usageactivemq.store.utilization / artemis.disk.store.usage_percentWhen store usage approaches 100%, the broker cannot accept new persistent messages. Alert at 80%.
Temp usageactivemq.temp.utilizationHigh temp usage combined with high memory usage indicates the broker is under heavy pressure and may start rejecting messages.

Connection Health

MetricClassic / ArtemisWhat to watch for
Current connectionsactivemq.connection.count / artemis.connection.countA sudden drop indicates a network issue or client-side failure. A sudden spike could signal a reconnection storm after a transient failure.
Total connectionsartemis.connection.totalCumulative connection count since broker start. Useful for spotting connection churn over time.

JVM Metrics

Since both Classic and Artemis run on the JVM, these metrics apply to both.

MetricNameWhat to watch for
Heap memory usedjvm.memory.heap.usedA healthy pattern is a sawtooth: steady climbs followed by drops after GC. If heap stays above 85% without dropping, you are heading toward GC thrashing and OutOfMemoryError.
GC pause timejvm.gc.collections.elapsedTracks stop-the-world events where the broker cannot process requests. Pauses over 500ms will manifest as client timeouts.
Thread countjvm.threads.countUnexpected spikes can indicate connection storms or thread pool exhaustion.

Prerequisites

Before starting the hands-on setup, make sure you have the following.

  • Docker Engine: Latest version of Docker installed and running. Install Docker
  • Docker Compose: Included with Docker Desktop, or installed separately on Linux. Install Docker Compose
  • curl: For downloading the JMX Scraper JAR and configuration files. Pre-installed on most systems. Install curl
  • Python 3.x: For running the demo producer and consumer scripts. Download Python
  • SigNoz Cloud Account: Sign up for a free SigNoz Cloud account. You will need your Ingestion Key and Region. If you have not generated an ingestion key yet, follow the ingestion key guide.

Setting Up the Monitoring Pipeline

The setup comprises three main components: an ActiveMQ broker with JMX enabled, an OpenTelemetry Collector that scrapes metrics and taillogs, and the observability backend (SigNoz). Most of the setup is identical for both Classic and Artemis. We'll cover the shared steps first, then branch into variant-specific configuration. The project structure will look like this.

activemq-monitoring/
├── config/
│   ├── broker.xml              # It is required for Artemis only
│   └── log4j2.properties
├── scripts/
│   ├── producer.py
│   ├── consumer.py
│   └── requirements.txt
├── Dockerfile
├── Dockerfile.otel-collector
├── docker-compose.yml
├── otel-collector-config.yaml
└── .env

Step 1: Configure SigNoz Credentials

Create a .env file with your SigNoz Cloud credentials. You can find these at SigNoz UI → Settings → Ingestion. Follow the ingestion key guide for the same.

SIGNOZ_REGION=your-region
SIGNOZ_INGESTION_KEY=your-ingestion-key-here

Step 2: Download the JMX Scraper JAR

The OTel Collector's JMX receiver works by launching a Java subprocess that connects to ActiveMQ over JMX. This subprocess runs from a separate JAR file. Download by running the following command.

curl -sLO https://repo1.maven.org/maven2/io/opentelemetry/contrib/opentelemetry-jmx-scraper/1.53.0-alpha/opentelemetry-jmx-scraper-1.53.0-alpha.jar
mv opentelemetry-jmx-scraper-1.53.0-alpha.jar opentelemetry-jmx-metrics.jar

Step 3: Build the OTel Collector Image

The default contrib image doesn’t include a JRE, so the JMX receiver’s Java subprocess won’t run. Since the JMX receiver launches a Java subprocess, we need a custom image that combines the collector binary with a JRE.

Create Dockerfile.otel-collector:

# Stage 1: Get the collector binary
FROM otel/opentelemetry-collector-contrib:latest AS collector

# Stage 2: Java base with collector
FROM eclipse-temurin:17-jre

# Copy collector binary from stage 1
COPY --from=collector /otelcol-contrib /otelcol-contrib

# Copy JMX metrics JAR
COPY opentelemetry-jmx-metrics.jar /opt/opentelemetry-jmx-metrics.jar

# Ensure /tmp is writable for JMX config files
RUN mkdir -p /tmp && chmod 1777 /tmp

ENTRYPOINT ["/otelcol-contrib"]

This is the base version. If you're setting up Artemis, you'll add one additional COPY line for the custom metric definitions, covered in the Artemis section below.

From here, the setup diverges depending on which ActiveMQ variant you're running. Jump to the relevant section.

Configuring ActiveMQ Classic

ActiveMQ Classic exposes JMX MBeans under the org.apache.activemq domain. The OTel Collector's JMX receiver has built-in support for these through target_system: activemq, so no custom metric definitions are needed.

Step 1: Create the ActiveMQ Classic Dockerfile

Classic needs JMX enabled via ACTIVEMQ_OPTS. Create a Dockerfile:

FROM apache/activemq-classic:latest

# Create log directory for OTel Collector to tail
RUN mkdir -p /var/log/activemq

# Enable remote JMX on port 1099 (no auth/SSL for demo)
ENV ACTIVEMQ_OPTS="-Dcom.sun.management.jmxremote \
  -Dcom.sun.management.jmxremote.port=1099 \
  -Dcom.sun.management.jmxremote.rmi.port=1099 \
  -Dcom.sun.management.jmxremote.ssl=false \
  -Dcom.sun.management.jmxremote.authenticate=false \
  -Djava.rmi.server.hostname=activemq\
  -Djetty.host=0.0.0.0"

EXPOSE 61616 5672 61613 8161 1099

Step 2: Configure Logging

By default, Classic logs only to the console. We add a file appender so the OTel Collector can tail the logs. Save this as config/log4j2.properties.

# Root logger — console + file
rootLogger.level = INFO
rootLogger.appenderRef.console.ref = Console
rootLogger.appenderRef.logfile.ref = RollingFile

# Console appender (default)
appender.console.type = Console
appender.console.name = Console
appender.console.layout.type = PatternLayout
appender.console.layout.pattern = %d | %-5level | %logger{1} | %msg%n

# File appender — OTel Collector tails this file
appender.logfile.type = RollingFile
appender.logfile.name = RollingFile
appender.logfile.fileName = /var/log/activemq/activemq.log
appender.logfile.filePattern = /var/log/activemq/activemq.log.%d{yyyy-MM-dd}
appender.logfile.layout.type = PatternLayout
appender.logfile.layout.pattern = %d | %-5level | %logger{1} | %msg%n
appender.logfile.policies.type = Policies
appender.logfile.policies.time.type = TimeBasedTriggeringPolicy
appender.logfile.policies.time.interval = 1

# Reduce noise from chatty loggers
logger.activemq.name = org.apache.activemq
logger.activemq.level = INFO

logger.spring.name = org.springframework
logger.spring.level = WARN

logger.jetty.name = org.eclipse.jetty
logger.jetty.level = WARN

Step 3: Configure the OTel Collector

Create otel-collector-config.yaml. The key line is target_system: activemq,jvm which tells the JMX receiver to use its built-in Classic MBean mappings.

receivers:
  jmx:
    jar_path: /opt/opentelemetry-jmx-metrics.jar
    endpoint: activemq:1099
    target_system: activemq,jvm
    collection_interval: 10s

  filelog/activemq:
    include:
      - /var/log/activemq/activemq.log
    start_at: beginning
    operators:
      - type: regex_parser
        regex: '^(?P<timestamp>\d{4}-\d{2}-\d{2} \d{2}:\d{2}:\d{2},\d{3}) \| (?P<severity>\w+)\s**\| (?P<logger>[^\|]+)\| (?P<message>.**)$'
        timestamp:
          parse_from: attributes.timestamp
          layout: '%Y-%m-%d %H:%M:%S,%L'
        severity:
          parse_from: attributes.severity

processors:
  batch:
    timeout: 10s
  resourcedetection:
    detectors: [env, system]
  resource:
    attributes:
      - key: service.name
        value: activemq-classic-demo
        action: upsert

exporters:
  otlp_grpc:
    endpoint: https://ingest.${SIGNOZ_REGION}.signoz.cloud:443
    headers:
      signoz-ingestion-key: ${SIGNOZ_INGESTION_KEY}
  debug:
    verbosity: basic

service:
  pipelines:
    metrics/jmx:
      receivers: [jmx]
      processors: [resourcedetection, resource, batch]
      exporters: [otlp_grpc, debug]
    logs/activemq:
      receivers: [filelog/activemq]
      processors: [resourcedetection, resource, batch]
      exporters: [otlp_grpc, debug]

The regex pattern uses pipe delimiters (|) matches Classic's log format:

2024-01-15 10:30:45,123 | INFO  | BrokerService | Apache ActiveMQ is running

Step 4: Create Docker Compose

Create docker-compose.yml:

services:
  activemq:
    build:
      context: .
      dockerfile: Dockerfile
    container_name: activemq
    ports:
      - "61616:61616"   # OpenWire
      - "8161:8161"     # Web console
      - "61613:61613"   # STOMP
      - "5672:5672"     # AMQP
      - "1099:1099"     # JMX
    environment:
      ACTIVEMQ_WEB_USER: admin
      ACTIVEMQ_WEB_PASSWORD: admin
    volumes:
      - ./config/log4j2.properties:/opt/apache-activemq/conf/log4j2.properties
      - activemq-logs:/var/log/activemq
    healthcheck:
      test: ["CMD-SHELL", "timeout 2 bash -c '</dev/tcp/localhost/61616' || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 10
      start_period: 30s
    networks:
      - monitoring

  otel-collector:
    build:
      context: .
      dockerfile: Dockerfile.otel-collector
    container_name: otel-collector
    command: ["--config", "/etc/otel/config.yaml"]
    volumes:
      - ./otel-collector-config.yaml:/etc/otel/config.yaml
      - activemq-logs:/var/log/activemq:ro
    environment:
      - SIGNOZ_REGION=${SIGNOZ_REGION}
      - SIGNOZ_INGESTION_KEY=${SIGNOZ_INGESTION_KEY}
    depends_on:
      activemq:
        condition: service_healthy
    networks:
      - monitoring

volumes:
  activemq-logs:

networks:
  monitoring:
    driver: bridge

Key details:

  • The shared activemq-logs volume lets the collector read log files written by ActiveMQ
  • The depends_on: service_healthy ensures ActiveMQ is fully started before the collector tries to connect via JMX
  • Config is mounted directly to /opt/apache-activemq/conf/ which is where Classic reads its configuration

Step 5: Start and Verify

docker compose up -d --build

Verify both containers are running:

docker compose ps

Expected output:

NAME             STATUS
activemq         Up (healthy)
otel-collector   Up

Check the collector is receiving data:

docker compose logs otel-collector | grep -E "(Everything|Metrics|Logs)"

Skip to the Generate Demo Traffic section if you don't need to set up Artemis.

Configuring ActiveMQ Artemis

Artemis uses a different MBean domain (org.apache.activemq.artemis) than Classic, so the OTel Collector's built-in target_system: activemq won't work. Artemis requires three additional pieces: enabling metrics in broker.xml, custom JMX metric definitions in YAML, and audit log configuration.

Step 1: Create the Artemis Dockerfile

Artemis needs JMX enabled via JAVA_ARGS, and requires root access to create the log directory. Create Dockerfile:

FROM apache/artemis:latest

# Create log directory
USER root
RUN mkdir -p /var/log/artemis && chown artemis:artemis /var/log/artemis
USER artemis

# Enable JMX on port 9875 (no auth/SSL for demo)
ENV JAVA_ARGS="-Dcom.sun.management.jmxremote \
  -Dcom.sun.management.jmxremote.port=9875 \
  -Dcom.sun.management.jmxremote.rmi.port=9875 \
  -Dcom.sun.management.jmxremote.ssl=false \
  -Dcom.sun.management.jmxremote.authenticate=false \
  -Djava.rmi.server.hostname=artemis"

EXPOSE 61616 8161 61613 9875

Two differences from Classic: Artemis uses JAVA_ARGS instead of ACTIVEMQ_OPTS, and JMX runs on port 9875 instead of 1099. The Artemis Docker image runs as the artemis user, so we temporarily switch to root to create the log directory.

Step 2: Get Default Configuration Files from Artemis

Artemis generates its configuration at startup, so we need the default broker.xml and log4j2.properties as a starting point before we can enable metrics and file-based logging. Make sure you have a config folder created in your project directory before running these commands.

docker run -d --name artemis-tmp apache/artemis:latest
sleep 5
docker cp artemis-tmp:/var/lib/artemis-instance/etc/broker.xml config/broker.xml
docker cp artemis-tmp:/var/lib/artemis-instance/etc/log4j2.properties config/log4j2.properties
docker rm -f artemis-tmp

Step 3: Configure broker.xml

Artemis exposes broker/address/queue metrics, for Micrometre optional metrics, JVM memory is enabled by default, while GC/threads/netty/etc are disabled unless enabled. Add the following <metrics> block inside the <core> section of config/broker.xml.

<metrics>
   <jvm-memory>true</jvm-memory>
   <jvm-gc>true</jvm-gc>
   <jvm-threads>true</jvm-threads>
   <netty-pool>true</netty-pool>
   <file-descriptors>true</file-descriptors>
   <processor>true</processor>
   <uptime>true</uptime>
   <logging>true</logging>
   <security-caches>true</security-caches>
   <plugin class-name="org.apache.activemq.artemis.core.server.metrics.plugins.LoggingMetricsPlugin"/>
</metrics>

Without this block, Artemis still exposes broker and queue MBeans, but the JVM, GC, thread, and netty metrics won't be available.

Step 4: Configure Logging and Audit Logs

Find and replace the Log file appender section for broker logs in log4j2.properties file:

# Log file appender
appender.log_file.type = RollingFile
appender.log_file.name = log_file
appender.log_file.fileName = /var/log/artemis/artemis.log
appender.log_file.filePattern = /var/log/artemis/artemis.log.%d{yyyy-MM-dd}
appender.log_file.layout.type = PatternLayout
appender.log_file.layout.pattern = %d [%-5level] [%logger] %msg%n
appender.log_file.policies.type = Policies
appender.log_file.policies.cron.type = CronTriggeringPolicy
appender.log_file.policies.cron.schedule = 0 0 0 **?
appender.log_file.policies.cron.evaluateOnStartup = true

Find and replace the audit log appender for broker logs in log4j2.properties file:

# Audit log file appender
appender.audit_log_file.type = RollingFile
appender.audit_log_file.name = audit_log_file
appender.audit_log_file.fileName = /var/log/artemis/audit.log
appender.audit_log_file.filePattern = /var/log/artemis/audit.log.%d{yyyy-MM-dd}
appender.audit_log_file.layout.type = PatternLayout
appender.audit_log_file.layout.pattern = %d [%-5level] [%logger] %msg%n
appender.audit_log_file.policies.type = Policies
appender.audit_log_file.policies.cron.type = CronTriggeringPolicy
appender.audit_log_file.policies.cron.schedule = 0 0 0** ?
appender.audit_log_file.policies.cron.evaluateOnStartup = true

# Message audit: tracks message production/consumption
logger.audit_message.level = INFO

Audit logs give you visibility into who created queues, who produced and consumed messages, and authentication events. These are disabled by default in Artemis.

Step 5: Write Custom JMX Metric Definitions

Since the OTel Collector's built-in target_system: activemq targets Classic's MBean domain, we need a custom YAML file that tells the JMX receiver how to find Artemis MBeans and translate them into OpenTelemetry metrics.

The following file is organized into three rule blocks: broker-level metrics (connections, memory, disk), address-level metrics (message counts, routing, paging), and queue-level metrics (per-queue depth, consumers, acknowledgements, expiry). Save this as artemis-jmx.yaml.

rules:
  # ──────────────────────────────────────────────
  # Broker-level metrics
  # Matches: org.apache.activemq.artemis:broker="<brokerName>"
  # One MBean per broker. Gives connection counts and memory/disk usage.
  # ──────────────────────────────────────────────
  - bean: org.apache.activemq.artemis:broker=**
    metricAttribute:
      broker: param(broker)
    prefix: artemis.
    mapping:
      ConnectionCount:
        metric: connection.count
        type: updowncounter
        unit: "{connection}"
        desc: The total number of current connections.
      TotalConnectionCount:
        metric: connection.total
        type: counter
        unit: "{connection}"
        desc: The total number of connections since broker start.
      AddressMemoryUsage:
        metric: address.memory.usage
        type: gauge
        unit: By
        desc: The memory used by all addresses for in-memory messages.
      AddressMemoryUsagePercentage:
        metric: address.memory.usage_percent
        type: gauge
        unit: "%"
        desc: The percentage of available memory used by addresses.
      DiskStoreUsage:
        metric: disk.store.usage_percent
        type: gauge
        unit: "%"
        desc: The percentage of disk store used.

  # ──────────────────────────────────────────────
  # Address-level metrics
  # Matches: org.apache.activemq.artemis:broker=*,component=addresses,address=*
  # One MBean per address. Tracks message flow and paging state.
  # ──────────────────────────────────────────────
  - bean: org.apache.activemq.artemis:broker=**,component=addresses,address=**
    metricAttribute:
      broker: param(broker)
      address: param(address)
    prefix: artemis.address.
    mapping:
      MessageCount:
        metric: message.count
        type: updowncounter
        unit: "{message}"
        desc: The number of messages currently in the address.
      RoutedMessageCount:
        metric: message.routed
        type: counter
        unit: "{message}"
        desc: The total number of messages routed to one or more bindings.
      UnRoutedMessageCount:
        metric: message.unrouted
        type: counter
        unit: "{message}"
        desc: The total number of messages not routed to any binding.
      AddressSize:
        metric: size
        type: gauge
        unit: By
        desc: The size of all messages in the address, in bytes.
      NumberOfPages:
        metric: pages.count
        type: gauge
        unit: "{page}"
        desc: The number of pages used by this address.

  # ──────────────────────────────────────────────
  # Queue-level metrics
  # Matches: org.apache.activemq.artemis:broker=*,component=addresses,
  #          address=*,subcomponent=queues,routing-type=*,queue=*
  # One MBean per queue. The most granular level — per-queue depth,
  # consumer count, delivery state, and message lifecycle counters.
  # ──────────────────────────────────────────────
  - bean: org.apache.activemq.artemis:broker=**,component=addresses,address=**,subcomponent=queues,routing-type=**,queue=**
    metricAttribute:
      broker: param(broker)
      address: param(address)
      queue: param(queue)
      routing_type: param(routing-type)
    prefix: artemis.queue.
    mapping:
      MessageCount:
        metric: message.count
        type: updowncounter
        unit: "{message}"
        desc: The number of messages currently in the queue.
      MessagesAdded:
        metric: message.added
        type: counter
        unit: "{message}"
        desc: Total messages added to the queue since creation.
      MessagesAcknowledged:
        metric: message.acknowledged
        type: counter
        unit: "{message}"
        desc: Total messages acknowledged from the queue.
      MessagesExpired:
        metric: message.expired
        type: counter
        unit: "{message}"
        desc: Total messages that expired from the queue.
      MessagesKilled:
        metric: message.killed
        type: counter
        unit: "{message}"
        desc: Total messages removed from the queue (sent to DLQ).
      ConsumerCount:
        metric: consumer.count
        type: updowncounter
        unit: "{consumer}"
        desc: Number of consumers consuming from the queue.
      DeliveringCount:
        metric: message.delivering
        type: updowncounter
        unit: "{message}"
        desc: Messages currently being delivered to consumers.
      PersistentSize:
        metric: size.persistent
        type: gauge
        unit: By
        desc: The persistent size of all messages in the queue.
      ScheduledCount:
        metric: message.scheduled
        type: updowncounter
        unit: "{message}"
        desc: The number of scheduled messages in the queue.
      DurableMessageCount:
        metric: message.durable
        type: updowncounter
        unit: "{message}"
        desc: The number of durable messages in the queue.

Step 6: Update the OTel Collector Dockerfile

Add the custom Artemis metric definitions to the collector image by including one additional COPY line in Dockerfile.otel-collector.

# Stage 1: Get the collector binary
FROM otel/opentelemetry-collector-contrib:latest AS collector

# Stage 2: Java base with collector
FROM eclipse-temurin:17-jre

COPY --from=collector /otelcol-contrib /otelcol-contrib
COPY opentelemetry-jmx-metrics.jar /opt/opentelemetry-jmx-metrics.jar

# Artemis-specific: custom JMX metric definitions
COPY artemis-jmx.yaml /opt/artemis-jmx.yaml

RUN mkdir -p /tmp && chmod 1777 /tmp

ENTRYPOINT ["/otelcol-contrib"]

Step 7: Configure the OTel Collector

Save the following as otel-collector-config.yaml. Unlike Classic, we use target_system: jvm (not activemq) and point to our custom artemis-jmx.yaml via jmx_configs. The filelog receiver also tails two files instead of one (broker logs and audit logs), and the regex uses bracket delimiters ([...]) to match Artemis's log format.

receivers:
  jmx:
    jar_path: /opt/opentelemetry-jmx-metrics.jar
    endpoint: artemis:9875
    target_system: jvm
    jmx_configs: /opt/artemis-jmx.yaml
    collection_interval: 10s

  filelog/artemis:
    include:
      - /var/log/artemis/artemis.log
      - /var/log/artemis/audit.log
    start_at: beginning
    operators:
      - type: regex_parser
        regex: '^(?P<timestamp>\d{4}-\d{2}-\d{2} \d{2}:\d{2}:\d{2},\d{3}) \[(?P<severity>\w+)\s**\] \[(?P<logger>[^\]]+)\] (?P<message>.*)$'
        timestamp:
          parse_from: attributes.timestamp
          layout: '%Y-%m-%d %H:%M:%S,%L'
        severity:
          parse_from: attributes.severity

processors:
  batch:
    timeout: 10s
  resourcedetection:
    detectors: [env, system]
  resource:
    attributes:
      - key: service.name
        value: artemis-demo
        action: upsert

exporters:
  otlp_grpc:
    endpoint: https://ingest.${SIGNOZ_REGION}.signoz.cloud:443
    headers:
      signoz-ingestion-key: ${SIGNOZ_INGESTION_KEY}
  debug:
    verbosity: basic

service:
  pipelines:
    metrics/jmx:
      receivers: [jmx]
      processors: [resourcedetection, resource, batch]
      exporters: [otlp_grpc, debug]
    logs/artemis:
      receivers: [filelog/artemis]
      processors: [resourcedetection, resource, batch]
      exporters: [otlp_grpc, debug]

An Artemis log line looks like this, which is why the regex expects brackets instead of pipes:

2024-01-15 10:30:45,123 [INFO ] [org.apache.activemq.artemis] AMQ221007: Server is now live

Step 8: Create Docker Compose

Save the following as docker-compose.yml. Configs are mounted to /var/lib/artemis-instance/etc-override/, which is the documented way to override Artemis configuration in Docker. Artemis merges these with its defaults at startup.

services:
  artemis:
    build:
      context: .
      dockerfile: Dockerfile
    container_name: artemis
    ports:
      - "61616:61616"   # Core messaging
      - "8161:8161"     # Web console
      - "61613:61613"   # STOMP
      - "5672:5672"     # AMQP
      - "1883:1883"     # MQTT
      - "9875:9875"     # JMX
    environment:
      ARTEMIS_USER: artemis
      ARTEMIS_PASSWORD: artemis
      ANONYMOUS_LOGIN: "true"
    volumes:
      - ./config/broker.xml:/var/lib/artemis-instance/etc-override/broker.xml
      - ./config/log4j2.properties:/var/lib/artemis-instance/etc-override/log4j2.properties
      - artemis-logs:/var/log/artemis
    healthcheck:
      test: ["CMD-SHELL", "timeout 2 bash -c '</dev/tcp/localhost/61616' || exit 1"]
      interval: 10s
      timeout: 5s
      retries: 10
      start_period: 30s
    networks:
      - monitoring

  otel-collector:
    build:
      context: .
      dockerfile: Dockerfile.otel-collector
    container_name: otel-collector
    command: ["--config", "/etc/otel/config.yaml"]
    volumes:
      - ./otel-collector-config.yaml:/etc/otel/config.yaml
      - artemis-logs:/var/log/artemis:ro
    environment:
      - SIGNOZ_REGION=${SIGNOZ_REGION}
      - SIGNOZ_INGESTION_KEY=${SIGNOZ_INGESTION_KEY}
    depends_on:
      artemis:
        condition: service_healthy
    networks:
      - monitoring

volumes:
  artemis-logs:

networks:
  monitoring:
    driver: bridge

Step 9: Start and Verify

docker compose up -d --build

Verify both containers are running:

docker compose ps

Expected output:

NAME             STATUS
artemis          Up (healthy)
otel-collector   Up

Check the collector is receiving data:

docker compose logs otel-collector | grep -E "(Everything|Metrics|Logs)"

Generate Demo Traffic

With the broker and collector running, you can generate message traffic to see metrics populate in SigNoz. The producer sends messages to demo queues and topics, while the consumer drains them, giving you both sides of the pipeline in your dashboards.

Step 1: Install the Python dependency

pip3 install stomp.py

Step 2: Create and Run a Python Producer

Save the following as scripts/producer.py. It continuously sends JSON messages to two queues and one topic, with a random delay between batches to simulate realistic traffic patterns.

# Producer script for ActiveMQ Artemis monitoring demo.
# Sends messages to demo queues to generate metrics traffic.

# Usage:
#    python3 producer.py

import stomp
import time
import json
import random
import sys

# Artemis connection settings
ARTEMIS_HOST = "localhost"
ARTEMIS_STOMP_PORT = 61613
ARTEMIS_USER = "artemis"
ARTEMIS_PASSWORD = "artemis"

# Demo queues
QUEUES = [
    "/queue/demo.orders",
    "/queue/demo.events",
]

# Demo topic (multicast address)
TOPICS = [
    "/topic/demo.notifications",
]

def create_order_message():
    """Generate a sample order message."""
    return json.dumps({
        "order_id": random.randint(1000, 9999),
        "product": random.choice(["laptop", "phone", "tablet", "headphones", "keyboard"]),
        "quantity": random.randint(1, 10),
        "price": round(random.uniform(10.0, 1000.0), 2),
        "timestamp": time.strftime("%Y-%m-%dT%H:%M:%SZ", time.gmtime()),
    })

def create_event_message():
    """Generate a sample event message."""
    return json.dumps({
        "event_type": random.choice(["user_login", "page_view", "checkout", "search", "signup"]),
        "user_id": f"user_{random.randint(1, 100)}",
        "timestamp": time.strftime("%Y-%m-%dT%H:%M:%SZ", time.gmtime()),
    })

def create_notification_message():
    """Generate a sample notification message."""
    return json.dumps({
        "type": random.choice(["order_confirmed", "shipping_update", "promotion"]),
        "recipient": f"user_{random.randint(1, 100)}@example.com",
        "message": "This is a demo notification",
        "timestamp": time.strftime("%Y-%m-%dT%H:%M:%SZ", time.gmtime()),
    })

def main():
    """Connect to Artemis and continuously send messages."""
    conn = stomp.Connection([(ARTEMIS_HOST, ARTEMIS_STOMP_PORT)])
    conn.connect(ARTEMIS_USER, ARTEMIS_PASSWORD, wait=True)
    print(f"Connected to Artemis at {ARTEMIS_HOST}:{ARTEMIS_STOMP_PORT}")

    message_count = 0
    try:
        while True:
            # Send to queues
            for queue in QUEUES:
                if "orders" in queue:
                    msg = create_order_message()
                else:
                    msg = create_event_message()
                conn.send(destination=queue, body=msg, content_type="application/json")
                message_count += 1

            # Send to topics
            for topic in TOPICS:
                msg = create_notification_message()
                conn.send(destination=topic, body=msg, content_type="application/json")
                message_count += 1

            print(f"Sent {message_count} messages total", end="\r")

            # Random delay between 0.5 and 2 seconds
            time.sleep(random.uniform(0.5, 2.0))

    except KeyboardInterrupt:
        print(f"\nStopping producer. Total messages sent: {message_count}")
    finally:
        conn.disconnect()

if __name__ == "__main__":
    main()

Start the producer in one terminal:

python3 scripts/producer.py

Step 3: Create and Run a Python Consumer

Save the following as scripts/consumer.py. It subscribes to the queues and topic, consuming messages as they arrive.

#Consumer script for ActiveMQ Artemis monitoring demo.
#Consumes messages from demo queues to generate consumer-side metrics.

#Usage:
#    python3 consumer.py

import stomp
import time
import sys
import json

# Artemis connection settings
ARTEMIS_HOST = "localhost"
ARTEMIS_STOMP_PORT = 61613
ARTEMIS_USER = "artemis"
ARTEMIS_PASSWORD = "artemis"

# Queues to consume from
QUEUES = [
    "/queue/demo.orders",
    "/queue/demo.events",
]

# Topic subscriptions
TOPICS = [
    "/topic/demo.notifications",
]

class MessageListener(stomp.ConnectionListener):
    """Listener that handles incoming messages."""

    def __init__(self):
        self.message_count = 0

    def on_message(self, frame):
        self.message_count += 1
        destination = frame.headers.get("destination", "unknown")
        try:
            body = json.loads(frame.body)
            print(f"[{self.message_count}] Received from {destination}: {json.dumps(body, indent=None)[:100]}")
        except json.JSONDecodeError:
            print(f"[{self.message_count}] Received from {destination}: {frame.body[:100]}")

    def on_error(self, frame):
        print(f"ERROR: {frame.body}")

    def on_disconnected(self):
        print("Disconnected from Artemis")

def main():
    """Connect to Artemis and consume messages from demo queues."""
    listener = MessageListener()

    conn = stomp.Connection([(ARTEMIS_HOST, ARTEMIS_STOMP_PORT)])
    conn.set_listener("demo", listener)
    conn.connect(ARTEMIS_USER, ARTEMIS_PASSWORD, wait=True)
    print(f"Connected to Artemis at {ARTEMIS_HOST}:{ARTEMIS_STOMP_PORT}")

    # Subscribe to queues
    sub_id = 0
    for queue in QUEUES:
        conn.subscribe(destination=queue, id=sub_id, ack="auto")
        print(f"Subscribed to {queue}")
        sub_id += 1

    # Subscribe to topics
    for topic in TOPICS:
        conn.subscribe(destination=topic, id=sub_id, ack="auto")
        print(f"Subscribed to {topic}")
        sub_id += 1

    print("\nWaiting for messages... Press Ctrl+C to stop.\n")

    try:
        while True:
            time.sleep(1)
    except KeyboardInterrupt:
        print(f"\nStopping consumer. Total messages received: {listener.message_count}")
    finally:
        conn.disconnect()

if __name__ == "__main__":
    main()

Start the consumer in another terminal:

python3 scripts/consumer.py

Monitoring ActiveMQ in SigNoz

Once metrics are flowing into SigNoz, you can explore them and build dashboards.

Exploring metrics

Go to Metrics → Explorer in SigNoz Cloud and search by prefix to find what's available.

  1. ActiveMQ Classic Metrics Broker and queue metrics are under activemq.* . For example, activemq.message.current shows messages waiting in a queue.

  2. ActiveMQ Artemis Metrics
    Metrics are under artemis.*. For example, artemis.queue.message.count shows messages waiting in a queue.

  3. JVM metrics Metrics like heap memory, garbage collection, and thread counts are under jvm.* for both variants. For example, jvm.memory.heap.used.

Building a Dashboard

To build dashboards in SigNoz, follow the Managing Dashboards guide. Here's what a ActiveMQ monitoring dashboards looks like with the demo traffic running.

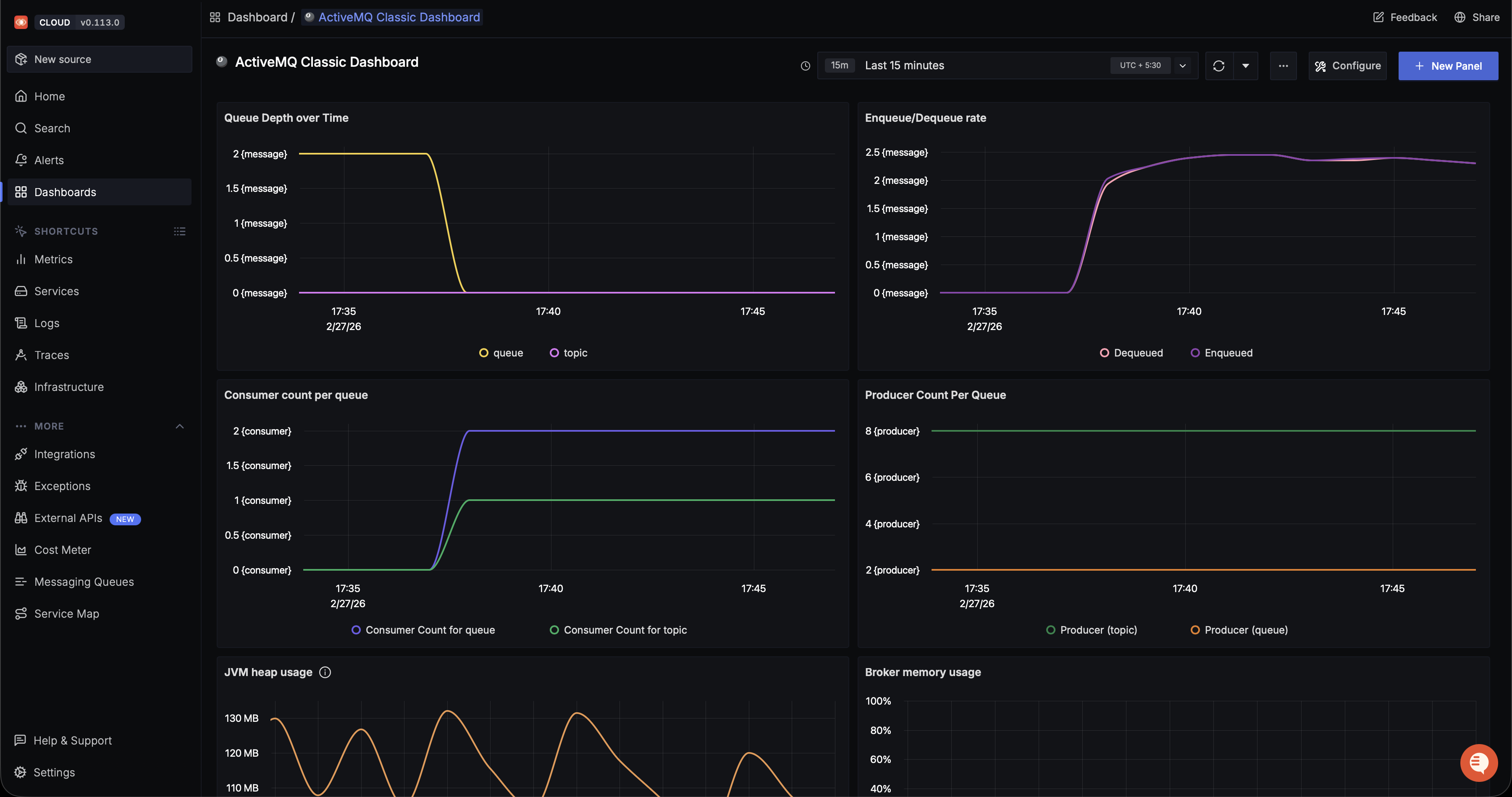

Screenshot of a SigNoz ActiveMQ Classic dashboard with time-series panels for queue depth, enqueue/dequeue rate, consumer and producer counts, JVM heap usage, and broker memory usage over a 15-minute time range.
ActiveMQ Classic dashboard in SigNoz showing broker and queue metrics.

Exploring Logs

Go to Logs → Explorer in SigNoz and filter by service.name = activemq-classic-demo or service.name = artemis-demo. Narrowing further with severity = ERROR or severity = WARN helps surface problems quickly.

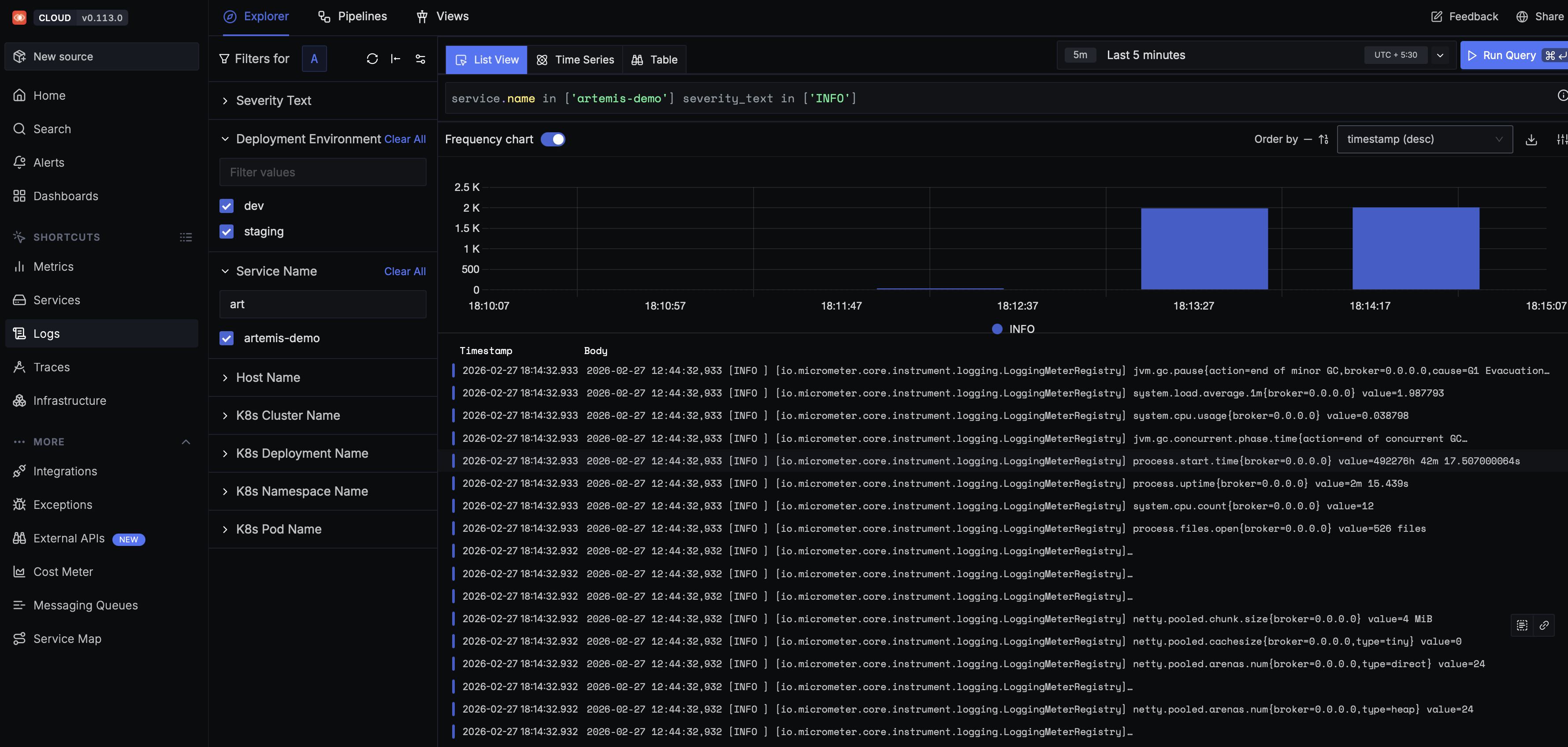

ActiveMQ logs explorer view in SigNoz showing filtered INFO logs and frequency chart.
ActiveMQ logs explorer view in SigNoz showing filtered INFO logs and frequency chart.

For Artemis, audit logs capture queue/address creation events, message production and consumption, and authentication attempts. These are useful for investigating when a consumer disconnected or tracking unauthorised access.

Setting up alerts

SigNoz supports threshold-based alerts on any metric. To learn how to create alerts, see the SigNoz Alerts documentation.

You can add the following alerts for ActiveMQ monitoring.

AlertMetric (Classic / Artemis)ConditionSeverity
Queue backlog growingactivemq.message.current / artemis.queue.message.count> 5000 for 5 minWarning
No consumers on queueactivemq.consumer.count / artemis.queue.consumer.count= 0 for 2 minCritical
Broker memory highactivemq.memory.utilization / artemis.address.memory.usage_percent> 80% for 5 minWarning
Disk store filling upactivemq.store.utilization / artemis.disk.store.usage_percent> 80% for 5 minWarning
Messages expiringrate of activemq.message.expired / artemis.queue.message.expired> 0 for 5 minWarning
JVM heap highjvm.memory.used> 85% of max for 10 minWarning

Adjust the thresholds based on your workload patterns. A queue depth of 5000 might be normal for a high-throughput system, but alarming for a low-traffic one.

Troubleshooting Playbook

Use these patterns to quickly narrow down the root cause of common ActiveMQ issues.

SymptomLikely causeWhat to check
Queue depth keeps growingConsumers too slow or disconnectedCheck consumer.count. If zero, investigate consumer logs. If non-zero, look at dequeue rate vs enqueue rate.
Dequeue rate dropped to zeroConsumer crash or network partitionCheck consumer application logs and connectivity. Verify the consumer count metric.
Broker memory at 100%Messages accumulating faster than consumers drain themCheck queue sizes across all queues. Identify the largest queues. Consider adding consumers or increasing broker memory limit.
Store usage climbingPersistent messages not being consumedSame as memory, but also check if disk I/O is a bottleneck. Run iostat on the broker host.
Expired messages appearingTTL set but consumers too slowReview the TTL settings. Either increase TTL, speed up consumers, or add more consumer instances.
High GC pause timesHeap too small or too many temporary objectsCheck heap usage pattern. If sawtooth with high baseline, increase -Xmx. If frequent young-gen GCs, check for object allocation hotspots.
Connection count dropped suddenlyNetwork issue or client reconnection stormCheck broker network logs. Look for Transport exceptions in the ActiveMQ log.
JMX connection refused from CollectorJMX not enabled or port not exposedVerify ACTIVEMQ_OPTS / JAVA_ARGS include the JMX flags. Check that the JMX port is mapped in Docker and reachable from the Collector container.
Metrics appear in Collector logs but not in SigNozExporter misconfigurationVerify your SigNoz ingestion key and region. Check the Collector logs for OTLP export errors.

Conclusion

ActiveMQ is a critical component in many architectures, and monitoring it shouldn't require proprietary agents or vendor lock-in. With OpenTelemetry's JMX and filelog receivers, you get a single, standards-based pipeline that covers both ActiveMQ Classic and Artemis, collecting broker metrics, queue health, JVM performance, and logs into a single observability backend. The setup you built in this guide provides the foundation to detect queue backlogs, consumer failures, and resource exhaustion before they impact your users.

Was this page helpful?

Your response helps us improve this page.

Saurabh Patil
AuthorSaurabh Patil
Tags
opentelemetryactivemq
Docs
IntroductionContributingMigrate from DatadogSigNoz API
OpenTelemetry
What is OpenTelemetryOpenTelemetry Collector GuideOpenTelemetry Demo
Community
Support
Slack
X
Launch Week
Changelog
Dashboard Templates
DevOps Wordle
Newsletter
KubeCon, Atlanta 2025
More
SigNoz vs DatadogSigNoz vs New RelicSigNoz vs GrafanaSigNoz vs Dynatrace
Careers
AboutTermsPrivacySecurity & Compliance
SigNoz
All systems operational
