API Latency Explained - How to Measure, Diagnose, and Reduce It

An API (Application Programming Interface) allows different software systems to communicate with each other through structured requests and responses, most commonly over HTTP. Every API interaction involves a request being sent to a server and a response being returned to the client. The time until the client receives the first byte of the response is commonly referred to as API latency, or Time to First Byte (TTFB). In distributed systems, latency is closely monitored because delays can originate from several layers such as network overhead, application processing, database queries, or downstream services.

This guide covers what contributes to that delay, how to measure it accurately with percentiles, and how to reduce it in production using OpenTelemetry and SigNoz.

What Is API Latency?

API latency typically refers to the time between sending a request and receiving the first byte of the response (TTFB). However, many monitoring systems report total request duration, which includes both server processing time and the time required to transfer the full response body, commonly known as API response time.

For a small JSON payload, both numbers are nearly the same. For a large file download or a streaming response, data transfer dominates and they diverge by seconds.

API latency (TTFB) ends when the client receives the first byte of the response. Response time ends when the last byte arrives at the client. For a 2KB JSON response, the gap between them is negligible. For a 50MB payload or a streaming response, response time can exceed latency by seconds. The table below also introduces throughput, a third metric that teams often reach for when latency spikes, and end up scaling up instances when the actual fix is a slow query:

Latency and throughput interact but respond to different fixes. More concurrent requests means more queuing time, which pushes latency up. Scaling horizontally improves throughput. A slow database query degrades latency. Adding more servers does not fix it.

Components of API Latency

Before your server does any work, the request passes through several stages. Each one adds delay and points to a different fix, so separating them helps you locate where latency starts.

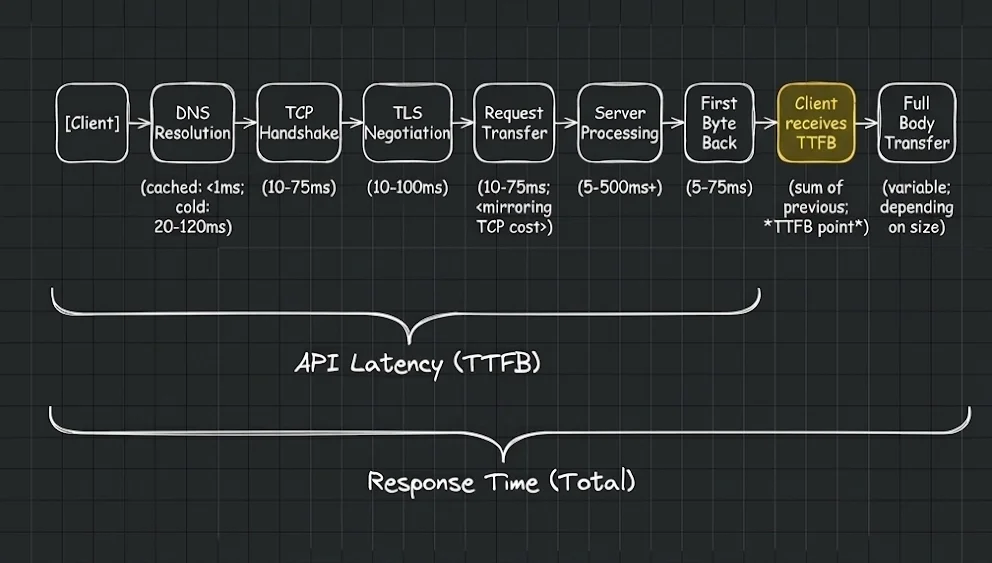

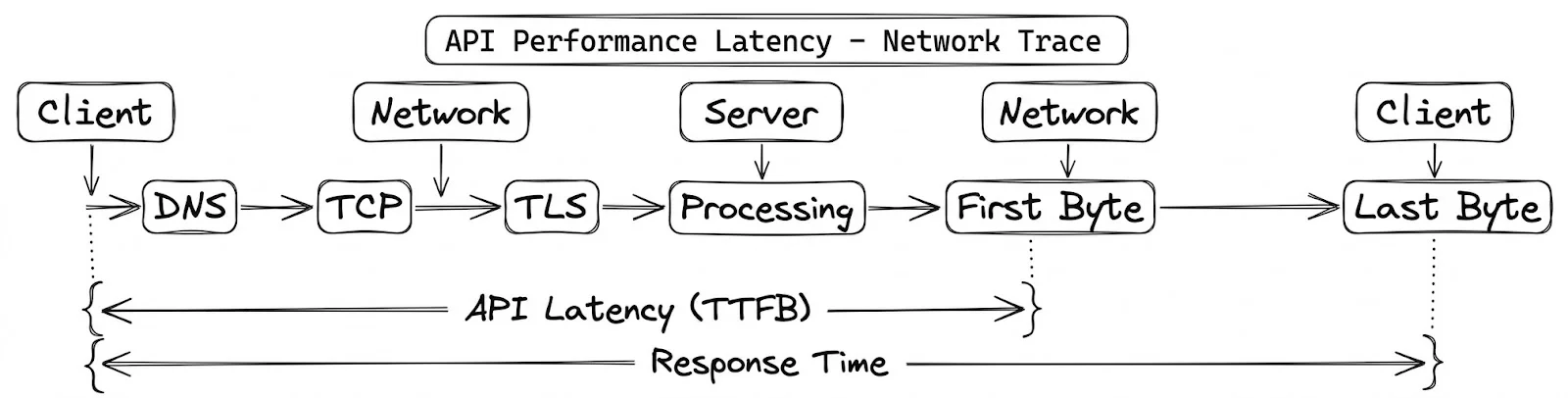

The diagram below shows the full journey. Latency ends at the first byte, while response time continues until the full body arrives.

DNS resolution is the step where the client finds the server’s IP address. If the result is already cached, it is usually very fast. If not, it adds extra delay before the request can even begin.

TCP handshake is the connection setup between client and server. Before any data can be exchanged, both sides need to establish that connection, which adds one network round trip.

TLS negotiation is the step that secures the connection with encryption. On a new HTTPS connection, this adds another round trip before the request can be processed.

Server processing covers everything between receiving the request and starting to send the response, including queue wait time, authentication, business logic, database queries, and downstream service calls. This is where the large majority of production latency problems live.

First byte transfer is the time for the first response byte to travel from server to client. On an established connection, this is closer to one-way network latency than to TCP handshake cost.

What Is Good API Latency?

There is no single threshold that applies to every API. A payment processing endpoint and an internal health check have completely different performance requirements. These ranges are a useful starting point:

Treat these ranges as percentile baselines. Percentiles tell you more about API health than averages do, because they show how slow the worst-performing slice of requests is instead of hiding it inside a single blended number.

What Causes High API Latency?

High API latency originates in one of two places: the network path before your code runs, or the server itself. Each needs a different fix.

Network-Layer Causes

These happen outside your application and generally cannot be fixed with code changes.

DNS Resolution on Cold Clients

DNS on cold clients adds time whenever a client encounters a domain it has not resolved recently. Short TTL (Time To Live) values force frequent cache expirations, leading to repeated lookups and added latency. Frequent callers from the same client eliminate most of this with proper DNS caching.

TCP and TLS Connection Setup

Every new TCP or TLS connection adds setup overhead. When connections are not reused, that cost repeats on every request. HTTP/2 multiplexing and TCP keep-alive eliminate most of this by keeping connections open and sharing them across multiple requests.

Geographic Distance

Cross-region requests can add hundreds of milliseconds of round-trip time depending on the path, regardless of how optimized your application is. Regional deployment or CDN edge caching is the only way to close that gap.

Server-Side Causes

Once the request reaches the server, these are the most common sources of high latency.

Unindexed Queries

Unindexed queries are a common cause of severe p99 spikes. A query running against millions of rows without an index on the filtered column can go from milliseconds to seconds. Run EXPLAIN ANALYZE and look for expensive scans on large tables.

N+1 Patterns

N+1 patterns fetch a list of records, then trigger additional database calls inside a loop. One endpoint performing an unexpectedly high number of database queries is a strong signal of N+1 behavior or missing joins.

Synchronous External Calls

Synchronous external calls make latency dependent on whoever is being called. If an endpoint calls Stripe, Auth0, or any third-party service inline, their p99 becomes the p99 floor for that endpoint.

Cold Starts

Cold starts in serverless functions and freshly scaled containers add 500ms to several seconds on the first request after an idle period, depending on runtime and initialization work.

How to Measure API Latency

There are two practical ways to measure API latency, and they work best in sequence. Start with curl, it takes 30 seconds and tells us which layer is slow without any setup. Another way is to instrument your APIs with OpenTelemetry so you can capture latency percentiles such as P50, P90, and P99 and see how performance behaves under real production load. The same instrumentation also collects distributed traces, helping you identify the exact span, database query, or downstream service responsible for the delay.

Start with curl

Before opening any monitoring tool, start with curl. It gives you a fast request-level timing snapshot in seconds and helps you tell whether the delay is happening during connection setup, before the first byte, or while transferring the response body. Use curl for spot checks and first-pass diagnosis. Use telemetry for continuous production monitoring.

curl -o /dev/null -s -w $'name_lookup:    %{time_namelookup}s\n\
connect:        %{time_connect}s\n\
app_connect:    %{time_appconnect}s\n\
pre_transfer:   %{time_pretransfer}s\n\
start_transfer: %{time_starttransfer}s\n\
total:          %{time_total}s\n' \
https://api.example.com/v1/endpoint

Sample output:

name_lookup:    0.012s
connect:        0.045s
app_connect:    0.098s
pre_transfer:   0.102s
start_transfer: 0.234s
total:          0.241s

Read the timings this way.

• DNS lookup = time_namelookup
• TCP connect time ≈ time_connect - time_namelookup
• TLS handshake time ≈ time_appconnect - time_connect
• Post-connection request-handling delay ≈ time_starttransfer - time_pretransfer
• Response transfer time after the first byte ≈ time_total - time_starttransfer

Using the sample numbers above, DNS lookup is 0.012s, TCP connect time is about 0.033s, TLS handshake time is about 0.053s, post-connection request-handling delay is about 0.132s, and response transfer after the first byte is about 0.007s.

curl tells you that something is slow and roughly where the delay is. It cannot tell you which query, function, or downstream call caused it. Tracing fills that gap by breaking a request into spans, so you can see exactly which internal step or downstream dependency is responsible for the delay.

Instrumentation with OpenTelemetry

For production latency tracking, we will use OpenTelemetry, the open, vendor-neutral standard for collecting telemetry such as metrics, traces, and logs. With auto-instrumentation, it can capture HTTP request duration metrics and send them to observability backends like SigNoz.

Those metrics can be used to calculate latency percentiles such as P50, P95, and P99, while distributed traces help identify the exact service, span, or database call responsible for slow requests.

The example below uses FastAPI.

Prerequisites

Before you begin, ensure you have:

• Python 3.8 or above installed
• A running FastAPI application
• A SigNoz Cloud account — you will need your ingestion key and region from the Cloud ingestion settings

Step 1. Install packages

pip install opentelemetry-distro opentelemetry-exporter-otlp
opentelemetry-bootstrap -a install

The opentelemetry-bootstrap command scans your installed packages, such as FastAPI, SQLAlchemy, or httpx, and installs the matching instrumentation libraries.

Step 2. Run with OpenTelemetry instrumentation

OTEL_RESOURCE_ATTRIBUTES=service.name=order-service \
OTEL_SEMCONV_STABILITY_OPT_IN=http \
OTEL_EXPORTER_OTLP_ENDPOINT="https://ingest.<region>.signoz.cloud:443" \
OTEL_EXPORTER_OTLP_HEADERS="signoz-ingestion-key=<your-key>" \
opentelemetry-instrument uvicorn main:app --host 0.0.0.0 --port 8000

Replace <region> with your SigNoz Cloud region (us, in, eu) and find your ingestion key in the SigNoz Cloud ingestion settings. If you are using another backend, only the OTLP endpoint and headers change; the instrumentation remains the same.

In a supported FastAPI/Uvicorn setup, this automatically creates inbound HTTP spans and emits the telemetry needed for latency charts and trace views.

Step 3. Add custom spans for business logic

Auto-instrumentation covers the HTTP layer. To see how long specific operations inside a request take, add manual spans.

# app/services/order_service.py
from opentelemetry import trace

tracer = trace.get_tracer("order-service")

async def create_order(order_data: dict) -> dict:
    with tracer.start_as_current_span("validate_inventory") as span:
        span.set_attribute("order.item_count", len(order_data["items"]))
        inventory = await check_inventory(order_data["items"])

    with tracer.start_as_current_span("process_payment") as span:
        span.set_attribute("payment.method", order_data["payment_method"])
        payment = await charge_payment(order_data)

    with tracer.start_as_current_span("persist_order") as span:
        order = await save_to_database(order_data, payment)
        span.set_attribute("order.id", order["id"])

    return order

Each block measures its own duration and nests inside the parent HTTP span. In trace viewers such as SigNoz or Jaeger, the result appears as a waterfall view:

[POST /orders - 1,500ms]
  ├── validate_inventory:   20ms
  ├── process_payment:     150ms
  └── persist_order:     1,330ms  ← ~89% of time is here

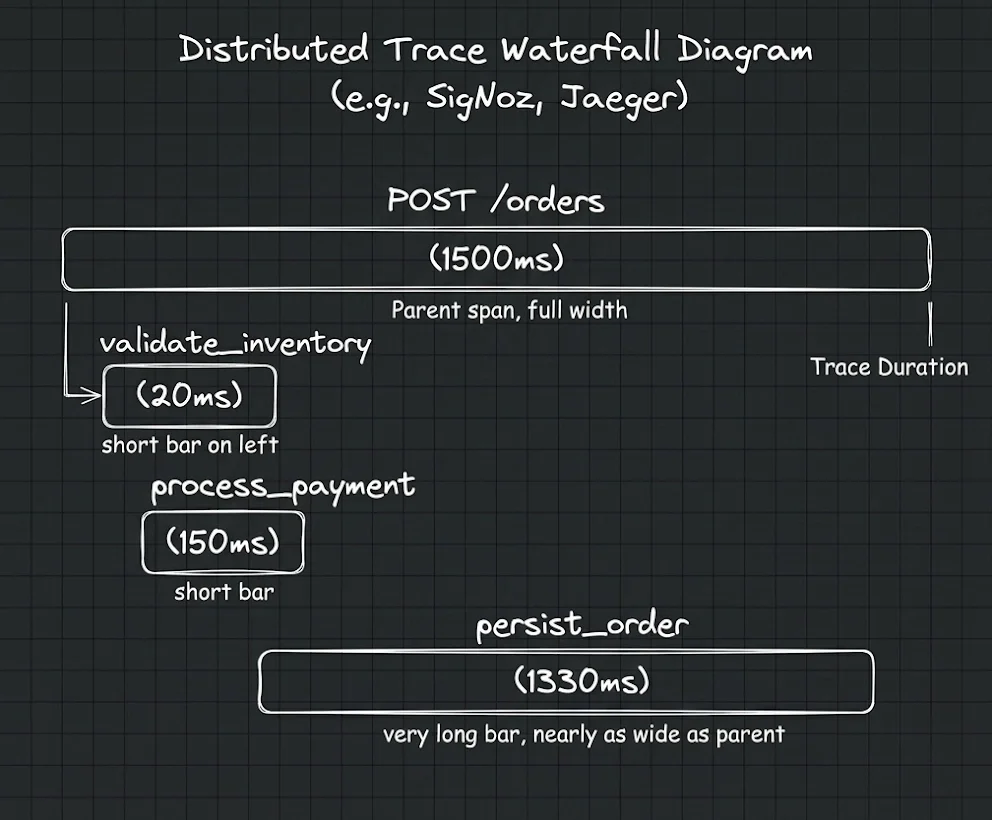

A trace waterfall shows the full request at the top and the child spans underneath it. In this example, persist_order takes almost the entire request, so it is the first place to investigate.

In this trace waterfall, the parent span is the full POST /orders request, and the child spans show where time is spent inside it. Here, persist_order dominates the request and is the likely bottleneck.

For a detailed setup guide, see Implementing OpenTelemetry in FastAPI.

View Latency Percentiles and Traces in SigNoz

SigNoz is a full-stack observability platform for analyzing metrics, traces, and logs from your applications. Once your OpenTelemetry data starts flowing in, your instrumented service appears in the Services tab, where you can view its request rate, error rate, and latency in a built-in RED metrics dashboard. This gives you a starting point for analyzing percentile latency and drilling into traces.

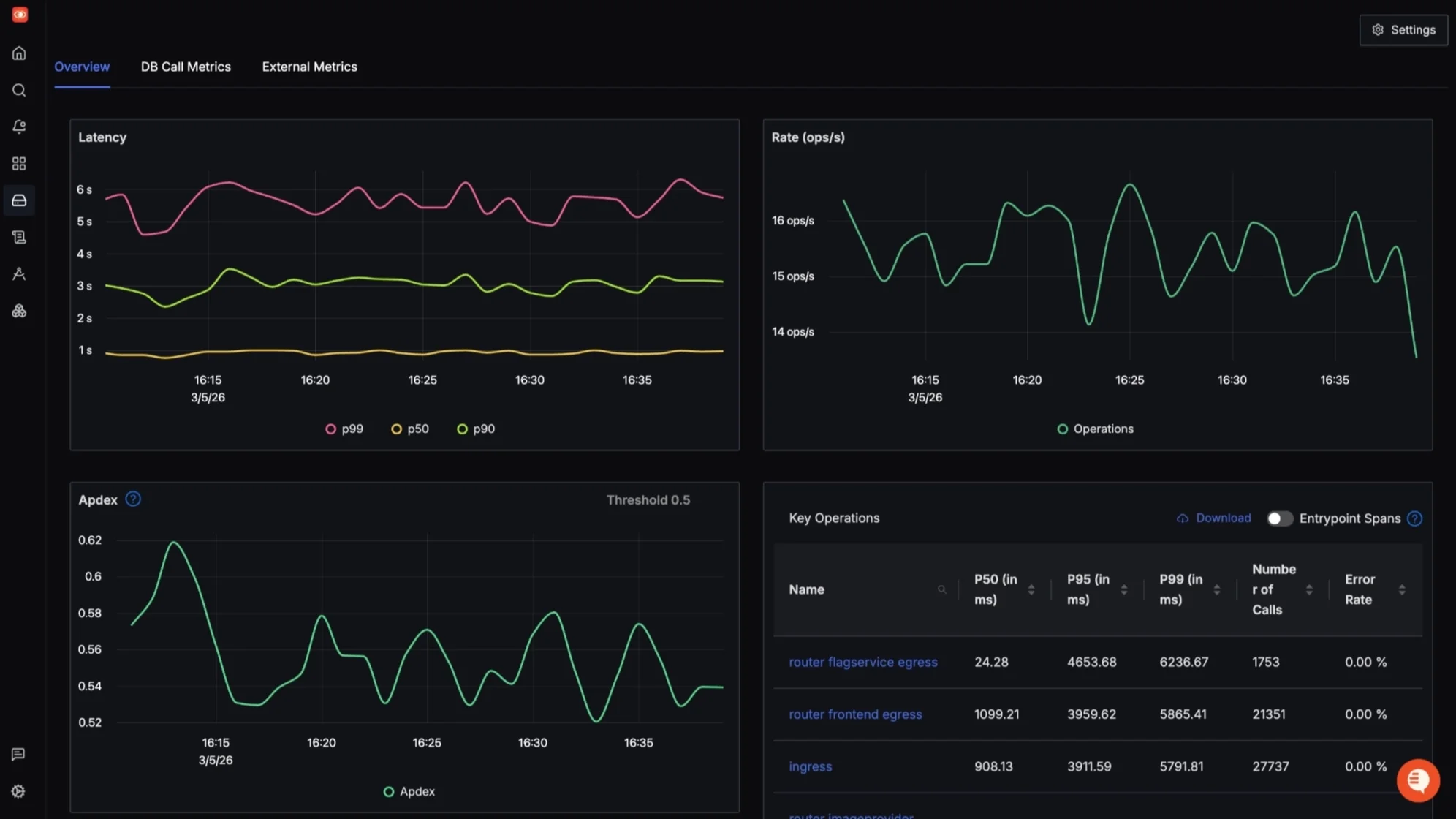

The latency panel below shows p50, p90, and p99 latency per service alongside request rate and error rate, updated continuously. Clicking into a service opens the Key Operations table, which ranks every endpoint by percentile latency. Sort by p99 to surface your worst tail-latency offenders without manual filtering.

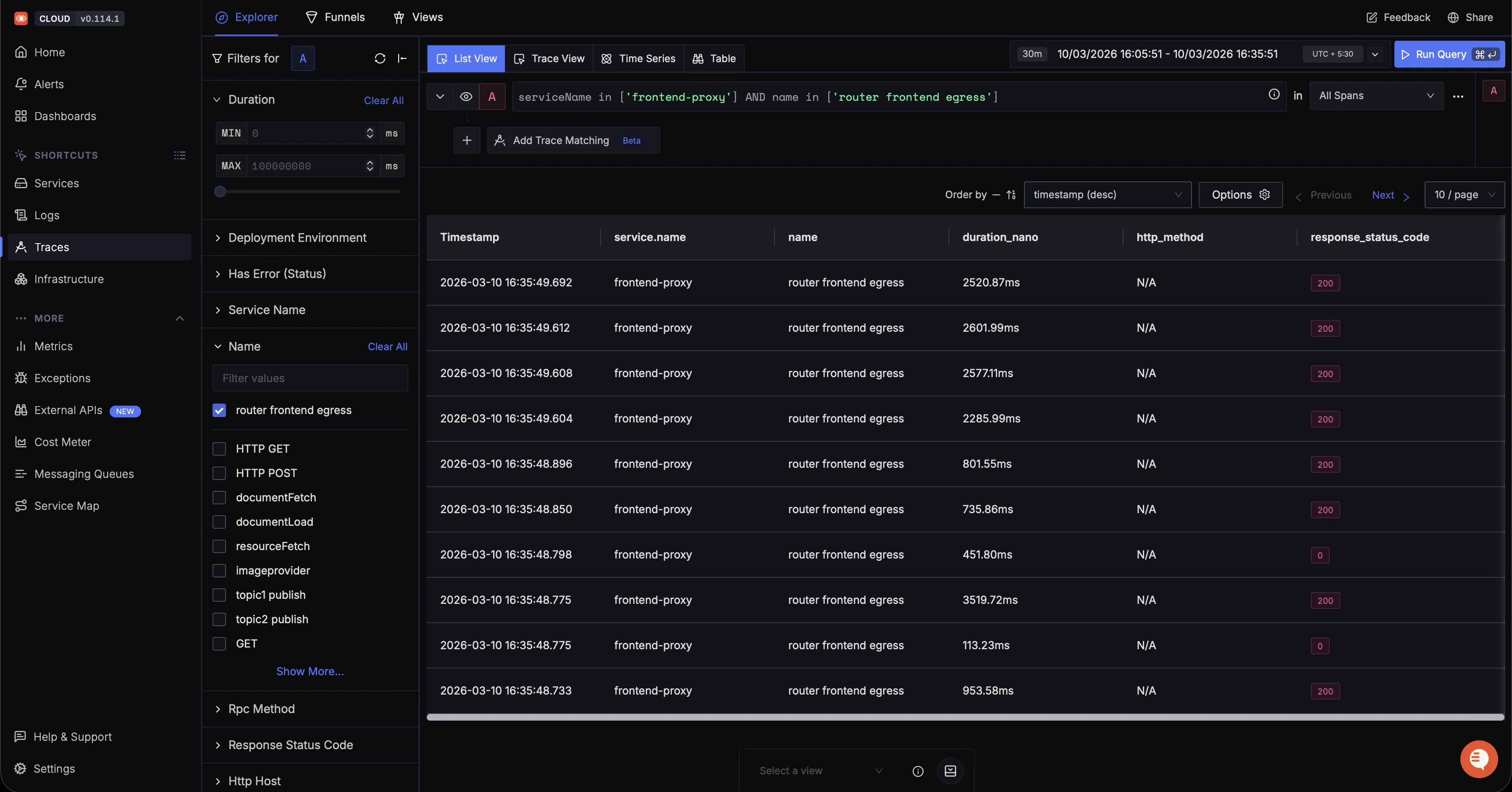

Click any operation in the Key Operations panel to open the Traces view filtered to that endpoint. From there, you can browse individual traces and open any trace ID to inspect the full span timeline, timing breakdown, and downstream calls in detail.

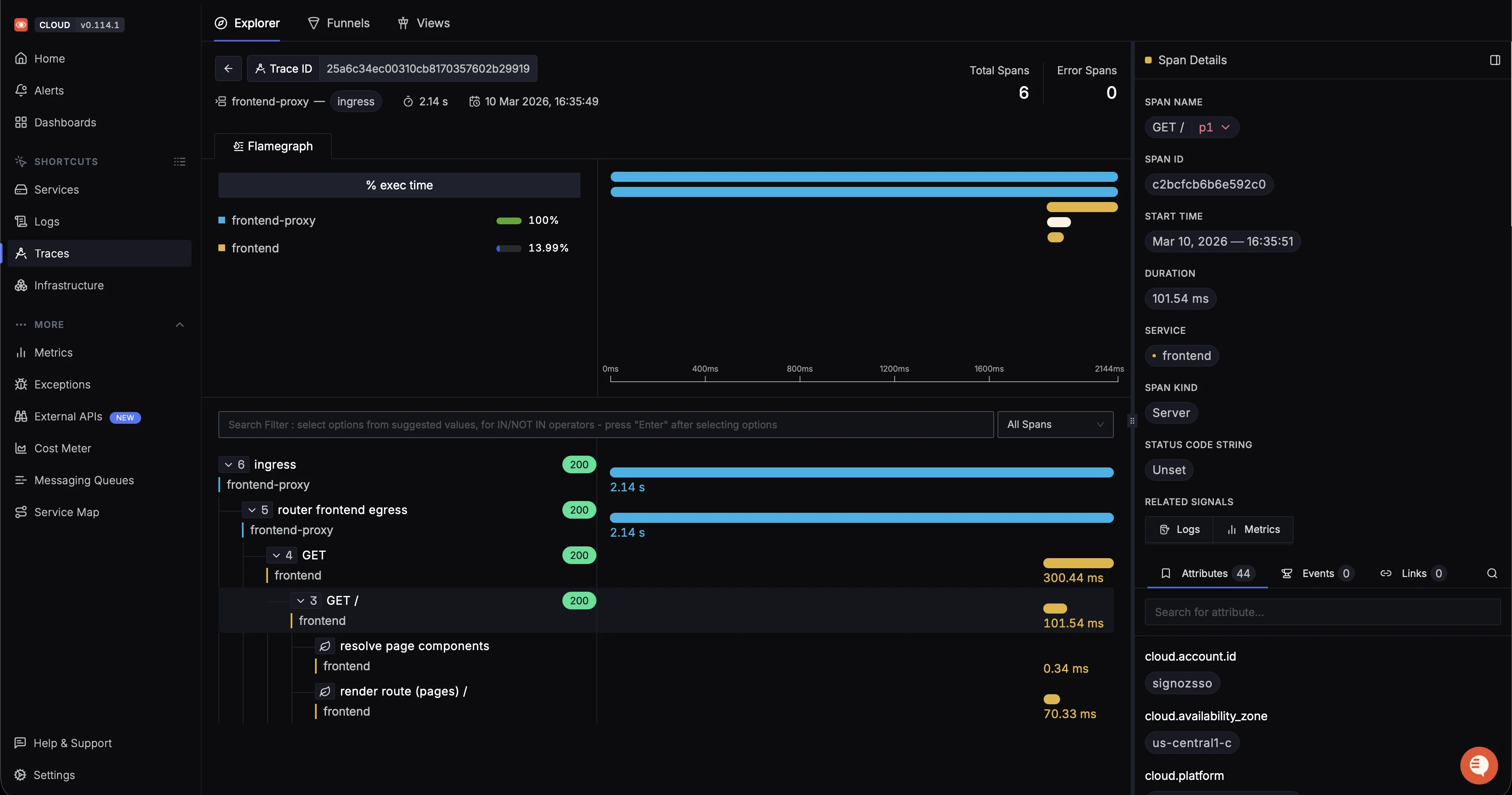

Click any trace to see the full span waterfall.

Internal vs. External Latency in One View

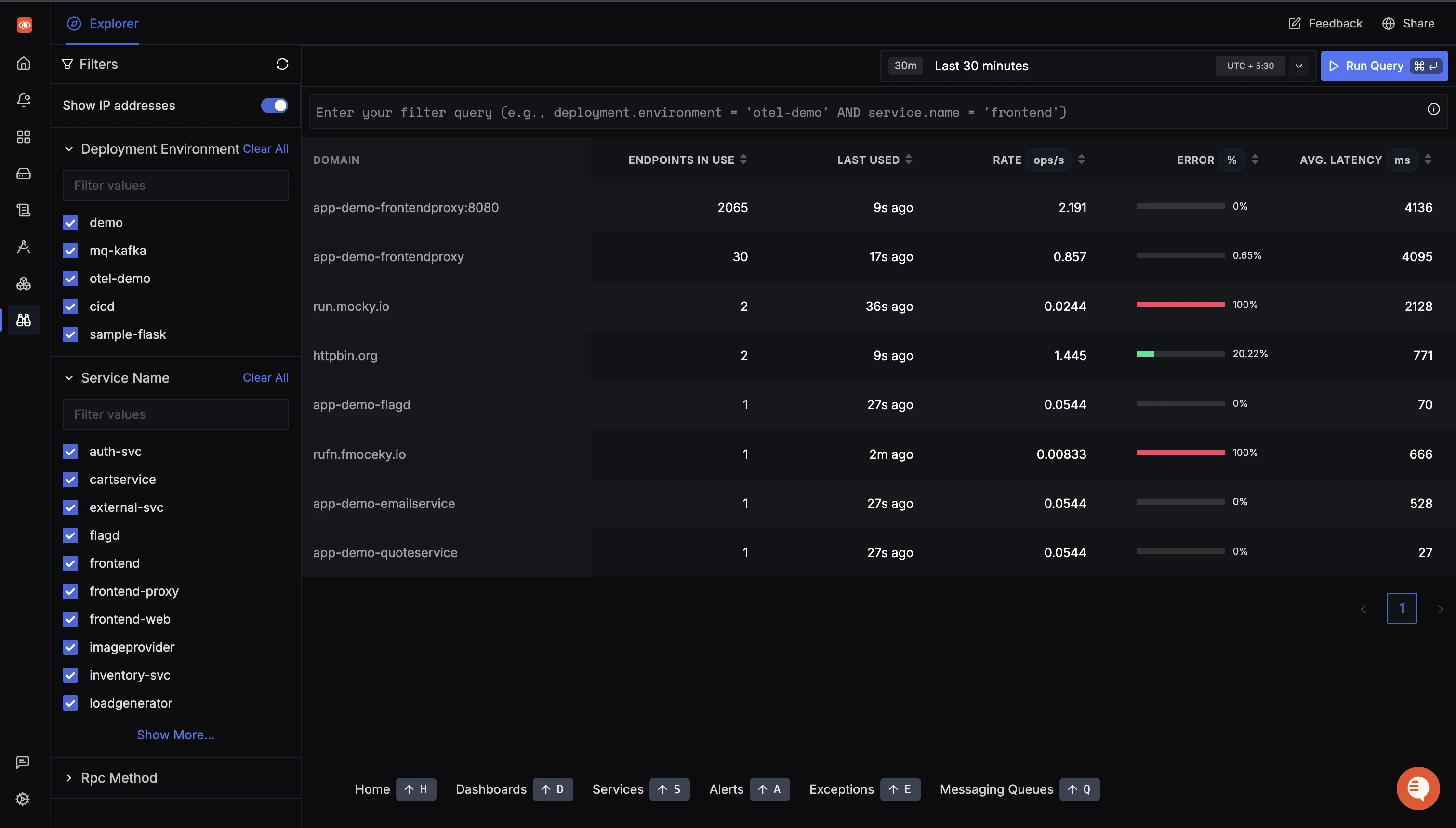

SigNoz separates your own service performance (Overview tab) from your outbound calls to external services (External Metrics tab). This view separates latency inside your services from latency introduced by external providers.

SigNoz External API Monitoring works automatically for properly instrumented applications and shows outbound calls captured through supported OpenTelemetry instrumentation. It shows latency and error rates broken down by external domain and maps them back to the internal service making each call.

For setup details, see the External API Monitoring overview and the setup guide.

SigNoz is an all-in-one observability platform built natively on OpenTelemetry. For teams already using OTel instrumentation, latency data flows in without any additional agents. Get started free.

How to Reduce API Latency

Once the trace waterfall shows where the time is going, these are the most effective fixes, ordered by impact.

Fix Slow Database Queries First

Run EXPLAIN ANALYZE on your slowest queries. If you see an expensive Seq Scan on a large table, check whether an index on the query's WHERE, JOIN, or ORDER BY pattern would help. Also look for N+1 query patterns and replace them with batch queries or joins where appropriate.

On write-heavy tables, add indexes deliberately. Each index adds overhead to writes.

Defer Work That Doesn't Need to Block the Response

Move non-critical side effects out of the response path. For small in-process tasks such as sending a confirmation email or notifying another service after the main request succeeds, FastAPI BackgroundTasks can defer that work until after the response is sent.

Tune Connection Pooling to Prevent Queueing Under Load

Reusing pooled connections avoids the overhead of repeatedly opening new database connections and helps keep latency stable under load.

Too small a pool and requests queue under load. Too large and you overwhelm the database.

Cache Read-Heavy Endpoints With Explicit TTLs

Read-heavy endpoints with repeat access patterns are good candidates for caching in Redis. A cache can often serve hot data much faster than going back to the primary database, especially for repeated reads. Start with explicit TTLs, then add targeted invalidation logic only where freshness requirements justify the complexity.

Compress and Filter Payloads Before They Leave the Server

Pagination, field filtering, and HTTP compression reduce transfer size and often improve client-observed latency, especially on slower networks. Compression helps most on larger text responses, but it does add some CPU overhead on the server.

FAQs

What is API latency?

API latency is the time from when a client starts a request to when it receives the first byte of the response (TTFB). It includes network transit in both directions and server processing time, but it does not include the full response body transfer. That is measured by response time.

How do you calculate API latency?

From the client side, TTFB is time_starttransfer in curl. If you want an approximation of post-connection request handling delay, use time_starttransfer - time_pretransfer. From the server side, instrument with OpenTelemetry and track HTTP server request duration histograms. In setups using the stable HTTP semantic conventions, this metric is http.server.request.duration, and backends can use it to visualize latency percentiles such as p50, p95, and p99 over time.

What is a good API response time?

For user-facing REST APIs, p50 under 100ms and p95 under 300ms is a reasonable baseline. Internal service-to-service calls should target p99 under 100ms with proper indexing and connection pooling. More important than absolute numbers is baselining your own service under normal conditions and alerting on deviation from that baseline.

What does high API latency mean?

It means requests are taking longer than expected, but the cause depends on which stage is slow. High TTFB, when DNS/TCP/TLS timings are normal, usually points to slow server processing or an upstream dependency. Low TTFB but slow total time points to large payload transfer. Latency that affects all endpoints simultaneously suggests resource exhaustion. Latency on a single endpoint usually means a slow query or N+1 pattern.

What is P50, P90, and P99 latency?

P50, P90, and P99 are latency percentiles that show how request times are distributed. P50 is the median latency, meaning 50% of requests are faster and 50% are slower. P90 means 90% of requests complete within that time, while the slowest 10% take longer. P99 means 99% of requests finish within that threshold, and only the slowest 1% exceed it. Because it captures rare but noticeable slowdowns, P99 is often used to track tail latency, which is especially important for user experience, incident detection, and SLA or SLO reporting.

What is the difference between API latency and API response time?

API latency is TTFB — time until the client receives the first byte of the response. Response time includes TTFB plus the time to transfer the full response body. For small JSON APIs the two numbers are nearly identical. For large payloads or streaming responses, response time is significantly higher than latency.

How do I find out if my latency is caused by a third-party API I am calling?

You need visibility into outbound calls, not only your own endpoints. With properly instrumented HTTP client libraries, OpenTelemetry can create spans for outbound requests. In SigNoz, External API Monitoring uses those spans to surface per-domain latency and error rates and correlate them with your internal services and traces.

Conclusion

API latency is only useful when you measure it the right way. Start with client-side timings to separate network delay from server delay, then track p50, p95, and p99 in production, and use distributed traces to find the exact span, query, or dependency causing the slowdown. Once you know which layer is responsible, the fix becomes straightforward.
