Both Grafana Tempo and Jaeger are tools aimed at distributed tracing for microservice architecture. Jaeger was released as an open-source project by Uber in 2015, while Tempo is a newer product announced in October 2020.

Cover Image

Jaeger is a popular open-source tool that graduated as a project from Cloud Native Computing Foundation. Grafana Tempo is a high-volume distributed tracing tool deeply integrated with other open-source tools like Prometheus and Loki.

But before we dive into the details of Jaeger and Grafana Tempo, let's take a short detour to understand distributed tracing.

What is distributed tracing?

In the world of microservices, a user request travels through hundreds of services before serving a user what they need. To make a business scalable, engineering teams are responsible for particular services with no insight into how the system performs as a whole. And that's where distributed tracing comes into the picture.

Microservices architecture
Microservice architecture of a fictional e-commerce application

Distributed tracing gives you insight into how a particular service is performing as part of the whole in a distributed software system. There are two essential concepts involved in distributed tracing: Spans and trace context.

User requests are broken down into spans.

What are spans?
Spans represent a single operation within a trace. Thus, it represents work done by a single service which can be broken down further depending on the use case.

A trace context is passed along when requests travel between services, which tracks a user request across services. Thus, you can see how a user request performs across services and identify what exactly needs your attention without manually shifting through multiple dashboards.

Trace context is passed to track user requests across services
A trace context is passed when user requests pass from one service to another

Architecture of Jaeger and Grafana Tempo

Jaeger and Grafana Tempo are somewhat similar, with the only difference being in their backend storage.

Jaeger supports two popular open-source NoSQL databases as trace storage backends:

  • Cassandra
  • ElasticSearch
Architecture of Jaeger
Architecture of Jaeger

Grafana Tempo was built to avoid the maintenance that is required to run databases like Cassandra and ElasticSearch. It has the following components in its architecture:

  • Distributor
    It is used to accept spans in multiple formats.

  • Ingestor
    The Ingester batches trace into blocks and then flushes it all to the backend.

  • Query frontend
    Tempo uses Grafana for its visualization layer.

  • Querier
    It is responsible for finding the requested trace ID from the backend storage.

  • Compactor
    The Compactors stream blocks to and from the backend storage to reduce the total number of blocks.

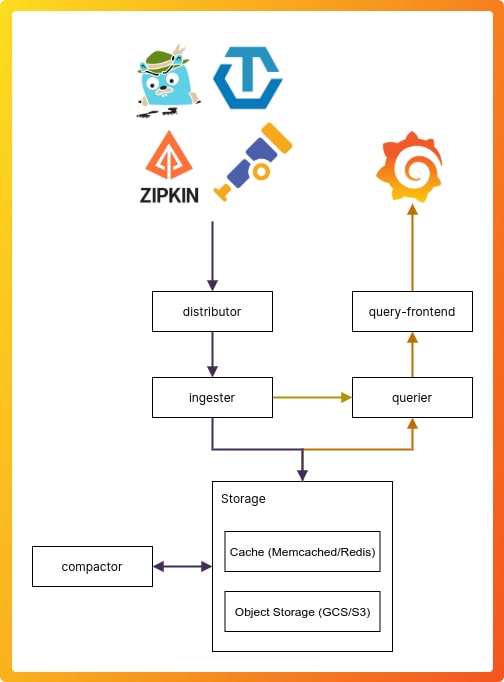

Architecture of Grafana Tempo
Grafana tempo architecture

Comparing Jaeger and Grafana Tempo

There are four major components to a distributed tracing tool:

  • Instrumentation
  • Pipeline
  • Backend
  • Visualization

Let's see in detail what these components are and how Jaeger and Grafana Tempo handle these components.


What is instrumentation?
Instrumentation is the process of generating telemetry data(logs, metrics, and traces) from your application code. It is essentially writing code that enables your application code to emit telemetry data, which can be used later to investigate issues.

Most distributed tracing tools offer clients libraries, agents, and SDKs to instrument application code. There are some popular open-source instrumentation frameworks too, which provide vendor-agnostic instrumentation libraries.

Instrumentation with Jaeger
Jaeger's client libraries for instrumentation are based on OpenTracing APIs. OpenTracing was an open-source project aimed at providing vendor-neutral APIs and instrumentation for distributed tracing. It later got merged into OpenTelemetry. Jaeger has official client libraries in following languages:

  • Go
  • Java
  • Node.js
  • Python
  • C++
  • C#

Instrumentation with Grafana Tempo
Grafana Tempo supports multiple open-source instrumentation standards. It offers more flexibility to engineering teams to choose instrumentation libraries of their choice. Below is the list of popular frameworks used for client instrumentation and supported by Grafana Tempo:

  • OpenTracing/Jaeger
  • Zipkin
  • OpenTelemetry


Once the trace data is collected with the help of client libraries, it can be directly sent to the storage backends for storage and visualization. But it's a good practice to have a tracing pipeline for data buffering as the application scales. The pipeline enables receiving data in multiple formats, manipulation, batching, indexing, and queueing.

Jaeger provides Jaeger collectors, as seen in the architecture diagram. The collectors validate traces, index them and perform any transformation before storing the trace data.

Grafana Tempo has Grafana agents, which are deployed close to the application. It quickly offloads traces from the application and performs functions like trace batching and backend routing.

Backend storage

Jaeger ships with simple in-memory storage for testing setups. Jaeger supports two popular open-source NoSQL databases as trace storage backends:

  • Cassandra - known for its scalability and high availability, making it suitable for handling large volumes of trace data with high uptime requirements.
  • ElasticSearch - known for its advanced search capabilities and efficiency, allowing for complex queries and fast retrieval of trace data.

Grafana Tempo has its own custom database, TempoDB, for storing trace data. It supports object storage solutions like Google Cloud Storage, Amazon S3, Azure Blob Storage, and local file system storage. However, its design and performance are primarily tailored towards object storage environments, rather than local storage. This design allows it to efficiently collect and store a vast volume of traces from distributed applications without the need for sampling.

Additionally, it can use Memcached or Redis for increased query performance.


Jaeger being an open-source project has no licensing fees associated with deploying and using it.

Grafana Tempo also has an open-source version that is free to use and has no licensing fees attached to its management and use. If you do not want to manage your own Grafana Tempo instance, you can use Grafana Cloud, a managed platform for Grafana products. It provides a free forever plan, a pay-as-you-go plan, and an advanced plan starting at $299.

Visualization layer

In terms of the visualization layer, Grafana Tempo has the edge over Jaeger. Grafana Tempo is distributed tracing tool by Grafana - an open-source data visualization layer. You can connect different data sources to Grafana for visualization. Grafana has a built-in Tempo data source that can be used to query Tempo and visualize traces.

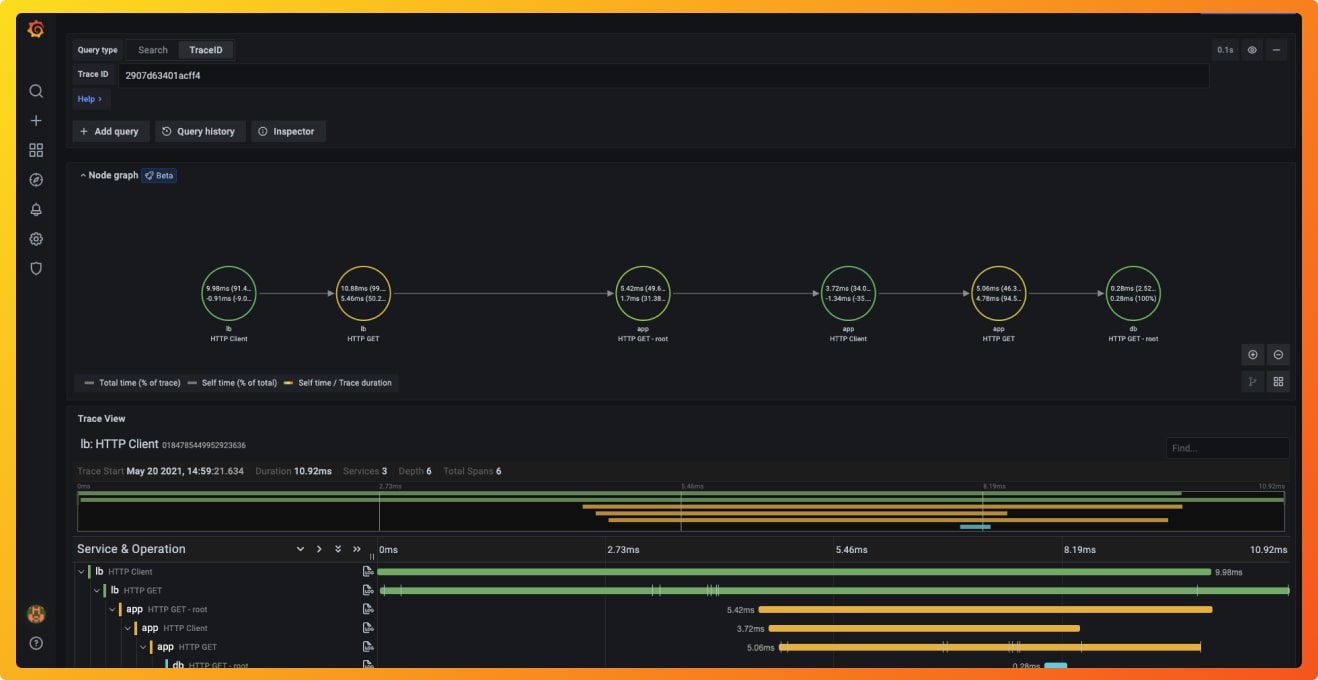

Querying a trace on Grafana Tempo using a Trace ID
Querying a trace on Grafana Tempo using a Trace ID

Jaeger's UI is basic but comprehensive when it comes to distributed tracing.

Jaeger UI
Jaeger UI showing services and corresponding traces

Both Jaeger and Grafana Tempo are strong contenders when it comes to a distributed tracing tool. But are traces enough to solve all performance issues of a modern distributed application? The answer is no. You also need metrics and a way to correlate metrics with traces within a single dashboard. You also need out-of-the-box data visualization that will enable engineering teams to resolve issues faster.

That's where SigNoz comes into the picture.

Alternative to Jaeger and Grafana Tempo - SigNoz

SigNoz is a full-stack open-source application performance monitoring and observability tool which can be used in place of Grafana Tempo and Jaeger. It provides advanced distributed tracing capabilities along with metrics under a single dashboard.

SigNoz is built to support OpenTelemetry natively. OpenTelemetry is becoming the world standard for generating and managing telemetry data (Logs, metrics, and traces). It also provides a fast OLAP datastore, ClickHouse as the storage backend.

Architecture of SigNoz with OpenTelemetry and ClickHouse
Architecture of SigNoz with ClickHouse as storage backend and OpenTelemetry for code instrumentatiion

SigNoz comes with out of box visualization of things like RED metrics.

SigNoz UI showing the popular RED metrics
SigNoz UI showing application overview metrics like RPS, 50th/90th/99th Percentile latencies, and Error Rate

You can also use flamegraphs to visualize spans from your trace data. All of this comes out of the box with SigNoz.

Flamegraphs used to visualize spans of distributed tracing in SigNoz UI
Flamegraphs showing exact duration taken by each spans - a concept of distributed tracing

Some of the things SigNoz can help you track:

  • Application overview metrics like RPS, 50th/90th/99th Percentile latencies, and Error Rate
  • Slowest endpoints in your application
  • See exact request trace to figure out issues in downstream services, slow DB queries, call to 3rd party services like payment gateways, etc
  • Filter traces by service name, operation, latency, error, tags/annotations.
  • Run aggregates on trace data
  • Unified UI for both metrics and traces

Getting started with SigNoz

SigNoz cloud is the easiest way to run SigNoz. Sign up for a free account and get 30 days of unlimited access to all features. Try SigNoz Cloud
CTA You can also install and self-host SigNoz yourself since it is open-source. With 16,000+ GitHub stars, open-source SigNoz is loved by developers. Find the instructions to self-host SigNoz.
