Implementing OpenTelemetry in Angular application

· 8 min read
Pranshu Chittora
Ankit Anand

OpenTelemetry can be used to trace Angular applications for performance issues and bugs. OpenTelemetry is an open-source project under the Cloud Native Computing Foundation (CNCF) that aims to standardize the generation and collection of telemetry data. Telemetry data includes logs, metrics, and traces.

Cover Image

Angular is a frontend Javascript framework that uses HTML and Typescript. It’s a popular framework used by many organizations for their frontend applications. For a user, frontend is the user’s first interaction point, and it is necessary to ensure that your Angular apps provide a perfect user experience.

Repository of Angular library to deploy OpenTelemetry in Angular application

Using OpenTelemetry Angular libraries, you can instrument your Angular apps to generate traces from your Angular app to your downstream services.

Before we demonstrate how to implement the OpenTelemetry libraries, let’s have a brief overview of OpenTelmetry.

What is OpenTelemetry?

OpenTelemetry is an open-source vendor-agnostic set of tools, APIs, and SDKs used to instrument applications to create and manage telemetry data(logs, metrics, and traces). It aims to make telemetry data(logs, metrics, and traces) a built-in feature of cloud-native software applications.

The telemetry data is then sent to an observability tool for storage and visualization.

How opentelemetry fits with an application
OpenTelemetry libraries instrument application code to generate telemetry data that is then sent to an observability tool for storage & visualization

OpenTelemetry is the bedrock for setting up an observability framework. It also provides you the freedom to choose a backend analysis tool of your choice.

OpenTelemetry and SigNoz

In this article, we will use SigNoz as our backend analysis tool. SigNoz is a full-stack open-source APM tool that can be used for storing and visualizing the telemetry data collected with OpenTelemetry. It is built natively on OpenTelemetry and supports OTLP data formats.

SigNoz provides query and visualization capabilities for the end-user and comes with out-of-box charts for application metrics and traces. SigNoz also provides logs management with advanced logs query builder and live tailing. With metrics, traces, and logs under a single pane of glass, SigNoz can be a one-stop open source observability platform.

Now let’s get down to how to implement OpenTelemetry Angular libraries and then visualize the collected data in SigNoz.

Running Angular application with OpenTelemetry

Step 1: Install SigNoz

First, you need to install SigNoz so that OpenTelemetry can send the data to it.

SigNoz can be installed on macOS or Linux computers in just three steps by using a simple install script.

The install script automatically installs Docker Engine on Linux. However, on macOS, you must manually install Docker Engine before running the install script.

git clone -b main https://github.com/SigNoz/signoz.git
cd signoz/deploy/
./install.sh

You can visit our documentation for instructions on how to install SigNoz using Docker Swarm and Helm Charts.

Deployment Docs

When you are done installing SigNoz, you can access the UI at http://localhost:3301

SigNoz dashboard
SigNoz dashboard - It shows services from a sample app that comes bundled with the application

Step 2: Get sample Angular app

We have set up two sample GitHub repos in order to demonstrate the example at hand

  • Sample Angular App
    It contains the sample boilerplate code that we will instrument. If you want to follow the tutorial, then you should follow the without instrumentation branch.
  • Sample Nodejs App
    It contains a basic backend API which we will be calling. The backend API is also instrumented with OpenTelemetry to have end-to-end tracing.

Step 3: Enable CORS in the OTel Receiver

Enable CORS in the OTel Receiver. Under SigNoz folder, open the otel-collector-config.yaml file. The file is located at deploy/docker/clickhouse-setup/otel-collector-config.yaml

You can view the file at SigNoz GitHub repo. Inside the file add the following CORS config:

http:
+ cors:
+ allowed_origins:
+ - https://netflix.com # URL of your Frontend application

You need to update the URL of your frontend application. For this tutorial, we will be running our frontend application on http://localhost:4200.

Enabling CORS

Once you make the changes, you need to restart the Docker containers.

Step 4: Instrument Angular app with OpenTelemetry

To instrument the angular app with OpenTelemetry, we need to install the OpenTelemetry dependencies.

npm i @jufab/opentelemetry-angular-interceptor && npm i @opentelemetry/api @opentelemetry/sdk-trace-web @opentelemetry/sdk-trace-base @opentelemetry/core @opentelemetry/semantic-conventions @opentelemetry/resources @opentelemetry/exporter-trace-otlp-http @opentelemetry/exporter-zipkin @opentelemetry/propagator-b3 @opentelemetry/propagator-jaeger @opentelemetry/context-zone-peer-dep @opentelemetry/instrumentation @opentelemetry/instrumentation-document-load @opentelemetry/instrumentation-fetch @opentelemetry/instrumentation-xml-http-request @opentelemetry/propagator-aws-xray --save-dev

Step 5: Update app.module.ts file

import {
OpenTelemetryInterceptorModule,
OtelColExporterModule,
CompositePropagatorModule,
} from '@jufab/opentelemetry-angular-interceptor';

@NgModule({
...
imports: [
...
OpenTelemetryInterceptorModule.forRoot({
commonConfig: {
console: true, // Display trace on console (only in DEV env)
production: false, // Send Trace with BatchSpanProcessor (true) or SimpleSpanProcessor (false)
serviceName: 'Angular Sample App', // Service name send in trace
probabilitySampler: '1',
},
otelcolConfig: {
url: 'http://127.0.0.1:4318/v1/traces', // URL of opentelemetry collector
},
}),
//Insert OtelCol exporter module
OtelColExporterModule,
//Insert propagator module
CompositePropagatorModule,
],
...
})

Make sure to update then URL of OpenTelemetry Collector under otelcolConfig. In our case since we’re running SigNoz in local, the URL is http://127.0.0.1:4318/v1/traces.

You can change the name of the service, and other configurations under commonConfig.

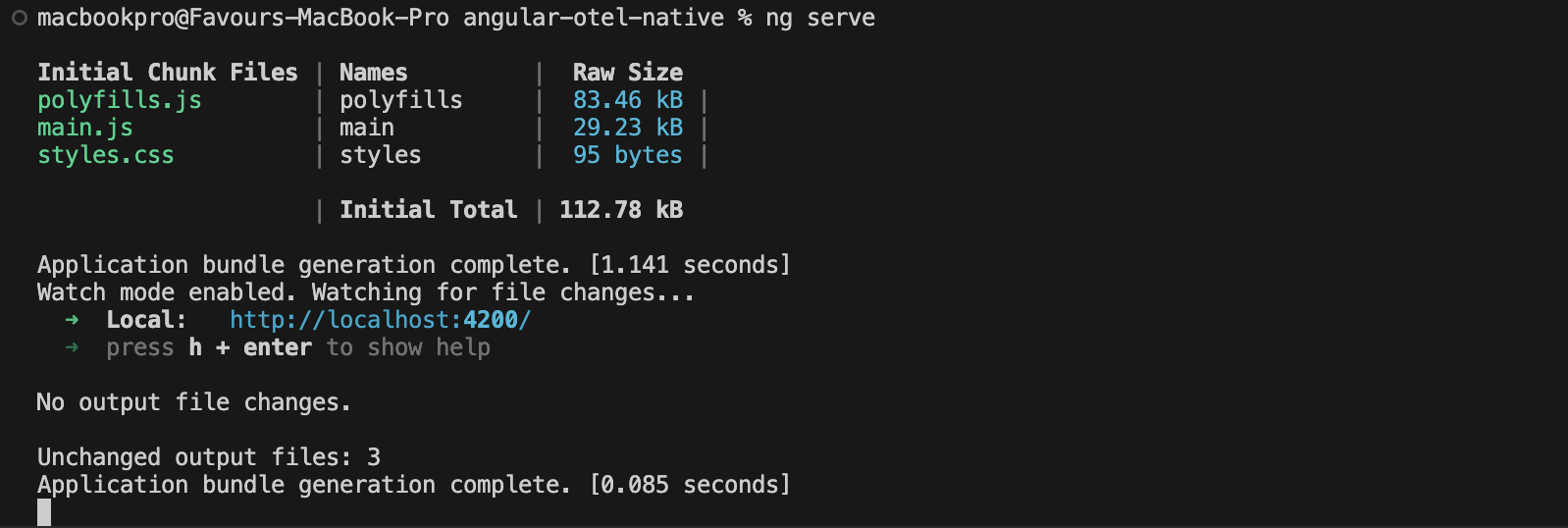

Step 6: Start the angular app and the backend API

For Angular app:
Go to the root folder of your Angular application, and run the following command:

yarn start

For backend API:
Install the dependencies

yarn install

If SigNoz is installed locally, run your backend API using:

yarn run start:local

If SigNoz is not installed locally, then you would need to set the IP of the machine where SigNoz is installed. You can do so by using the below command:

OTEL_EXPORTER_OTLP_ENDPOINT="<IP of SigNoz>:4317" OTEL_RESOURCE_ATTRIBUTES=service.name=NAME_OF_SERVICE yarn run start:custom```

Congratulations! You have successfully run your Angular application with OpenTelemetry. It’s time to see the collected data.

Step 7: Generate some data

In order to monitor your Angular application with SigNoz, you first need to generate some data.

Visit http://localhost:4200/ to access your frontend application. Using the UI, make some calls to the backend API. You can check the network tab in your browser to see the requests that you have made.

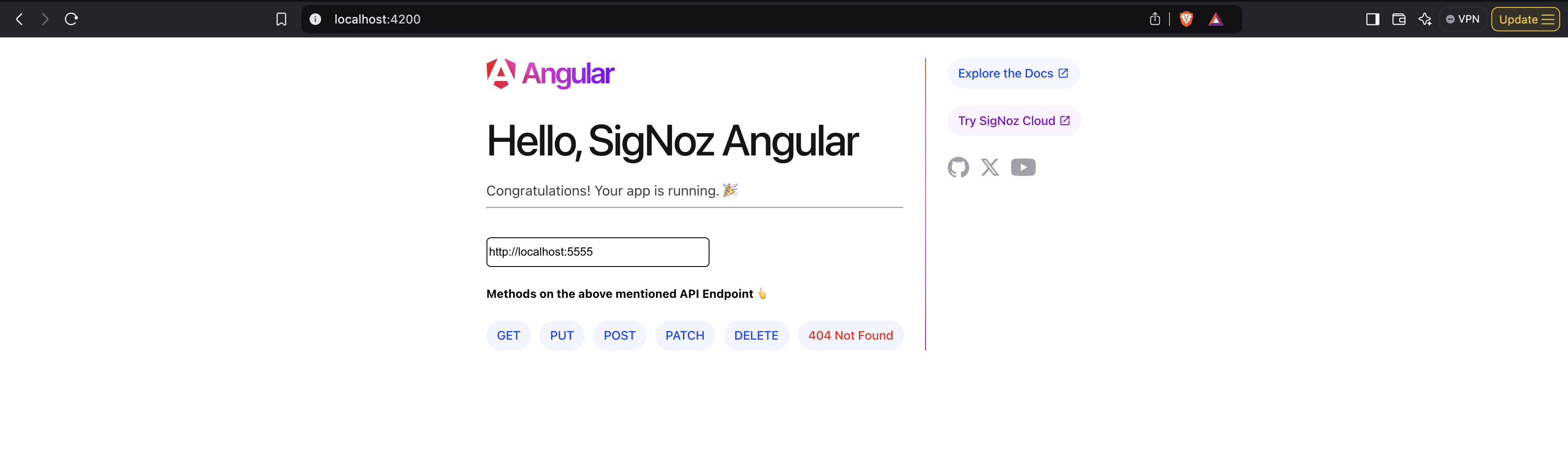

Angular frontend Web UI
Angular Frontend Web UI

Step 8: Monitor your application with SigNoz

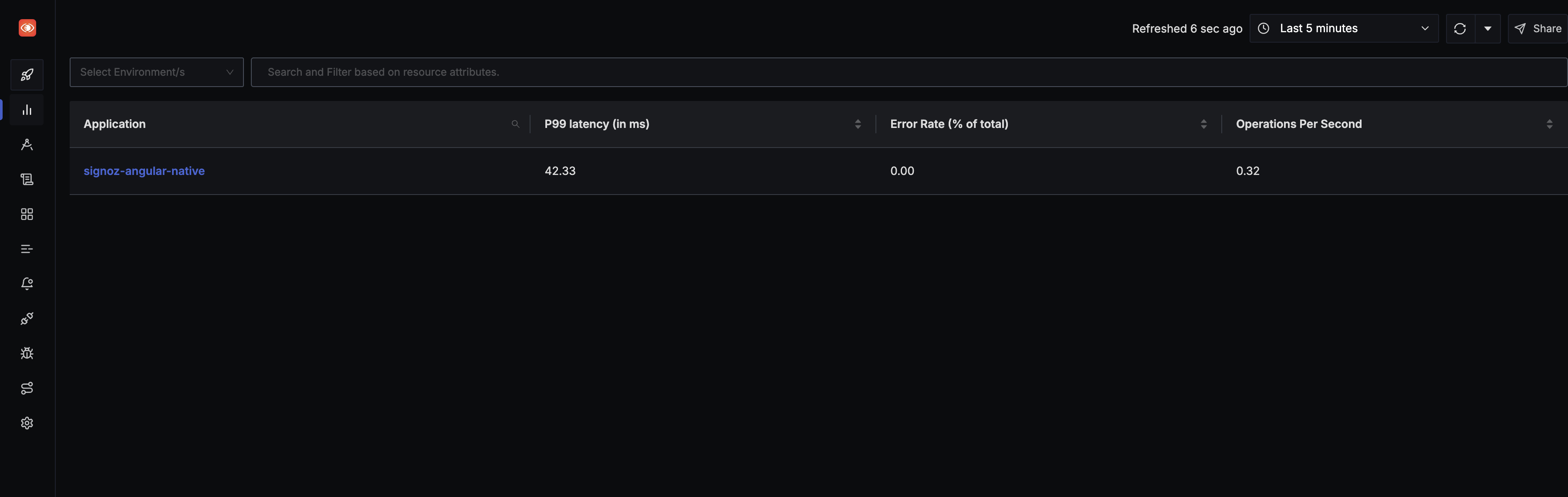

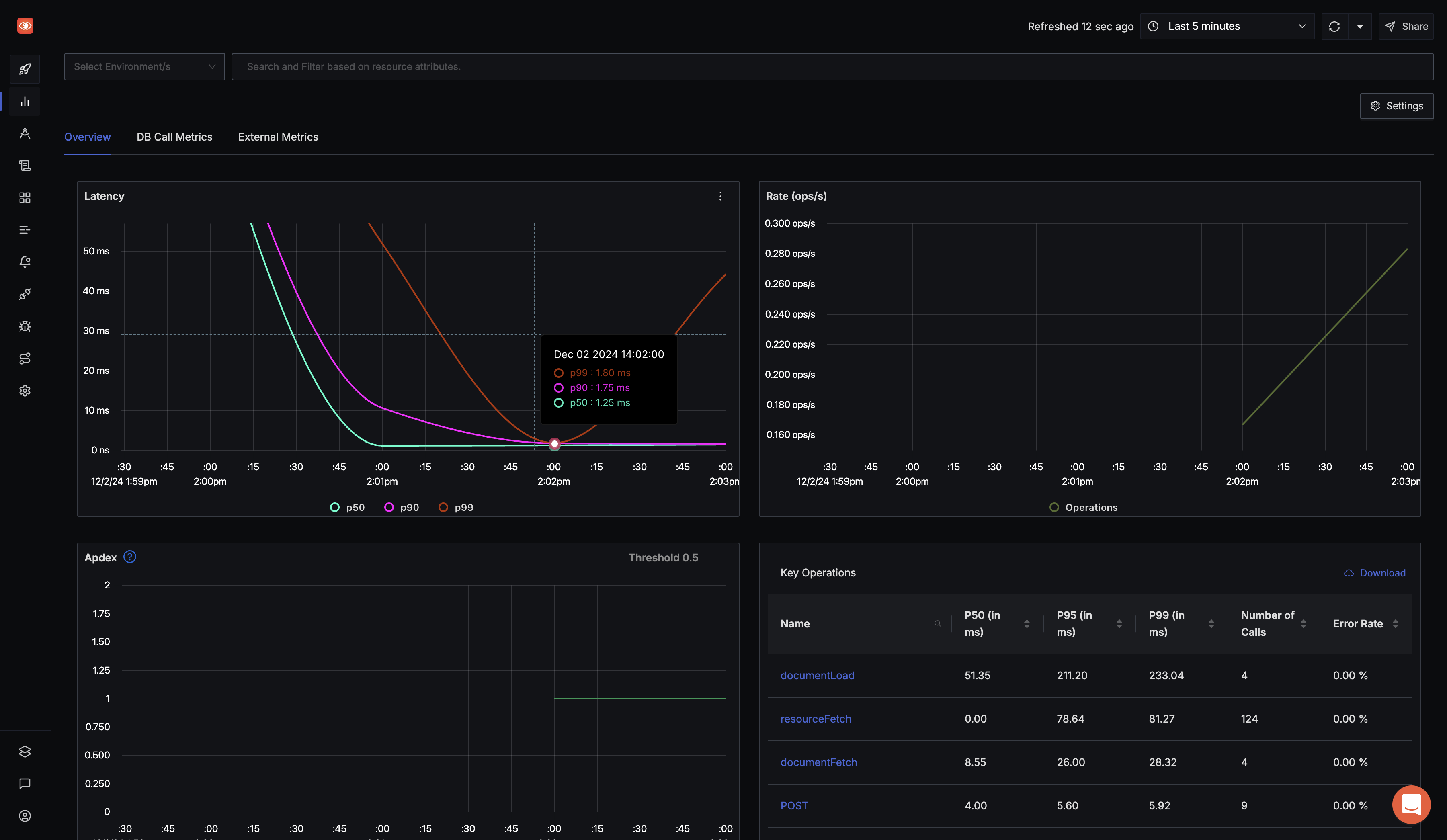

With SigNoz you can monitor the data collected by OpenTelemetry from your sample Angular application. You can see end-to-end traces for your Angular application, starting from your frontend application to the downstream nodejs-sample-app.

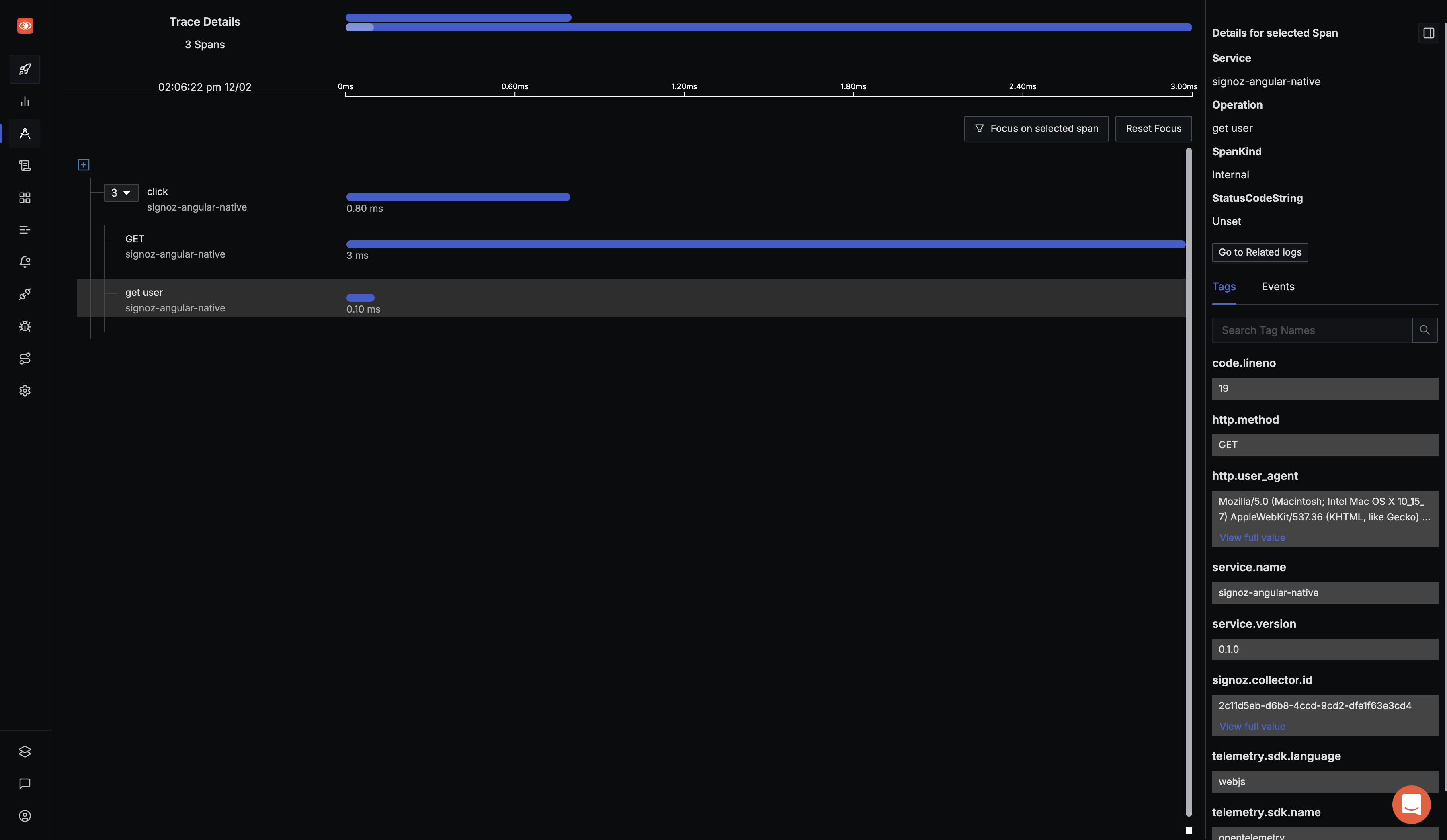

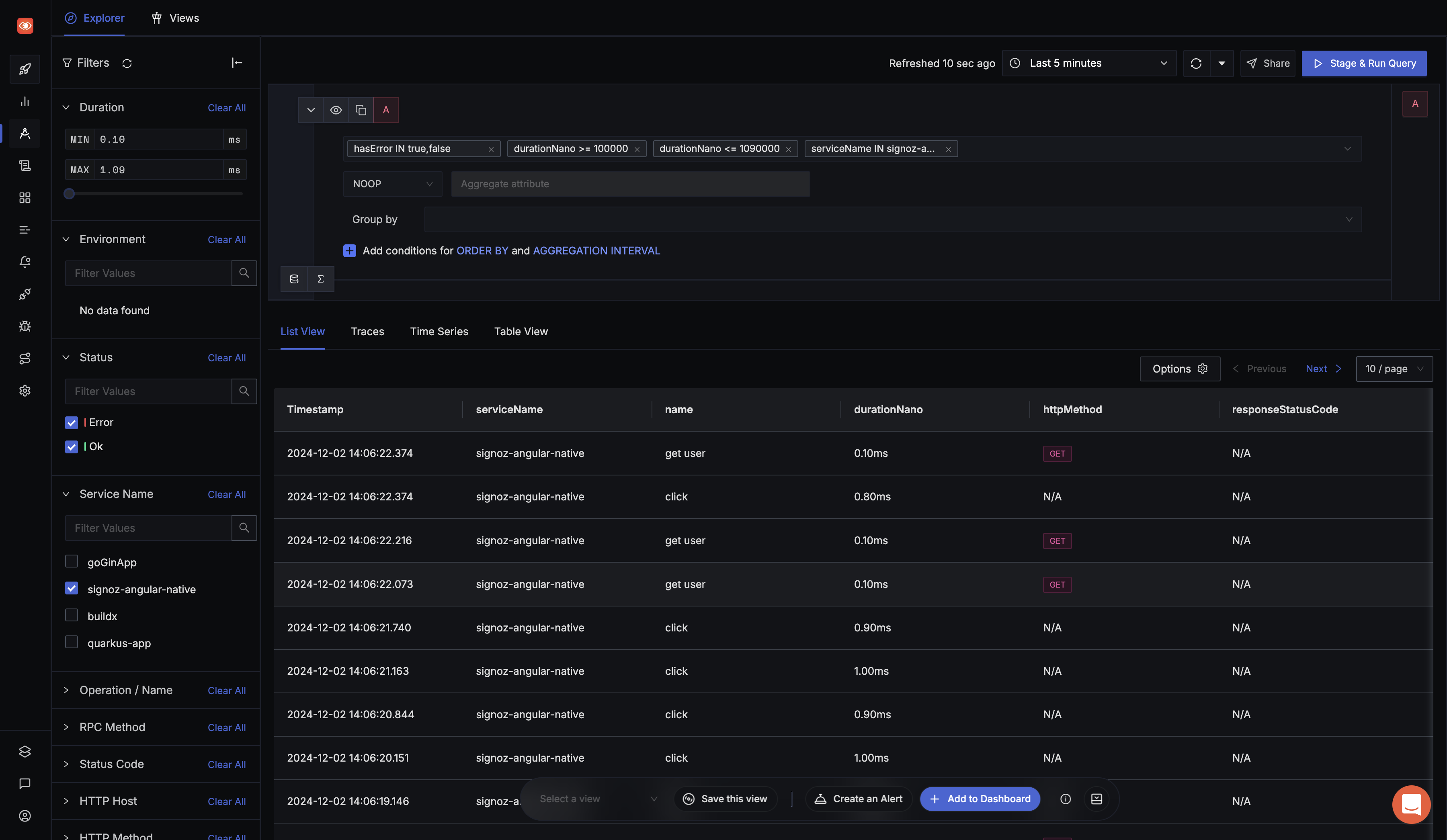

End-to-end tracing of Angular applications
See end-to-end traces from your Angular application to downstream services

You can also monitor errors that takes place in your Angular application. SigNoz UI also shows attributes like http_status_code .

Monitor errors in your frontend Angular applications
Monitor errors in your frontend Angular application

Conclusion

Using OpenTelemetry Angular libraries, you can instrument your frontend applications for end-to-end tracing. You can then use an open-source APM tool like SigNoz to ensure the smooth performance of your Angular apps.

OpenTelemetry is the future for setting up observability for cloud-native apps. It is backed by a huge community and covers a wide variety of technology and frameworks. Using OpenTelemetry, engineering teams can instrument polyglot and distributed applications with peace of mind.

SigNoz is an open-source observability tool that comes with a SaaS-like experience. You can try out SigNoz by visiting its GitHub repo 👇

SigNoz GitHub repo

If you are someone who understands more from video, then you can watch the our video tutorial on how to implement OpenTelemetry Angular libraries and monitor the application with SigNoz.
