Monitor your Nodejs application with OpenTelemetry and SigNoz

OpenTelemetry can auto-instrument many common modules for a Javascript application. The telemetry data captured can then be sent to SigNoz for analysis and visualization.

OpenTelemetry is a set of tools, APIs, and SDKs used to instrument applications to create and manage telemetry data(Logs, metrics, and traces). For any distributed system based on microservice architecture, it's an operational challenge to solve performance issues quickly.

Telemetry data helps engineering teams to troubleshoot issues across services and identify the root causes. In other words, telemetry data powers observability for your distributed applications.

Steps to get started with OpenTelemetry for a Nodejs application:

• Installing SigNoz
• Installing sample Nodejs app
• Set up OpenTelemetry and send data to SigNoz

Installing SigNoz

You can get started with SigNoz using just three commands at your terminal.

git clone -b main https://github.com/SigNoz/signoz.git
cd signoz/deploy/
./install.sh

For detailed instructions, you can visit our documentation.

When you are done installing SigNoz, you can access the UI at: http://localhost:3301

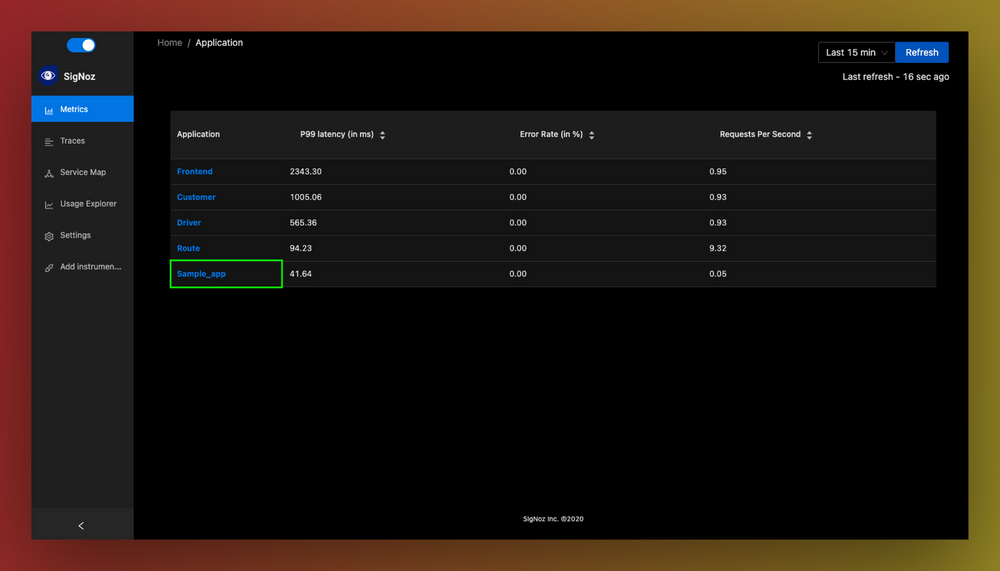

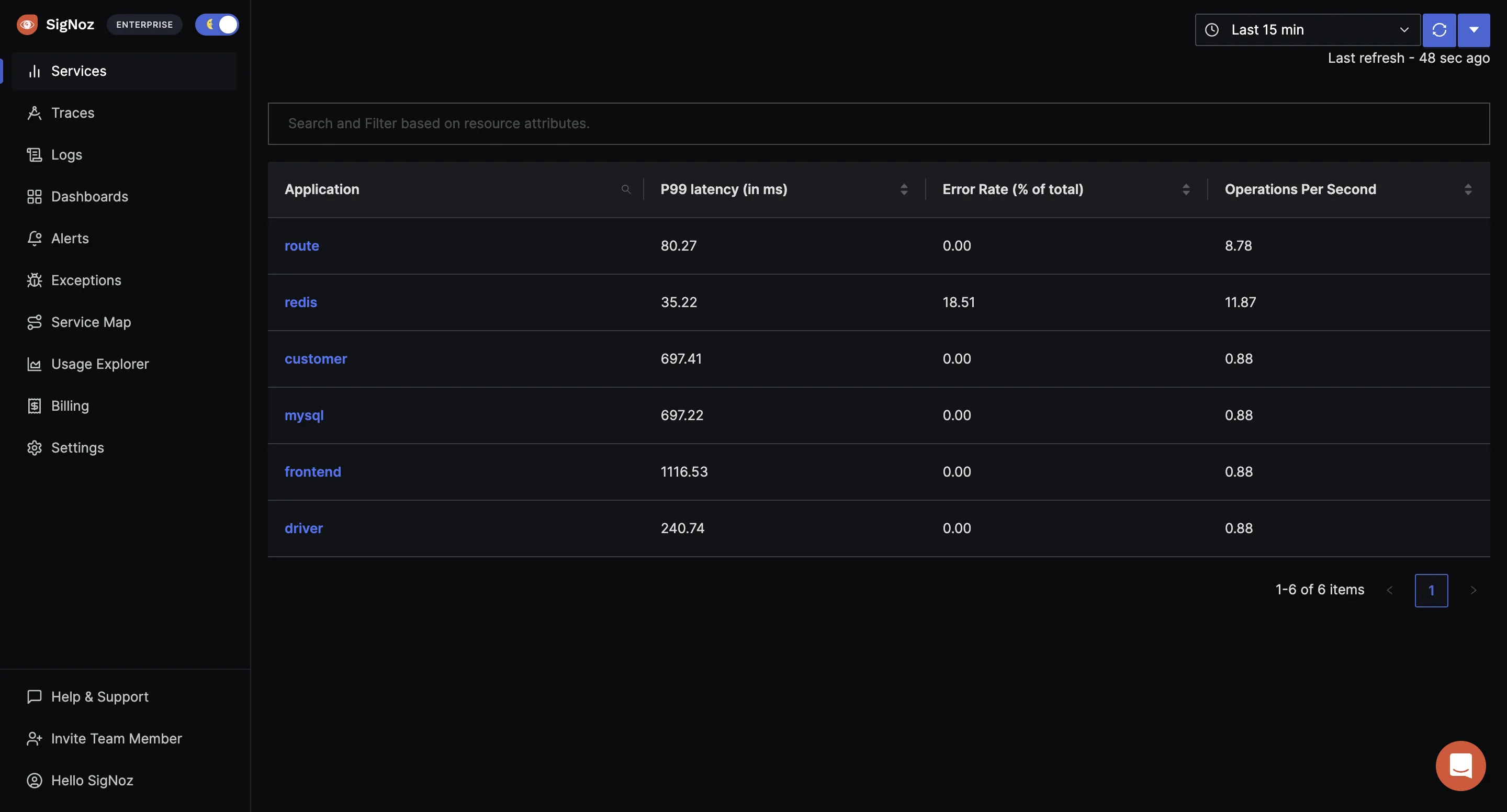

The application list shown in the dashboard is from a sample app called HOT R.O.D that comes bundled with the SigNoz installation package.

Creating sample Nodejs application

You need to ensure that you have Node.js version 12 or newer. You can download the latest version of Node.js here. For the sample application, let's create a basic 'hello world' express.js application.

If you do not want to follow these steps manually, you can directly check out the GitHub repo of the sample application. You can run the app directly after cloning it and start sending data to SigNoz. The code is already instrumented with OpenTelemetry libraries.

But, it would be better if you follow these steps to understand what's happening.

Check if node is installed on your machine by using the below command:

node -v

Steps to get the app set up and running:

1. Make a directory and install express
   Make a directory for your sample app on your machine. Then open up the terminal, navigate to the directory path and install express with the following command:

   npm i express


2. Create index.js
   Create a file called index.js in your directory and with any text editor setup your 'Hello World' file with the code below:

   const express = require("express");
   const cors = require('cors')
   const PORT = process.env.PORT || "5555";
   const app = express();

   app.use(cors());
   app.use(express.json())

   app.all("/", (req, res) => {
    res.json({ method: req.method, message: "Hello World", ...req.body });
    });

    app.get('/404', (req, res) => {
    res.sendStatus(404);
    })

    app.listen(parseInt(PORT, 10), () => {
    console.log(`Listening for requests on http://localhost:${PORT}`);
    })


3. Check if your application is working
   Run your application by using the below command at your terminal.

   node index.js


   You can check if your app is working by visiting: http://localhost:5555/

   Once you are finished checking, exit the application by using Ctrl + C on your terminal.

Set up OpenTelemetry and send data to SigNoz

1. Install OpenTelemetry packages
   You will need the following OpenTelemetry packages for this sample application.

   npm install --save @opentelemetry/sdk-node
   npm install --save @opentelemetry/auto-instrumentations-node
   npm install --save @opentelemetry/exporter-trace-otlp-http


   The dependencies included are briefly explained below:


   @opentelemetry/sdk-node - This package provides the full OpenTelemetry SDK for Node.js including tracing and metrics.


   @opentelemetry/auto-instrumentations-node - This module provides a simple way to initialize multiple Node instrumentations.


   @opentelemetry/exporter-trace-otlp-http - This module provides the exporter to be used with OTLP (http/json) compatible receivers.


   <Admonition"> If you run into any error, you might want to use these pinned versions of OpenTelemetry libraries used in this <a href = "https://github.com/SigNoz/sample-nodejs-app/blob/master/package.json" rel="noopener noreferrer nofollow" target="_blank">GitHub repo</a>. </Admonition>

2. Create tracing.js file
   Instantiate tracing by creating a tracing.js file and using the below code.

   // tracing.js
   'use strict'
   const process = require('process');
   const opentelemetry = require('@opentelemetry/sdk-node');
   const { getNodeAutoInstrumentations } = require('@opentelemetry/auto-instrumentations-node');
   const { OTLPTraceExporter } = require('@opentelemetry/exporter-trace-otlp-http');
   const { Resource } = require('@opentelemetry/resources');
   const { SemanticResourceAttributes } = require('@opentelemetry/semantic-conventions');

   const exporterOptions = {
      url: 'http://localhost:4318/v1/traces'
      }

   const traceExporter = new OTLPTraceExporter(exporterOptions);
   const sdk = new opentelemetry.NodeSDK({
      traceExporter,
      instrumentations: [getNodeAutoInstrumentations()],
      resource: new Resource({
         [SemanticResourceAttributes.SERVICE_NAME]: 'node_app'
         })
   });

   // initialize the SDK and register with the OpenTelemetry API
   // this enables the API to record telemetry

   sdk.start()

   // gracefully shut down the SDK on process exit
   process.on('SIGTERM', () => {
      sdk.shutdown()
    .then(() => console.log('Tracing terminated'))
    .catch((error) => console.log('Error terminating tracing', error))
    .finally(() => process.exit(0));
    });



   OpenTelemetry Node SDK currently does not detect the OTEL_RESOURCE_ATTRIBUTES from .env files as of today. That’s why we need to include the variables in the tracing.js file itself.

   About environment variables:

   service_name: name of the service you want to monitor

   environment: dev, prod, staging, etc.

   http://localhost:4318/v1/traces is the default url for sending your tracing data. We are assuming you have installed SigNoz on your localhost. Based on your environment, you can update it accordingly. It should be in the following format:

   http://<IP of SigNoz backend>:4318/v1/traces

   📝 Note

   Remember to allow incoming requests to port 4318 of machine where SigNoz backend is hosted.

3. Run your application
   Now when you run your application, OpenTelemetry captures telemetry data from it and send it to SigNoz.

   node -r ./tracing.js index.js


   You can check your application running at http://localhost:5555/. You need to generate some load in order to see data reported on SigNoz dashboard. Refresh the endpoint for 10-20 times, and wait for 2-3 mins.

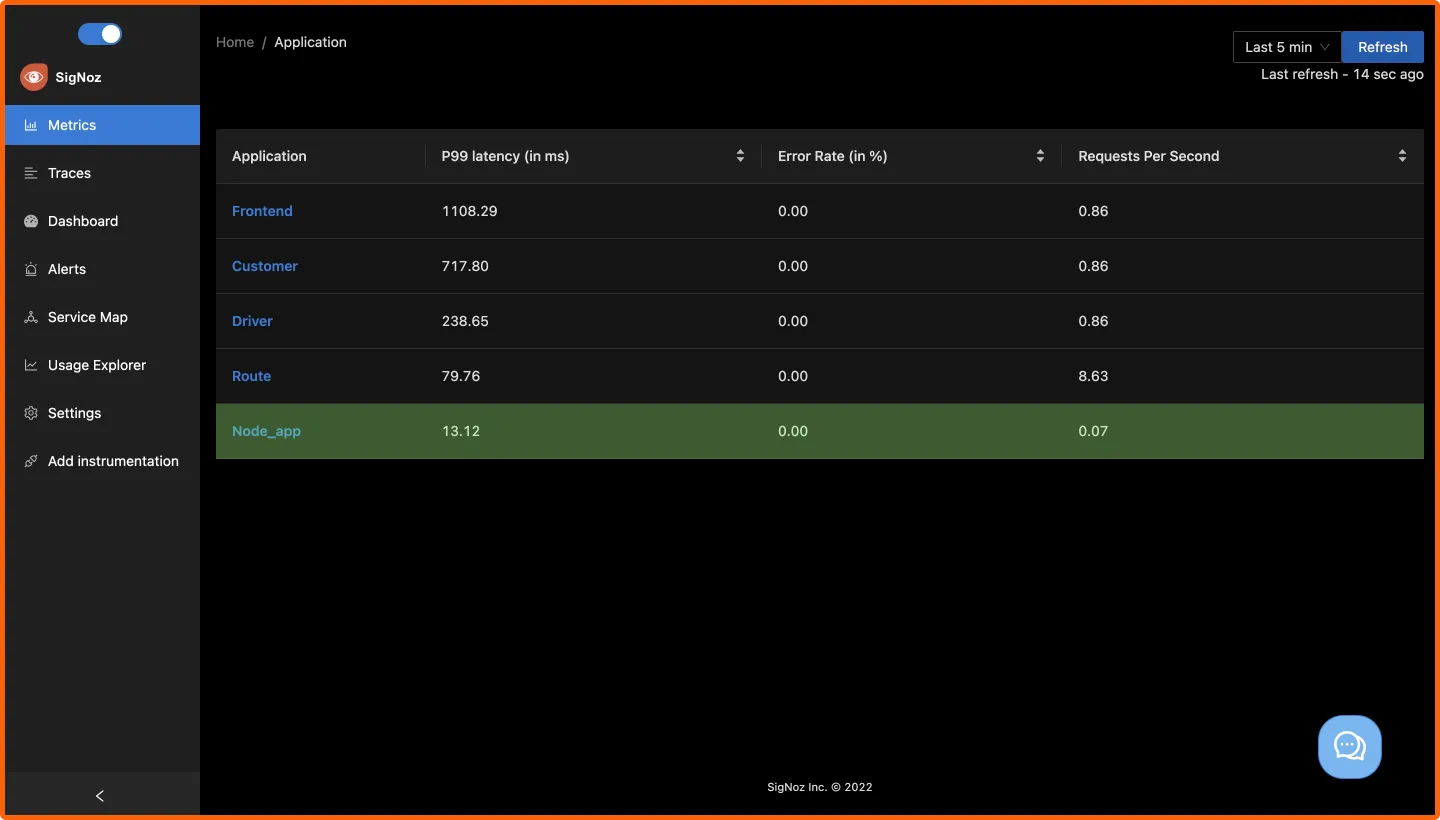

And, congratulations! You have instrumented your sample Node.js app. You can now access the SigNoz dashboard at http://localhost:3301 to monitor your app for performance metrics.

Metrics and Traces of the Nodejs application

SigNoz makes it easy to visualize metrics and traces captured through OpenTelemetry instrumentation.

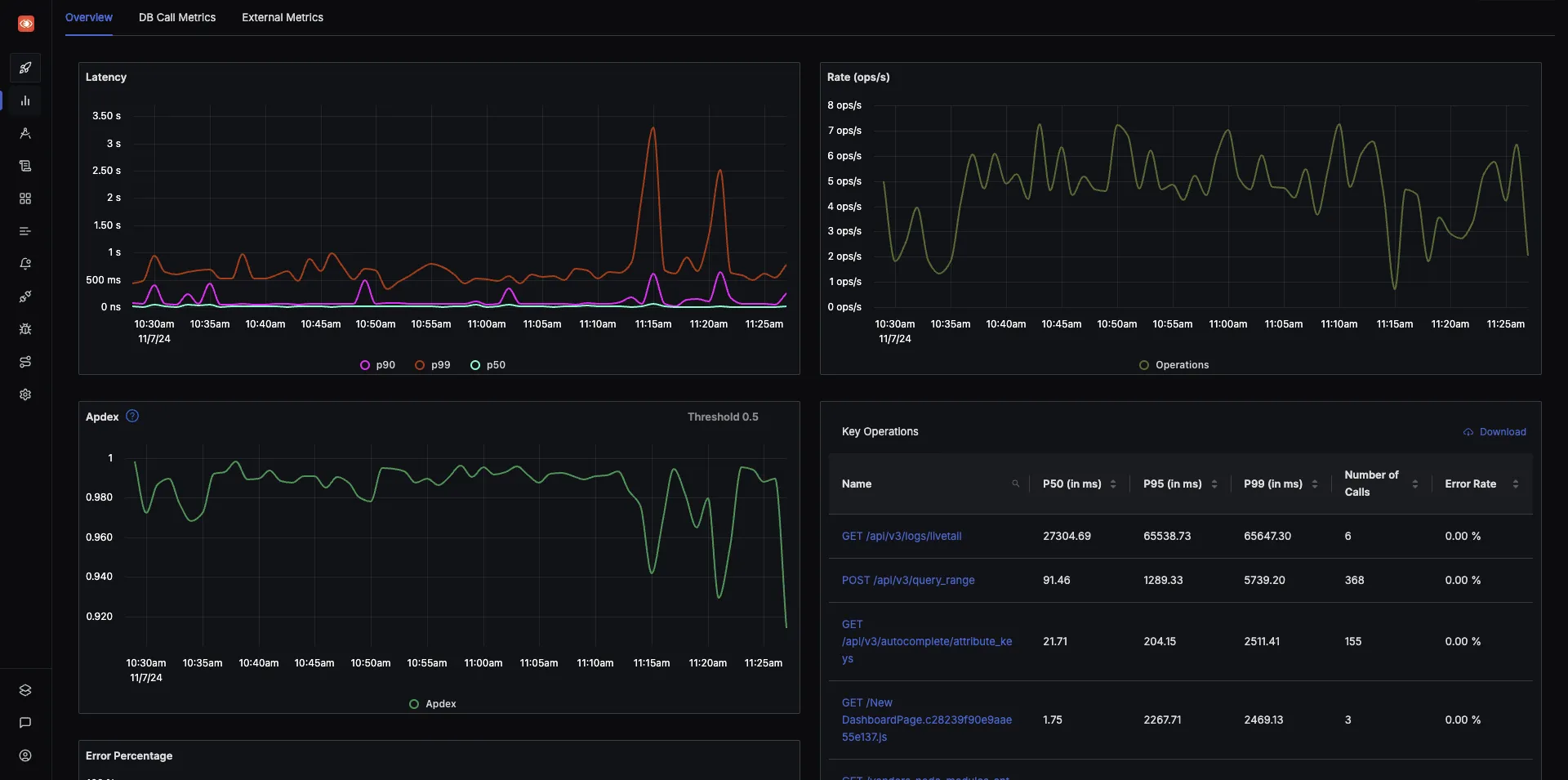

SigNoz comes with out of box RED metrics charts and visualization. RED metrics stands for:

• Rate of requests
• Error rate of requests
• Duration taken by requests

You can then choose a particular timestamp where latency is high to drill down to traces around that timestamp.

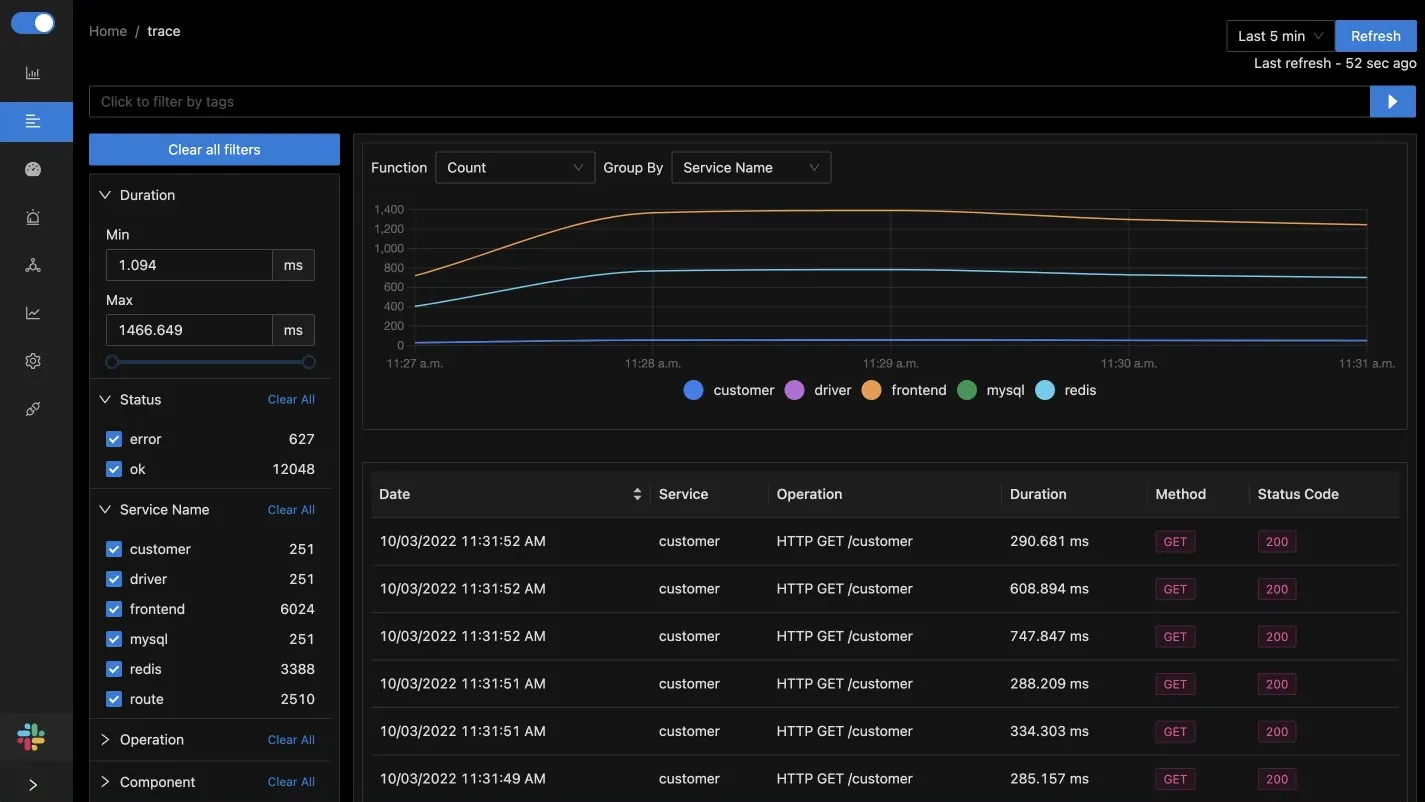

You can use flamegraphs to exactly identify the issue causing the latency.

Conclusion

OpenTelemetry makes it very convenient to instrument your Nodejs application. You can then use an open-source APM tool like SigNoz to analyze the performance of your app. As SigNoz offers a full-stack observability tool, you don't have to use multiple tools for your monitoring needs.
