Send logs from Convex to SigNoz

This guide shows you how to send logs from a Convex backend to SigNoz using Convex log streaming.

Convex log streaming sends logs as JSON or JSONL webhooks with HMAC-SHA256 signatures. SigNoz ingests logs via its JSON logs endpoint. You'll need to deploy a small Express service that:

  1. Receives and verifies Convex webhook requests
  2. Transforms Convex log events for SigNoz
  3. Forwards them to SigNoz Cloud

Prerequisites

  • A Convex project on the Professional plan (log streaming requires this plan)
  • A SigNoz Cloud account with an ingestion key
  • Node.js 18+ installed locally or a platform to deploy the bridge (Vercel, Railway, AWS, etc.)

Architecture

Architecture diagram showing Convex sending webhooks to Express Webhook Bridge which forwards logs to SigNoz Cloud
Convex log streaming architecture

The Webhook Bridge handles:

  • Security: Verifies x-webhook-signature header using HMAC-SHA256
  • Parsing: Supports both JSON and JSONL formats from Convex
  • Transformation: Adds a body field and structures attributes for SigNoz
  • Export: Sends logs to SigNoz via the native JSON logs endpoint

Step 1: Create the Webhook Bridge

Create a new directory and initialize a Node.js project:

mkdir convex-signoz-bridge
cd convex-signoz-bridge
npm init -y
npm install express

Create a file named index.js with the following code:

index.js
import express from "express";
import crypto from "node:crypto";

const app = express();
const port = process.env.PORT || 3080;

// Parse all request bodies as text for signature verification
app.use(
  express.text({
    type: "*/*",
    limit: "5mb",
  })
);

app.post("/webhook", async (req, res) => {
  const textPayload = req.body;
  const signature = req.headers["x-webhook-signature"];

  if (!signature) {
    return res.status(401).send("Unauthorized: Missing signature");
  }

  if (!process.env.WEBHOOK_SECRET) {
    console.error("Missing WEBHOOK_SECRET environment variable");
    return res.status(500).send("Server configuration error");
  }

  try {
    // 1. Verify HMAC-SHA256 Signature
    const hmacSecret = await crypto.subtle.importKey(
      "raw",
      new TextEncoder().encode(process.env.WEBHOOK_SECRET),
      { name: "HMAC", hash: "SHA-256" },
      false,
      ["verify"]
    );

    const isValid = await crypto.subtle.verify(
      "HMAC",
      hmacSecret,
      Buffer.from(signature.replace("sha256=", ""), "hex"),
      new TextEncoder().encode(textPayload)
    );

    if (!isValid) {
      return res.status(401).send("Unauthorized: Invalid signature");
    }

    // 2. Parse Payload (JSON or JSONL)
    let logs;
    try {
      logs = JSON.parse(textPayload);
      if (!Array.isArray(logs)) logs = [logs];
    } catch {
      // Try JSONL format
      logs = textPayload
        .split("\n")
        .filter((line) => line.trim())
        .map((line) => JSON.parse(line));
    }

    // 3. Handle Verification Ping
    if (logs.length === 1 && logs[0].topic === "verification") {
      console.log("Received verification ping from Convex");
      return res.send("Verification successful");
    }

    // 4. Replay Attack Protection
    const firstLog = logs[0];
    if (firstLog.timestamp && firstLog.timestamp < Date.now() - 5 * 60 * 1000) {
      return res.status(403).send("Request expired");
    }

    // 5. Transform and Send to SigNoz
    await sendToSigNoz(logs);
    res.send("Success");
  } catch (error) {
    console.error("Error processing webhook:", error);
    res.status(500).send("Internal server error");
  }
});

async function sendToSigNoz(logs) {
  const ingestionKey = process.env.SIGNOZ_INGESTION_KEY;
  const serviceName = process.env.SERVICE_NAME || "convex-logs";

  if (!ingestionKey) {
    console.warn("Skipping SigNoz export: Missing SIGNOZ_INGESTION_KEY");
    return;
  }

  const url = `https://ingest.<region>.signoz.cloud:443/logs/json`;

  const transformedLogs = logs.map((log) => {
    const newLog = { ...log };

    // Set resource attributes
    newLog.resources = {
      "service.name": serviceName,
    };

    // Map Convex log_level to OTel severity_text
    const severityMap = {
      DEBUG: "DEBUG",
      INFO: "INFO",
      LOG: "INFO",
      WARN: "WARN",
      ERROR: "ERROR",
    };
    newLog.severity_text = severityMap[log.log_level] || "INFO";

    // Add a 'body' field for the log message
    if (!newLog.body) {
      if (newLog.message) {
        newLog.body = newLog.message;
      } else if (newLog.topic === "function_execution" && newLog.function) {
        newLog.body = `Function: ${newLog.function.path} (${newLog.status || "unknown"}) in ${newLog.execution_time_ms ?? "?"}ms`;
      } else if (newLog.topic === "audit_log") {
        newLog.body = `Audit: ${newLog.audit_log_action}`;
      } else {
        newLog.body = `Convex: ${newLog.topic}`;
      }
    }

    // Structure attributes for querying in SigNoz
    newLog.attributes = {
      "convex.topic": newLog.topic,
      "convex.deployment": newLog.convex?.deployment_name,
      "convex.project": newLog.convex?.project_name,
      ...newLog.attributes,
    };

    return newLog;
  });

  const response = await fetch(url, {
    method: "POST",
    headers: {
      "Content-Type": "application/json",
      "signoz-ingestion-key": ingestionKey,
    },
    body: JSON.stringify(transformedLogs),
  });

  if (!response.ok) {
    const text = await response.text();
    console.error(`Failed to send to SigNoz: ${response.status} ${text}`);
  } else {
    console.log(`Sent ${logs.length} logs to SigNoz`);
  }
}

app.listen(port, () => {
  console.log(`Webhook Bridge running on port ${port}`);
});

Add "type": "module" to your package.json to enable ES modules:

package.json
{
  "type": "module"
}

Step 2: Configure and Run Webhook Bridge

Set the required environment variables:

export REGION="<region>"
export SIGNOZ_INGESTION_KEY="<your-ingestion-key>"
export WEBHOOK_SECRET="<your-convex-secret>"
export SERVICE_NAME="<service-name>"  # Optional
export PORT="<port>"  # Optional

Verify these values:

  • <region>: Your SigNoz Cloud region
  • <your-ingestion-key>: Your SigNoz ingestion key
  • <your-convex-secret>: The HMAC secret from your Convex dashboard
  • <service-name>: (Optional) Service name for logs in SigNoz, defaults to convex-logs
  • <port>: (Optional) Server port, defaults to 3080

Start the bridge:

npm run start

Test the bridge is running:

curl -X POST http://localhost:3080/webhook -d '{"topic":"test"}' -H "x-webhook-signature: sha256=invalid"
# Expected: "Unauthorized: Invalid signature"

For production, deploy to any Node.js hosting platform (Railway, Render, AWS, etc.) and note the public HTTPS URL.

Step 3: Configure Convex Log Streaming

  1. Open your Convex Dashboard
  2. Go to SettingsIntegrations
  3. Select Webhook (Log Stream)
  4. Set the webhook URL to your bridge endpoint:
    https://<your-bridge-host>/webhook

  5. Select format: JSON or JSONL
  6. Click Save
  7. Copy the HMAC Secret and set it as WEBHOOK_SECRET in your bridge

Convex immediately starts sending logs to the webhook.

Validate

  1. Trigger a Convex function that produces logs (e.g., console.log("Hello from Convex"))
  2. Open SigNozLogs Explorer
  3. Filter logs using:
    • convex.topic
    • convex.deployment
    • convex.project

Logs should appear within a few seconds.

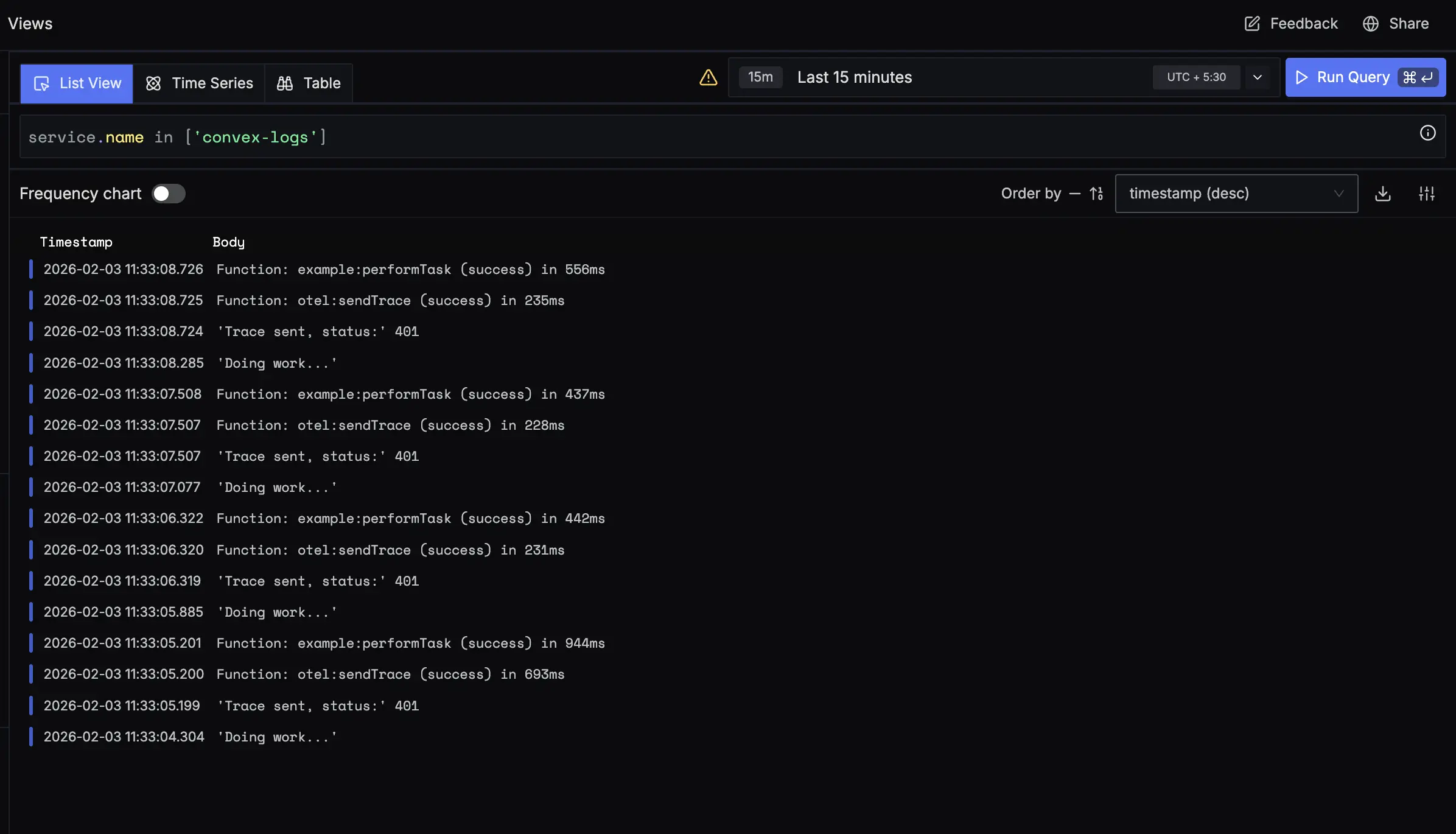

SigNoz Logs Explorer showing Convex logs with attributes like convex.topic and convex.deployment
Convex logs in SigNoz Logs Explorer

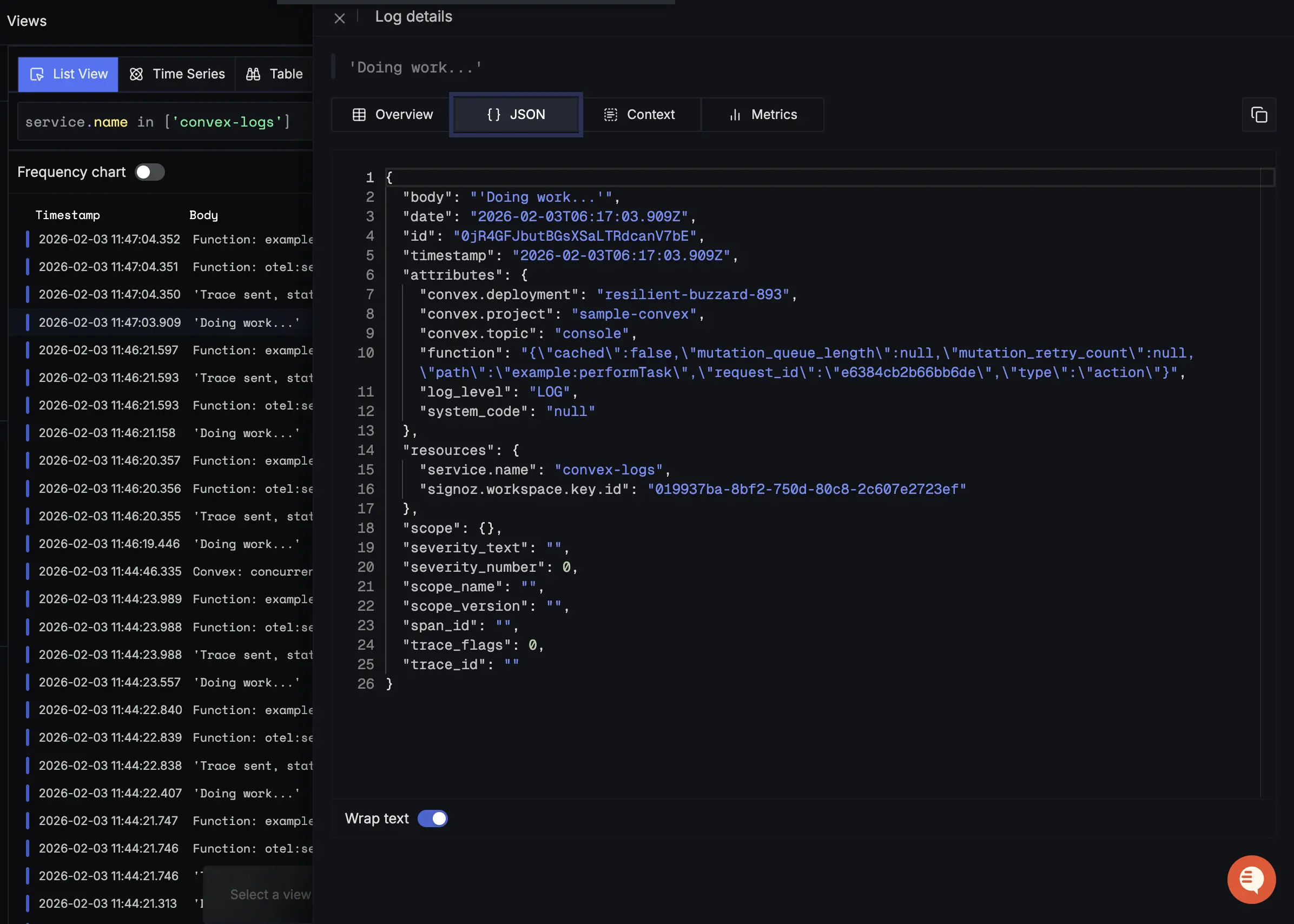

Detailed log pane showing all Convex log attributes and message body
Log details pane showing Convex function execution details

Limitations

  • Log streaming requires the Convex Professional plan
  • The Webhook Bridge must be publicly accessible over HTTPS
  • Convex provides best-effort delivery (logs may be dropped under high load or duplicated on retry)

Troubleshooting

Logs do not appear in SigNoz

Possible causes

  • Webhook Bridge not reachable from the internet
  • SIGNOZ_INGESTION_KEY is incorrect
  • WEBHOOK_SECRET doesn't match the Convex dashboard

Fix

  • Test the bridge URL is accessible: curl https://<your-bridge>/webhook
  • Check bridge logs for errors
  • Verify your SigNoz region and ingestion key

Bridge returns 401 Unauthorized

Possible causes

  • HMAC signature verification is failing
  • WEBHOOK_SECRET environment variable is missing or wrong

Fix

  • Ensure WEBHOOK_SECRET exactly matches the secret from Convex dashboard
  • Check that the raw request body is being used for verification (not parsed JSON)

Missing log attributes in SigNoz

Possible causes

  • Log transformation doesn't extract all fields from your event type

Fix

  • Add console logging to inspect the raw Convex payload
  • Update the transformedLogs mapping to include additional fields
  • See the Convex log event schema for all available fields

Next Steps

  • Explore the Logs Explorer to query and filter Convex logs
  • Create alerts on Convex error logs or specific log patterns
  • Learn how to create dashboards to visualize your Convex log trends
